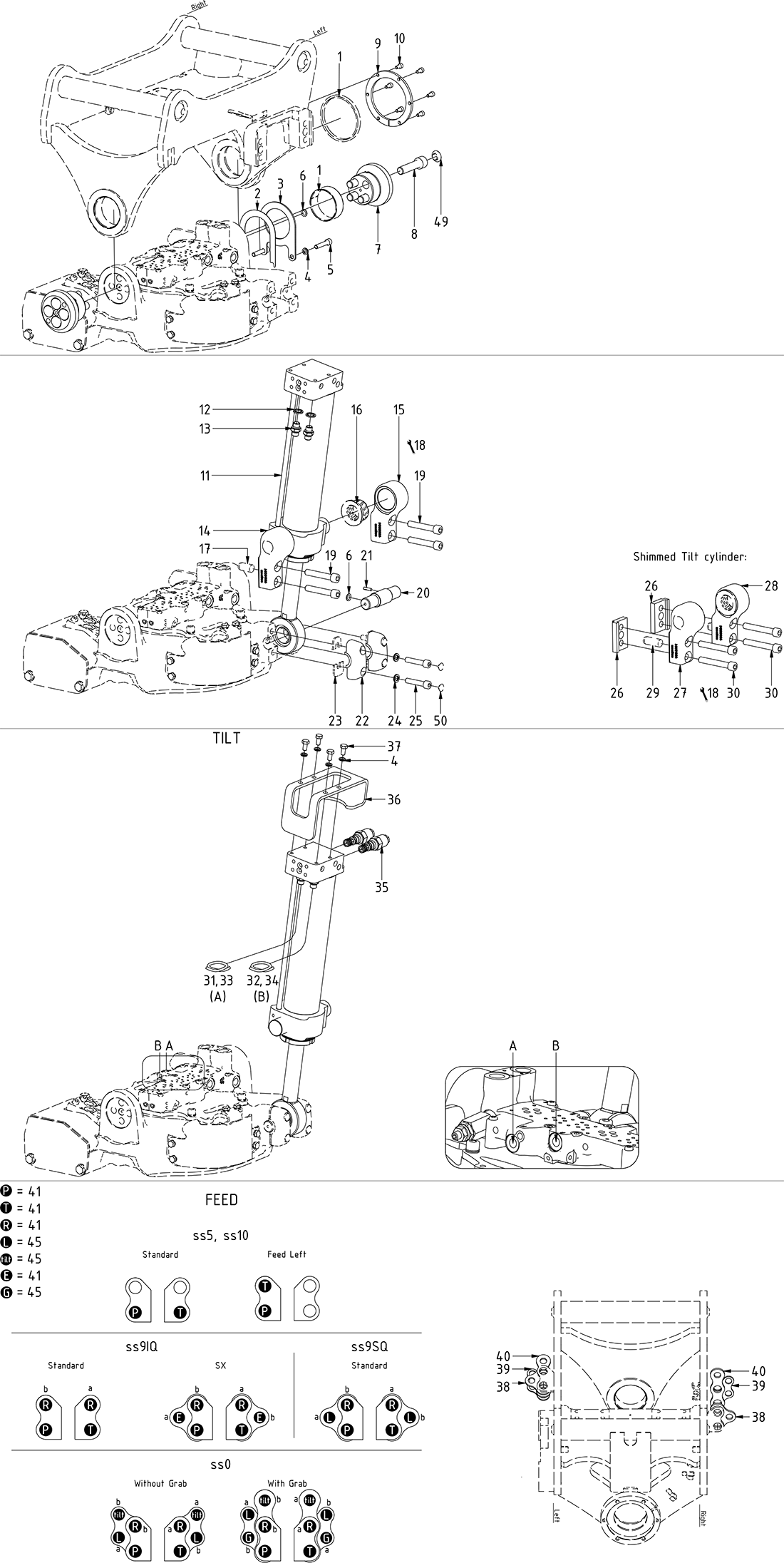

Std. Top components

Pos

Artikel

Extra Info

Aantal in tekening

Prijs (excl. BTW)

Screw cover M10 - clamping half EC206,209,214

Article no: 1021468

Position50

Aantal in tekening4

Screw cover M10 - clamping half EC206,209,214

Article no: 1021468

Part of make up

Yoke Bracket EC206/206B front complete cast

Article no: 1023824

Position14

Aantal in tekening2

Yoke Bracket EC206/206B front complete cast

Article no: 1023824

(POS.16-17 included)

Screw MC6S 16x65 12.9 ZFSHL

Article no: 6000170

Position8

Aantal in tekening8

Screw MC6S 16x65 12.9 ZFSHL

Article no: 6000170

Torque: 333Nm

Shim tilt axle - EC206, EC206B, EC209, EC209B 0,5mm

Article no: 1016499

Position2

Aantal in tekening1

Shim tilt axle - EC206, EC206B, EC209, EC209B 0,5mm

Article no: 1016499

Use if required

Protection Plate tilt axle EC206/EC209

Article no: 1064716

Position9

Aantal in tekening1

Protection Plate tilt axle EC206/EC209

Article no: 1064716

Hose bracket EC05B/EC206-straight Plate for locking hose

Article no: 1011454

Position40

Aantal in tekening2

Hose bracket EC05B/EC206-straight Plate for locking hose

Article no: 1011454

For ss0 with Grab

Overcenter adjustable-EC206/209/214/219W/226W/05B-15B

Article no: 730269

Position35

Aantal in tekening2

Overcenter adjustable-EC206/209/214/219W/226W/05B-15B

Article no: 730269

Torque: 45Nm

Hose Tilt Short - EC206

Article no: 742911

Position32

Aantal in tekening1

Hose Tilt Short - EC206

Article no: 742911

Connect to valve block B

Cylindrical pin CPK Ø16x45 m6

Article no: 650218

Position29

Aantal in tekening2

Cylindrical pin CPK Ø16x45 m6

Article no: 650218

Nut bulkhead adapter 1270-06

Article no: 710252

Position44

Aantal in tekening2

Nut bulkhead adapter 1270-06

Article no: 710252

Adapter bulkhead 1260-06-32

Article no: 710242

Position43

Aantal in tekening2

Adapter bulkhead 1260-06-32

Article no: 710242

Hose

Article no: 7000325

Position34

Aantal in tekening1

Hose

Article no: 7000325

Connect to terminal

Screw M6S 8x16 8.8 FZB ISO4017

Article no: 610122

Position37

Aantal in tekening4

Screw M6S 8x16 8.8 FZB ISO4017

Article no: 610122

Yoke Bracket EC206 rear complete cast wide

Article no: 1040380

Position28

Aantal in tekening1

Yoke Bracket EC206 rear complete cast wide

Article no: 1040380

(POS.16, 29 included)

Hose bracket EC206-sheet metal for 2 locking hose-fixed

Article no: 1026096

Position39

Aantal in tekening2

Hose bracket EC206-sheet metal for 2 locking hose-fixed

Article no: 1026096

For ss0

Hose Tilt Long - EC206

Article no: 742912

Position31

Aantal in tekening1

Hose Tilt Long - EC206

Article no: 742912

Connect to valve block A

Screw cover M16 - cast yoke & tilt axle

Article no: 1004801

Position49

Aantal in tekening8

Screw cover M16 - cast yoke & tilt axle

Article no: 1004801

Part of make up

Cylindrical pin CPK Ø16x36 m6

Article no: 650215

Position17

Aantal in tekening2

Cylindrical pin CPK Ø16x36 m6

Article no: 650215

Hose bracket expansion (3x3/8")

Article no: 1011565

Position38

Aantal in tekening2

Hose bracket expansion (3x3/8")

Article no: 1011565

For ss9

Clamping half EC206,209,214 EngconYellow complete

Article no: 1022942

Position22

Aantal in tekening2

Clamping half EC206,209,214 EngconYellow complete

Article no: 1022942

(POS.23 included)

Adapter bulkhead 1260-04-04

Article no: 710240

Position47

Aantal in tekening2

Adapter bulkhead 1260-04-04

Article no: 710240

Shim yoke bracket - EC05B, EC206 - 11mm

Article no: 1006199

Position26

Aantal in tekening2

Shim yoke bracket - EC05B, EC206 - 11mm

Article no: 1006199

For option Shimmed Tilt cylinder

Washer NL16-DPE 17,0x25,4x3,7

Article no: 611044

Position42

Aantal in tekening2

Washer NL16-DPE 17,0x25,4x3,7

Article no: 611044

Hose

Article no: 7000324

Position33

Aantal in tekening1

Hose

Article no: 7000324

Connect to terminal

Screw MC6S 12x80 12.9 ZFSHL ISO4762

Article no: 6000148

Position30

Aantal in tekening4

Screw MC6S 12x80 12.9 ZFSHL ISO4762

Article no: 6000148

Torque: 136Nm

Tilt axial washer EC206, EC206B, EC209, EC209B

Article no: 1016461

Position3

Aantal in tekening1

Tilt axial washer EC206, EC206B, EC209, EC209B

Article no: 1016461

Tilt cylinder EC206, EC206B

Article no: 1066135

Position11

Aantal in tekening1

Tilt cylinder EC206, EC206B

Article no: 1066135

See "Tilt cylinders"

Yoke Bracket EC206/206B rear complete cast

Article no: 1023823

Position15

Aantal in tekening2

Yoke Bracket EC206/206B rear complete cast

Article no: 1023823

(POS.16-17 included)

Spacer clamping half rubber EC206,209,214

Article no: 1016465

Position23

Aantal in tekening2

Spacer clamping half rubber EC206,209,214

Article no: 1016465

Washer NL1/2"-DPE 13,5x19,5x2,5

Article no: 611096

Position46

Aantal in tekening2

Washer NL1/2"-DPE 13,5x19,5x2,5

Article no: 611096

Hose protection Tiltcyl EC05B-15B, 206-214 overcenter

Article no: 1003774

Position36

Aantal in tekening1

Hose protection Tiltcyl EC05B-15B, 206-214 overcenter

Article no: 1003774

Nut bulkhead adapter 1270-04

Article no: 710250

Position48

Aantal in tekening2

Nut bulkhead adapter 1270-04

Article no: 710250

Screw MC6S 12x70 12.9 ZFSHL ISO4762

Article no: 611517

Position19

Aantal in tekening4

Screw MC6S 12x70 12.9 ZFSHL ISO4762

Article no: 611517

Torque: 136Nm

Screw MC6S 6x12H 12.9 ZFSHL ISO4762

Article no: 6000352

Position10

Aantal in tekening6

Screw MC6S 6x12H 12.9 ZFSHL ISO4762

Article no: 6000352

Adapter 138-04-29 ( compact 136-04-04 )

Article no: 710135

Position13

Aantal in tekening2

Adapter 138-04-29 ( compact 136-04-04 )

Article no: 710135

Screw MC6S 10x50 12.9 ZFSHL ISO4762

Article no: 611515

Position25

Aantal in tekening4

Screw MC6S 10x50 12.9 ZFSHL ISO4762

Article no: 611515

Torque: 79Nm

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Position24

Aantal in tekening4

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Seal washer GBR04 1/4"

Article no: 710702

Position12

Aantal in tekening2

Seal washer GBR04 1/4"

Article no: 710702

Screw MC6S 8x40 12.9 ZFSHL ISO4762

Article no: 6000145

Position5

Aantal in tekening2

Screw MC6S 8x40 12.9 ZFSHL ISO4762

Article no: 6000145

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Position4

Aantal in tekening6

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

QTY: 4 part of Tilt cylinder

Bushing tilt EC206, EC209 WB802 65/70x25

Article no: 630322

Position1

Aantal in tekening2

Bushing tilt EC206, EC209 WB802 65/70x25

Article no: 630322

(Included in Top part)

O-ring 9,92x2,62 NBR 70 shore EC209/219/226 cylinder axle

Article no: 710968

Position6

Aantal in tekening3

O-ring 9,92x2,62 NBR 70 shore EC209/219/226 cylinder axle

Article no: 710968

Bushing BWG-F 35/45/55/5x30

Article no: 631003

Position16

Aantal in tekening2

Bushing BWG-F 35/45/55/5x30

Article no: 631003

Slotted pin RPE5x20

Article no: 640413

Position21

Aantal in tekening1

Slotted pin RPE5x20

Article no: 640413

Cylinder axle EC206, EC206B, EC209, EC209B, EC214

Article no: 1016458

Position20

Aantal in tekening1

Cylinder axle EC206, EC206B, EC209, EC209B, EC214

Article no: 1016458

Tilt axle EC206S/EC206BS/EC209S/EC209BS

Article no: 1062499

Position7

Aantal in tekening2

Tilt axle EC206S/EC206BS/EC209S/EC209BS

Article no: 1062499
