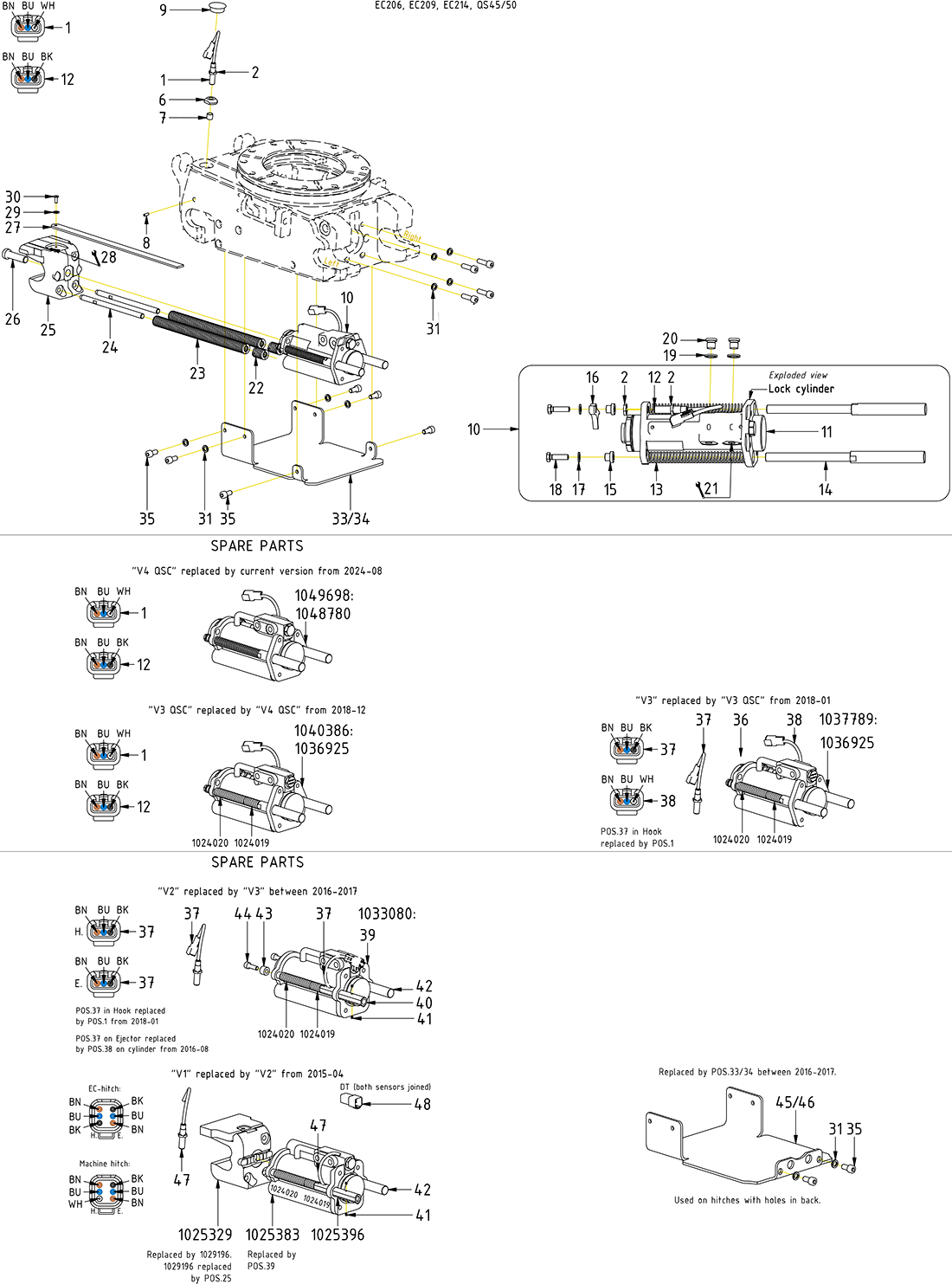

Std comp. QS45/50

Pos

Artikel

Extra Info

Aantal in tekening

Prijs (excl. BTW)

Screw MC6S 8x25 12.9 ZFSHL ISO4762

Article no: 6000143

Position44

Aantal in tekening2

Screw MC6S 8x25 12.9 ZFSHL ISO4762

Article no: 6000143

Inductive sensor M12 DTM04-3P - Locking cylinder

Article no: 1036833

Position38

Aantal in tekening1

Inductive sensor M12 DTM04-3P - Locking cylinder

Article no: 1036833

Replaced by POS.12 from 2018-01

Inductive sensor M12 DTM04-3P - Locking cylinder QSC - 645mm

Article no: 1040359

Position12

Aantal in tekening1

Inductive sensor M12 DTM04-3P - Locking cylinder QSC - 645mm

Article no: 1040359

Mount 1mm from Sensor plate

Locking cylinder QS45/QS50 V4 pre-assembled-Not QSC

Article no: 1050634

Position36

Aantal in tekening1

Locking cylinder QS45/QS50 V4 pre-assembled-Not QSC

Article no: 1050634

Spare part use only

Screw MS6SS 8x16 ISO4027

Article no: 610808

Position8

Aantal in tekening1

Screw MS6SS 8x16 ISO4027

Article no: 610808

Inductive sensor M12 IF6079

Article no: 810463

Position47

Aantal in tekening2

Inductive sensor M12 IF6079

Article no: 810463

Replaced by POS.38 from 2015-04

Spring QS45/50/60 Ejectors - 16x175

Article no: 1049973

Position13

Aantal in tekening2

Spring QS45/50/60 Ejectors - 16x175

Article no: 1049973

Deutsch DT04-6P connector device

Article no: 820109

Position48

Aantal in tekening1

Deutsch DT04-6P connector device

Article no: 820109

Used until 2015-04

Screw MC6S 10x20 12.9 ZFSHL ISO4762

Article no: 6000409

Position35

Aantal in tekening8

Screw MC6S 10x20 12.9 ZFSHL ISO4762

Article no: 6000409

Cover plate QS50-without ECO-block V2

Article no: 1039655

Position34

Aantal in tekening1

Cover plate QS50-without ECO-block V2

Article no: 1039655

No cover plate for EC-Oil

Protective sleeve Inductive sensor M12

Article no: 8000056

Position7

Aantal in tekening1

Protective sleeve Inductive sensor M12

Article no: 8000056

Washer BRB FZB 8,4x16x1,6 ISO7089

Article no: 611005

Position17

Aantal in tekening2

Washer BRB FZB 8,4x16x1,6 ISO7089

Article no: 611005

Screw MLC6S 16x60 10.9 DIN7984 untreated

Article no: 610721

Position26

Aantal in tekening1

Screw MLC6S 16x60 10.9 DIN7984 untreated

Article no: 610721

Loxeal 83-52

Spacer QS45-QS60

Article no: 1025462

Position43

Aantal in tekening2

Spacer QS45-QS60

Article no: 1025462

Cover plate QS45-without ECO-block V2

Article no: 1037473

Position33

Aantal in tekening1

Cover plate QS45-without ECO-block V2

Article no: 1037473

No cover plate for EC-Oil

Cover plate QS45-without ECO-block

Article no: 1028214

Position45

Aantal in tekening1

Cover plate QS45-without ECO-block

Article no: 1028214

Replacd by POS.33. Note holes

Washer Starlock 6mm

Article no: 6000415

Position29

Aantal in tekening1

Washer Starlock 6mm

Article no: 6000415

Sensor plate QS45-QS50

Article no: 1036988

Position16

Aantal in tekening1

Sensor plate QS45-QS50

Article no: 1036988

Assemble with slight play

Locking cylinder QS45/50 V4 Forged QSC pre-assembled

Article no: 1072391

Position10

Aantal in tekening1

Locking cylinder QS45/50 V4 Forged QSC pre-assembled

Article no: 1072391

(POS.11-18 incl.)

Ejector QS45/50 with sensor-DTM

Article no: 1029065

Position40

Aantal in tekening1

Ejector QS45/50 with sensor-DTM

Article no: 1029065

Replaced by POS.14 from 2017 (POS.37, 41 incl.)

Spring S45/S60/QS45/50/60 locking hook-long (25x305)

Article no: 1024021

Position23

Aantal in tekening2

Spring S45/S60/QS45/50/60 locking hook-long (25x305)

Article no: 1024021

Screw M6S 8x30 8.8 FZB ISO4017

Article no: 611538

Position18

Aantal in tekening2

Screw M6S 8x30 8.8 FZB ISO4017

Article no: 611538

Loxeal 83-52

Spacer QS45-60 V3

Article no: 1036406

Position15

Aantal in tekening2

Spacer QS45-60 V3

Article no: 1036406

Locking hook S45/QSM/QS45/50 V2 cast

Article no: 1047545

Position25

Aantal in tekening1

Locking hook S45/QSM/QS45/50 V2 cast

Article no: 1047545

Steering S45/S60/QSM45/50/60/QS45/50/60

Article no: 1025621

Position24

Aantal in tekening2

Steering S45/S60/QSM45/50/60/QS45/50/60

Article no: 1025621

Loxeal 83-52

Screw MC6S 10x35 12.9 untreated ISO4762

Article no: 610494

Position32

Aantal in tekening4

Screw MC6S 10x35 12.9 untreated ISO4762

Article no: 610494

Positioning nut-Inductive sensor QS/HYDS/S60/QSM45/50/60/70

Article no: 1029432

Position6

Aantal in tekening1

Positioning nut-Inductive sensor QS/HYDS/S60/QSM45/50/60/70

Article no: 1029432

Protection Plug ECO power plug & QS sensor

Article no: 8000068

Position9

Aantal in tekening1

Protection Plug ECO power plug & QS sensor

Article no: 8000068

Inductive sensor M12 DTM04-3P - hook quick hitch

Article no: 1029068

Position37

Aantal in tekening1

Inductive sensor M12 DTM04-3P - hook quick hitch

Article no: 1029068

Replaced 2018

Inductive sensor M12 DTM04-3P - hook QSC - 645mm

Article no: 1040358

Position1

Aantal in tekening1

Inductive sensor M12 DTM04-3P - hook QSC - 645mm

Article no: 1040358

Mount just below surface edge

Locking cylinder QS45/QS50 V2

Article no: 1027573

Position39

Aantal in tekening1

Locking cylinder QS45/QS50 V2

Article no: 1027573

Spring S40S/S40/S45/QS40/45/50 locking hook - short (25x32)

Article no: 1025483

Position22

Aantal in tekening2

Spring S40S/S40/S45/QS40/45/50 locking hook - short (25x32)

Article no: 1025483

Ejector QS45 NOT for sensor

Article no: 1025412

Position42

Aantal in tekening1

Ejector QS45 NOT for sensor

Article no: 1025412

Replaced by POS.14 from 2017

Screw-Set Screw P6SS 5x4 A2 ISO4026

Article no: 610816

Position41

Aantal in tekening2

Screw-Set Screw P6SS 5x4 A2 ISO4026

Article no: 610816

Plug Din 908 1/4"

Article no: 711505

Position20

Aantal in tekening2

Plug Din 908 1/4"

Article no: 711505

Seal washer GBR04 1/4"

Article no: 710702

Position19

Aantal in tekening2

Seal washer GBR04 1/4"

Article no: 710702

Ejector QS45-QS50

Article no: 1036953

Position14

Aantal in tekening2

Ejector QS45-QS50

Article no: 1036953

Screw MF6S 6x16 10.9 untreated ISO10642

Article no: 610604

Position30

Aantal in tekening1

Screw MF6S 6x16 10.9 untreated ISO10642

Article no: 610604

Loxeal 83-52

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Position31

Aantal in tekening10

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Indicator pin S40S/QS/QSM/S/HYDS 610mm

Article no: 1036201

Position27

Aantal in tekening1

Indicator pin S40S/QS/QSM/S/HYDS 610mm

Article no: 1036201

Cut to fit
