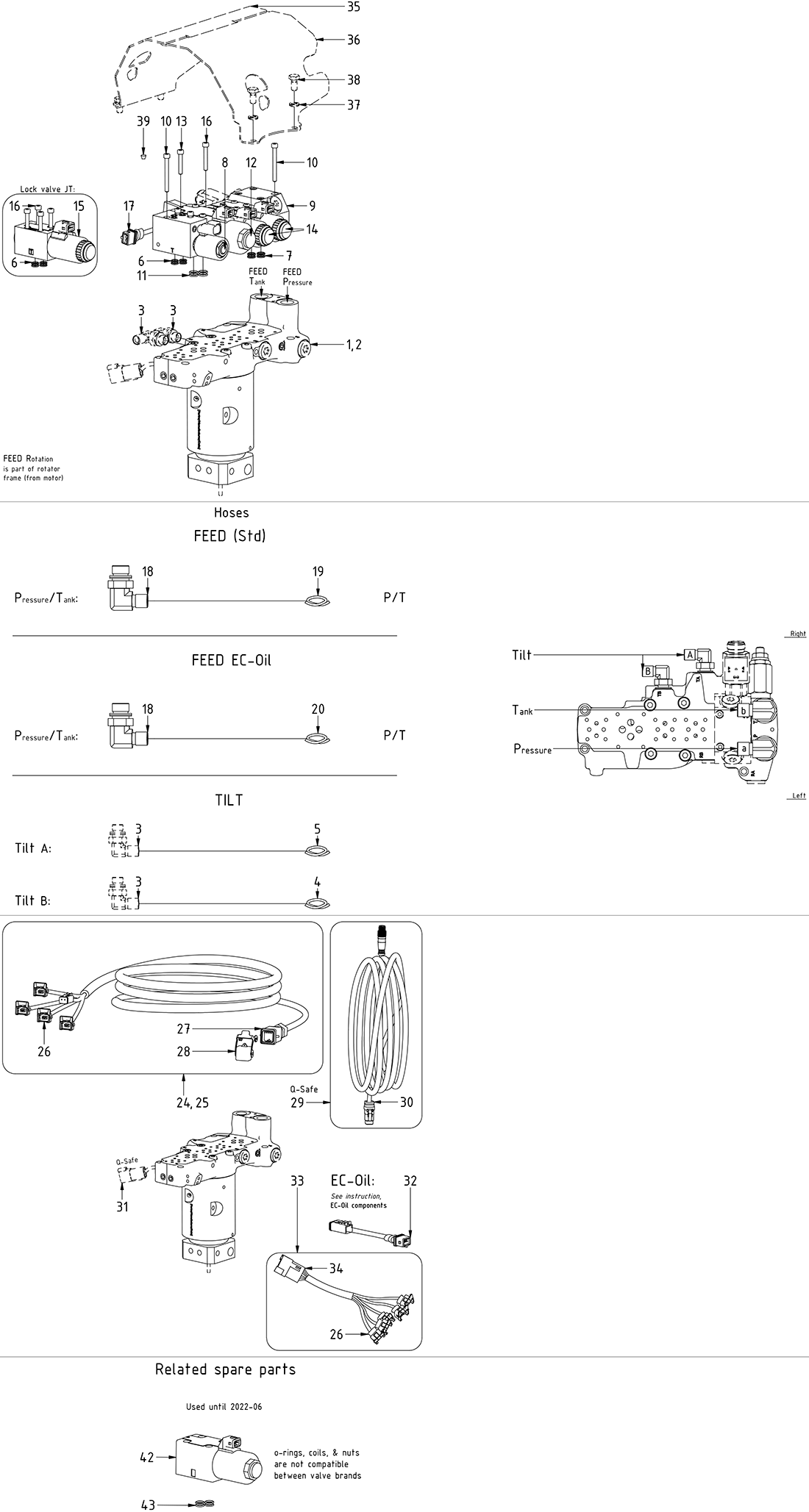

ss9IQ

Pos

Artikel

Extra Info

Aantal in tekening

Prijs (excl. BTW)

Directional valve closed NG6 12V JT

Article no: 730112

Position42

Aantal in tekening1

Directional valve closed NG6 12V JT

Article no: 730112

Replaced by POS.12 (ATOS)

Adapter cable M12 8P-DTM 6S

Article no: 842148

Position29

Aantal in tekening1

Adapter cable M12 8P-DTM 6S

Article no: 842148

For Q-Safe

Adapter cable DTM 12P-DT 2S/4xJT 2S

Article no: 1029599

Position33

Aantal in tekening1

Adapter cable DTM 12P-DT 2S/4xJT 2S

Article no: 1029599

For EC-Oil. Replace POS.24 & 29

Protective cover valve block EC206 left

Article no: 1016523

Position36

Aantal in tekening1

Protective cover valve block EC206 left

Article no: 1016523

ILME 21.21 12P MKA V20 connector device

Article no: 841192

Position27

Aantal in tekening1

ILME 21.21 12P MKA V20 connector device

Article no: 841192

Cable tie 4,8x371

Article no: 1021586

Position41

Aantal in tekening1

Cable tie 4,8x371

Article no: 1021586

AMP Junior Timer (JT) 2S connector device

Article no: 810218

Position26

Aantal in tekening5

AMP Junior Timer (JT) 2S connector device

Article no: 810218

Deutsch DTM04-12PA connector device

Article no: 8000177

Position34

Aantal in tekening1

Deutsch DTM04-12PA connector device

Article no: 8000177

Unit cable ss9-2 JT EC206-EC233-3,5m

Article no: 1032909

Position25

Aantal in tekening1

Unit cable ss9-2 JT EC206-EC233-3,5m

Article no: 1032909

For Lock valve JT. Replace POS.24

Directional valve NG4 closed 12V JT

Article no: 730330

Position14

Aantal in tekening2

Directional valve NG4 closed 12V JT

Article no: 730330

(POS.6 included)

Hose Tilt Short - EC206

Article no: 742911

Position4

Aantal in tekening1

Hose Tilt Short - EC206

Article no: 742911

Adapter 401-04-04 90°

Article no: 710151

Position3

Aantal in tekening2

Adapter 401-04-04 90°

Article no: 710151

Part of rotator frame assembly

Unit cable ss9-2 DT EC206-EC233-3,5m

Article no: 8001823

Position24

Aantal in tekening1

Unit cable ss9-2 DT EC206-EC233-3,5m

Article no: 8001823

Adapter cable JT 2P-SQR 4S

Article no: 302971

Position17

Aantal in tekening1

Adapter cable JT 2P-SQR 4S

Article no: 302971

Screw M6S 8x16 8.8 FZB ISO4017

Article no: 610122

Position38

Aantal in tekening4

Screw M6S 8x16 8.8 FZB ISO4017

Article no: 610122

Hose feed - EC206 - rotation

Article no: 742916

Position21

Aantal in tekening2

Hose feed - EC206 - rotation

Article no: 742916

Part of rotator frame assembly

ILME cover21.21 with lever CKAX 03 CXA

Article no: 810208

Position28

Aantal in tekening1

ILME cover21.21 with lever CKAX 03 CXA

Article no: 810208

Directional valve NG4 lock 12V JT

Article no: 730312

Position15

Aantal in tekening1

Directional valve NG4 lock 12V JT

Article no: 730312

(POS.6 included)

Hose Tilt Long - EC206

Article no: 742912

Position5

Aantal in tekening1

Hose Tilt Long - EC206

Article no: 742912

Valve block-swivel 5v & 6-ch Slip ring-DTM-EC206

Article no: 1031333

Position2

Aantal in tekening1

Valve block-swivel 5v & 6-ch Slip ring-DTM-EC206

Article no: 1031333

Plug plastic - valve screw hole

Article no: 790156

Position39

Aantal in tekening12

Plug plastic - valve screw hole

Article no: 790156

Screw MC6S 5x30 12.9 untreated ISO4762

Article no: 610403

Position13

Aantal in tekening4

Screw MC6S 5x30 12.9 untreated ISO4762

Article no: 610403

Torque: 9,7Nm

Hose

Article no: 7000701

Position20

Aantal in tekening2

Hose

Article no: 7000701

Adapter cable JT 2P-DT 2S

Article no: 1017478

Position32

Aantal in tekening1

Adapter cable JT 2P-DT 2S

Article no: 1017478

Directional valve closed NG6 12V JT ATOS

Article no: 7001619

Position12

Aantal in tekening1

Directional valve closed NG6 12V JT ATOS

Article no: 7001619

(POS.11 included)

Valve block-swivel 5v & 6-ch for Slip ring-EC206

Article no: 1026703

Position1

Aantal in tekening1

Valve block-swivel 5v & 6-ch for Slip ring-EC206

Article no: 1026703

Dumper block 12V JT NG6 EC206 - complete

Article no: 1026714

Position9

Aantal in tekening1

Dumper block 12V JT NG6 EC206 - complete

Article no: 1026714

(Dump valve included)

Protective cover valve block EC206 right

Article no: 1016524

Position35

Aantal in tekening1

Protective cover valve block EC206 right

Article no: 1016524

Cable tie 7,8x360

Article no: 1021587

Position40

Aantal in tekening1

Cable tie 7,8x360

Article no: 1021587

Adapter 401-06-08 90°

Article no: 710157

Position18

Aantal in tekening2

Adapter 401-06-08 90°

Article no: 710157

Screw MC6S 5x35 12.9 untreated ISO4762

Article no: 610404

Position16

Aantal in tekening12

Screw MC6S 5x35 12.9 untreated ISO4762

Article no: 610404

Torque: 9,7Nm. QTY: 16 for Lock JT

Hose feed - EC206 valve block

Article no: 742913

Position19

Aantal in tekening2

Hose feed - EC206 valve block

Article no: 742913

Directional valve NG4 IQS lock 12V DT ss9 Coil A

Article no: 1042045

Position8

Aantal in tekening1

Directional valve NG4 IQS lock 12V DT ss9 Coil A

Article no: 1042045

QS, CW, ECPUP, ss SIQ (POS.6 included)

Deutsch DTM06-6S connector device

Article no: 8000053

Position30

Aantal in tekening1

Deutsch DTM06-6S connector device

Article no: 8000053

Screw MC6S 5x50 12.9 untreated ISO4762

Article no: 610407

Position10

Aantal in tekening7

Screw MC6S 5x50 12.9 untreated ISO4762

Article no: 610407

Torque: 9,7Nm

O-ring 7,65x1,78 FKM 90 shore Viton NG4

Article no: 710960

Position6

Aantal in tekening12

O-ring 7,65x1,78 FKM 90 shore Viton NG4

Article no: 710960

O-ring 9,25x1,78 FKM 90 shore Viton Green NG6

Article no: 710901

Position43

Aantal in tekening4

O-ring 9,25x1,78 FKM 90 shore Viton Green NG6

Article no: 710901

Used until 2022-06

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Position37

Aantal in tekening4

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

O-ring 8,73x1,78 NBR 90 shore

Article no: 710959

Position7

Aantal in tekening4

O-ring 8,73x1,78 NBR 90 shore

Article no: 710959
