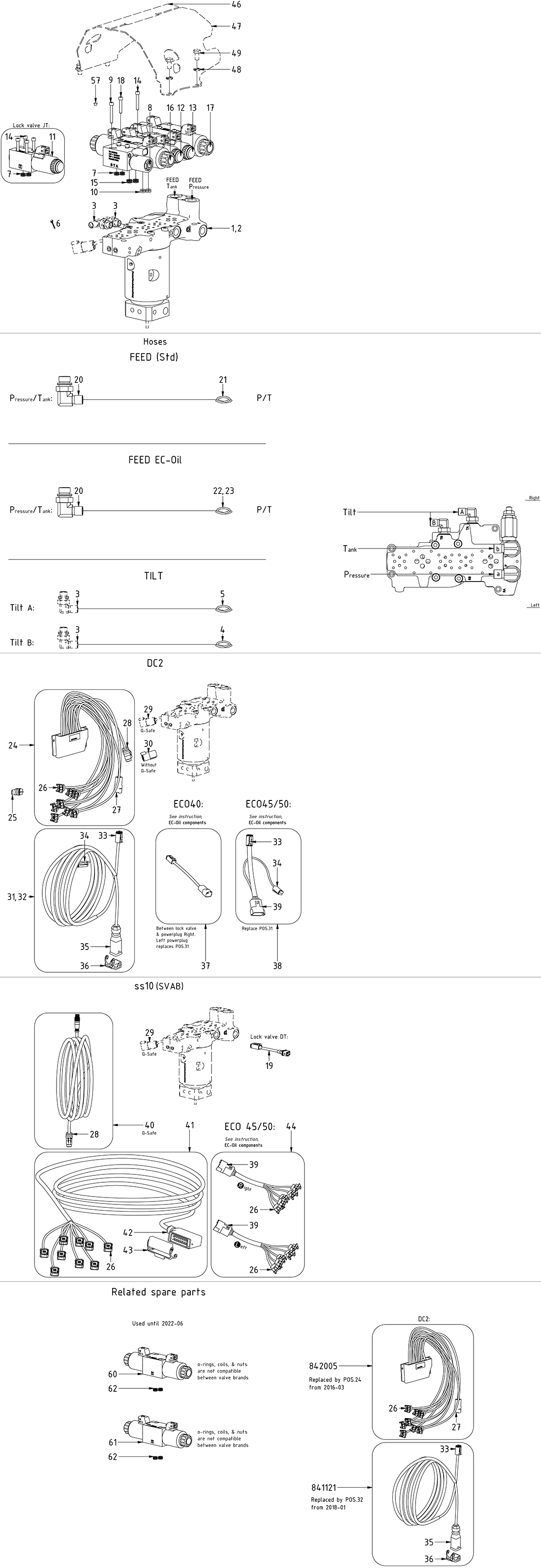

ss10 (DC2/SVAB)

Pos

Artikel

Extra Info

Aantal in tekening

Prijs (excl. BTW)

Directional valve NG4 crossparallel external T without Coil

Article no: 730321

Position50

Aantal in tekening1

Directional valve NG4 crossparallel external T without Coil

Article no: 730321

Nut (POS.53) and o-ring with chokevalve included. Assemble with POS.52

Screw M6S 8x16 8.8 FZB ISO4017

Article no: 610122

Position49

Aantal in tekening4

Screw M6S 8x16 8.8 FZB ISO4017

Article no: 610122

Deutsch DT06-2S connector device

Article no: 820219

Position34

Aantal in tekening1

Deutsch DT06-2S connector device

Article no: 820219

ILME cover21.21 with lever CKAX 03 CXA

Article no: 810208

Position36

Aantal in tekening2

ILME cover21.21 with lever CKAX 03 CXA

Article no: 810208

Adapter cable DTM 12P-DT 2S/4xJT 2S

Article no: 1029599

Position44

Aantal in tekening1

Adapter cable DTM 12P-DT 2S/4xJT 2S

Article no: 1029599

For ECO45/50. Replace POS.40-41

Adapter cable M12 8P-DTM 6S

Article no: 842148

Position40

Aantal in tekening1

Adapter cable M12 8P-DTM 6S

Article no: 842148

For Q-Safe

Hose

Article no: 7001628

Position22

Aantal in tekening2

Hose

Article no: 7001628

Protective cover valve block EC206 left

Article no: 1016523

Position47

Aantal in tekening1

Protective cover valve block EC206 left

Article no: 1016523

ILME 66.16 16P MZO 25 L20 connector device

Article no: 810203

Position42

Aantal in tekening1

ILME 66.16 16P MZO 25 L20 connector device

Article no: 810203

Directional valve NG4 lock 12V JT

Article no: 730312

Position11

Aantal in tekening1

Directional valve NG4 lock 12V JT

Article no: 730312

(POS.7 included)

ILME 21.21 12P MKA V20 connector device

Article no: 841192

Position35

Aantal in tekening2

ILME 21.21 12P MKA V20 connector device

Article no: 841192

Cable tie 4,8x371

Article no: 1021586

Position59

Aantal in tekening1

Cable tie 4,8x371

Article no: 1021586

Hose Tilt Long - EC206

Article no: 742912

Position5

Aantal in tekening1

Hose Tilt Long - EC206

Article no: 742912

Jumper JT 2P POS:1-2

Article no: 1018662

Position25

Aantal in tekening1

Jumper JT 2P POS:1-2

Article no: 1018662

Plug JT connector "1"

Valve block-swivel 5v & 6-ch Slip ring-DTM-EC206

Article no: 1031333

Position2

Aantal in tekening1

Valve block-swivel 5v & 6-ch Slip ring-DTM-EC206

Article no: 1031333

Screw MC6S 5x30 12.9 untreated ISO4762

Article no: 610403

Position18

Aantal in tekening8

Screw MC6S 5x30 12.9 untreated ISO4762

Article no: 610403

Torque: 9,7Nm

Plug plastic - valve screw hole

Article no: 790156

Position57

Aantal in tekening16

Plug plastic - valve screw hole

Article no: 790156

Protection plug for DTM06-6S

Article no: 8000090

Position30

Aantal in tekening1

Protection plug for DTM06-6S

Article no: 8000090

Directional valve NG4 12V JT

Article no: 730328

Position13

Aantal in tekening1

Directional valve NG4 12V JT

Article no: 730328

(POS.10 included)

Adapter 401-04-04 90°

Article no: 710151

Position3

Aantal in tekening2

Adapter 401-04-04 90°

Article no: 710151

Part of rotator frame assembly

Hose Tilt Short - EC206

Article no: 742911

Position4

Aantal in tekening1

Hose Tilt Short - EC206

Article no: 742911

AMP Junior Timer (JT) 2S connector device

Article no: 810218

Position26

Aantal in tekening9

AMP Junior Timer (JT) 2S connector device

Article no: 810218

Deutsch DTM04-12PA connector device

Article no: 8000177

Position39

Aantal in tekening1

Deutsch DTM04-12PA connector device

Article no: 8000177

ILME cover 66.16 with lever CZC 25 LG

Article no: 810235

Position43

Aantal in tekening1

ILME cover 66.16 with lever CZC 25 LG

Article no: 810235

Electronics Module TM2-EC206 DC2 QS - DTM

Article no: 842139

Position24

Aantal in tekening1

Electronics Module TM2-EC206 DC2 QS - DTM

Article no: 842139

Adapter cable DT 4P-DT 2S

Article no: 1057843

Position37

Aantal in tekening1

Adapter cable DT 4P-DT 2S

Article no: 1057843

For ECO40

Unit cable DC2 JT EC206-EC233-3,9m

Article no: 8000175

Position32

Aantal in tekening1

Unit cable DC2 JT EC206-EC233-3,9m

Article no: 8000175

For Lock valve JT. Replace POS.31

Hose

Article no: 7000321

Position55

Aantal in tekening1

Hose

Article no: 7000321

Directional valve NG4 IQS lock 12V DT ss10 Coil A

Article no: 1042047

Position8

Aantal in tekening1

Directional valve NG4 IQS lock 12V DT ss10 Coil A

Article no: 1042047

QS, CW, ECPUP, ss SIQ (POS.7 included)

Screw MC6S 5x35 12.9 untreated ISO4762

Article no: 610404

Position14

Aantal in tekening8

Screw MC6S 5x35 12.9 untreated ISO4762

Article no: 610404

Torque: 9,7Nm. QTY: 12 for Lock JT

Directional valve NG4 Prop tilt 12V JT

Article no: 730329

Position12

Aantal in tekening1

Directional valve NG4 Prop tilt 12V JT

Article no: 730329

(POS.10 included)

Hose feed - EC206 valve block

Article no: 742913

Position21

Aantal in tekening2

Hose feed - EC206 valve block

Article no: 742913

Coil NG4 12V JT

Article no: 730313

Position52

Aantal in tekening2

Coil NG4 12V JT

Article no: 730313

Directional valve NG6 12V. 4D01-3203-0302-B1-GOR-JT ATOS

Article no: 7001617

Position16

Aantal in tekening1

Directional valve NG6 12V. 4D01-3203-0302-B1-GOR-JT ATOS

Article no: 7001617

(POS.15 included)

Unit cable DC2 DT EC206-EC233-3,9m

Article no: 8001201

Position31

Aantal in tekening1

Unit cable DC2 DT EC206-EC233-3,9m

Article no: 8001201

Screw MC6S 5x40 12.9 untreated ISO4762

Article no: 610405

Position9

Aantal in tekening3

Screw MC6S 5x40 12.9 untreated ISO4762

Article no: 610405

Torque: 9,7Nm

Hose

Article no: 7000701

Position23

Aantal in tekening2

Hose

Article no: 7000701

Adapter cable JT 2P-DT 2S

Article no: 1017478

Position19

Aantal in tekening1

Adapter cable JT 2P-DT 2S

Article no: 1017478

QS, CW, ECPUP, ss SIQ (Previously also for DC2)

Plug JT

Article no: 1045154

Position45

Aantal in tekening1

Plug JT

Article no: 1045154

Plug JT connector "1" on Right

Directional valve NG6 prop 12V engcon JT

Article no: 730190

Position61

Aantal in tekening1

Directional valve NG6 prop 12V engcon JT

Article no: 730190

Replaced by POS.17 (ATOS)

Valve block-swivel 5v & 6-ch for Slip ring-EC206

Article no: 1026703

Position1

Aantal in tekening1

Valve block-swivel 5v & 6-ch for Slip ring-EC206

Article no: 1026703

Nut directional valve NG4

Article no: 1006785

Position53

Aantal in tekening4

Nut directional valve NG4

Article no: 1006785

Adapter 401-06-08 90°

Article no: 710157

Position20

Aantal in tekening2

Adapter 401-06-08 90°

Article no: 710157

Protective cover valve block EC206 right

Article no: 1016524

Position46

Aantal in tekening1

Protective cover valve block EC206 right

Article no: 1016524

Cable tie 7,8x360

Article no: 1021587

Position58

Aantal in tekening1

Cable tie 7,8x360

Article no: 1021587

Deutsch DT04-4P connector device

Article no: 820108

Position27

Aantal in tekening2

Deutsch DT04-4P connector device

Article no: 820108

Directional valve NG6 12V. 4D01-3203-0302-B1-GOR-JT

Article no: 730101

Position60

Aantal in tekening1

Directional valve NG6 12V. 4D01-3203-0302-B1-GOR-JT

Article no: 730101

Replaced by POS.16 (ATOS)

Deutsch DT06-4S connector device

Article no: 820218

Position33

Aantal in tekening1

Deutsch DT06-4S connector device

Article no: 820218

Plug Dysa D0 for NG4 / VRP2-04

Article no: 790191

Position51

Aantal in tekening1

Plug Dysa D0 for NG4 / VRP2-04

Article no: 790191

O-ring included

Deutsch DTM06-6S connector device

Article no: 8000053

Position28

Aantal in tekening1

Deutsch DTM06-6S connector device

Article no: 8000053

Directional valve NG6 prop 12V engcon JT ATOS

Article no: 7001614

Position17

Aantal in tekening1

Directional valve NG6 prop 12V engcon JT ATOS

Article no: 7001614

(POS.15 included)

O-ring 7,65x1,78 FKM 90 shore Viton NG4

Article no: 710960

Position7

Aantal in tekening4

O-ring 7,65x1,78 FKM 90 shore Viton NG4

Article no: 710960

Unit cable ss10 JT EC206(B)-EC209(B)-3,4m

Article no: 303465

Position41

Aantal in tekening1

Unit cable ss10 JT EC206(B)-EC209(B)-3,4m

Article no: 303465

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Position48

Aantal in tekening4

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Seal washer GBR04 1/4"

Article no: 710702

Position54

Aantal in tekening2

Seal washer GBR04 1/4"

Article no: 710702

O-ring 9,25x1,78 FKM 90 shore Viton Green NG6

Article no: 710901

Position62

Aantal in tekening8

O-ring 9,25x1,78 FKM 90 shore Viton Green NG6

Article no: 710901

Used until 2022-06

Banjo bolt 4451-04

Article no: 710271

Position56

Aantal in tekening1

Banjo bolt 4451-04

Article no: 710271

Adapter cable DTM 12P-DT 4S/2S

Article no: 1048529

Position38

Aantal in tekening1

Adapter cable DTM 12P-DT 4S/2S

Article no: 1048529

For ECO45/50

O-ring 8,73x1,78 NBR 90 shore

Article no: 710959

Position15

Aantal in tekening8

O-ring 8,73x1,78 NBR 90 shore

Article no: 710959

O-ring 7,66x1,68 square NBR 70 shore NG4

Article no: 7000579

Position10

Aantal in tekening8

O-ring 7,66x1,68 square NBR 70 shore NG4

Article no: 7000579
