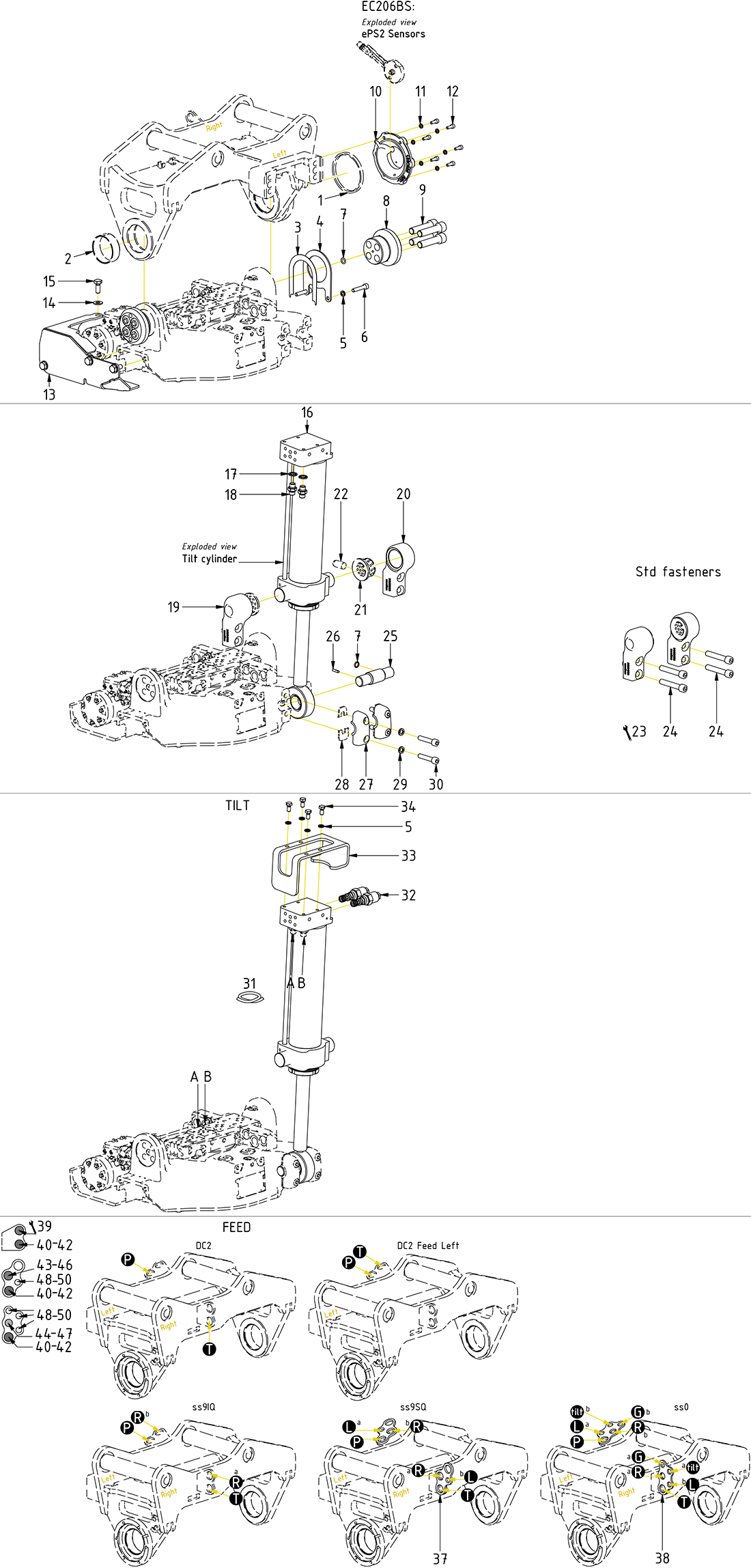

Std. Top components

Pos

Artikel

Extra Info

Aantal in tekening

Prijs (excl. BTW)

Hose bracket expansion (3x1/2" & 1x1/4")

Article no: 1070853

Position37

Aantal in tekening2

Hose bracket expansion (3x1/2" & 1x1/4")

Article no: 1070853

Yoke Bracket EC206/206B front complete cast

Article no: 1023824

Position19

Aantal in tekening1

Yoke Bracket EC206/206B front complete cast

Article no: 1023824

(POS.21-22 incl.)

Screw MC6S 16x65 12.9 ZFSHL

Article no: 6000170

Position9

Aantal in tekening8

Screw MC6S 16x65 12.9 ZFSHL

Article no: 6000170

Torque: 333Nm

Screw M6S 8x16 8.8 FZB ISO4017

Article no: 610122

Position34

Aantal in tekening4

Screw M6S 8x16 8.8 FZB ISO4017

Article no: 610122

Nut bulkhead adapter 1270-08

Article no: 710254

Position42

Aantal in tekening2

Nut bulkhead adapter 1270-08

Article no: 710254

Shim tilt axle - EC206, EC206B, EC209, EC209B 0,5mm

Article no: 1016499

Position3

Aantal in tekening1

Shim tilt axle - EC206, EC206B, EC209, EC209B 0,5mm

Article no: 1016499

Use as required

Adapter bulkhead extended 1260-06-43

Article no: 710262

Position45

Aantal in tekening2

Adapter bulkhead extended 1260-06-43

Article no: 710262

Hose Tilt EC206B

Article no: 7001694

Position31

Aantal in tekening2

Hose Tilt EC206B

Article no: 7001694

Clamping half EC206,209,214 EngconYellow complete

Article no: 1022942

Position27

Aantal in tekening2

Clamping half EC206,209,214 EngconYellow complete

Article no: 1022942

(POS.28 incl.)

Cover Tilt Axle EC206S/EC209S Cast

Article no: 1065626

Position10

Aantal in tekening1

Cover Tilt Axle EC206S/EC209S Cast

Article no: 1065626

Overcenter adjustable-EC206/209/214/219W/226W/05B-15B

Article no: 730269

Position32

Aantal in tekening2

Overcenter adjustable-EC206/209/214/219W/226W/05B-15B

Article no: 730269

Torque: 45Nm

Nut bulkhead adapter 1270-06

Article no: 710252

Position46

Aantal in tekening2

Nut bulkhead adapter 1270-06

Article no: 710252

Cylindrical pin CPK Ø16x36 m6

Article no: 650215

Position22

Aantal in tekening2

Cylindrical pin CPK Ø16x36 m6

Article no: 650215

Washer BRB FZB 10,5x22x2 ISO7089

Article no: 611006

Position14

Aantal in tekening4

Washer BRB FZB 10,5x22x2 ISO7089

Article no: 611006

Adapter bulkhead 1260-04-04

Article no: 710240

Position49

Aantal in tekening2

Adapter bulkhead 1260-04-04

Article no: 710240

QTY: 6 for ss0

Spacer clamping half rubber EC206,209,214

Article no: 1016465

Position28

Aantal in tekening2

Spacer clamping half rubber EC206,209,214

Article no: 1016465

Hose bracket expansion (1x1/2" & 1x3/8" & 3x1/4")

Article no: 1070854

Position38

Aantal in tekening2

Hose bracket expansion (1x1/2" & 1x3/8" & 3x1/4")

Article no: 1070854

Seal PAK 90x100x7-L

Article no: 1063597

Position1

Aantal in tekening1

Seal PAK 90x100x7-L

Article no: 1063597

NB! Face groove toward top part (Incl. in Top part)

Tilt cylinder EC206, EC206B

Article no: 1066135

Position16

Aantal in tekening1

Tilt cylinder EC206, EC206B

Article no: 1066135

Washer NL16-DPE 17,0x25,4x3,7

Article no: 611044

Position47

Aantal in tekening2

Washer NL16-DPE 17,0x25,4x3,7

Article no: 611044

Screw M6S 10x25 8.8 FZB ISO4017

Article no: 610142

Position15

Aantal in tekening4

Screw M6S 10x25 8.8 FZB ISO4017

Article no: 610142

Tilt axial washer EC206, EC206B, EC209, EC209B

Article no: 1016461

Position4

Aantal in tekening1

Tilt axial washer EC206, EC206B, EC209, EC209B

Article no: 1016461

Yoke Bracket EC206/206B rear complete cast

Article no: 1023823

Position20

Aantal in tekening1

Yoke Bracket EC206/206B rear complete cast

Article no: 1023823

(POS.21-22 incl.)

Motor & lubrication cover EC206B

Article no: 1068400

Position13

Aantal in tekening1

Motor & lubrication cover EC206B

Article no: 1068400

Washer NL20-DPE 21,4x30,7x3,7

Article no: 611098

Position40

Aantal in tekening2

Washer NL20-DPE 21,4x30,7x3,7

Article no: 611098

Nut bulkhead adapter 1270-04

Article no: 710250

Position50

Aantal in tekening2

Nut bulkhead adapter 1270-04

Article no: 710250

QTY: 6 for ss0

Adapter bulkhead extended 1260-08-45

Article no: 710263

Position41

Aantal in tekening2

Adapter bulkhead extended 1260-08-45

Article no: 710263

Washer NL16sp 17,0x30,7x3,4

Article no: 6000395

Position43

Aantal in tekening2

Washer NL16sp 17,0x30,7x3,4

Article no: 6000395

Washer NL1/2"-DPE 13,5x19,5x2,5

Article no: 611096

Position48

Aantal in tekening2

Washer NL1/2"-DPE 13,5x19,5x2,5

Article no: 611096

QTY: 6 for ss0

Hose protection Tiltcyl EC05B-15B, 206-214 overcenter

Article no: 1003774

Position33

Aantal in tekening1

Hose protection Tiltcyl EC05B-15B, 206-214 overcenter

Article no: 1003774

Washer NL6-DPE 6,5x10,8x1,7

Article no: 611039

Position11

Aantal in tekening6

Washer NL6-DPE 6,5x10,8x1,7

Article no: 611039

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Position5

Aantal in tekening10

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

QTY: 8 part of Tilt cylinder

Screw MC6S 8x40 12.9 ZFSHL ISO4762

Article no: 6000145

Position6

Aantal in tekening2

Screw MC6S 8x40 12.9 ZFSHL ISO4762

Article no: 6000145

Seal washer GBR04 1/4"

Article no: 710702

Position17

Aantal in tekening4

Seal washer GBR04 1/4"

Article no: 710702

Screw MC6S 6x16 12.9 ZFSHL ISO4762

Article no: 6000017

Position12

Aantal in tekening6

Screw MC6S 6x16 12.9 ZFSHL ISO4762

Article no: 6000017

Adapter 138-04-29 ( compact 136-04-04 )

Article no: 710135

Position18

Aantal in tekening2

Adapter 138-04-29 ( compact 136-04-04 )

Article no: 710135

Screw MC6S 12x70 12.9 ZFSHL ISO4762

Article no: 611517

Position24

Aantal in tekening4

Screw MC6S 12x70 12.9 ZFSHL ISO4762

Article no: 611517

Torque: 136Nm

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Position29

Aantal in tekening4

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Screw MC6S 10x50 12.9 ZFSHL ISO4762

Article no: 611515

Position30

Aantal in tekening4

Screw MC6S 10x50 12.9 ZFSHL ISO4762

Article no: 611515

Torque: 79Nm

Bushing BWG-F 35/45/55/5x30

Article no: 631003

Position21

Aantal in tekening2

Bushing BWG-F 35/45/55/5x30

Article no: 631003

O-ring 9,92x2,62 NBR 70 shore EC209/219/226 cylinder axle

Article no: 710968

Position7

Aantal in tekening3

O-ring 9,92x2,62 NBR 70 shore EC209/219/226 cylinder axle

Article no: 710968

Slotted pin RPE5x20

Article no: 640413

Position26

Aantal in tekening1

Slotted pin RPE5x20

Article no: 640413

Cylinder axle EC206, EC206B, EC209, EC209B, EC214

Article no: 1016458

Position25

Aantal in tekening1

Cylinder axle EC206, EC206B, EC209, EC209B, EC214

Article no: 1016458

Tilt axle EC206S/EC206BS/EC209S/EC209BS

Article no: 1062499

Position8

Aantal in tekening2

Tilt axle EC206S/EC206BS/EC209S/EC209BS

Article no: 1062499

Bushing tilt EC206, EC209 WB802 65/70x25

Article no: 630322

Position2

Aantal in tekening2

Bushing tilt EC206, EC209 WB802 65/70x25

Article no: 630322

(Incl. in Top part)
