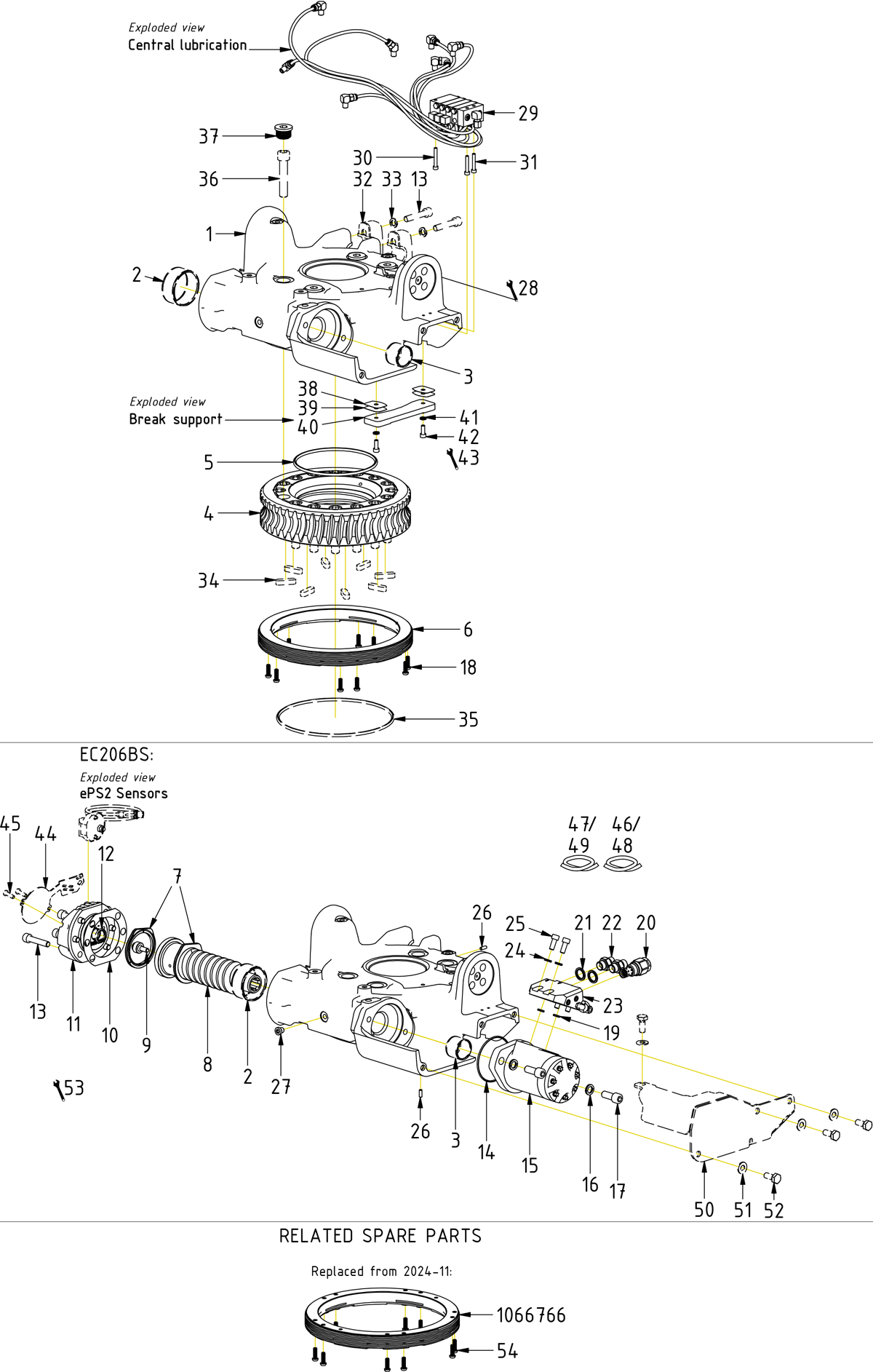

Main components

Pos

Artikel

Extra Info

Aantal in tekening

Prijs (excl. BTW)

Screw MC6S 12x30 12.9 ZFSHL ISO4762

Article no: 6000142

Position17

Aantal in tekening2

Screw MC6S 12x30 12.9 ZFSHL ISO4762

Article no: 6000142

Torque: 136Nm

O-ring 140x5 NBR 90 shore EC206B worm wheel

Article no: 7001666

Position5

Aantal in tekening1

O-ring 140x5 NBR 90 shore EC206B worm wheel

Article no: 7001666

Screw K6S 6x20 10.9 FZB ISO 7380

Article no: 6000339

Position45

Aantal in tekening2

Screw K6S 6x20 10.9 FZB ISO 7380

Article no: 6000339

Part of controlsystem. Torque: 8Nm

Bearing ring EC206B V2

Article no: 1077031

Position6

Aantal in tekening1

Bearing ring EC206B V2

Article no: 1077031

(Only compatible with 6x16)

Hose EC206B ss10 rot A

Article no: 7001690

Position46

Aantal in tekening1

Hose EC206B ss10 rot A

Article no: 7001690

Part of quick hitch assy.

Screw MC6S 5x30 12.9 untreated ISO4762

Article no: 610403

Position31

Aantal in tekening2

Screw MC6S 5x30 12.9 untreated ISO4762

Article no: 610403

Clamping half EC206,209,214 EngconYellow complete

Article no: 1022942

Position32

Aantal in tekening2

Clamping half EC206,209,214 EngconYellow complete

Article no: 1022942

Part of top part

Plate break support - EC206B

Article no: 1068059

Position40

Aantal in tekening2

Plate break support - EC206B

Article no: 1068059

Pipe Plug RP M26x1,5 DIN908 FZB

Article no: 650409

Position37

Aantal in tekening4

Pipe Plug RP M26x1,5 DIN908 FZB

Article no: 650409

Washer NL12-DPE 13,0x19,5x2,7

Article no: 611042

Position16

Aantal in tekening2

Washer NL12-DPE 13,0x19,5x2,7

Article no: 611042

Seal R09-F 20x27.5x3.2

Article no: 1063616

Position12

Aantal in tekening1

Seal R09-F 20x27.5x3.2

Article no: 1063616

Hydraulic motor EC05B, EC206, EC206B CL80cc

Article no: 720128

Position15

Aantal in tekening1

Hydraulic motor EC05B, EC206, EC206B CL80cc

Article no: 720128

Shim break support - EC206B - 0,1mm

Article no: 1068369

Position39

Aantal in tekening2

Shim break support - EC206B - 0,1mm

Article no: 1068369

Rotator frame 206B V2 Engcon Yellow complete

Article no: 1068382

Position1

Aantal in tekening1

Rotator frame 206B V2 Engcon Yellow complete

Article no: 1068382

(POS.2-3 incl.)

Washer BRB FZB 10,5x22x2 ISO7089

Article no: 611006

Position51

Aantal in tekening4

Washer BRB FZB 10,5x22x2 ISO7089

Article no: 611006

Part of top part assy.

Screw TX30 6x20 10.9 FZB ISO 7380

Article no: 612202

Position54

Aantal in tekening10

Screw TX30 6x20 10.9 FZB ISO 7380

Article no: 612202

Torque: 34Nm. Used with 1066766

Adapter 136-06-06

Article no: 710106

Position22

Aantal in tekening2

Adapter 136-06-06

Article no: 710106

O-ring 12,37x2,62 NBR 70 shore EC05B hydraulic pipes/motor

Article no: 710961

Position19

Aantal in tekening2

O-ring 12,37x2,62 NBR 70 shore EC05B hydraulic pipes/motor

Article no: 710961

Screw-Set Screw P6SS M6x6 FZB DIN913 ISO4026

Article no: 6000389

Position26

Aantal in tekening2

Screw-Set Screw P6SS M6x6 FZB DIN913 ISO4026

Article no: 6000389

Loxeal 83-52

Screw MC6S 5x35 12.9 untreated ISO4762

Article no: 610404

Position30

Aantal in tekening1

Screw MC6S 5x35 12.9 untreated ISO4762

Article no: 610404

Hose EC206B ss10 rot B

Article no: 7001691

Position47

Aantal in tekening1

Hose EC206B ss10 rot B

Article no: 7001691

Part of quick hitch assy.

Shim break support - EC206B - 0,3mm

Article no: 1068368

Position38

Aantal in tekening2

Shim break support - EC206B - 0,3mm

Article no: 1068368

End lock protection plate EC206BS

Article no: 1062673

Position44

Aantal in tekening1

End lock protection plate EC206BS

Article no: 1062673

Part of controlsystem

Hose EC206B ss9 Rot A

Article no: 7001669

Position48

Aantal in tekening1

Hose EC206B ss9 Rot A

Article no: 7001669

Part of quick hitch assy.

Block-Pressure reduction motor EC206B V2

Article no: 1069560

Position23

Aantal in tekening1

Block-Pressure reduction motor EC206B V2

Article no: 1069560

Screw M6S 10x25 8.8 FZB ISO4017

Article no: 610142

Position52

Aantal in tekening4

Screw M6S 10x25 8.8 FZB ISO4017

Article no: 610142

Part of top part assy.

End lock EC206B Cast

Article no: 1065664

Position11

Aantal in tekening1

End lock EC206B Cast

Article no: 1065664

(POS.12 incl.)

Hose EC206B ss9 Rot B

Article no: 7001670

Position49

Aantal in tekening1

Hose EC206B ss9 Rot B

Article no: 7001670

Part of quick hitch assy.

Axial washer sealed EC206B

Article no: 1065378

Position7

Aantal in tekening2

Axial washer sealed EC206B

Article no: 1065378

Face groove toward worm screw

Magnet Spacer Worm Screw

Article no: 1062693

Position9

Aantal in tekening1

Magnet Spacer Worm Screw

Article no: 1062693

Loxeal 83-52. Torque: 20Nm

Worm wheel EC206B

Article no: 1058962

Position4

Aantal in tekening1

Worm wheel EC206B

Article no: 1058962

Feather key 10x8x36(35) C45 EC206B

Article no: 6000370

Position34

Aantal in tekening8

Feather key 10x8x36(35) C45 EC206B

Article no: 6000370

Part of quick hitch

Motor & lubrication cover EC206B

Article no: 1068400

Position50

Aantal in tekening1

Motor & lubrication cover EC206B

Article no: 1068400

Part of top part assy.

Relief valve HydraSpecma White 160/200cc fixed 200bar

Article no: 7001647

Position20

Aantal in tekening1

Relief valve HydraSpecma White 160/200cc fixed 200bar

Article no: 7001647

Torque: 55Nm

O-ring 200x5 NBR 70 shore EC206B quick hitch

Article no: 7001665

Position35

Aantal in tekening1

O-ring 200x5 NBR 70 shore EC206B quick hitch

Article no: 7001665

Part of quick hitch

Worm screw EC05B, EC206, EC206B

Article no: 1007329

Position8

Aantal in tekening1

Worm screw EC05B, EC206, EC206B

Article no: 1007329

Screw MC6S 14x70 12.9 Untreated ISO4762

Article no: 6000172

Position36

Aantal in tekening16

Screw MC6S 14x70 12.9 Untreated ISO4762

Article no: 6000172

Part of quick hitch. Torque: 217Nm

Lubrication kit EC206B V2

Article no: 7001722

Position29

Aantal in tekening1

Lubrication kit EC206B V2

Article no: 7001722

O-ring 82,22x2,62 NBR 70 shore

Article no: 7000920

Position14

Aantal in tekening1

O-ring 82,22x2,62 NBR 70 shore

Article no: 7000920

Washer NL6-DPE 6,5x10,8x1,7

Article no: 611039

Position41

Aantal in tekening2

Washer NL6-DPE 6,5x10,8x1,7

Article no: 611039

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Position24

Aantal in tekening4

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Screw MC6S 8x20H 12.9 ZFSHL ISO4762

Article no: 6000157

Position25

Aantal in tekening4

Screw MC6S 8x20H 12.9 ZFSHL ISO4762

Article no: 6000157

Shim kit End lock - EC05/EC05B/EC206

Article no: 1006356

Position10

Aantal in tekening1

Shim kit End lock - EC05/EC05B/EC206

Article no: 1006356

Screw MC6S 6x16 12.9 ZFSHL ISO4762

Article no: 6000017

Position42

Aantal in tekening2

Screw MC6S 6x16 12.9 ZFSHL ISO4762

Article no: 6000017

Plug VSTIR18ED 1/8"

Article no: 711503

Position27

Aantal in tekening1

Plug VSTIR18ED 1/8"

Article no: 711503

Screw TX30 6x16 10.9 FZB ISO 7380

Article no: 1078839

Position18

Aantal in tekening10

Screw TX30 6x16 10.9 FZB ISO 7380

Article no: 1078839

Torque: 14Nm Tighten in cross pattern

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Position33

Aantal in tekening4

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Part of top part

Seal washer GBR06 3/8"

Article no: 710703

Position21

Aantal in tekening2

Seal washer GBR06 3/8"

Article no: 710703

Screw MC6S 10x50 12.9 ZFSHL ISO4762

Article no: 611515

Position13

Aantal in tekening10

Screw MC6S 10x50 12.9 ZFSHL ISO4762

Article no: 611515

Torque: 79Nm. QTY: 4 part of top

Bushing WB802 60/65x30

Article no: 630305

Position2

Aantal in tekening1

Bushing WB802 60/65x30

Article no: 630305

Bushing WB802 35/39x30

Article no: 630315

Position3

Aantal in tekening1

Bushing WB802 35/39x30

Article no: 630315
