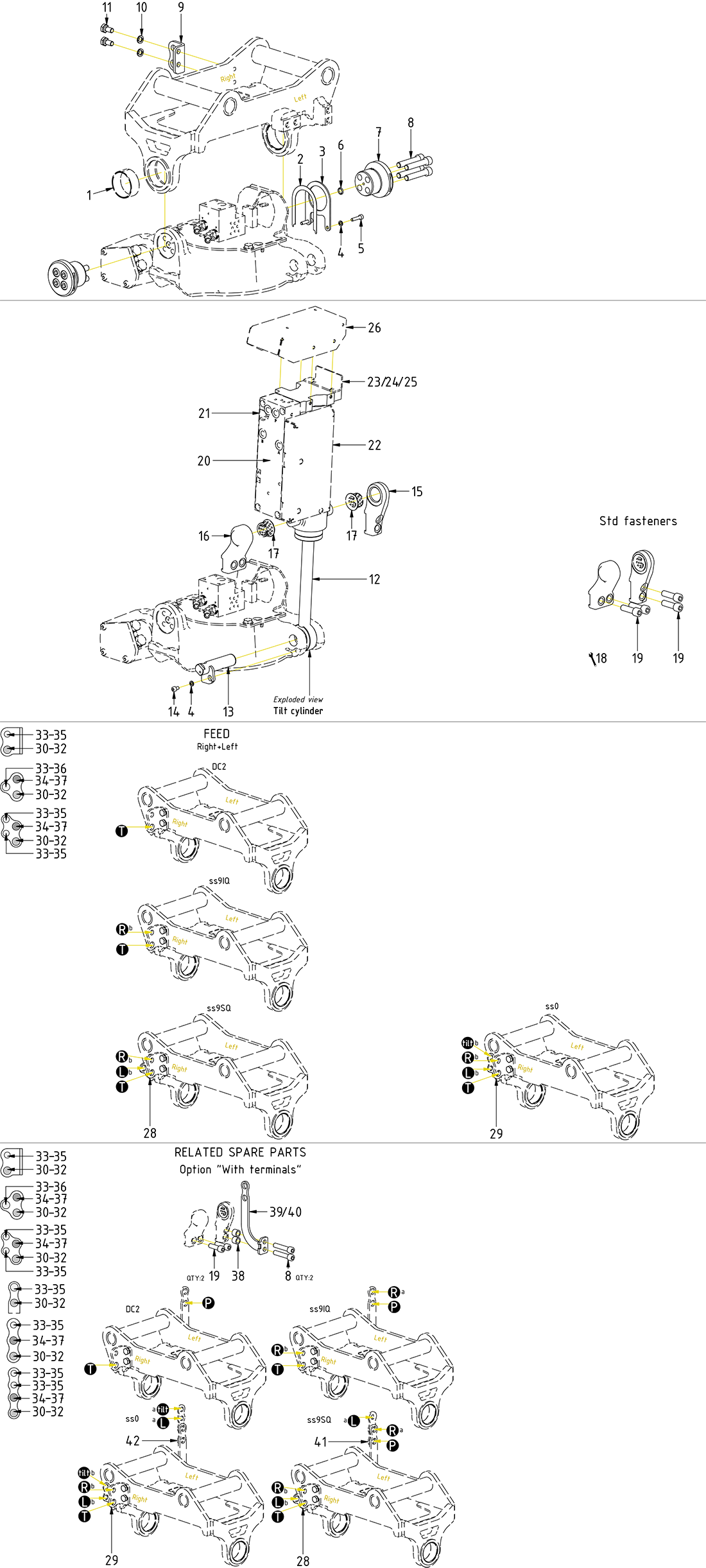

Std. Top components

Pos

Artikel

Extra Info

Aantal in tekening

Prijs (excl. BTW)

Adapter bulkhead 1260-06-32

Article no: 710242

Position31

Aantal in tekening-

Adapter bulkhead 1260-06-32

Article no: 710242

Screw M6S 10x20 8.8 FZB ISO4017

Article no: 610141

Position11

Aantal in tekening2

Screw M6S 10x20 8.8 FZB ISO4017

Article no: 610141

For Feed Right+Left

Hose bracket EC204-tilt cylinder-ss9/ss0 R/L

Article no: 1043991

Position25

Aantal in tekening1

Hose bracket EC204-tilt cylinder-ss9/ss0 R/L

Article no: 1043991

Part of control system

Screw MC6S 12x60 12.9 ZFSHL ISO4762

Article no: 6000140

Position8

Aantal in tekening8

Screw MC6S 12x60 12.9 ZFSHL ISO4762

Article no: 6000140

Torque: 136Nm

Yoke Bracket EC204/EC204B rear cast complete

Article no: 1036606

Position15

Aantal in tekening1

Yoke Bracket EC204/EC204B rear cast complete

Article no: 1036606

(POS.17 incl.)

Cover plate EC02B/EC204-tilt cylinder-DC2/ss10/ss5

Article no: 1029826

Position23

Aantal in tekening1

Cover plate EC02B/EC204-tilt cylinder-DC2/ss10/ss5

Article no: 1029826

Part of control system

Hose bracket EC02B,EC204,EC204B-tilt cylinder-ss9/ss0

Article no: 1033484

Position24

Aantal in tekening1

Hose bracket EC02B,EC204,EC204B-tilt cylinder-ss9/ss0

Article no: 1033484

Part of control system

Cover plate Tilt cylinder-right-EC02B/EC204

Article no: 1029781

Position21

Aantal in tekening1

Cover plate Tilt cylinder-right-EC02B/EC204

Article no: 1029781

Part of control system

Hose bracket EC204/EC206-straight Plate 2x locking hose

Article no: 1055284

Position42

Aantal in tekening1

Hose bracket EC204/EC206-straight Plate 2x locking hose

Article no: 1055284

For ss0

Cover plate Tilt cylinder-left-EC02B/EC204

Article no: 1068975

Position22

Aantal in tekening1

Cover plate Tilt cylinder-left-EC02B/EC204

Article no: 1068975

Part of control system

Valve block EC02B/EC204 tilt cylinder

Article no: 7000635

Position20

Aantal in tekening1

Valve block EC02B/EC204 tilt cylinder

Article no: 7000635

Part of control system

Hose bracket EC206-sheet metal for 2 locking hose-fixed

Article no: 1026096

Position29

Aantal in tekening1

Hose bracket EC206-sheet metal for 2 locking hose-fixed

Article no: 1026096

For ss0

Tilt axial washer EC204/EC204B

Article no: 1027785

Position3

Aantal in tekening1

Tilt axial washer EC204/EC204B

Article no: 1027785

Spacer 15mm Hose Bracket left EC204/EC204B

Article no: 1009999

Position38

Aantal in tekening2

Spacer 15mm Hose Bracket left EC204/EC204B

Article no: 1009999

Hose bracket EC05B/EC206-straight Plate for locking hose

Article no: 1011454

Position41

Aantal in tekening1

Hose bracket EC05B/EC206-straight Plate for locking hose

Article no: 1011454

For ss9SQ

Hose bracket Top part EC204/EC204B right

Article no: 1045070

Position9

Aantal in tekening1

Hose bracket Top part EC204/EC204B right

Article no: 1045070

For Feed Right+Left

Hose bracket S40- top part EC204/EC204B left

Article no: 1053732

Position40

Aantal in tekening1

Hose bracket S40- top part EC204/EC204B left

Article no: 1053732

Nut bulkhead adapter 1270-06

Article no: 710252

Position32

Aantal in tekening-

Nut bulkhead adapter 1270-06

Article no: 710252

Yoke Bracket EC204/EC204B forward complete

Article no: 1029052

Position16

Aantal in tekening1

Yoke Bracket EC204/EC204B forward complete

Article no: 1029052

(POS.17 incl.)

Hose bracket expansion (3x3/8")

Article no: 1011565

Position28

Aantal in tekening1

Hose bracket expansion (3x3/8")

Article no: 1011565

For ss9SQ

O-ring 12,37x2,62 NBR 70 shore EC05B hydraulic pipes/motor

Article no: 710961

Position36

Aantal in tekening-

O-ring 12,37x2,62 NBR 70 shore EC05B hydraulic pipes/motor

Article no: 710961

Protective cover tilt cylinder EC02B/EC204

Article no: 1029902

Position26

Aantal in tekening1

Protective cover tilt cylinder EC02B/EC204

Article no: 1029902

Part of control system

Adapter bulkhead 1260-04-04

Article no: 710240

Position33

Aantal in tekening-

Adapter bulkhead 1260-04-04

Article no: 710240

Adapter bulkhead extended 1260-04-40

Article no: 710261

Position37

Aantal in tekening-

Adapter bulkhead extended 1260-04-40

Article no: 710261

Bushing BWG-F 25/31/38/1,5x20

Article no: 6000001

Position17

Aantal in tekening2

Bushing BWG-F 25/31/38/1,5x20

Article no: 6000001

Washer NL16-DPE 17,0x25,4x3,7

Article no: 611044

Position30

Aantal in tekening-

Washer NL16-DPE 17,0x25,4x3,7

Article no: 611044

Screw MC6S 6x25 12.9 untreated ISO4762

Article no: 6000083

Position5

Aantal in tekening2

Screw MC6S 6x25 12.9 untreated ISO4762

Article no: 6000083

Cylinder axle EC204

Article no: 1016572

Position13

Aantal in tekening1

Cylinder axle EC204

Article no: 1016572

Screw MC6S 6x10 12.9 ZFSHL ISO4762

Article no: 611512

Position14

Aantal in tekening1

Screw MC6S 6x10 12.9 ZFSHL ISO4762

Article no: 611512

Shim tilt axle - EC204/EC204B 0,5mm

Article no: 1027820

Position2

Aantal in tekening1

Shim tilt axle - EC204/EC204B 0,5mm

Article no: 1027820

Use as required

Nut bulkhead adapter 1270-04

Article no: 710250

Position34

Aantal in tekening-

Nut bulkhead adapter 1270-04

Article no: 710250

Tilt cylinder EC204

Article no: 1029849

Position12

Aantal in tekening1

Tilt cylinder EC204

Article no: 1029849

Washer NL1/2"-DPE 13,5x19,5x2,5

Article no: 611096

Position35

Aantal in tekening-

Washer NL1/2"-DPE 13,5x19,5x2,5

Article no: 611096

Hose bracket UNI Top part EC204 left

Article no: 1053333

Position39

Aantal in tekening1

Hose bracket UNI Top part EC204 left

Article no: 1053333

Washer NL6-DPE 6,5x10,8x1,7

Article no: 611039

Position4

Aantal in tekening3

Washer NL6-DPE 6,5x10,8x1,7

Article no: 611039

Tilt axle EC204

Article no: 1016576

Position7

Aantal in tekening2

Tilt axle EC204

Article no: 1016576

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Position10

Aantal in tekening4

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

For Feed Right+Left

Bushing tilt EC204 WB802 55/60x25

Article no: 6000004

Position1

Aantal in tekening2

Bushing tilt EC204 WB802 55/60x25

Article no: 6000004

(Incl. in Top part)

O-ring 9,92x2,62 NBR 70 shore EC209/219/226 cylinder axle

Article no: 710968

Position6

Aantal in tekening2

O-ring 9,92x2,62 NBR 70 shore EC209/219/226 cylinder axle

Article no: 710968
