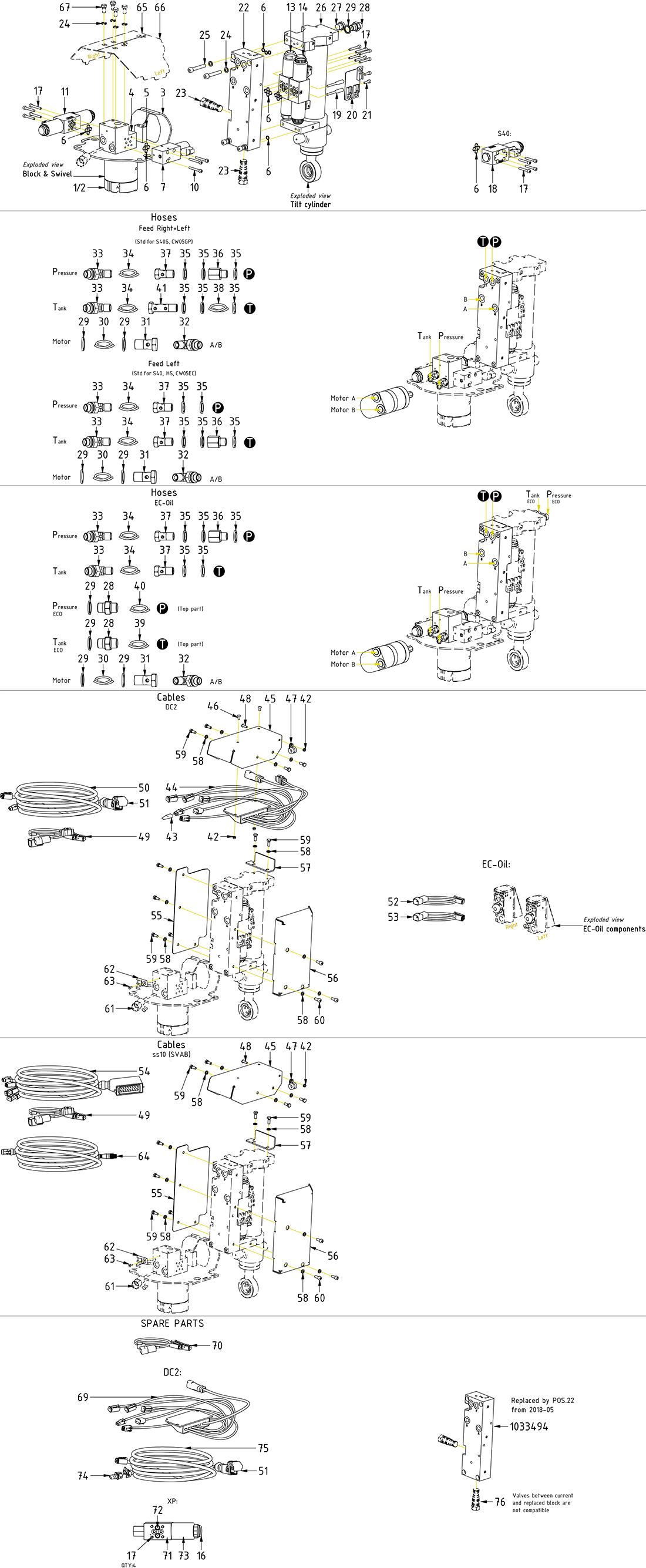

ss10 (DC2/SVAB)

Pos

Artikel

Extra Info

Aantal in tekening

Prijs (excl. BTW)

Directional valve NG4 lock 12V DT

Article no: 7000102

Position18

Aantal in tekening1

Directional valve NG4 lock 12V DT

Article no: 7000102

For S40. (POS.6, 12, 16 incl.)

Adapter cable M12 8P-DTM 6S

Article no: 842148

Position64

Aantal in tekening1

Adapter cable M12 8P-DTM 6S

Article no: 842148

For QS

Screw MC6S 5x16 12.9 untreated ISO4762

Article no: 610401

Position21

Aantal in tekening2

Screw MC6S 5x16 12.9 untreated ISO4762

Article no: 610401

Coil NG4 12V

Article no: 7000205

Position15

Aantal in tekening4

Coil NG4 12V

Article no: 7000205

Hose feed T

Article no: 7000584

Position38

Aantal in tekening1

Hose feed T

Article no: 7000584

Hose feed P

Article no: 7001790

Position40

Aantal in tekening1

Hose feed P

Article no: 7001790

Cover plate Tilt cylinder-left-EC02B/EC204

Article no: 1068975

Position56

Aantal in tekening1

Cover plate Tilt cylinder-left-EC02B/EC204

Article no: 1068975

Electronics Module TM2-EC204 DC2

Article no: 1033055

Position69

Aantal in tekening1

Electronics Module TM2-EC204 DC2

Article no: 1033055

Replaced by POS.44 from 2022-11

Unit cable DC2 DTM EC02B-EC204-3,7m

Article no: 8000763

Position50

Aantal in tekening1

Unit cable DC2 DTM EC02B-EC204-3,7m

Article no: 8000763

Adapter 401-04-04 90°

Article no: 710151

Position32

Aantal in tekening2

Adapter 401-04-04 90°

Article no: 710151

Swivel EC204 with connection block complete

Article no: 1028504

Position2

Aantal in tekening1

Swivel EC204 with connection block complete

Article no: 1028504

Extension cable 4-pole DT-FULL 1,1m Robo hose

Article no: 8001994

Position53

Aantal in tekening1

Extension cable 4-pole DT-FULL 1,1m Robo hose

Article no: 8001994

For EC-Oil. Instead of agg.cable

Directional valve NG4 crossparallel external T without Coil

Article no: 730321

Position71

Aantal in tekening1

Directional valve NG4 crossparallel external T without Coil

Article no: 730321

Nut (POS.16) and o-ring with choke- valve incl.

Cover plate EC02B/EC204-tilt cylinder-DC2/ss10/ss5

Article no: 1029826

Position57

Aantal in tekening1

Cover plate EC02B/EC204-tilt cylinder-DC2/ss10/ss5

Article no: 1029826

Screw M6S 8x16 8.8 FZB ISO4017

Article no: 610122

Position67

Aantal in tekening4

Screw M6S 8x16 8.8 FZB ISO4017

Article no: 610122

Part of make up

ILME cover21.21 with lever CKAX 03 CXA

Article no: 810208

Position51

Aantal in tekening1

ILME cover21.21 with lever CKAX 03 CXA

Article no: 810208

(Incl. with agg.cable)

Cover plate Tilt cylinder-right-EC02B/EC204

Article no: 1029781

Position55

Aantal in tekening1

Cover plate Tilt cylinder-right-EC02B/EC204

Article no: 1029781

Valve block EC02B/EC204 tilt cylinder

Article no: 7000635

Position22

Aantal in tekening1

Valve block EC02B/EC204 tilt cylinder

Article no: 7000635

(POS.23 incl.)

Valve block EC204

Article no: 1027945

Position4

Aantal in tekening1

Valve block EC204

Article no: 1027945

Banjo bolt 4450-04-00 extended

Article no: 712214

Position41

Aantal in tekening1

Banjo bolt 4450-04-00 extended

Article no: 712214

Adapter cable DTM 4P/2P-3xDT 2S-Joint

Article no: 1032718

Position70

Aantal in tekening1

Adapter cable DTM 4P/2P-3xDT 2S-Joint

Article no: 1032718

Used until 2023-02

Swivel EC204-QS40 complete with slip ring

Article no: 1062975

Position1

Aantal in tekening1

Swivel EC204-QS40 complete with slip ring

Article no: 1062975

For EC204 with sensors

Hose

Article no: 7001172

Position68

Aantal in tekening1

Hose

Article no: 7001172

Screw K6S 5x16H 10.9 FZB ISO7380

Article no: 611818

Position48

Aantal in tekening1

Screw K6S 5x16H 10.9 FZB ISO7380

Article no: 611818

Holder Deutsch DT/DTM connector

Article no: 810662

Position62

Aantal in tekening1

Holder Deutsch DT/DTM connector

Article no: 810662

Electronics Module TM2-EC02B/EC204 DC2 QS

Article no: 8001385

Position44

Aantal in tekening1

Electronics Module TM2-EC02B/EC204 DC2 QS

Article no: 8001385

Unit cable DC2 JT EC206-EC233-3,9m

Article no: 8000175

Position75

Aantal in tekening1

Unit cable DC2 JT EC206-EC233-3,9m

Article no: 8000175

Replaced by POS.50 from 2019-05

Adapter cable DTM 2P/4P/6P-3xDT 2S/DTM 6S-Joint

Article no: 8001373

Position49

Aantal in tekening1

Adapter cable DTM 2P/4P/6P-3xDT 2S/DTM 6S-Joint

Article no: 8001373

Hose feed T

Article no: 7001791

Position39

Aantal in tekening1

Hose feed T

Article no: 7001791

Adapter cable DT 4P-DT 2S

Article no: 1057843

Position52

Aantal in tekening1

Adapter cable DT 4P-DT 2S

Article no: 1057843

For EC-Oil

Adapter 136-06-06

Article no: 710106

Position28

Aantal in tekening1

Adapter 136-06-06

Article no: 710106

QTY: 2 for Feed Left and for ECO

Protective cover tilt cylinder EC02B/EC204

Article no: 1029902

Position45

Aantal in tekening1

Protective cover tilt cylinder EC02B/EC204

Article no: 1029902

Protective cover valve block EC204 QS40 right

Article no: 1062212

Position65

Aantal in tekening1

Protective cover valve block EC204 QS40 right

Article no: 1062212

Part of make up

Screw MC6S 5x40 12.9 untreated ISO4762

Article no: 610405

Position10

Aantal in tekening3

Screw MC6S 5x40 12.9 untreated ISO4762

Article no: 610405

Torque: 9,7Nm

Attachment greasedistributor BEKA EC204

Article no: 1031608

Position5

Aantal in tekening1

Attachment greasedistributor BEKA EC204

Article no: 1031608

Nut UNF 1/2" low

Article no: 6000169

Position9

Aantal in tekening1

Nut UNF 1/2" low

Article no: 6000169

Nut M6M M5 lock 6. FZB DIN985

Article no: 610920

Position42

Aantal in tekening3

Nut M6M M5 lock 6. FZB DIN985

Article no: 610920

Plug JT

Article no: 1045154

Position74

Aantal in tekening1

Plug JT

Article no: 1045154

Rubber Steel Clamp Ø10

Article no: 6000003

Position47

Aantal in tekening1

Rubber Steel Clamp Ø10

Article no: 6000003

Use with agg.cable

Protective cover valve block EC204 QS40 left

Article no: 1062218

Position66

Aantal in tekening1

Protective cover valve block EC204 QS40 left

Article no: 1062218

Part of make up

Unit cable ss10 DTM ILME 10P EC02B-EC204-2,5m

Article no: 1033198

Position54

Aantal in tekening1

Unit cable ss10 DTM ILME 10P EC02B-EC204-2,5m

Article no: 1033198

Adapter 236-04-04

Article no: 1013885

Position36

Aantal in tekening1

Adapter 236-04-04

Article no: 1013885

Nut directional valve NG4

Article no: 1006785

Position16

Aantal in tekening6

Nut directional valve NG4

Article no: 1006785

Mounting plate-3x Deutsch NG4

Article no: 1069580

Position20

Aantal in tekening1

Mounting plate-3x Deutsch NG4

Article no: 1069580

Coil 12V NG4 On/Off DT

Article no: 7000897

Position12

Aantal in tekening2

Coil 12V NG4 On/Off DT

Article no: 7000897

Screw Valve Distance NG6 5x35

Article no: 1054687

Position19

Aantal in tekening2

Screw Valve Distance NG6 5x35

Article no: 1054687

Torque: 9,7Nm

Coil NG4 IQS lock 12V DT

Article no: 1042065

Position8

Aantal in tekening1

Coil NG4 IQS lock 12V DT

Article no: 1042065

Directional valve NG4 12V DT

Article no: 7000099

Position11

Aantal in tekening1

Directional valve NG4 12V DT

Article no: 7000099

(POS.6, 12, 16 incl.)

Directional valve NG4 Prop rotation 12V DT

Article no: 7000103

Position14

Aantal in tekening1

Directional valve NG4 Prop rotation 12V DT

Article no: 7000103

(POS.6, 15-16 incl.)

Valve plate -EC204 V2

Article no: 1031620

Position3

Aantal in tekening1

Valve plate -EC204 V2

Article no: 1031620

Directional valve NG4 IQS lock 12V DT ss10 Coil A

Article no: 1042047

Position7

Aantal in tekening1

Directional valve NG4 IQS lock 12V DT ss10 Coil A

Article no: 1042047

For CW, ss SIQ, EC204 with sensors (POS.6, 8-9 incl.)

Screw MC6S 8x50H 12.9 ISO4762

Article no: 610439

Position25

Aantal in tekening4

Screw MC6S 8x50H 12.9 ISO4762

Article no: 610439

Screw MC6S 5x35 12.9 untreated ISO4762

Article no: 610404

Position17

Aantal in tekening10

Screw MC6S 5x35 12.9 untreated ISO4762

Article no: 610404

Torque: 9,7Nm. QTY: 14 for S40

Screw MF6S 4x10 10.9 untreated ISO10642

Article no: 610605

Position63

Aantal in tekening1

Screw MF6S 4x10 10.9 untreated ISO10642

Article no: 610605

Coil NG4 12V JT

Article no: 730313

Position73

Aantal in tekening2

Coil NG4 12V JT

Article no: 730313

Tilt cylinder EC204

Article no: 1029849

Position26

Aantal in tekening1

Tilt cylinder EC204

Article no: 1029849

Part of top part

Jumper DTM 2P POS:1-2

Article no: 8001229

Position43

Aantal in tekening1

Jumper DTM 2P POS:1-2

Article no: 8001229

Plug DTM connector "1"

Directional valve NG4 Prop tilt 12V DT

Article no: 7000100

Position13

Aantal in tekening1

Directional valve NG4 Prop tilt 12V DT

Article no: 7000100

(POS.6, 15-16 incl.)

Hose feed (Block) - EC204

Article no: 7000108

Position34

Aantal in tekening2

Hose feed (Block) - EC204

Article no: 7000108

Overcenter RJV cylinder block EC02 / EC204

Article no: 790142

Position76

Aantal in tekening2

Overcenter RJV cylinder block EC02 / EC204

Article no: 790142

Used until 2018-05

Plug Dysa D0 for NG4 / VRP2-04

Article no: 790191

Position72

Aantal in tekening1

Plug Dysa D0 for NG4 / VRP2-04

Article no: 790191

O-ring incl.

O-ring 7,65x1,78 FKM 90 shore Viton NG4

Article no: 710960

Position6

Aantal in tekening20

O-ring 7,65x1,78 FKM 90 shore Viton NG4

Article no: 710960

Hose Hydraulic motor

Article no: 7000107

Position30

Aantal in tekening2

Hose Hydraulic motor

Article no: 7000107

Banjo bolt 4451-06

Article no: 710272

Position31

Aantal in tekening2

Banjo bolt 4451-06

Article no: 710272

Screw K6S 5x10 10.9 FZB ISO7380

Article no: 6000408

Position46

Aantal in tekening2

Screw K6S 5x10 10.9 FZB ISO7380

Article no: 6000408

Screw MC6S 6x16 12.9 ZFSHL ISO4762

Article no: 6000017

Position60

Aantal in tekening3

Screw MC6S 6x16 12.9 ZFSHL ISO4762

Article no: 6000017

Overcenter adjustable (overcenter) EC02/EC204/EC204B

Article no: 7000647

Position23

Aantal in tekening2

Overcenter adjustable (overcenter) EC02/EC204/EC204B

Article no: 7000647

(Only compatible with current block)

Screw M6S 6x16 10.9 FZB

Article no: 610109

Position59

Aantal in tekening10

Screw M6S 6x16 10.9 FZB

Article no: 610109

Washer NL6-DPE 6,5x10,8x1,7

Article no: 611039

Position58

Aantal in tekening13

Washer NL6-DPE 6,5x10,8x1,7

Article no: 611039

Banjo bolt 4451-04

Article no: 710271

Position37

Aantal in tekening1

Banjo bolt 4451-04

Article no: 710271

QTY: 2 for Feed Left and for ECO

Seal washer GBR06 3/8"

Article no: 710703

Position29

Aantal in tekening5

Seal washer GBR06 3/8"

Article no: 710703

QTY: 6 for Feed Left and for ECO

Plug VSTIR38ED 3/8"

Article no: 711504

Position27

Aantal in tekening1

Plug VSTIR38ED 3/8"

Article no: 711504

Seal washer GBR04 1/4"

Article no: 710702

Position35

Aantal in tekening6

Seal washer GBR04 1/4"

Article no: 710702

QTY: 5 for Feed Left and for ECO

Adapter 402-04-04 45°

Article no: 7000104

Position33

Aantal in tekening2

Adapter 402-04-04 45°

Article no: 7000104

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Position24

Aantal in tekening8

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

QTY: 4 part of make up
