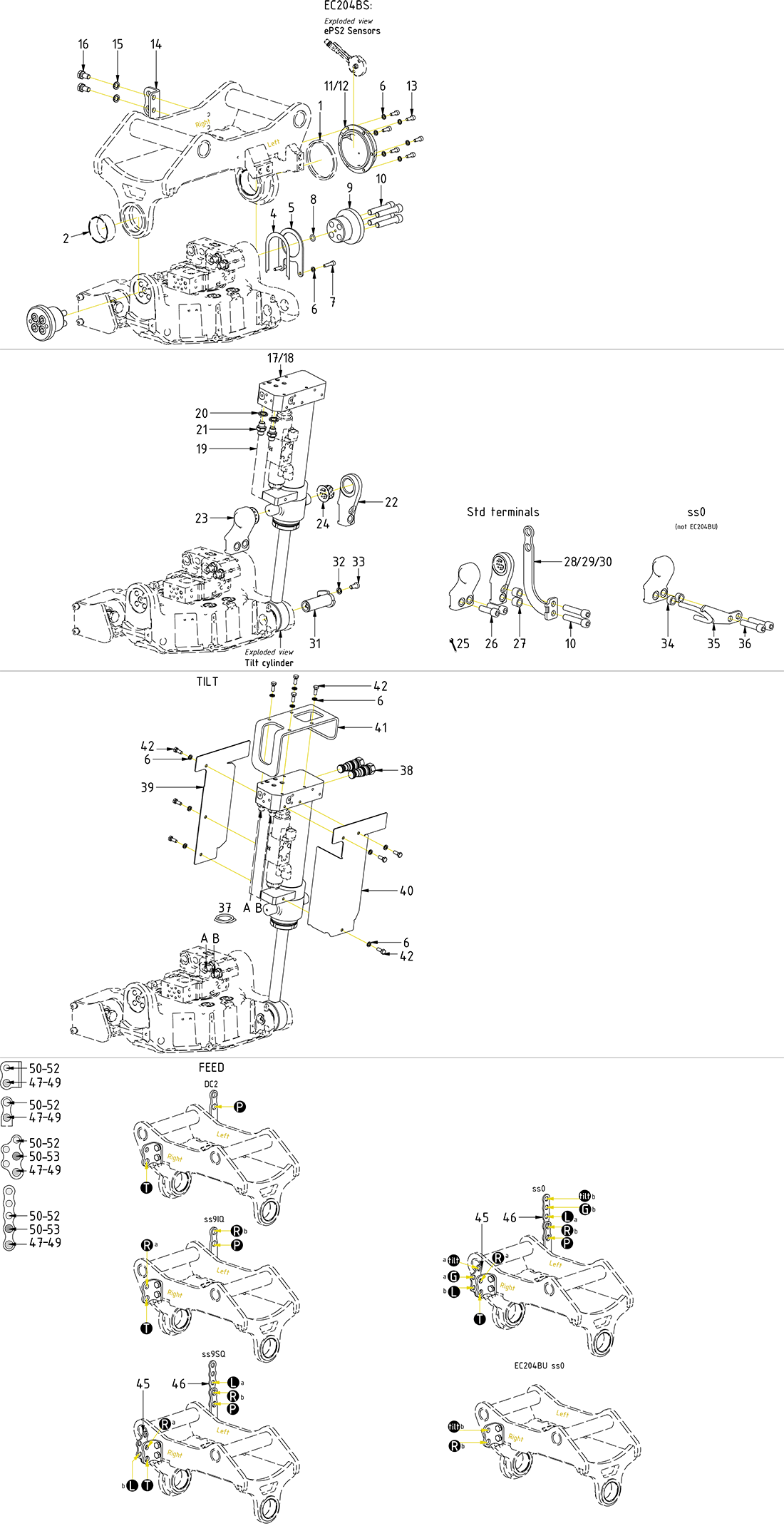

Std. Top components

Pos

Artikel

Extra Info

Aantal in tekening

Prijs (excl. BTW)

Tilt axial washer EC204/EC204B

Article no: 1027785

Position4

Aantal in tekening1

Tilt axial washer EC204/EC204B

Article no: 1027785

Shim tilt axle - EC204/EC204B 0,5mm

Article no: 1027820

Position3

Aantal in tekening1

Shim tilt axle - EC204/EC204B 0,5mm

Article no: 1027820

Use as required

Screw M6S 6x16 10.9 FZB

Article no: 610109

Position40

Aantal in tekening4

Screw M6S 6x16 10.9 FZB

Article no: 610109

Loxeal 55-02

Screw K6S 6x14 10.9 FZB ISO7380

Article no: 6000242

Position38

Aantal in tekening6

Screw K6S 6x14 10.9 FZB ISO7380

Article no: 6000242

Loxeal 55-02

Nut bulkhead adapter 1270-04

Article no: 710250

Position49

Aantal in tekening2

Nut bulkhead adapter 1270-04

Article no: 710250

QTY depends on config.

Hose guide EC204B

Article no: 1078845

Position32

Aantal in tekening1

Hose guide EC204B

Article no: 1078845

Hose bracket S40- top part EC204/EC204B left

Article no: 1053732

Position25

Aantal in tekening1

Hose bracket S40- top part EC204/EC204B left

Article no: 1053732

Bushing tilt EC204 WB802 55/60x25

Article no: 6000004

Position2

Aantal in tekening2

Bushing tilt EC204 WB802 55/60x25

Article no: 6000004

(Incl. in Top part)

Protective cover tilt cylinder EC204B

Article no: 1075507

Position39

Aantal in tekening1

Protective cover tilt cylinder EC204B

Article no: 1075507

Washer NL6-DPE 6,5x10,8x1,7

Article no: 611039

Position5

Aantal in tekening18

Washer NL6-DPE 6,5x10,8x1,7

Article no: 611039

QTY: 8 for EC204BU

Cover Tilt Axle EC204BS

Article no: 1074349

Position10

Aantal in tekening1

Cover Tilt Axle EC204BS

Article no: 1074349

Spacer 15mm Hose Bracket left EC204/EC204B

Article no: 1009999

Position24

Aantal in tekening2

Spacer 15mm Hose Bracket left EC204/EC204B

Article no: 1009999

Hose bracket EC204B-straight Plate for 3x hose

Article no: 1079464

Position44

Aantal in tekening1

Hose bracket EC204B-straight Plate for 3x hose

Article no: 1079464

Yoke Bracket EC204/EC204B forward complete

Article no: 1029052

Position20

Aantal in tekening1

Yoke Bracket EC204/EC204B forward complete

Article no: 1029052

(POS.21 incl.)

Screw MC6S 12x55 12.9 ZFSHL ISO4762

Article no: 6000155

Position33

Aantal in tekening2

Screw MC6S 12x55 12.9 ZFSHL ISO4762

Article no: 6000155

Torque: 136Nm

Tilt cylinder EC204B

Article no: 1077744

Position15

Aantal in tekening1

Tilt cylinder EC204B

Article no: 1077744

Tilt axle EC204B

Article no: 1074348

Position8

Aantal in tekening2

Tilt axle EC204B

Article no: 1074348

Overcenter adjustable (overcenter) EC02/EC204/EC204B

Article no: 7000647

Position35

Aantal in tekening2

Overcenter adjustable (overcenter) EC02/EC204/EC204B

Article no: 7000647

Torque: 45Nm

Cylinder axle EC204B

Article no: 1075902

Position28

Aantal in tekening1

Cylinder axle EC204B

Article no: 1075902

Screw M6S 10x20 8.8 FZB ISO4017

Article no: 610141

Position14

Aantal in tekening2

Screw M6S 10x20 8.8 FZB ISO4017

Article no: 610141

Without EC-Oil

Bushing BWG-F 25/31/38/1,5x20

Article no: 6000001

Position21

Aantal in tekening2

Bushing BWG-F 25/31/38/1,5x20

Article no: 6000001

Hose

Article no: 7001990

Position34

Aantal in tekening2

Hose

Article no: 7001990

For DC3, DC2, ss10 (SVAB), ss9

Screw MC6S 12x40H 12.9 ZFSHL ISO4762

Article no: 6000141

Position23

Aantal in tekening2

Screw MC6S 12x40H 12.9 ZFSHL ISO4762

Article no: 6000141

Torque: 136Nm

Nut bulkhead adapter 1270-06

Article no: 710252

Position47

Aantal in tekening2

Nut bulkhead adapter 1270-06

Article no: 710252

Washer NL1/2"-DPE 13,5x19,5x2,5

Article no: 611096

Position50

Aantal in tekening2

Washer NL1/2"-DPE 13,5x19,5x2,5

Article no: 611096

QTY depends on config.

Cover plate Tilt cylinder-leftEC204B

Article no: 1076687

Position37

Aantal in tekening1

Cover plate Tilt cylinder-leftEC204B

Article no: 1076687

Seal PAK 80x90x7-L

Article no: 1076113

Position1

Aantal in tekening1

Seal PAK 80x90x7-L

Article no: 1076113

Face groove toward top part (Incl. in Top part)

Adapter bulkhead extended 1260-06-43

Article no: 710262

Position46

Aantal in tekening2

Adapter bulkhead extended 1260-06-43

Article no: 710262

Screw MC6S 6x16 12.9 ZFSHL ISO4762

Article no: 6000017

Position11

Aantal in tekening8

Screw MC6S 6x16 12.9 ZFSHL ISO4762

Article no: 6000017

Hose bracket CW05- top part EC204B left

Article no: 1079664

Position27

Aantal in tekening1

Hose bracket CW05- top part EC204B left

Article no: 1079664

Screw MC6S 12x60 12.9 ZFSHL ISO4762

Article no: 6000140

Position9

Aantal in tekening10

Screw MC6S 12x60 12.9 ZFSHL ISO4762

Article no: 6000140

Torque: 136Nm QTY: 8 when EC-Oil

Screw MC6S 6x25 12.9 untreated ISO4762

Article no: 6000083

Position6

Aantal in tekening2

Screw MC6S 6x25 12.9 untreated ISO4762

Article no: 6000083

Hose bracket Top part EC204/EC204B right

Article no: 1045070

Position12

Aantal in tekening1

Hose bracket Top part EC204/EC204B right

Article no: 1045070

Without EC-Oil

Hose bracket UNI top part EC204B left

Article no: 1079699

Position26

Aantal in tekening1

Hose bracket UNI top part EC204B left

Article no: 1079699

Hose bracket EC204B-sheet metal for 3x hose-fixed

Article no: 1079468

Position43

Aantal in tekening1

Hose bracket EC204B-sheet metal for 3x hose-fixed

Article no: 1079468

Screw MLC6S 8x16 10.9 FZB DIN7984

Article no: 6000220

Position30

Aantal in tekening1

Screw MLC6S 8x16 10.9 FZB DIN7984

Article no: 6000220

Valve block EC204B tilt cylinder

Article no: 1075504

Position16

Aantal in tekening1

Valve block EC204B tilt cylinder

Article no: 1075504

Part of control system

Cover plate Tilt cylinder-right-EC204B

Article no: 1076686

Position36

Aantal in tekening1

Cover plate Tilt cylinder-right-EC204B

Article no: 1076686

O-ring 12,37x2,62 NBR 70 shore EC05B hydraulic pipes/motor

Article no: 710961

Position51

Aantal in tekening2

O-ring 12,37x2,62 NBR 70 shore EC05B hydraulic pipes/motor

Article no: 710961

Adapter bulkhead extended 1260-04-40

Article no: 710261

Position48

Aantal in tekening2

Adapter bulkhead extended 1260-04-40

Article no: 710261

QTY depends on config.

Yoke Bracket EC204/EC204B rear cast complete

Article no: 1036606

Position19

Aantal in tekening1

Yoke Bracket EC204/EC204B rear cast complete

Article no: 1036606

(POS.21 incl.)

Spacer 10mm Hose Bracket left EC206

Article no: 1071704

Position31

Aantal in tekening2

Spacer 10mm Hose Bracket left EC206

Article no: 1071704

O-ring 9,92x2,62 NBR 70 shore EC209/219/226 cylinder axle

Article no: 710968

Position7

Aantal in tekening2

O-ring 9,92x2,62 NBR 70 shore EC209/219/226 cylinder axle

Article no: 710968

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Position29

Aantal in tekening1

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Adapter 138-04-29 ( compact 136-04-04 )

Article no: 710135

Position18

Aantal in tekening2

Adapter 138-04-29 ( compact 136-04-04 )

Article no: 710135

Washer NL16-DPE 17,0x25,4x3,7

Article no: 611044

Position45

Aantal in tekening2

Washer NL16-DPE 17,0x25,4x3,7

Article no: 611044

Seal washer GBR04 1/4"

Article no: 710702

Position17

Aantal in tekening2

Seal washer GBR04 1/4"

Article no: 710702

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Position13

Aantal in tekening2

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Without EC-Oil
