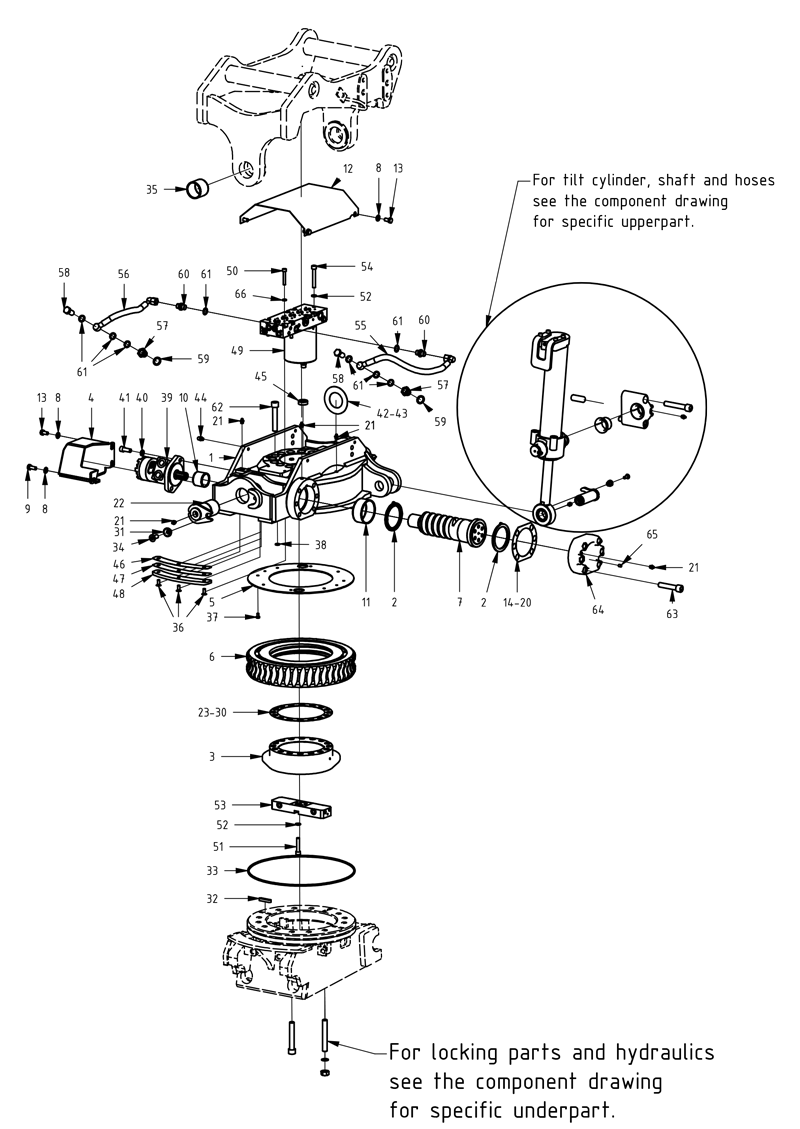

Main components

Pos

Artikel

Extra Info

Aantal in tekening

Prijs (excl. BTW)

Protective cover valve block EC15

Article no: 300914

Position12

Aantal in tekening1

Protective cover valve block EC15

Article no: 300914

Shim centre ring - EC15 - 0,7mm

Article no: 201399

Position26

Aantal in tekening1

Shim centre ring - EC15 - 0,7mm

Article no: 201399

Shim tilt axle - EC15 - spring steel 56x100x1

Article no: 650506

Position43

Aantal in tekening1

Shim tilt axle - EC15 - spring steel 56x100x1

Article no: 650506

1 mm

Shim End lock EC10/EC15/EC20 0,3mm

Article no: 1001639

Position14

Aantal in tekening1

Shim End lock EC10/EC15/EC20 0,3mm

Article no: 1001639

End lock EC10/EC15/EC20 outer shim cast

Article no: 1014716

Position64

Aantal in tekening1

End lock EC10/EC15/EC20 outer shim cast

Article no: 1014716

Replaces 303270 From 1306

Shim centre ring - EC15 - 0,6mm

Article no: 202626

Position25

Aantal in tekening1

Shim centre ring - EC15 - 0,6mm

Article no: 202626

Axial washer with ear EC10,15,20

Article no: 1010758

Position2

Aantal in tekening2

Axial washer with ear EC10,15,20

Article no: 1010758

O-ring NBR 70 shore Quick hitch 15

Article no: 710940

Position33

Aantal in tekening1

O-ring NBR 70 shore Quick hitch 15

Article no: 710940

Washer NL12-DPE 13,0x19,5x2,7

Article no: 611042

Position40

Aantal in tekening2

Washer NL12-DPE 13,0x19,5x2,7

Article no: 611042

Shim End lock EC10/EC15/EC20 0,4mm

Article no: 405126

Position15

Aantal in tekening1

Shim End lock EC10/EC15/EC20 0,4mm

Article no: 405126

Plug 1" pipe thread conical DIN 906

Article no: 650406

Position45

Aantal in tekening2

Plug 1" pipe thread conical DIN 906

Article no: 650406

Screw MC6S 10x70 12.9 untreated ISO4762

Article no: 610461

Position54

Aantal in tekening1

Screw MC6S 10x70 12.9 untreated ISO4762

Article no: 610461

Screw M6S 10x20 8.8 FZB ISO4017

Article no: 610141

Position13

Aantal in tekening6

Screw M6S 10x20 8.8 FZB ISO4017

Article no: 610141

Hydraulic motor Charlynn 131cc - EC209, EC214, EC10, EC15

Article no: 720112

Position39

Aantal in tekening1

Hydraulic motor Charlynn 131cc - EC209, EC214, EC10, EC15

Article no: 720112

Worm screw EC15

Article no: 200203

Position7

Aantal in tekening1

Worm screw EC15

Article no: 200203

O-ring 10,77x2,62 NBR 70 shore

Article no: 710910

Position38

Aantal in tekening1

O-ring 10,77x2,62 NBR 70 shore

Article no: 710910

Lubrication nipple 1/8 straight

Article no: 711403

Position21

Aantal in tekening13

Lubrication nipple 1/8 straight

Article no: 711403

Washer BRB FZB 10,5x22x2 ISO7089

Article no: 611006

Position8

Aantal in tekening7

Washer BRB FZB 10,5x22x2 ISO7089

Article no: 611006

Adapter 136-06-06

Article no: 710106

Position60

Aantal in tekening2

Adapter 136-06-06

Article no: 710106

Shim centre ring - EC15 - 0,5mm

Article no: 202053

Position24

Aantal in tekening1

Shim centre ring - EC15 - 0,5mm

Article no: 202053

Screw M6S 6x12 8.8 FZB ISO4017

Article no: 610108

Position37

Aantal in tekening8

Screw M6S 6x12 8.8 FZB ISO4017

Article no: 610108

Shim tilt axle - EC15 - spring steel 56x100x0.5

Article no: 650505

Position42

Aantal in tekening1

Shim tilt axle - EC15 - spring steel 56x100x0.5

Article no: 650505

0,5 mm

Worm wheel EC15

Article no: 100342

Position6

Aantal in tekening1

Worm wheel EC15

Article no: 100342

Plug Din 906 (M8x1) electrogalvanized

Article no: 711527

Position65

Aantal in tekening1

Plug Din 906 (M8x1) electrogalvanized

Article no: 711527

Adapter 234-08-06

Article no: 710233

Position57

Aantal in tekening2

Adapter 234-08-06

Article no: 710233

Wear washer EC15

Article no: 300775

Position5

Aantal in tekening1

Wear washer EC15

Article no: 300775

Hose motor - EC15 - 5 valve, long

Article no: 740622

Position55

Aantal in tekening1

Hose motor - EC15 - 5 valve, long

Article no: 740622

Screw M6S 10x25 8.8 FZB ISO4017

Article no: 610142

Position9

Aantal in tekening1

Screw M6S 10x25 8.8 FZB ISO4017

Article no: 610142

Shim break support - EC15B, EC20B - 0,3mm

Article no: 1013256

Position47

Aantal in tekening1

Shim break support - EC15B, EC20B - 0,3mm

Article no: 1013256

If needed

Shim End lock EC10/EC15/EC20 0,5mm

Article no: 405127

Position16

Aantal in tekening1

Shim End lock EC10/EC15/EC20 0,5mm

Article no: 405127

Motor cover EC15

Article no: 300917

Position4

Aantal in tekening1

Motor cover EC15

Article no: 300917

Screw MC6S 16x80 12.9 untreated ISO4762

Article no: 610528

Position63

Aantal in tekening6

Screw MC6S 16x80 12.9 untreated ISO4762

Article no: 610528

Screw MF6S 12x30 10.9 FZB ISO10642

Article no: 610668

Position34

Aantal in tekening2

Screw MF6S 12x30 10.9 FZB ISO10642

Article no: 610668

10.9 Untreated DIN 7991

Tilt axle EC15 hardened

Article no: 302828

Position22

Aantal in tekening2

Tilt axle EC15 hardened

Article no: 302828

Screw MC6S 8x50H 12.9 ISO4762

Article no: 610439

Position50

Aantal in tekening3

Screw MC6S 8x50H 12.9 ISO4762

Article no: 610439

Shim centre ring - EC15 - 1,1mm

Article no: 201403

Position30

Aantal in tekening1

Shim centre ring - EC15 - 1,1mm

Article no: 201403

Hose motor - EC15 - 5 valve, short

Article no: 740621

Position56

Aantal in tekening1

Hose motor - EC15 - 5 valve, short

Article no: 740621

Screw MF6S 8x20 10.9 untreated ISO10642

Article no: 610634

Position36

Aantal in tekening5

Screw MF6S 8x20 10.9 untreated ISO10642

Article no: 610634

Shim centre ring - EC15 - 1,0mm

Article no: 201364

Position29

Aantal in tekening1

Shim centre ring - EC15 - 1,0mm

Article no: 201364

Shim break support - EC15B, EC20B - 0,1mm

Article no: 1008262

Position46

Aantal in tekening1

Shim break support - EC15B, EC20B - 0,1mm

Article no: 1008262

If needed

Plate break support - EC15B, EC20B

Article no: 1006878

Position48

Aantal in tekening1

Plate break support - EC15B, EC20B

Article no: 1006878

Shim centre ring - EC15 - 0,4mm

Article no: 202052

Position23

Aantal in tekening1

Shim centre ring - EC15 - 0,4mm

Article no: 202052

Lubrication nipple 1/8" 90°

Article no: 711409

Position44

Aantal in tekening1

Lubrication nipple 1/8" 90°

Article no: 711409

Centre ring - EC15 - should have shim, as of 05-01-01

Article no: 201827

Position3

Aantal in tekening1

Centre ring - EC15 - should have shim, as of 05-01-01

Article no: 201827

Banjo bolt 4451-06

Article no: 710272

Position58

Aantal in tekening2

Banjo bolt 4451-06

Article no: 710272

Seal washer GBR08 1/2"

Article no: 710704

Position59

Aantal in tekening2

Seal washer GBR08 1/2"

Article no: 710704

Feather key 10x8x50 C45 EC05B,EC15,EC20,EC214,EC219,EC226

Article no: 650102

Position32

Aantal in tekening4

Feather key 10x8x50 C45 EC05B,EC15,EC20,EC214,EC219,EC226

Article no: 650102

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Position52

Aantal in tekening3

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Seal washer GBR06 3/8"

Article no: 710703

Position61

Aantal in tekening8

Seal washer GBR06 3/8"

Article no: 710703

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Position66

Aantal in tekening3

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Bushing WB802 80/85x40

Article no: 630103

Position11

Aantal in tekening1

Bushing WB802 80/85x40

Article no: 630103

Spacer M12 L15 countersunk

Article no: 1008243

Position31

Aantal in tekening2

Spacer M12 L15 countersunk

Article no: 1008243

Bushing WB802 45/50x40

Article no: 630101

Position10

Aantal in tekening1

Bushing WB802 45/50x40

Article no: 630101

Bushing tilt EC15 WB802 55/60x50

Article no: 630309

Position35

Aantal in tekening2

Bushing tilt EC15 WB802 55/60x50

Article no: 630309
