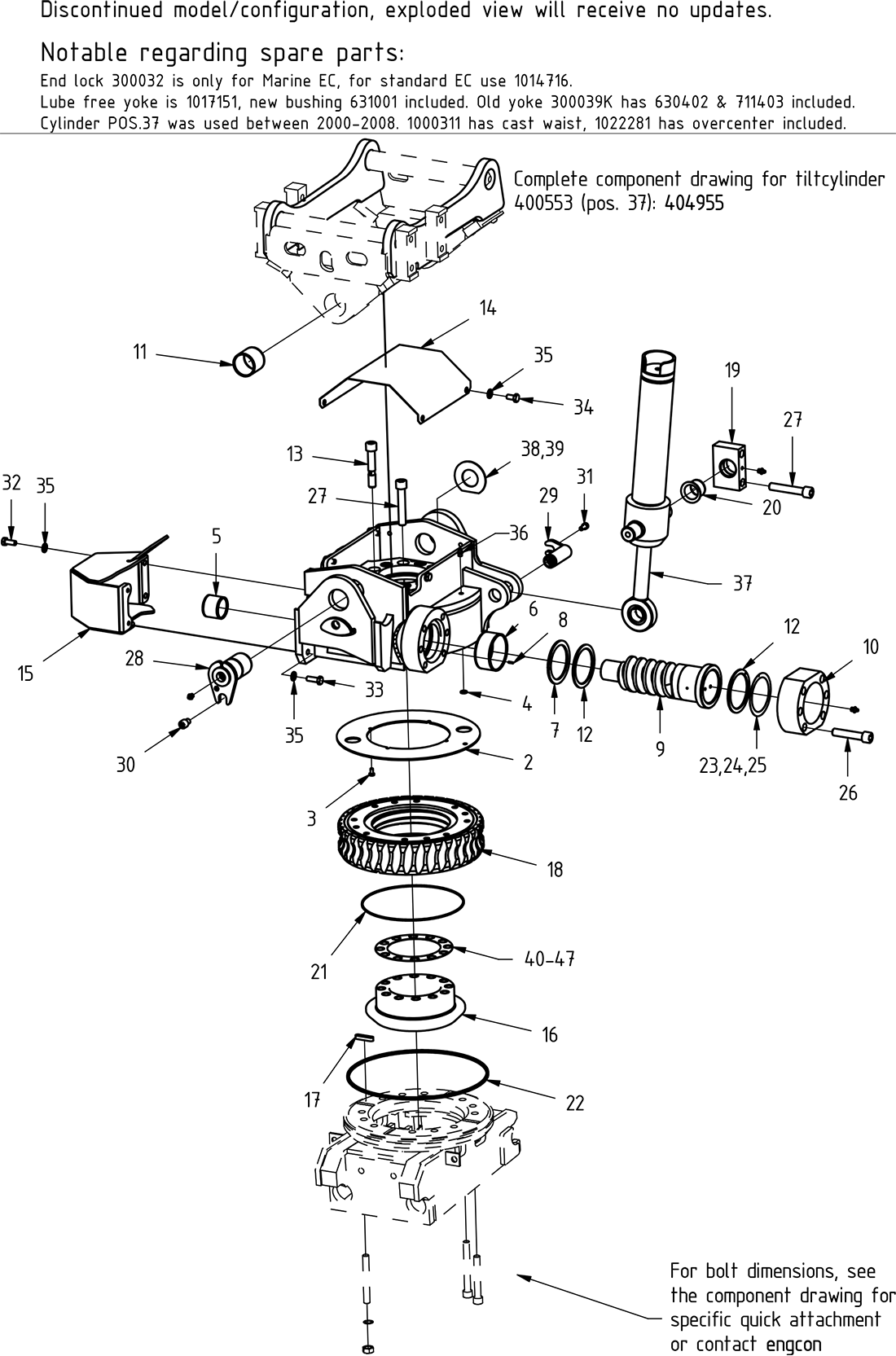

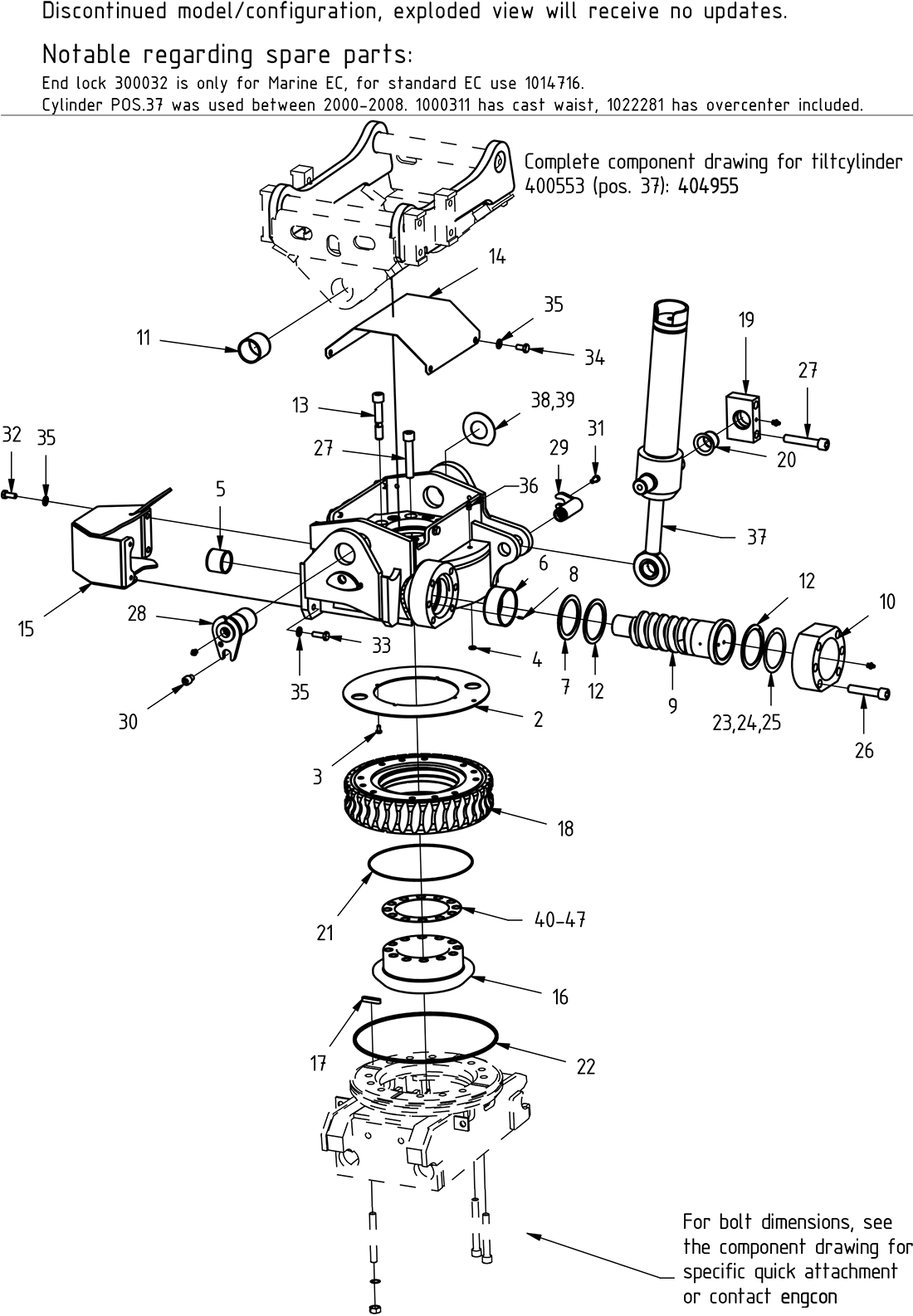

Main components

Pos

Artikel

Extra Info

Aantal in tekening

Prijs (excl. BTW)

End lock EC10/EC15/EC20 outer shim cast

Article no: 1014716

Position10

Aantal in tekening1

End lock EC10/EC15/EC20 outer shim cast

Article no: 1014716

Axial washer EC10, EC20

Article no: 300031

Position12

Aantal in tekening2

Axial washer EC10, EC20

Article no: 300031

Support ring 80/100x3,5 Din 988

Article no: 650301

Position7

Aantal in tekening1

Support ring 80/100x3,5 Din 988

Article no: 650301

80/100

Tilt axle EC10 hardened

Article no: 302826

Position28

Aantal in tekening2

Tilt axle EC10 hardened

Article no: 302826

Replacing 300112 from 05-10-03

O-ring centre ring EC10

Article no: 710906

Position21

Aantal in tekening1

O-ring centre ring EC10

Article no: 710906

229,6x3,0

Protective cover valve block EC10 (height 85mm)

Article no: 302434

Position14

Aantal in tekening1

Protective cover valve block EC10 (height 85mm)

Article no: 302434

Replacing 300786

Motor cover EC10

Article no: 100021

Position15

Aantal in tekening1

Motor cover EC10

Article no: 100021

Bushing BWG-F 40/50/55/5x30

Article no: 631001

Position20

Aantal in tekening4

Bushing BWG-F 40/50/55/5x30

Article no: 631001

Tilt cylinder EC10 cast yoke

Article no: 1000311

Position37

Aantal in tekening2

Tilt cylinder EC10 cast yoke

Article no: 1000311

Screw MC6S 8x16H 12.9 ZFSHL ISO4762

Article no: 610432

Position31

Aantal in tekening2

Screw MC6S 8x16H 12.9 ZFSHL ISO4762

Article no: 610432

12.9 Untreated ISO 4762

Cylindrical pin CPK Ø3x12 m6

Article no: 650201

Position8

Aantal in tekening2

Cylindrical pin CPK Ø3x12 m6

Article no: 650201

S4 3,0x12 45S20K

Screw M6S 10x20 8.8 FZB ISO4017

Article no: 610141

Position34

Aantal in tekening4

Screw M6S 10x20 8.8 FZB ISO4017

Article no: 610141

8.8 Zinc plated ISO 4014

Shim centre ring - EC10 - 1,0mm

Article no: 201363

Position40

Aantal in tekening1

Shim centre ring - EC10 - 1,0mm

Article no: 201363

1,0 mm

Screw MC6S 12x16H 12.9 ZFSHL ISO4762

Article no: 610470

Position30

Aantal in tekening2

Screw MC6S 12x16H 12.9 ZFSHL ISO4762

Article no: 610470

12.9 Untreated ISO 4762

Shim centre ring - EC10 - 1,1mm

Article no: 201398

Position44

Aantal in tekening1

Shim centre ring - EC10 - 1,1mm

Article no: 201398

1,1 mm

Shim worm screw - EC10, EC15, EC20 - 80/100x0,2

Article no: 650514

Position24

Aantal in tekening1

Shim worm screw - EC10, EC15, EC20 - 80/100x0,2

Article no: 650514

Shim centre ring - EC10 - 0,4mm

Article no: 202049

Position46

Aantal in tekening1

Shim centre ring - EC10 - 0,4mm

Article no: 202049

0,4 mm

O-ring 10,77x2,62 NBR 70 shore

Article no: 710910

Position4

Aantal in tekening1

O-ring 10,77x2,62 NBR 70 shore

Article no: 710910

10,77x2,62

Lubrication nipple 1/8 straight

Article no: 711403

Position36

Aantal in tekening15

Lubrication nipple 1/8 straight

Article no: 711403

Shim centre ring - EC10 - 0,9mm

Article no: 201397

Position43

Aantal in tekening1

Shim centre ring - EC10 - 0,9mm

Article no: 201397

0,9 mm

Washer BRB FZB 10,5x22x2 ISO7089

Article no: 611006

Position35

Aantal in tekening8

Washer BRB FZB 10,5x22x2 ISO7089

Article no: 611006

10,5x20 Zinc plated ISO 7089

Shim centre ring - EC10 - 0,7mm

Article no: 201395

Position41

Aantal in tekening1

Shim centre ring - EC10 - 0,7mm

Article no: 201395

0,7 mm

Centre ring - EC10 - should have shim, as of 05-01

Article no: 302840

Position16

Aantal in tekening1

Centre ring - EC10 - should have shim, as of 05-01

Article no: 302840

Replacing 300408

Shim worm screw - EC10, EC15, EC20 - 80/100x0,3

Article no: 650515

Position25

Aantal in tekening1

Shim worm screw - EC10, EC15, EC20 - 80/100x0,3

Article no: 650515

Screw M6S 6x12 8.8 FZB ISO4017

Article no: 610108

Position3

Aantal in tekening4

Screw M6S 6x12 8.8 FZB ISO4017

Article no: 610108

8.8 Zinc plated ISO 4014

Shim tilt axle - EC10 - spring steel 51x80x1

Article no: 650508

Position39

Aantal in tekening1

Shim tilt axle - EC10 - spring steel 51x80x1

Article no: 650508

1 mm

Worm screw EC10

Article no: 300080

Position9

Aantal in tekening1

Worm screw EC10

Article no: 300080

Screw M6S 10x25 8.8 FZB ISO4017

Article no: 610142

Position32

Aantal in tekening2

Screw M6S 10x25 8.8 FZB ISO4017

Article no: 610142

8.8 Zinc plated ISO 4014

Screw MC6S 16x80 12.9 untreated ISO4762

Article no: 610528

Position26

Aantal in tekening6

Screw MC6S 16x80 12.9 untreated ISO4762

Article no: 610528

12.9 Untreated ISO 4762

Shim tilt axle - EC10 - spring steel 51x80x0.5

Article no: 650507

Position38

Aantal in tekening1

Shim tilt axle - EC10 - spring steel 51x80x0.5

Article no: 650507

0,5 mm

Shim worm screw - EC10, EC15, EC20 - 80/100x0,1

Article no: 650513

Position23

Aantal in tekening1

Shim worm screw - EC10, EC15, EC20 - 80/100x0,1

Article no: 650513

Wear washer EC10

Article no: 400325

Position2

Aantal in tekening1

Wear washer EC10

Article no: 400325

Worm wheel EC10 M14

Article no: 300862

Position18

Aantal in tekening1

Worm wheel EC10 M14

Article no: 300862

Screw M6S 10x30 8.8 FZB ISO4017

Article no: 610143

Position33

Aantal in tekening2

Screw M6S 10x30 8.8 FZB ISO4017

Article no: 610143

8.8 Zinc plated ISO 4014

Lubrication screw EC10, EC20

Article no: 400721

Position13

Aantal in tekening1

Lubrication screw EC10, EC20

Article no: 400721

Shim centre ring - EC10 - 0,5mm

Article no: 202050

Position47

Aantal in tekening1

Shim centre ring - EC10 - 0,5mm

Article no: 202050

0,5 mm

Feather key 10x8x45 C45 EC10, EC02, EC209 550475

Article no: 650101

Position17

Aantal in tekening4

Feather key 10x8x45 C45 EC10, EC02, EC209 550475

Article no: 650101

Yoke Bracket EC10-20, EC219-226, EC319-326 cast grease-free

Article no: 1017151

Position19

Aantal in tekening4

Yoke Bracket EC10-20, EC219-226, EC319-326 cast grease-free

Article no: 1017151

Cylinder axle EC05, EC10, EC15 hardened

Article no: 404276

Position29

Aantal in tekening2

Cylinder axle EC05, EC10, EC15 hardened

Article no: 404276

Replacing 400119 from 05-10-03

O-ring 319,3x5,7 - Quick hitch EC10/EC219/EC226

Article no: 710908

Position22

Aantal in tekening1

O-ring 319,3x5,7 - Quick hitch EC10/EC219/EC226

Article no: 710908

314,3x5,7

Bushing WB802 80/85x40

Article no: 630103

Position6

Aantal in tekening1

Bushing WB802 80/85x40

Article no: 630103

WB 702

Bushing tilt EC10 WB802 50/55x50

Article no: 630308

Position11

Aantal in tekening2

Bushing tilt EC10 WB802 50/55x50

Article no: 630308

WB 702

Bushing WB802 45/50x40

Article no: 630101

Position5

Aantal in tekening1

Bushing WB802 45/50x40

Article no: 630101

WB 702
