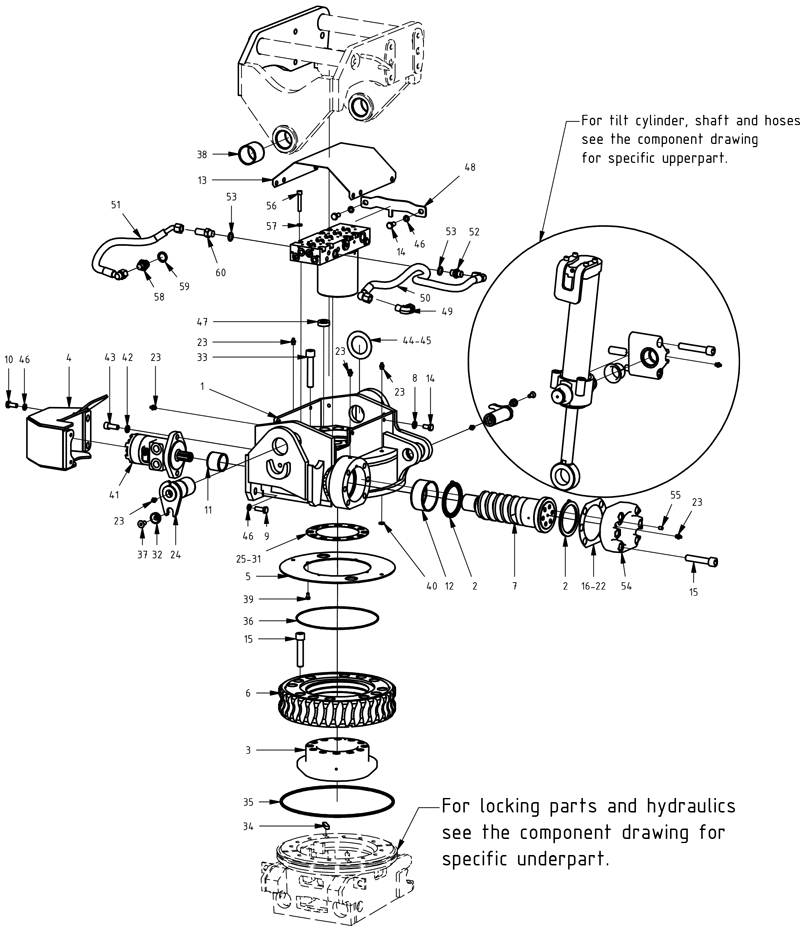

Main components 'Reversed'

Pos

Artikel

Extra Info

Aantal in tekening

Prijs (excl. BTW)

Shim centre ring - EC10 - 1,0mm

Article no: 201363

Position30

Aantal in tekening1

Shim centre ring - EC10 - 1,0mm

Article no: 201363

Adapter bulkhead 1260-06-32

Article no: 710242

Position60

Aantal in tekening1

Adapter bulkhead 1260-06-32

Article no: 710242

Screw M6S 10x20 8.8 FZB ISO4017

Article no: 610141

Position14

Aantal in tekening6

Screw M6S 10x20 8.8 FZB ISO4017

Article no: 610141

Motor cover EC10

Article no: 100021

Position4

Aantal in tekening1

Motor cover EC10

Article no: 100021

Shim End lock EC10/EC15/EC20 0,3mm

Article no: 1001639

Position16

Aantal in tekening1

Shim End lock EC10/EC15/EC20 0,3mm

Article no: 1001639

End lock EC10/EC15/EC20 outer shim cast

Article no: 1014716

Position54

Aantal in tekening1

End lock EC10/EC15/EC20 outer shim cast

Article no: 1014716

Replaces 303270 From 1306

Shim centre ring - EC10 - 1,1mm

Article no: 201398

Position31

Aantal in tekening1

Shim centre ring - EC10 - 1,1mm

Article no: 201398

Hydraulic motor Charlynn 131cc - EC209, EC214, EC10, EC15

Article no: 720112

Position41

Aantal in tekening1

Hydraulic motor Charlynn 131cc - EC209, EC214, EC10, EC15

Article no: 720112

Shim centre ring - EC10 - 0,4mm

Article no: 202049

Position25

Aantal in tekening1

Shim centre ring - EC10 - 0,4mm

Article no: 202049

Rotator frame 10B Yellow

Article no: 1011925

Position1

Aantal in tekening1

Rotator frame 10B Yellow

Article no: 1011925

O-ring 10,77x2,62 NBR 70 shore

Article no: 710910

Position40

Aantal in tekening1

O-ring 10,77x2,62 NBR 70 shore

Article no: 710910

Protective cover valve block EC10 (height 85mm)

Article no: 302434

Position13

Aantal in tekening1

Protective cover valve block EC10 (height 85mm)

Article no: 302434

Shim End lock EC10/EC15/EC20 0,4mm

Article no: 405126

Position17

Aantal in tekening1

Shim End lock EC10/EC15/EC20 0,4mm

Article no: 405126

O-ring centre ring EC10

Article no: 710906

Position36

Aantal in tekening1

O-ring centre ring EC10

Article no: 710906

Plug 1" pipe thread conical DIN 906

Article no: 650406

Position47

Aantal in tekening2

Plug 1" pipe thread conical DIN 906

Article no: 650406

Washer NL12-DPE 13,0x19,5x2,7

Article no: 611042

Position42

Aantal in tekening2

Washer NL12-DPE 13,0x19,5x2,7

Article no: 611042

Axial washer with ear EC10,15,20

Article no: 1010758

Position2

Aantal in tekening2

Axial washer with ear EC10,15,20

Article no: 1010758

Tilt axle EC10 hardened

Article no: 302826

Position24

Aantal in tekening2

Tilt axle EC10 hardened

Article no: 302826

Shim centre ring - EC10 - 0,7mm

Article no: 201395

Position27

Aantal in tekening1

Shim centre ring - EC10 - 0,7mm

Article no: 201395

Shim centre ring - EC10 - 0,9mm

Article no: 201397

Position29

Aantal in tekening1

Shim centre ring - EC10 - 0,9mm

Article no: 201397

Lubrication nipple 1/8 straight

Article no: 711403

Position23

Aantal in tekening15

Lubrication nipple 1/8 straight

Article no: 711403

Washer BRB FZB 10,5x22x2 ISO7089

Article no: 611006

Position8

Aantal in tekening4

Washer BRB FZB 10,5x22x2 ISO7089

Article no: 611006

Centre ring - EC10 - should have shim, as of 05-01

Article no: 302840

Position3

Aantal in tekening1

Centre ring - EC10 - should have shim, as of 05-01

Article no: 302840

Adapter 136-06-06

Article no: 710106

Position52

Aantal in tekening1

Adapter 136-06-06

Article no: 710106

Screw MC6S 8x50H 12.9 ISO4762

Article no: 610439

Position56

Aantal in tekening3

Screw MC6S 8x50H 12.9 ISO4762

Article no: 610439

Shim tilt axle - EC10 - spring steel 51x80x0.5

Article no: 650507

Position44

Aantal in tekening1

Shim tilt axle - EC10 - spring steel 51x80x0.5

Article no: 650507

0,5 mm

Worm wheel EC10 reversed

Article no: 200238

Position6

Aantal in tekening1

Worm wheel EC10 reversed

Article no: 200238

Reversed

Wear washer EC10

Article no: 400325

Position5

Aantal in tekening1

Wear washer EC10

Article no: 400325

Screw M6S 10x30 8.8 FZB ISO4017

Article no: 610143

Position9

Aantal in tekening2

Screw M6S 10x30 8.8 FZB ISO4017

Article no: 610143

Valve block bracket EC10 6-channel

Article no: 405452

Position48

Aantal in tekening1

Valve block bracket EC10 6-channel

Article no: 405452

Plug Din 906 (M8x1) electrogalvanized

Article no: 711527

Position55

Aantal in tekening1

Plug Din 906 (M8x1) electrogalvanized

Article no: 711527

Shim tilt axle - EC10 - spring steel 51x80x1

Article no: 650508

Position45

Aantal in tekening1

Shim tilt axle - EC10 - spring steel 51x80x1

Article no: 650508

1 mm

Screw M6S 6x12 8.8 FZB ISO4017

Article no: 610108

Position39

Aantal in tekening4

Screw M6S 6x12 8.8 FZB ISO4017

Article no: 610108

Worm screw EC10

Article no: 300080

Position7

Aantal in tekening1

Worm screw EC10

Article no: 300080

Screw M6S 10x25 8.8 FZB ISO4017

Article no: 610142

Position10

Aantal in tekening2

Screw M6S 10x25 8.8 FZB ISO4017

Article no: 610142

Adapter 401-06-08 90°

Article no: 710157

Position49

Aantal in tekening1

Adapter 401-06-08 90°

Article no: 710157

401-06-08

Shim End lock EC10/EC15/EC20 0,5mm

Article no: 405127

Position18

Aantal in tekening1

Shim End lock EC10/EC15/EC20 0,5mm

Article no: 405127

Screw MC6S 16x80 12.9 untreated ISO4762

Article no: 610528

Position15

Aantal in tekening18

Screw MC6S 16x80 12.9 untreated ISO4762

Article no: 610528

12.9

Screw MF6S 12x30 10.9 FZB ISO10642

Article no: 610668

Position37

Aantal in tekening2

Screw MF6S 12x30 10.9 FZB ISO10642

Article no: 610668

Feather key 10x8x45 C45 EC10, EC02, EC209 550475

Article no: 650101

Position34

Aantal in tekening4

Feather key 10x8x45 C45 EC10, EC02, EC209 550475

Article no: 650101

Adapter 135-06-08

Article no: 710122

Position58

Aantal in tekening1

Adapter 135-06-08

Article no: 710122

Shim centre ring - EC10 - 0,5mm

Article no: 202050

Position26

Aantal in tekening1

Shim centre ring - EC10 - 0,5mm

Article no: 202050

Seal washer GBR08 1/2"

Article no: 710704

Position59

Aantal in tekening1

Seal washer GBR08 1/2"

Article no: 710704

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Position57

Aantal in tekening3

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Position46

Aantal in tekening6

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Seal washer GBR06 3/8"

Article no: 710703

Position53

Aantal in tekening2

Seal washer GBR06 3/8"

Article no: 710703

O-ring 319,3x5,7 - Quick hitch EC10/EC219/EC226

Article no: 710908

Position35

Aantal in tekening1

O-ring 319,3x5,7 - Quick hitch EC10/EC219/EC226

Article no: 710908

Bushing tilt EC10 WB802 50/55x50

Article no: 630308

Position38

Aantal in tekening2

Bushing tilt EC10 WB802 50/55x50

Article no: 630308

Bushing WB802 45/50x40

Article no: 630101

Position11

Aantal in tekening1

Bushing WB802 45/50x40

Article no: 630101

Bushing WB802 80/85x40

Article no: 630103

Position12

Aantal in tekening1

Bushing WB802 80/85x40

Article no: 630103

Spacer M12 L15 countersunk

Article no: 1008243

Position32

Aantal in tekening2

Spacer M12 L15 countersunk

Article no: 1008243
