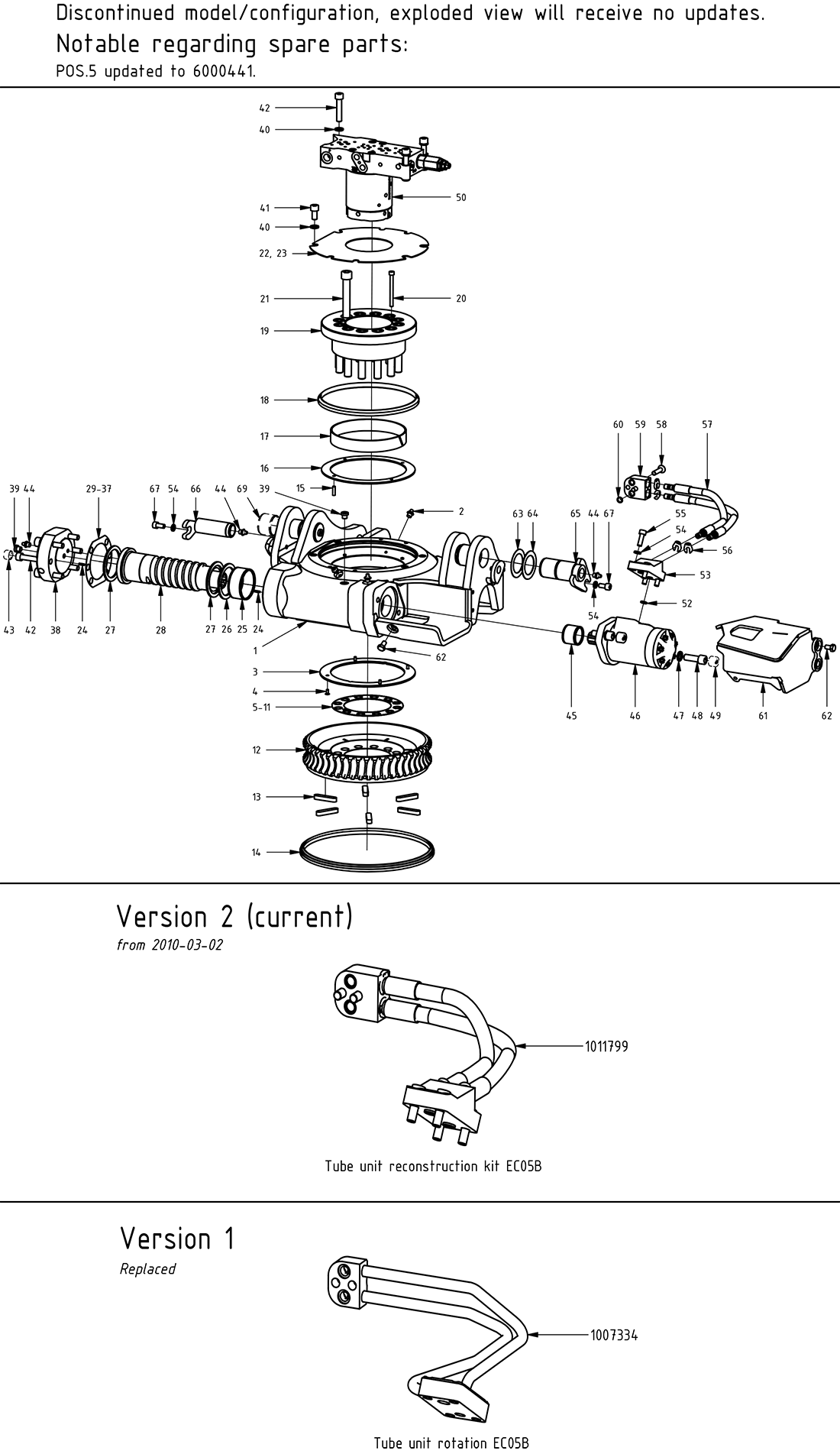

Main components

Pos

Artikel

Extra Info

Aantal in tekening

Prijs (excl. BTW)

Hydraulic block(valve block) - rotation EC05B

Article no: 1010405

Position59

Aantal in tekening1

Hydraulic block(valve block) - rotation EC05B

Article no: 1010405

Shim centre ring - EC05B/EC206 - 0,8mm

Article no: 1001666

Position9

Aantal in tekening1

Shim centre ring - EC05B/EC206 - 0,8mm

Article no: 1001666

Lubrication nipple M8x1 straight

Article no: 711408

Position2

Aantal in tekening3

Lubrication nipple M8x1 straight

Article no: 711408

Axial washer EC05

Article no: 400394

Position27

Aantal in tekening2

Axial washer EC05

Article no: 400394

Hydraulic block(motor) - rotation EC05B

Article no: 1010409

Position53

Aantal in tekening1

Hydraulic block(motor) - rotation EC05B

Article no: 1010409

Washer NL12-DPE 13,0x19,5x2,7

Article no: 611042

Position47

Aantal in tekening2

Washer NL12-DPE 13,0x19,5x2,7

Article no: 611042

Worm wheel EC05B, EC206

Article no: 1000751

Position12

Aantal in tekening1

Worm wheel EC05B, EC206

Article no: 1000751

Shim End lock EC05,EC05B,EC206 0,5mm

Article no: 405125

Position31

Aantal in tekening1

Shim End lock EC05,EC05B,EC206 0,5mm

Article no: 405125

Centre ring - EC05B, EC206

Article no: 1000773

Position19

Aantal in tekening1

Centre ring - EC05B, EC206

Article no: 1000773

Screw MC6S 8x16H 12.9 ZFSHL ISO4762

Article no: 610432

Position67

Aantal in tekening3

Screw MC6S 8x16H 12.9 ZFSHL ISO4762

Article no: 610432

12.9 Dacromet ISO 4762

Cylindrical pin CPK Ø3x12 m6

Article no: 650201

Position24

Aantal in tekening2

Cylindrical pin CPK Ø3x12 m6

Article no: 650201

Shim centre ring - EC05B/EC206 - 0,7mm

Article no: 1001664

Position8

Aantal in tekening1

Shim centre ring - EC05B/EC206 - 0,7mm

Article no: 1001664

Slotted pin 5x20 S5 Brass

Article no: 640407

Position15

Aantal in tekening4

Slotted pin 5x20 S5 Brass

Article no: 640407

Motor cover EC05B

Article no: 1008792

Position61

Aantal in tekening1

Motor cover EC05B

Article no: 1008792

Assembly stop WEO Coupling 0357490400

Article no: 712103

Position56

Aantal in tekening4

Assembly stop WEO Coupling 0357490400

Article no: 712103

Hydraulic motor EC05B, EC206, EC206B CL80cc

Article no: 720128

Position46

Aantal in tekening1

Hydraulic motor EC05B, EC206, EC206B CL80cc

Article no: 720128

Lubrication nipple 1/8 straight

Article no: 711403

Position44

Aantal in tekening4

Lubrication nipple 1/8 straight

Article no: 711403

Shim centre ring - EC05B/EC206 - 0,6mm

Article no: 1009602

Position7

Aantal in tekening1

Shim centre ring - EC05B/EC206 - 0,6mm

Article no: 1009602

O-ring 12,37x2,62 NBR 70 shore EC05B hydraulic pipes/motor

Article no: 710961

Position52

Aantal in tekening2

O-ring 12,37x2,62 NBR 70 shore EC05B hydraulic pipes/motor

Article no: 710961

Shim tilt axle - EC05B - 60x41x1,0

Article no: 1010820

Position64

Aantal in tekening2

Shim tilt axle - EC05B - 60x41x1,0

Article no: 1010820

Used if required

Screw cover M12

Article no: 611301

Position49

Aantal in tekening2

Screw cover M12

Article no: 611301

Shim centre ring - EC05B/EC206 - 0,5mm

Article no: 1001665

Position6

Aantal in tekening1

Shim centre ring - EC05B/EC206 - 0,5mm

Article no: 1001665

Screw MC6S 10x20 12.9 untreated ISO4762

Article no: 610451

Position41

Aantal in tekening1

Screw MC6S 10x20 12.9 untreated ISO4762

Article no: 610451

Shim End lock EC05,EC05B,EC206 1,0mm

Article no: 1008540

Position36

Aantal in tekening1

Shim End lock EC05,EC05B,EC206 1,0mm

Article no: 1008540

Screw cover M10

Article no: 611305

Position43

Aantal in tekening6

Screw cover M10

Article no: 611305

Shim End lock EC05,EC05B,EC206 0,6mm

Article no: 405677

Position32

Aantal in tekening1

Shim End lock EC05,EC05B,EC206 0,6mm

Article no: 405677

Shim End lock EC05,EC05B,EC206 0,4mm

Article no: 405124

Position30

Aantal in tekening1

Shim End lock EC05,EC05B,EC206 0,4mm

Article no: 405124

Hose motor - EC05B KL270 Termo 2040H

Article no: 740550

Position57

Aantal in tekening2

Hose motor - EC05B KL270 Termo 2040H

Article no: 740550

Shim kit centre ring - EC05B/EC206

Article no: 1027074

Position5

Aantal in tekening1

Shim kit centre ring - EC05B/EC206

Article no: 1027074

(POS. 6, 7, 8, 9, 10 & 11 included)

Screw M6S 8x14 8.8 FZB ISO4017

Article no: 610188

Position62

Aantal in tekening7

Screw M6S 8x14 8.8 FZB ISO4017

Article no: 610188

Screw MC6S 14x90 12.9 untreated ISO4762

Article no: 610510

Position21

Aantal in tekening12

Screw MC6S 14x90 12.9 untreated ISO4762

Article no: 610510

12.9 Untreated ISO 4762

End lock EC05/EC05B/EC206 outer shim

Article no: 303269

Position38

Aantal in tekening1

End lock EC05/EC05B/EC206 outer shim

Article no: 303269

Tilt axle EC05 hardened

Article no: 404376

Position65

Aantal in tekening2

Tilt axle EC05 hardened

Article no: 404376

Screw MF6S 8x35 10.9 untreated ISO10642

Article no: 610611

Position58

Aantal in tekening2

Screw MF6S 8x35 10.9 untreated ISO10642

Article no: 610611

Shim centre ring - EC05B/EC206 - 0,9mm

Article no: 1009603

Position10

Aantal in tekening1

Shim centre ring - EC05B/EC206 - 0,9mm

Article no: 1009603

Valve block-swivel 4v & 4-ch-EC05B

Article no: 1008197

Position50

Aantal in tekening1

Valve block-swivel 4v & 4-ch-EC05B

Article no: 1008197

See subheading Swivels & valveblocks for exploded view

Support ring 60/75 x3 ss

Article no: 650303

Position26

Aantal in tekening1

Support ring 60/75 x3 ss

Article no: 650303

Screw MF6S 4x10 10.9 untreated ISO10642

Article no: 610605

Position4

Aantal in tekening4

Screw MF6S 4x10 10.9 untreated ISO10642

Article no: 610605

Shim End lock EC05,EC05B,EC206 0,9mm

Article no: 1002987

Position35

Aantal in tekening1

Shim End lock EC05,EC05B,EC206 0,9mm

Article no: 1002987

Worm screw EC05B, EC206, EC206B

Article no: 1007329

Position28

Aantal in tekening1

Worm screw EC05B, EC206, EC206B

Article no: 1007329

Tube unit reconstruction kit EC05B

Article no: 1011799

Position51

Aantal in tekening1

Tube unit reconstruction kit EC05B

Article no: 1011799

(POS. 52, 53, 54, 55, 56, 57, 58, 59 & 60 included)

Shim tilt axle - EC05B - 60x41x0.5

Article no: 1010819

Position63

Aantal in tekening2

Shim tilt axle - EC05B - 60x41x0.5

Article no: 1010819

Used if required

Plug VSTIR18ED 1/8"

Article no: 711503

Position39

Aantal in tekening2

Plug VSTIR18ED 1/8"

Article no: 711503

Shim kit End lock - EC05/EC05B/EC206

Article no: 1006356

Position29

Aantal in tekening1

Shim kit End lock - EC05/EC05B/EC206

Article no: 1006356

(POS. 30, 31, 32, 33, 34, 35, 36 & 37 included)

O-ring 9,25x1,78 FKM 90 shore Viton Green NG6

Article no: 710901

Position60

Aantal in tekening2

O-ring 9,25x1,78 FKM 90 shore Viton Green NG6

Article no: 710901

Cylinder axle EC05, EC10, EC15 hardened

Article no: 404276

Position66

Aantal in tekening1

Cylinder axle EC05, EC10, EC15 hardened

Article no: 404276

Feather key 10x8x50 C45 EC05B,EC15,EC20,EC214,EC219,EC226

Article no: 650102

Position13

Aantal in tekening6

Feather key 10x8x50 C45 EC05B,EC15,EC20,EC214,EC219,EC226

Article no: 650102

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Position40

Aantal in tekening4

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Position54

Aantal in tekening11

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Shim centre ring - EC05B/EC206 - 1mm

Article no: 1009604

Position11

Aantal in tekening1

Shim centre ring - EC05B/EC206 - 1mm

Article no: 1009604

Wear ring EC05B, EC206

Article no: 1000772

Position16

Aantal in tekening1

Wear ring EC05B, EC206

Article no: 1000772

Wiper seal Quick hitch EC05B, EC206

Article no: 710957

Position14

Aantal in tekening1

Wiper seal Quick hitch EC05B, EC206

Article no: 710957

Screw MC6S 6x70 12.9 untreated ISO4762

Article no: 610496

Position20

Aantal in tekening2

Screw MC6S 6x70 12.9 untreated ISO4762

Article no: 610496

12.9 Untreated ISO 4762

Bushing WB802 35/39x30

Article no: 630315

Position45

Aantal in tekening1

Bushing WB802 35/39x30

Article no: 630315

Bushing WB802 60/65x30

Article no: 630305

Position25

Aantal in tekening1

Bushing WB802 60/65x30

Article no: 630305

Wear washer EC05B, EC206

Article no: 1000774

Position3

Aantal in tekening1

Wear washer EC05B, EC206

Article no: 1000774

Wiper seal Quick hitch EC02, centre ring EC05B, EC206

Article no: 710952

Position18

Aantal in tekening1

Wiper seal Quick hitch EC02, centre ring EC05B, EC206

Article no: 710952

Guide belt centre ring EC05B,EC206

Article no: 710958

Position17

Aantal in tekening1

Guide belt centre ring EC05B,EC206

Article no: 710958

Bushing tilt EC05 WB802 40/44x30

Article no: 630307

Position69

Aantal in tekening2

Bushing tilt EC05 WB802 40/44x30

Article no: 630307

Part of top part assembly
