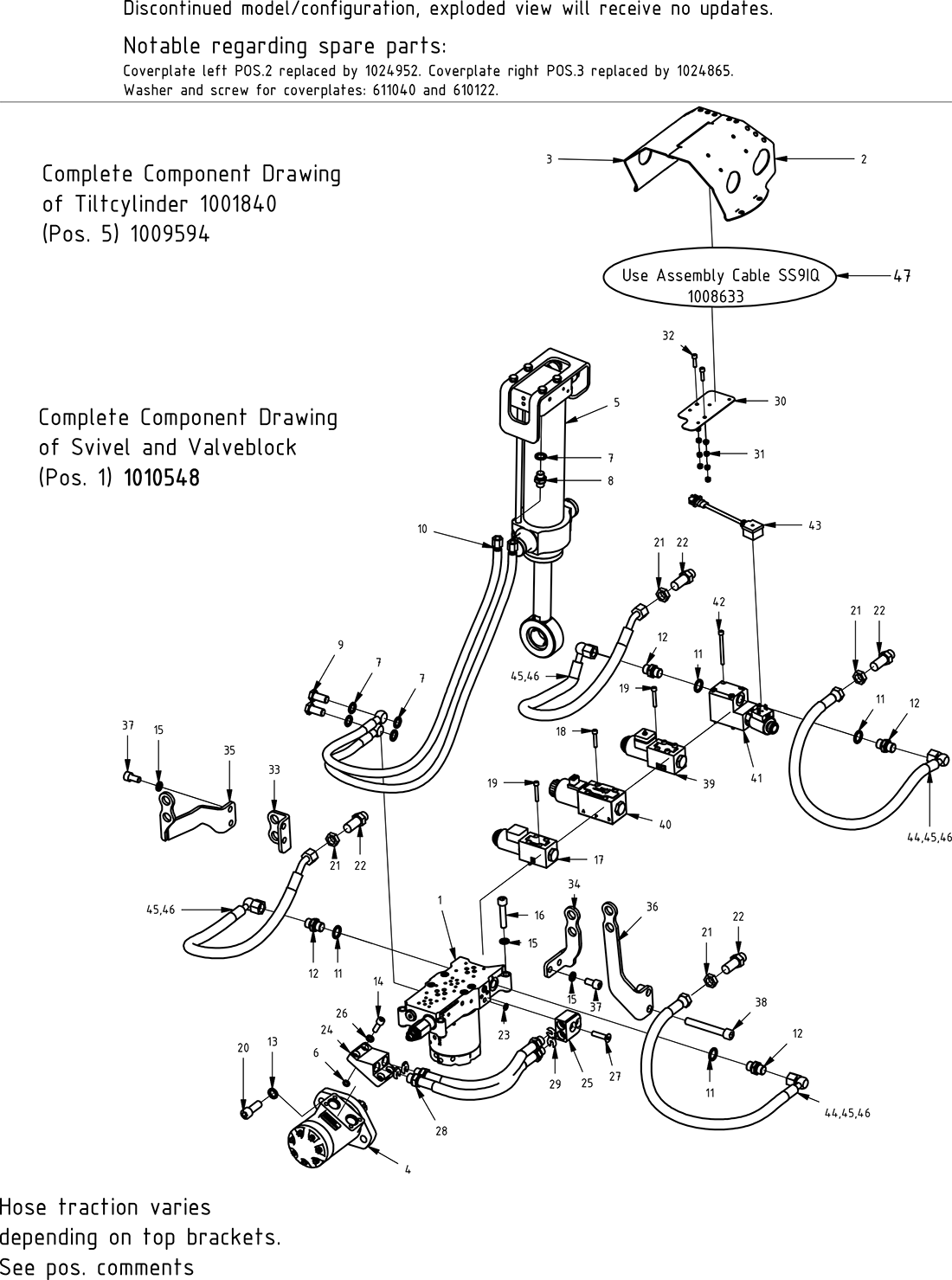

ss9IQ

Pos

Artikel

Extra Info

Aantal in tekening

Prijs (excl. BTW)

Hydraulic block(valve block) - rotation EC05B

Article no: 1010405

Position25

Aantal in tekening1

Hydraulic block(valve block) - rotation EC05B

Article no: 1010405

Unit cable ss9 Dump DT EC05B-3,4m

Article no: 1008633

Position47

Aantal in tekening1

Unit cable ss9 Dump DT EC05B-3,4m

Article no: 1008633

Directional valve NG4 lock 12V Flying leads

Article no: 730161

Position17

Aantal in tekening1

Directional valve NG4 lock 12V Flying leads

Article no: 730161

Directional valve NG4 closed 12V Flying leads

Article no: 730153

Position39

Aantal in tekening1

Directional valve NG4 closed 12V Flying leads

Article no: 730153

RPE3-042P51/01200E8

Hydraulic block(motor) - rotation EC05B

Article no: 1010409

Position24

Aantal in tekening1

Hydraulic block(motor) - rotation EC05B

Article no: 1010409

Washer NL12-DPE 13,0x19,5x2,7

Article no: 611042

Position13

Aantal in tekening2

Washer NL12-DPE 13,0x19,5x2,7

Article no: 611042

Nut bulkhead adapter 1270-06

Article no: 710252

Position21

Aantal in tekening4

Nut bulkhead adapter 1270-06

Article no: 710252

Adapter cable DT 2P-SQR 4S

Article no: 1008557

Position43

Aantal in tekening1

Adapter cable DT 2P-SQR 4S

Article no: 1008557

Adapter bulkhead 1260-06-32

Article no: 710242

Position22

Aantal in tekening4

Adapter bulkhead 1260-06-32

Article no: 710242

Hose bracket EC05B S40,S45,S50

Article no: 1011450

Position34

Aantal in tekening1

Hose bracket EC05B S40,S45,S50

Article no: 1011450

Used on S40 top bracket

Hose feed - EC05B Hose bracket - Rockmaster 3/8"

Article no: 740443

Position46

Aantal in tekening-

Hose feed - EC05B Hose bracket - Rockmaster 3/8"

Article no: 740443

Used on UNI top bracket . Used as Rotation Hose on S40, UNI top bracket

Assembly stop WEO Coupling 0357490400

Article no: 712103

Position29

Aantal in tekening4

Assembly stop WEO Coupling 0357490400

Article no: 712103

Hydraulic motor EC05B, EC206, EC206B CL80cc

Article no: 720128

Position4

Aantal in tekening1

Hydraulic motor EC05B, EC206, EC206B CL80cc

Article no: 720128

Mounting plate-Deutsch-NG6

Article no: 1008340

Position30

Aantal in tekening1

Mounting plate-Deutsch-NG6

Article no: 1008340

O-ring 12,37x2,62 NBR 70 shore EC05B hydraulic pipes/motor

Article no: 710961

Position6

Aantal in tekening2

O-ring 12,37x2,62 NBR 70 shore EC05B hydraulic pipes/motor

Article no: 710961

12,37x2,62

Screw MC6S 5x30 12.9 untreated ISO4762

Article no: 610403

Position18

Aantal in tekening4

Screw MC6S 5x30 12.9 untreated ISO4762

Article no: 610403

Hose - EC05B Hose bracket- S45,S50 - Rockmaster 3/8"

Article no: 740554

Position45

Aantal in tekening-

Hose - EC05B Hose bracket- S45,S50 - Rockmaster 3/8"

Article no: 740554

Used on S45/S50 top bracket . Used as Rotation Hose on S45/S50, UNI top bracket

Adapter 136-06-06

Article no: 710106

Position12

Aantal in tekening4

Adapter 136-06-06

Article no: 710106

Screw MC6S 10x20 12.9 untreated ISO4762

Article no: 610451

Position37

Aantal in tekening4

Screw MC6S 10x20 12.9 untreated ISO4762

Article no: 610451

Hose bracket Top part EC05B right

Article no: 1013348

Position33

Aantal in tekening1

Hose bracket Top part EC05B right

Article no: 1013348

Used on S40 top bracket

Hose motor - EC05B KL270 Termo 2040H

Article no: 740550

Position28

Aantal in tekening2

Hose motor - EC05B KL270 Termo 2040H

Article no: 740550

Tilt cylinder EC05B for overcenter

Article no: 1001840

Position5

Aantal in tekening1

Tilt cylinder EC05B for overcenter

Article no: 1001840

Directional valve NG6 closed 12V Flying leads

Article no: 730181

Position40

Aantal in tekening1

Directional valve NG6 closed 12V Flying leads

Article no: 730181

Screw MF6S 8x35 10.9 untreated ISO10642

Article no: 610611

Position27

Aantal in tekening2

Screw MF6S 8x35 10.9 untreated ISO10642

Article no: 610611

Valve block-swivel 4v & 4-ch-EC05B

Article no: 1008197

Position1

Aantal in tekening1

Valve block-swivel 4v & 4-ch-EC05B

Article no: 1008197

Screw MC6S 5x35 12.9 untreated ISO4762

Article no: 610404

Position19

Aantal in tekening8

Screw MC6S 5x35 12.9 untreated ISO4762

Article no: 610404

Screw MC6S 5x65 12.9 untreated ISO4762

Article no: 6104101

Position42

Aantal in tekening4

Screw MC6S 5x65 12.9 untreated ISO4762

Article no: 6104101

12.9 Untreated ISO 4762

Dumper block 12V NG6 - complete

Article no: 1006174K

Position41

Aantal in tekening1

Dumper block 12V NG6 - complete

Article no: 1006174K

Screw MC6S 5x20 12.9 untreated ISO4762

Article no: 610400

Position32

Aantal in tekening2

Screw MC6S 5x20 12.9 untreated ISO4762

Article no: 610400

12.9 Untreated ISO 4762

Adapter 138-04-29 ( compact 136-04-04 )

Article no: 710135

Position8

Aantal in tekening2

Adapter 138-04-29 ( compact 136-04-04 )

Article no: 710135

O-ring 9,25x1,78 FKM 90 shore Viton Green NG6

Article no: 710901

Position23

Aantal in tekening2

O-ring 9,25x1,78 FKM 90 shore Viton Green NG6

Article no: 710901

9,25x1,78

Banjo bolt 4451-04

Article no: 710271

Position9

Aantal in tekening2

Banjo bolt 4451-04

Article no: 710271

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Position15

Aantal in tekening7

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Seal washer GBR06 3/8"

Article no: 710703

Position11

Aantal in tekening4

Seal washer GBR06 3/8"

Article no: 710703

Seal washer GBR04 1/4"

Article no: 710702

Position7

Aantal in tekening6

Seal washer GBR04 1/4"

Article no: 710702

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Position26

Aantal in tekening4

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040
