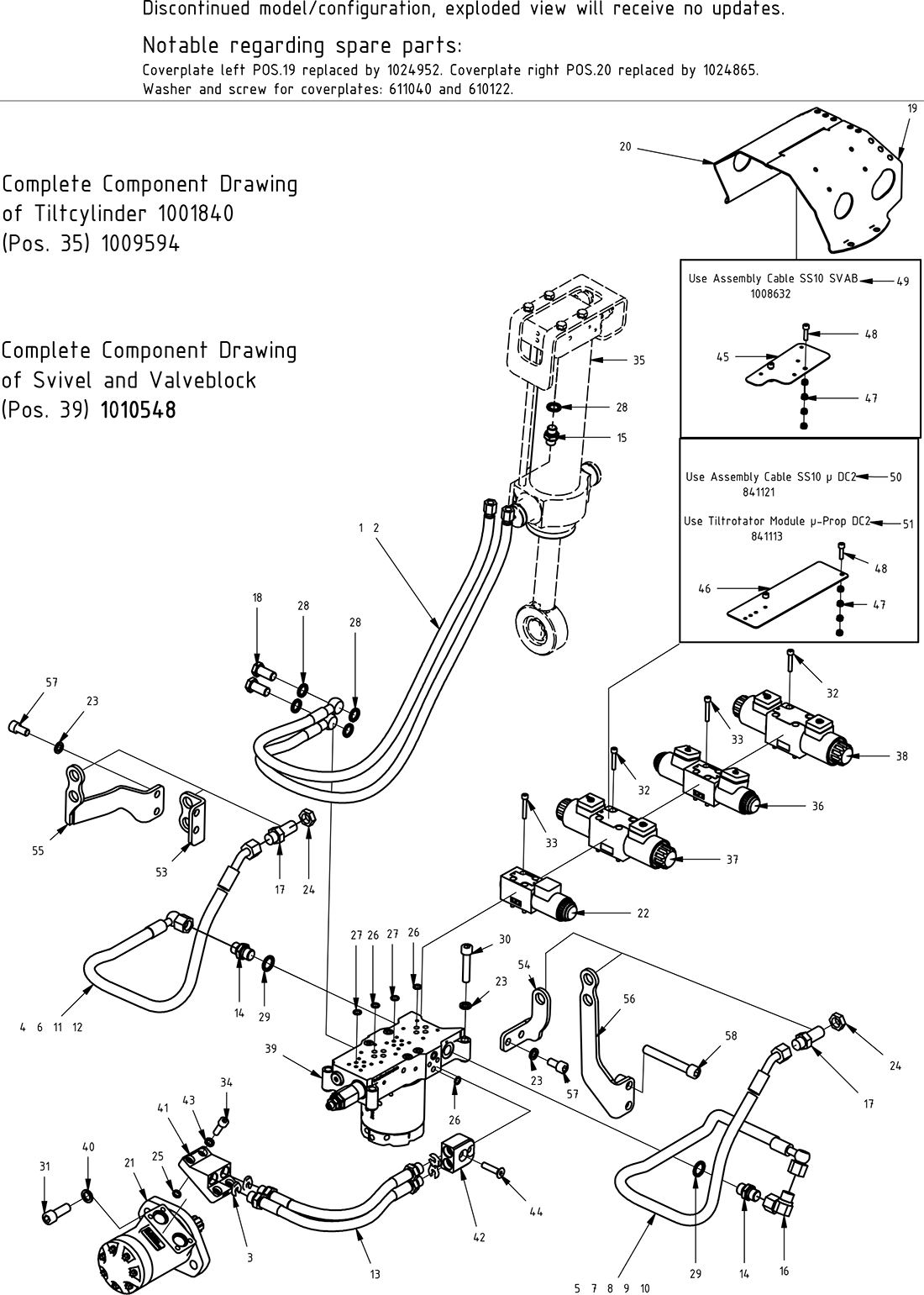

ss10 (DC2/SVAB)

Pos

Artikel

Extra Info

Aantal in tekening

Prijs (excl. BTW)

Mounting plate-DC2-EC05B

Article no: 1017649

Position46

Aantal in tekening1

Mounting plate-DC2-EC05B

Article no: 1017649

Unit cable-DC2

Article no: 841121

Position50

Aantal in tekening1

Unit cable-DC2

Article no: 841121

Electronics Module TM2-EC05B-DC2

Article no: 841113

Position51

Aantal in tekening1

Electronics Module TM2-EC05B-DC2

Article no: 841113

Hose feed - EC05B Hose bracket - Rockmaster 3/8"

Article no: 740443

Position9

Aantal in tekening1

Hose feed - EC05B Hose bracket - Rockmaster 3/8"

Article no: 740443

Use With Top Bracket Universal

Hose - EC05B Hose bracket- S45,S50 - Rockmaster 3/8"

Article no: 740554

Position10

Aantal in tekening1

Hose - EC05B Hose bracket- S45,S50 - Rockmaster 3/8"

Article no: 740554

Use With Top Bracket S45, S50

Tilt cylinder EC05B for overcenter

Article no: 1001840

Position35

Aantal in tekening1

Tilt cylinder EC05B for overcenter

Article no: 1001840

Directional valve NG6 on/off 12V Flying leads

Article no: 730166

Position37

Aantal in tekening1

Directional valve NG6 on/off 12V Flying leads

Article no: 730166

RPEB3-063Z11/01200E8V

Directional valve NG4 lock 12V Flying leads

Article no: 730161

Position22

Aantal in tekening1

Directional valve NG4 lock 12V Flying leads

Article no: 730161

Unit cable ss10 DT ILME 10P EC05B-3,4m

Article no: 1008632

Position49

Aantal in tekening1

Unit cable ss10 DT ILME 10P EC05B-3,4m

Article no: 1008632

Hose bracket Top part EC05B right

Article no: 1013348

Position53

Aantal in tekening1

Hose bracket Top part EC05B right

Article no: 1013348

Directional valve NG4 prop 12V Flying leads - tilt

Article no: 730149

Position36

Aantal in tekening1

Directional valve NG4 prop 12V Flying leads - tilt

Article no: 730149

PRM2-043Y11/12-12E8

Directional valve NG6 prop 12V Flying leads

Article no: 730191

Position38

Aantal in tekening1

Directional valve NG6 prop 12V Flying leads

Article no: 730191

Replaces Valve NG6 prop 12V 730167

Hydraulic motor EC05B, EC206, EC206B CL80cc

Article no: 720128

Position21

Aantal in tekening1

Hydraulic motor EC05B, EC206, EC206B CL80cc

Article no: 720128

Valve block-swivel 4v & 4-ch-EC05B

Article no: 1008197

Position39

Aantal in tekening1

Valve block-swivel 4v & 4-ch-EC05B

Article no: 1008197

O-ring 12,37x2,62 NBR 70 shore EC05B hydraulic pipes/motor

Article no: 710961

Position25

Aantal in tekening2

O-ring 12,37x2,62 NBR 70 shore EC05B hydraulic pipes/motor

Article no: 710961

12,37x2,62

Hydraulic block(motor) - rotation EC05B

Article no: 1010409

Position41

Aantal in tekening1

Hydraulic block(motor) - rotation EC05B

Article no: 1010409

Assembly stop WEO Coupling 0357490400

Article no: 712103

Position3

Aantal in tekening4

Assembly stop WEO Coupling 0357490400

Article no: 712103

Hose motor - EC05B KL270 Termo 2040H

Article no: 740550

Position13

Aantal in tekening2

Hose motor - EC05B KL270 Termo 2040H

Article no: 740550

Screw MF6S 8x35 10.9 untreated ISO10642

Article no: 610611

Position44

Aantal in tekening2

Screw MF6S 8x35 10.9 untreated ISO10642

Article no: 610611

Hydraulic block(valve block) - rotation EC05B

Article no: 1010405

Position42

Aantal in tekening1

Hydraulic block(valve block) - rotation EC05B

Article no: 1010405

Mounting plate-Deutsch-NG6

Article no: 1008340

Position45

Aantal in tekening1

Mounting plate-Deutsch-NG6

Article no: 1008340

O-ring 7,65x1,78 FKM 90 shore Viton NG4

Article no: 710960

Position27

Aantal in tekening8

O-ring 7,65x1,78 FKM 90 shore Viton NG4

Article no: 710960

Screw MC6S 5x35 12.9 untreated ISO4762

Article no: 610404

Position33

Aantal in tekening8

Screw MC6S 5x35 12.9 untreated ISO4762

Article no: 610404

Screw MC6S 10x20 12.9 untreated ISO4762

Article no: 610451

Position57

Aantal in tekening4

Screw MC6S 10x20 12.9 untreated ISO4762

Article no: 610451

2pcs used on UNI and S45/S50 Top Brackets. 4pcs used on S40 Top brackets

Screw MC6S 5x30 12.9 untreated ISO4762

Article no: 610403

Position32

Aantal in tekening8

Screw MC6S 5x30 12.9 untreated ISO4762

Article no: 610403

Screw MC6S 5x20 12.9 untreated ISO4762

Article no: 610400

Position48

Aantal in tekening2

Screw MC6S 5x20 12.9 untreated ISO4762

Article no: 610400

12.9 Untreated ISO 4762

Washer NL12-DPE 13,0x19,5x2,7

Article no: 611042

Position40

Aantal in tekening2

Washer NL12-DPE 13,0x19,5x2,7

Article no: 611042

Adapter 138-04-29 ( compact 136-04-04 )

Article no: 710135

Position15

Aantal in tekening2

Adapter 138-04-29 ( compact 136-04-04 )

Article no: 710135

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Position23

Aantal in tekening7

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Adapter 030090-06-06 90°

Article no: 710216

Position16

Aantal in tekening1

Adapter 030090-06-06 90°

Article no: 710216

For use when the hose routing is to the right or left

Adapter 136-06-06

Article no: 710106

Position14

Aantal in tekening2

Adapter 136-06-06

Article no: 710106

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Position43

Aantal in tekening4

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Banjo bolt 4451-04

Article no: 710271

Position18

Aantal in tekening2

Banjo bolt 4451-04

Article no: 710271

Adapter bulkhead 1260-06-32

Article no: 710242

Position17

Aantal in tekening2

Adapter bulkhead 1260-06-32

Article no: 710242

Nut bulkhead adapter 1270-06

Article no: 710252

Position24

Aantal in tekening2

Nut bulkhead adapter 1270-06

Article no: 710252

Seal washer GBR06 3/8"

Article no: 710703

Position29

Aantal in tekening2

Seal washer GBR06 3/8"

Article no: 710703

Seal washer GBR04 1/4"

Article no: 710702

Position28

Aantal in tekening6

Seal washer GBR04 1/4"

Article no: 710702

O-ring 9,25x1,78 FKM 90 shore Viton Green NG6

Article no: 710901

Position26

Aantal in tekening10

O-ring 9,25x1,78 FKM 90 shore Viton Green NG6

Article no: 710901

9,25x1,78
