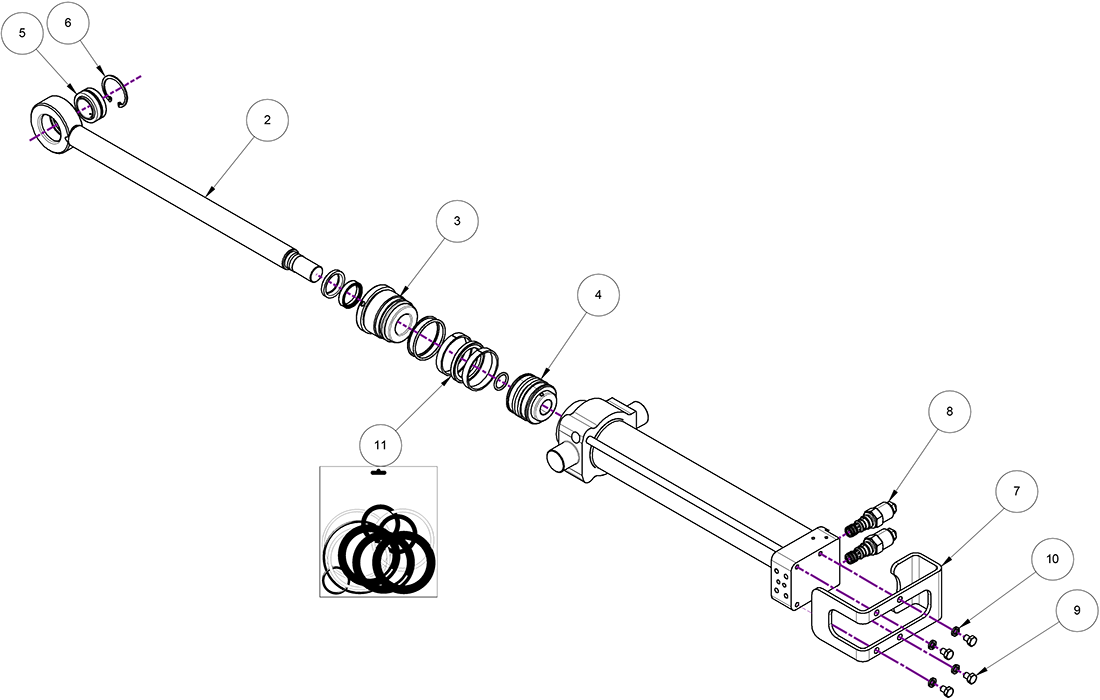

EC206 - 1040873

Pos

Artikel

Extra Info

Aantal in tekening

Prijs (excl. BTW)

Piston tilt cylinder-EC206/EC209/EC214

Article no: 750421

Position4

Aantal in tekening1

Piston tilt cylinder-EC206/EC209/EC214

Article no: 750421

Loctite 648

Overcenter adjustable-EC206/209/214/219W/226W/05B-15B

Article no: 730269

Position8

Aantal in tekening2

Overcenter adjustable-EC206/209/214/219W/226W/05B-15B

Article no: 730269

Top nut 63/32-SK05-EC05B/EC10/EC15-cast yoke

Article no: 750307

Position3

Aantal in tekening1

Top nut 63/32-SK05-EC05B/EC10/EC15-cast yoke

Article no: 750307

Loctite 648

Piston rod-tilt cylinder-EC206-63/32

Article no: 1023190

Position2

Aantal in tekening1

Piston rod-tilt cylinder-EC206-63/32

Article no: 1023190

Screw M6S 8x14 8.8 FZB ISO4017

Article no: 610188

Position9

Aantal in tekening4

Screw M6S 8x14 8.8 FZB ISO4017

Article no: 610188

Seal kit-63/32-tilt cylinder EC206/209/214

Article no: 750273

Position11

Aantal in tekening1

Seal kit-63/32-tilt cylinder EC206/209/214

Article no: 750273

Hose protection Tiltcyl EC05B-15B, 206-214 overcenter

Article no: 1003774

Position7

Aantal in tekening1

Hose protection Tiltcyl EC05B-15B, 206-214 overcenter

Article no: 1003774

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Position10

Aantal in tekening4

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Spherical bearing GE 30 ES/2RS LS sealed

Article no: 620104

Position5

Aantal in tekening1

Spherical bearing GE 30 ES/2RS LS sealed

Article no: 620104

Circlip SgH 48

Article no: 640204

Position6

Aantal in tekening1

Circlip SgH 48

Article no: 640204
