Valve block & Swivel EC204

Electrical kits

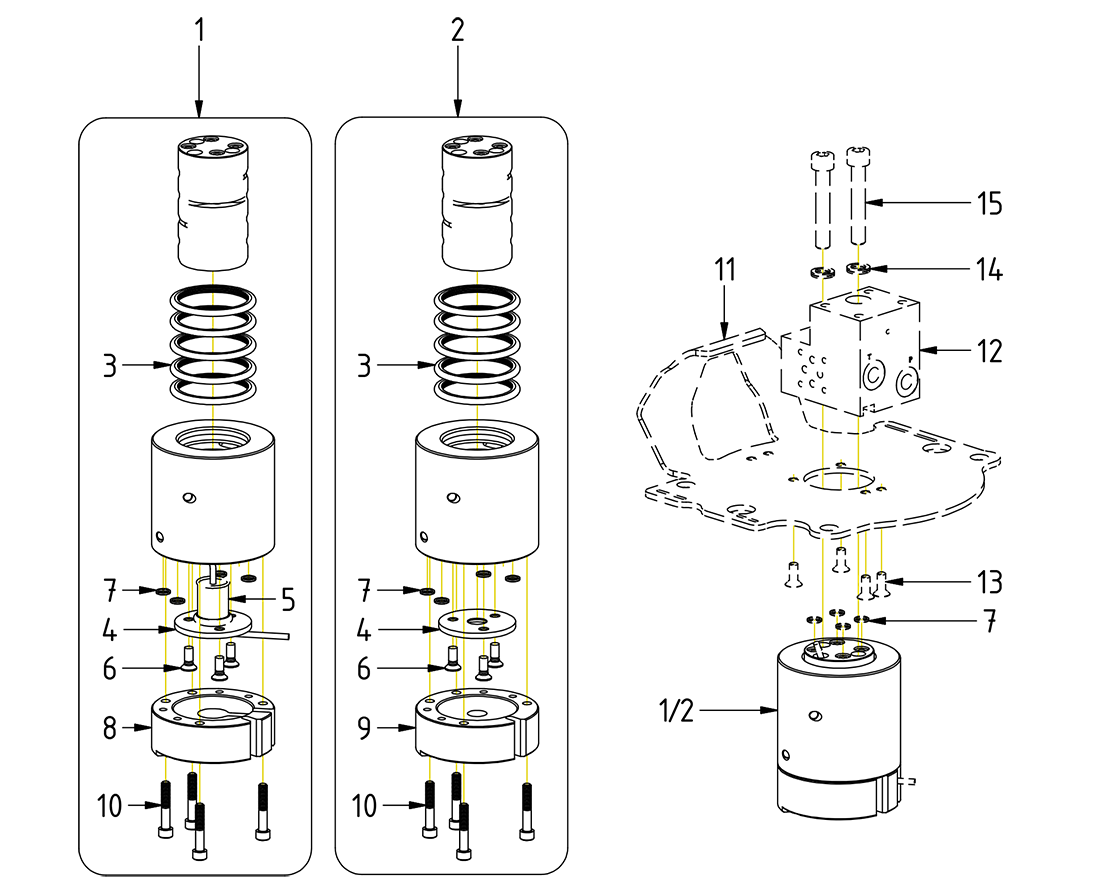

Pos

Artikel

Extra Info

Aantal in tekening

Prijs (excl. BTW)

Screw MFT 6x16TX30 8.8 FZB ISO14581

Article no: 6000406

Position6

Aantal in tekening3

Log in to see price

6

Screw MFT 6x16TX30 8.8 FZB ISO14581

Article no: 6000406

Torque: 9,8Nm

3

Log in to see price

Slip ring-EC204

Article no: 8001421

Position5

Aantal in tekening1

Log in to see price

5

Slip ring-EC204

Article no: 8001421

-

1

Log in to see price

Washer-swivel guide -EC204,EC206-for Slip ring

Article no: 1026707

Position4

Aantal in tekening1

Log in to see price

4

Washer-swivel guide -EC204,EC206-for Slip ring

Article no: 1026707

-

1

Log in to see price

Swivel EC204-QS40 complete with slip ring

Article no: 1062975

Position1

Aantal in tekening1

Log in to see price

1

Swivel EC204-QS40 complete with slip ring

Article no: 1062975

(POS.3-8, 10 incl.)

1

Log in to see price

Screw MC6S 6x35 12.9 untreated ISO4762

Article no: 610591

Position10

Aantal in tekening4

Log in to see price

10

Screw MC6S 6x35 12.9 untreated ISO4762

Article no: 610591

-

4

Log in to see price

Valve plate -EC204 V2

Article no: 1031620

Position11

Aantal in tekening1

Log in to see price

11

Valve plate -EC204 V2

Article no: 1031620

Part of rotator frame assy.

1

Log in to see price

Seal swivel 50/61x4,2 PU

Article no: 7001671

Position3

Aantal in tekening5

Log in to see price

3

Seal swivel 50/61x4,2 PU

Article no: 7001671

-

5

Log in to see price

Valve block EC204

Article no: 1027945

Position12

Aantal in tekening1

Log in to see price

12

Valve block EC204

Article no: 1027945

Part of rotator frame assy.

1

Log in to see price

Swivel EC204 with connection block complete

Article no: 1028504

Position2

Aantal in tekening1

Log in to see price

2

Swivel EC204 with connection block complete

Article no: 1028504

(POS.3-4, 6-7, 9-10 incl.)

1

Log in to see price

O-ring 7,65x1,78 FKM 90 shore Viton NG4

Article no: 710960

Position7

Aantal in tekening8

Log in to see price

7

O-ring 7,65x1,78 FKM 90 shore Viton NG4

Article no: 710960

QTY: 4 part of rotator frame assy.

8

Log in to see price

Screw MF6S 6x16 10.9 untreated ISO10642

Article no: 610604

Position13

Aantal in tekening7

Log in to see price

13

Screw MF6S 6x16 10.9 untreated ISO10642

Article no: 610604

Part of rotator frame assy. Torque: 14Nm. Loxeal 55-02

7

Log in to see price

Screw MC6S 10x60 12.9 untreated ISO4762

Article no: 610460

Position15

Aantal in tekening2

Log in to see price

15

Screw MC6S 10x60 12.9 untreated ISO4762

Article no: 610460

Part of rotator frame assy.

2

Log in to see price

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Position14

Aantal in tekening2

Log in to see price

14

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Part of rotator frame assy.

2

Log in to see price

Prices excl. VAT
