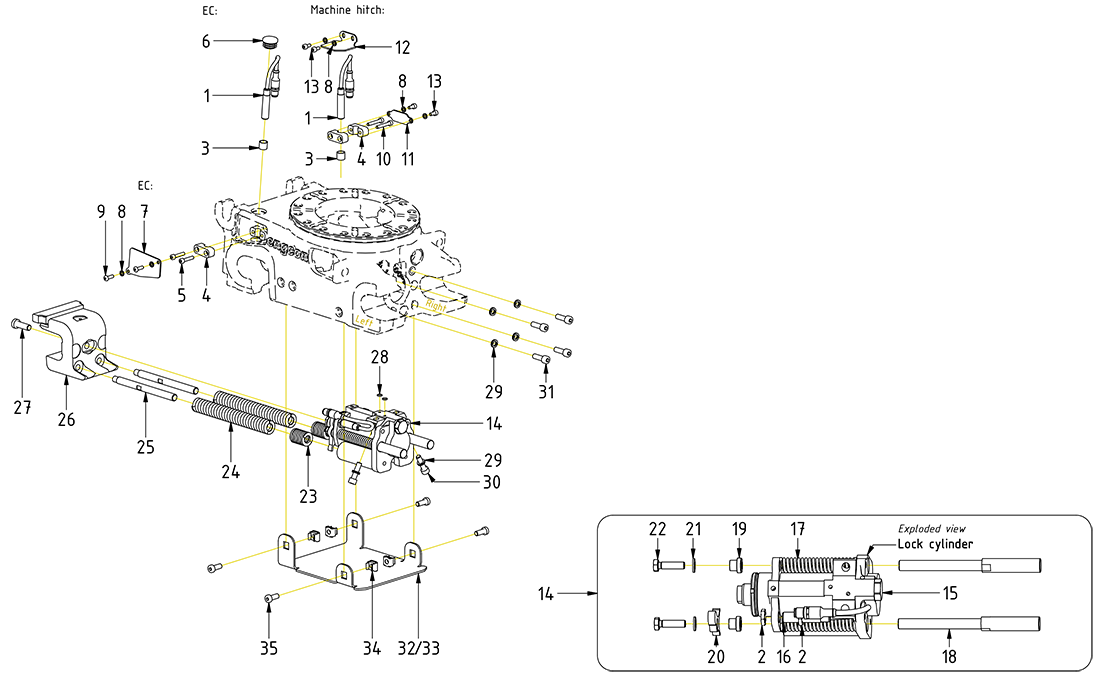

Std comp. S40 (from 2025)

Pos

Artikel

Extra Info

Aantal in tekening

Prijs (excl. BTW)

Cover plate Side QSM40 - sensor

Article no: 1063796

Position7

Aantal in tekening2

Cover plate Side QSM40 - sensor

Article no: 1063796

Cage nuts M8 C

Article no: 610959

Position34

Aantal in tekening4

Cage nuts M8 C

Article no: 610959

O-ring 5,28x1,78 NBR 70 shore

Article no: 7001568

Position28

Aantal in tekening2

O-ring 5,28x1,78 NBR 70 shore

Article no: 7001568

Washer NL5-DPE 5,4x9,0x1,7

Article no: 611038

Position8

Aantal in tekening4

Washer NL5-DPE 5,4x9,0x1,7

Article no: 611038

Clamping half sensor QSM40/60/S40/45/60/70/80 Injection mold

Article no: 1063793

Position4

Aantal in tekening2

Clamping half sensor QSM40/60/S40/45/60/70/80 Injection mold

Article no: 1063793

Spacer S40S/QS40/QSM40

Article no: 1056860

Position19

Aantal in tekening2

Spacer S40S/QS40/QSM40

Article no: 1056860

Screw MC6S 8x25 12.9 ZFSHL ISO4762

Article no: 6000143

Position31

Aantal in tekening4

Screw MC6S 8x25 12.9 ZFSHL ISO4762

Article no: 6000143

Torque: 40Nm

Protective sleeve Inductive sensor M12

Article no: 8000056

Position3

Aantal in tekening1

Protective sleeve Inductive sensor M12

Article no: 8000056

Washer BRB FZB 8,4x16x1,6 ISO7089

Article no: 611005

Position21

Aantal in tekening2

Washer BRB FZB 8,4x16x1,6 ISO7089

Article no: 611005

Cover plate QSM40-without ECO-block

Article no: 1064036

Position32

Aantal in tekening1

Cover plate QSM40-without ECO-block

Article no: 1064036

No cover plate for EC-Oil

Screw MLC6S 8x20H 8.8 FZB(A2K) DIN7984 NV5

Article no: 610711

Position35

Aantal in tekening4

Screw MLC6S 8x20H 8.8 FZB(A2K) DIN7984 NV5

Article no: 610711

Loxeal 83-52

Screw K6S 5x16H 10.9 FZB ISO7380

Article no: 611818

Position9

Aantal in tekening4

Screw K6S 5x16H 10.9 FZB ISO7380

Article no: 611818

Screw M6S 8x30 8.8 FZB ISO4017

Article no: 611538

Position22

Aantal in tekening2

Screw M6S 8x30 8.8 FZB ISO4017

Article no: 611538

Loxeal 83-52

Screw MC6S 5x30 12.9 untreated ISO4762

Article no: 610403

Position10

Aantal in tekening2

Screw MC6S 5x30 12.9 untreated ISO4762

Article no: 610403

Cover plate S40S/QS40/S40

Article no: 1056928

Position33

Aantal in tekening1

Cover plate S40S/QS40/S40

Article no: 1056928

No cover plate for EC-Oil

Protection Plug QS sensor GL26

Article no: 1068462

Position6

Aantal in tekening1

Protection Plug QS sensor GL26

Article no: 1068462

Ejector S40S/QS40/QSM40

Article no: 1055938

Position18

Aantal in tekening2

Ejector S40S/QS40/QSM40

Article no: 1055938

Spring S40/S40S/QS40/QSM40 locking hook (25x178)

Article no: 640112

Position24

Aantal in tekening2

Spring S40/S40S/QS40/QSM40 locking hook (25x178)

Article no: 640112

Screw MLC6S 10x30H 10.9 untreated DIN7984

Article no: 610712

Position27

Aantal in tekening1

Screw MLC6S 10x30H 10.9 untreated DIN7984

Article no: 610712

Loxeal 83-52. Torque: 40Nm

Locking cylinder QSM40

Article no: 1063791

Position15

Aantal in tekening1

Locking cylinder QSM40

Article no: 1063791

Locking cylinder S40/QSM40 pre-assembled

Article no: 1068367

Position14

Aantal in tekening1

Locking cylinder S40/QSM40 pre-assembled

Article no: 1068367

(POS.15-22 incl.)

Locking hook S40/QSM40

Article no: 1065434

Position26

Aantal in tekening1

Locking hook S40/QSM40

Article no: 1065434

Screw MC6S 5x10 8.8 FZB ISO4762

Article no: 6000312

Position13

Aantal in tekening4

Screw MC6S 5x10 8.8 FZB ISO4762

Article no: 6000312

Screw MC6S 5x25 12.9 untreated ISO4762

Article no: 610402

Position5

Aantal in tekening2

Screw MC6S 5x25 12.9 untreated ISO4762

Article no: 610402

Screw MC6S 8x30 12.9 ZFSHL ISO4762

Article no: 611519

Position30

Aantal in tekening2

Screw MC6S 8x30 12.9 ZFSHL ISO4762

Article no: 611519

Torque: 40Nm

Spring - Locking cylinder S40S (16x104)

Article no: 1024020

Position17

Aantal in tekening2

Spring - Locking cylinder S40S (16x104)

Article no: 1024020

Inductive sensor M12 - hook quick hitch S40/QSM40

Article no: 8001527

Position1

Aantal in tekening1

Inductive sensor M12 - hook quick hitch S40/QSM40

Article no: 8001527

EC: to slip ring. Machine: to Y-split

Sensor plate S40S/QS40/QSM40

Article no: 1056857

Position20

Aantal in tekening1

Sensor plate S40S/QS40/QSM40

Article no: 1056857

Assemble with slight play

Cover plate for inductive sensor S40

Article no: 1080060

Position12

Aantal in tekening1

Cover plate for inductive sensor S40

Article no: 1080060

Spring S40S/S40/S45/QS40/45/50 locking hook - short (25x32)

Article no: 1025483

Position23

Aantal in tekening2

Spring S40S/S40/S45/QS40/45/50 locking hook - short (25x32)

Article no: 1025483

Steering S40/S40S/QS40/QSM40

Article no: 1056869

Position25

Aantal in tekening2

Steering S40/S40S/QS40/QSM40

Article no: 1056869

Loxeal 83-52

Inductive sensor M12-hook quick hitch&Locking cylinder QSM

Article no: 1048262

Position16

Aantal in tekening1

Inductive sensor M12-hook quick hitch&Locking cylinder QSM

Article no: 1048262

EC: to slip ring. Machine: to Y-split

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Position29

Aantal in tekening6

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040
