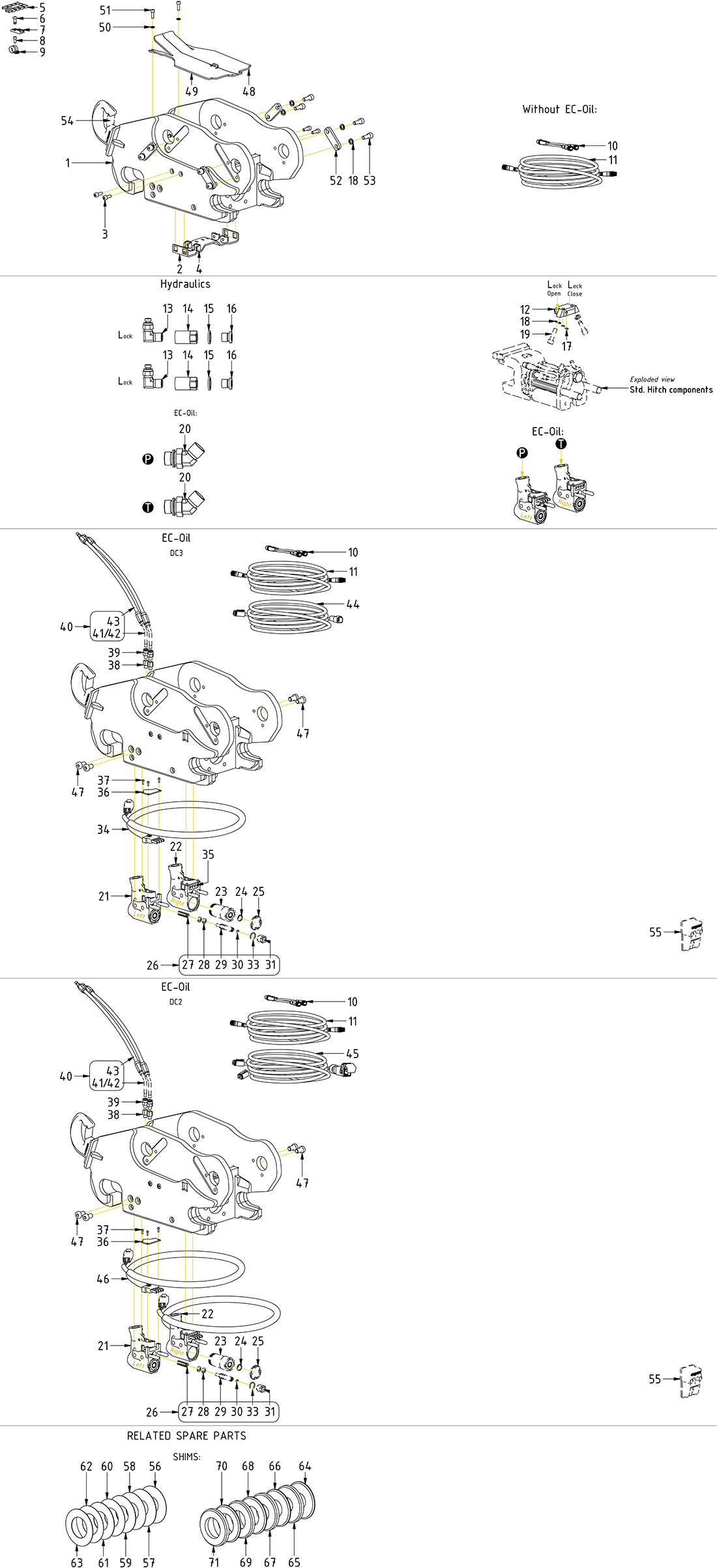

S40 (from 2025)

Pos

Artikel

Extra Info

Aantal in tekening

Prijs (excl. BTW)

Blind rivet 4,0x12,3 DIN7337 alu/steel

Article no: 6000294

Position6

Aantal in tekening2

Blind rivet 4,0x12,3 DIN7337 alu/steel

Article no: 6000294

QTY: 4 for DC2

Unit cable DC3 EC206B-EC233-3,5m

Article no: 8002371

Position44

Aantal in tekening1

Unit cable DC3 EC206B-EC233-3,5m

Article no: 8002371

Locktab kit Pejo 201

Article no: 404249

Position54

Aantal in tekening1

Locktab kit Pejo 201

Article no: 404249

Lifting hook spare part

Dirt protection block/coupling ECO 3/8"

Article no: 1028274

Position25

Aantal in tekening2

Dirt protection block/coupling ECO 3/8"

Article no: 1028274

Screw MC6S 5x16 8.8 FZB ISO4762

Article no: 6000437

Position51

Aantal in tekening2

Screw MC6S 5x16 8.8 FZB ISO4762

Article no: 6000437

Lock plate-UNI axle-S40/S45

Article no: 1073400

Position52

Aantal in tekening4

Lock plate-UNI axle-S40/S45

Article no: 1073400

Block ECO40 W-S40 QH-1hy

Article no: 1078892

Position22

Aantal in tekening1

Block ECO40 W-S40 QH-1hy

Article no: 1078892

(POS.23, 25 incl.)

Adapter cable M12 8P-2xM12 5S

Article no: 8002139

Position10

Aantal in tekening1

Adapter cable M12 8P-2xM12 5S

Article no: 8002139

Attach to QS sensors

Shim chamfered Ø90/51 - 5

Article no: 1080584

Position70

Aantal in tekening1

Shim chamfered Ø90/51 - 5

Article no: 1080584

Cover plate S40 left

Article no: 1080055

Position49

Aantal in tekening1

Cover plate S40 left

Article no: 1080055

O-ring 9,25 x 1,78 NBR 70 shore

Article no: 712429

Position32

Aantal in tekening1

O-ring 9,25 x 1,78 NBR 70 shore

Article no: 712429

Located inside nut

Shim Ø90/51 - 0,5

Article no: 1080578

Position62

Aantal in tekening1

Shim Ø90/51 - 0,5

Article no: 1080578

Shim Ø90/46 - 1

Article no: 1080577

Position61

Aantal in tekening1

Shim Ø90/46 - 1

Article no: 1080577

Cage nut M6

Article no: 6000411

Position4

Aantal in tekening4

Cage nut M6

Article no: 6000411

Flat seal for ECO 3/8" V3

Article no: 1052976

Position24

Aantal in tekening2

Flat seal for ECO 3/8" V3

Article no: 1052976

Protection-ECO40 W-Quick hitch

Article no: 1062401

Position55

Aantal in tekening2

Protection-ECO40 W-Quick hitch

Article no: 1062401

Part of make up

Shim Ø90/41 - 1

Article no: 1079620

Position59

Aantal in tekening1

Shim Ø90/41 - 1

Article no: 1079620

Tube sleeve straight Push-In - 20mm

Article no: 7001521

Position42

Aantal in tekening2

Tube sleeve straight Push-In - 20mm

Article no: 7001521

Depends on the specific hitch model

Shim chamfered Ø90/46 - 5

Article no: 1080582

Position68

Aantal in tekening1

Shim chamfered Ø90/46 - 5

Article no: 1080582

Hose kit - Machine hitch - Lubrication ECO40 W

Article no: 7001531

Position40

Aantal in tekening1

Hose kit - Machine hitch - Lubrication ECO40 W

Article no: 7001531

(POS.41-43 incl.)

Cover plate ECO40 W-S40-QH

Article no: 1078257

Position36

Aantal in tekening2

Cover plate ECO40 W-S40-QH

Article no: 1078257

Shim Ø90/41 - 0,5

Article no: 1079619

Position58

Aantal in tekening1

Shim Ø90/41 - 0,5

Article no: 1079619

Shim chamfered Ø90/36 - 10

Article no: 1080581

Position65

Aantal in tekening1

Shim chamfered Ø90/36 - 10

Article no: 1080581

Power plug ECO40 W-male-housing

Article no: 1057572

Position35

Aantal in tekening1

Power plug ECO40 W-male-housing

Article no: 1057572

Adapter tube-lock short S40/S45/S60/S70/S80

Article no: 1071217

Position14

Aantal in tekening2

Adapter tube-lock short S40/S45/S60/S70/S80

Article no: 1071217

Block ECO40 W-S40 QH-1hy 1cl

Article no: 1078891

Position21

Aantal in tekening1

Block ECO40 W-S40 QH-1hy 1cl

Article no: 1078891

(POS.23, 25-26 incl.)

Washer NL5-DPE 5,4x9,0x1,7

Article no: 611038

Position50

Aantal in tekening2

Washer NL5-DPE 5,4x9,0x1,7

Article no: 611038

O-ring 5,28x1,78 NBR 70 shore

Article no: 7001568

Position17

Aantal in tekening2

O-ring 5,28x1,78 NBR 70 shore

Article no: 7001568

Part of Std. Hitch components

Extension cable 6/8-pole M12-4,4m Robo hose

Article no: 8002249

Position11

Aantal in tekening1

Extension cable 6/8-pole M12-4,4m Robo hose

Article no: 8002249

Attach to Y-split

Central lubrication kit ECO W V2

Article no: 1050794

Position26

Aantal in tekening1

Central lubrication kit ECO W V2

Article no: 1050794

(POS.27-33 incl.)

Holder Deutsch DT/DTM connector

Article no: 810662

Position7

Aantal in tekening2

Holder Deutsch DT/DTM connector

Article no: 810662

For DC2

Grease piston for ECO block

Article no: 1024111

Position29

Aantal in tekening1

Grease piston for ECO block

Article no: 1024111

Shim chamfered Ø90/41 - 5

Article no: 1079614

Position66

Aantal in tekening1

Shim chamfered Ø90/41 - 5

Article no: 1079614

Adapter 402-08-08 45°

Article no: 7000091

Position20

Aantal in tekening2

Adapter 402-08-08 45°

Article no: 7000091

Screw MC6S 5x12 12.9 untreated ISO4762

Article no: 6000077

Position8

Aantal in tekening1

Screw MC6S 5x12 12.9 untreated ISO4762

Article no: 6000077

QTY: 2 for DC2

Spring 6058

Article no: 1024113

Position27

Aantal in tekening1

Spring 6058

Article no: 1024113

Strain relief plate ZL60 4x

Article no: 8000703

Position5

Aantal in tekening1

Strain relief plate ZL60 4x

Article no: 8000703

Screw MC6S 2.5x8 8.8 FZB ISO4762

Article no: 6000325

Position37

Aantal in tekening6

Screw MC6S 2.5x8 8.8 FZB ISO4762

Article no: 6000325

Shim chamfered Ø90/41 - 10

Article no: 1079615

Position67

Aantal in tekening1

Shim chamfered Ø90/41 - 10

Article no: 1079615

Unit cable DC2 ECO W S40-2,5m

Article no: 8002522

Position45

Aantal in tekening1

Unit cable DC2 ECO W S40-2,5m

Article no: 8002522

Attach to both 4P

Extender 18mm M8x1

Article no: 7000688

Position38

Aantal in tekening2

Extender 18mm M8x1

Article no: 7000688

Shim Ø90/51 - 1

Article no: 1080579

Position63

Aantal in tekening1

Shim Ø90/51 - 1

Article no: 1080579

Screw MLC6S 10x16 10.9 FZB

Article no: 6000326

Position47

Aantal in tekening4

Screw MLC6S 10x16 10.9 FZB

Article no: 6000326

Torque: 65Nm

Shim Ø90/36 - 0,5

Article no: 1080574

Position56

Aantal in tekening1

Shim Ø90/36 - 0,5

Article no: 1080574

Adapter ORFS 067005-04-02

Article no: 7002020

Position13

Aantal in tekening2

Adapter ORFS 067005-04-02

Article no: 7002020

Nut greasepiston V2

Article no: 1047688

Position31

Aantal in tekening1

Nut greasepiston V2

Article no: 1047688

Wrap with thread sealing tape

Shim chamfered Ø90/36 - 5

Article no: 1080580

Position64

Aantal in tekening1

Shim chamfered Ø90/36 - 5

Article no: 1080580

Push-In coupling straight Ø6mm M8x1

Article no: 790185

Position39

Aantal in tekening2

Push-In coupling straight Ø6mm M8x1

Article no: 790185

Shim chamfered Ø90/51 - 10

Article no: 1080585

Position71

Aantal in tekening1

Shim chamfered Ø90/51 - 10

Article no: 1080585

QSM40 Lock Cylinder Adapter S40

Article no: 1079367

Position12

Aantal in tekening1

QSM40 Lock Cylinder Adapter S40

Article no: 1079367

Piston sealing KPOR130 12x7,1x2,2

Article no: 1024112

Position28

Aantal in tekening2

Piston sealing KPOR130 12x7,1x2,2

Article no: 1024112

O-ring 3,69x1,78 NBR 90 shore

Article no: 1024115

Position30

Aantal in tekening1

O-ring 3,69x1,78 NBR 90 shore

Article no: 1024115

Power plug ECO40 W S40-QH DC2

Article no: 8002521

Position46

Aantal in tekening2

Power plug ECO40 W S40-QH DC2

Article no: 8002521

Rubber Steel Clamp Ø8

Article no: 6000241

Position9

Aantal in tekening1

Rubber Steel Clamp Ø8

Article no: 6000241

QTY: 2 for DC2

Shim Ø90/36 - 1

Article no: 1080575

Position57

Aantal in tekening1

Shim Ø90/36 - 1

Article no: 1080575

Power plug ECO40 W S40-QH DC3

Article no: 8001892

Position34

Aantal in tekening1

Power plug ECO40 W S40-QH DC3

Article no: 8001892

Coupling ECO 3/8" female V3

Article no: 1053029

Position23

Aantal in tekening2

Coupling ECO 3/8" female V3

Article no: 1053029

Torque: 60Nm. (POS.24 incl.)

Connection plate S40 bolted

Article no: 1078275

Position2

Aantal in tekening1

Connection plate S40 bolted

Article no: 1078275

Shim Ø90/46 - 0,5

Article no: 1080576

Position60

Aantal in tekening1

Shim Ø90/46 - 0,5

Article no: 1080576

Shim chamfered Ø90/46 - 10

Article no: 1080583

Position69

Aantal in tekening1

Shim chamfered Ø90/46 - 10

Article no: 1080583

Screw MC6S 8x30 12.9 ZFSHL ISO4762

Article no: 611519

Position19

Aantal in tekening2

Screw MC6S 8x30 12.9 ZFSHL ISO4762

Article no: 611519

Part of Std. Hitch components

Plug Din 908 1/4"

Article no: 711505

Position16

Aantal in tekening2

Plug Din 908 1/4"

Article no: 711505

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Position18

Aantal in tekening10

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

QTY: 2 part of Std. Hitch comp.

Seal washer GBR04 1/4"

Article no: 710702

Position15

Aantal in tekening2

Seal washer GBR04 1/4"

Article no: 710702

Screw MC6S 8x20H 12.9 ZFSHL ISO4762

Article no: 6000157

Position53

Aantal in tekening8

Screw MC6S 8x20H 12.9 ZFSHL ISO4762

Article no: 6000157

Screw MC6S 6x16 12.9 ZFSHL ISO4762

Article no: 6000017

Position3

Aantal in tekening4

Screw MC6S 6x16 12.9 ZFSHL ISO4762

Article no: 6000017

O-ring 14x2 70 shore

Article no: 7000767

Position33

Aantal in tekening1

O-ring 14x2 70 shore

Article no: 7000767
