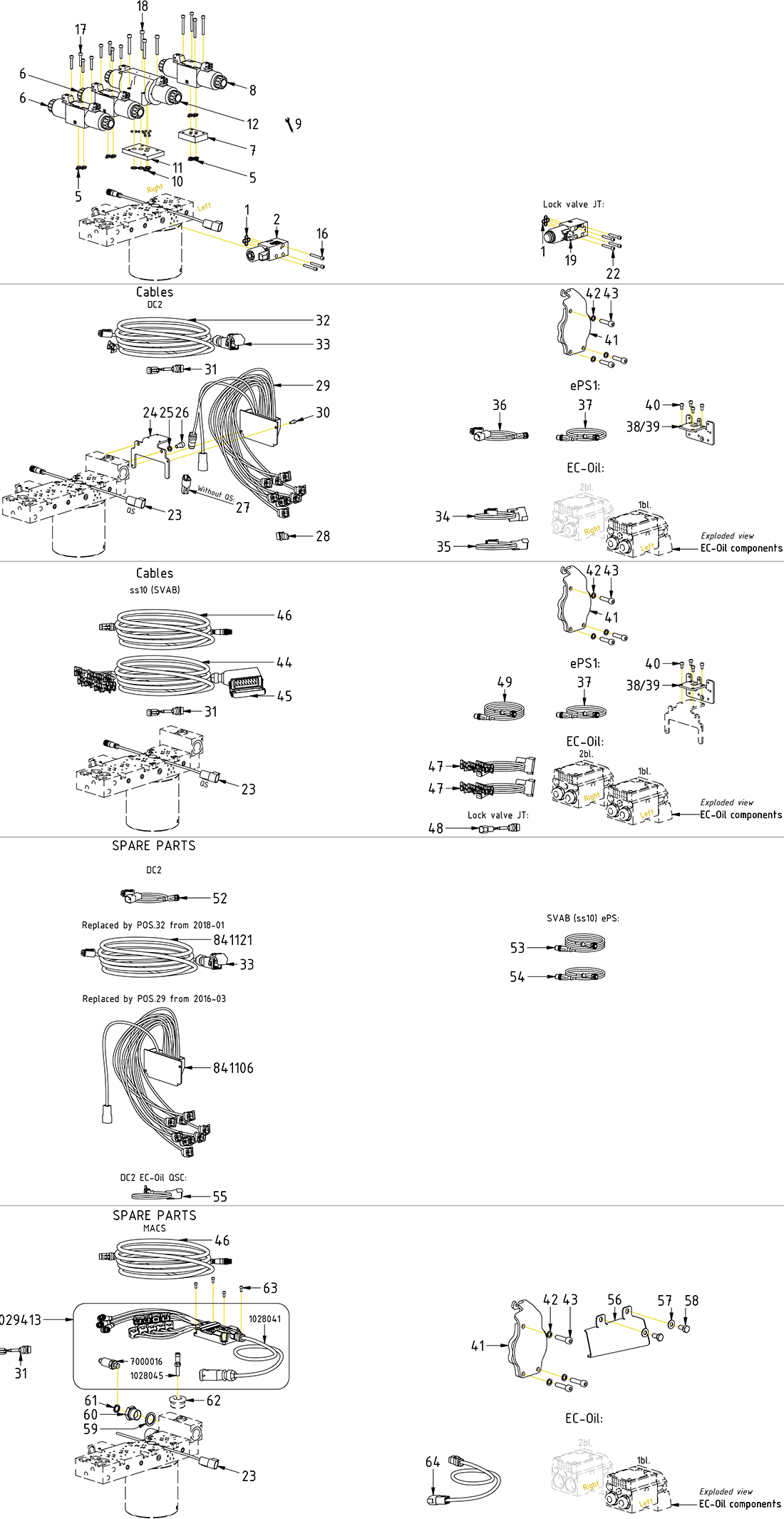

Valves & cables ss10 'ECHF'

Pos

Artikkel

Ekstra info

Antall i tegning

Pris (eks. MVA)

Adapter cable DTM 12P-DT 6S-MACS ECO W

Article no: 1043277

Position64

Antall i tegning1

Logg inn for å se pris

Adapter cable DTM 12P-DT 6S-MACS ECO W

Article no: 1043277

For ECO. Instead of 1028041+POS.46

Logg inn for å se pris

Screw MC6S 10x40 12.9 ZFSHL ISO4762

Article no: 612020

Position43

Antall i tegning3

Logg inn for å se pris

Screw MC6S 10x40 12.9 ZFSHL ISO4762

Article no: 612020

Logg inn for å se pris

Protection sensor -ePS-EC30

Article no: 1029734

Position41

Antall i tegning1

Logg inn for å se pris

Protection sensor -ePS-EC30

Article no: 1029734

Logg inn for å se pris

Pipe Plug RP M36x2 Din 908 FZB M8x1 SVAB MACS

Article no: 650411

Position62

Antall i tegning1

Logg inn for å se pris

Pipe Plug RP M36x2 Din 908 FZB M8x1 SVAB MACS

Article no: 650411

Logg inn for å se pris

O-ring 9,25x1,78 FKM 90 shore Viton Green NG6

Article no: 710901

Position5

Antall i tegning12

Logg inn for å se pris

O-ring 9,25x1,78 FKM 90 shore Viton Green NG6

Article no: 710901

Logg inn for å se pris

Directional valve NG4 IQS lock 24V DT ss10 Coil A

Article no: 1042190

Position2

Antall i tegning1

Logg inn for å se pris

Directional valve NG4 IQS lock 24V DT ss10 Coil A

Article no: 1042190

For QS, CW, ECPUP, ss SIQ (POS.1, 3, 4 incl.)

Logg inn for å se pris

O-ring 7,65x1,78 FKM 90 shore Viton NG4

Article no: 710960

Position1

Antall i tegning4

Logg inn for å se pris

O-ring 7,65x1,78 FKM 90 shore Viton NG4

Article no: 710960

Logg inn for å se pris

Coil NG4 IQS lock 24V DT

Article no: 1042066

Position3

Antall i tegning1

Logg inn for å se pris

Coil NG4 IQS lock 24V DT

Article no: 1042066

Logg inn for å se pris

Attachment Tiltrotator module DC2 & ePS EC30 ECHF

Article no: 1037259

Position24

Antall i tegning1

Logg inn for å se pris

Attachment Tiltrotator module DC2 & ePS EC30 ECHF

Article no: 1037259

Logg inn for å se pris

Screw MC6S 5x35 12.9 untreated ISO4762

Article no: 610404

Position22

Antall i tegning4

Logg inn for å se pris

Screw MC6S 5x35 12.9 untreated ISO4762

Article no: 610404

Torque: 9,7Nm

Logg inn for å se pris

Protection plug for DTM06-6S

Article no: 8000090

Position27

Antall i tegning1

Logg inn for å se pris

Protection plug for DTM06-6S

Article no: 8000090

Logg inn for å se pris

Jumper JT 2P POS:1-2

Article no: 1018662

Position28

Antall i tegning1

Logg inn for å se pris

Jumper JT 2P POS:1-2

Article no: 1018662

Plug JT connector "1"

Logg inn for å se pris

Electronics Module TM2-EC206B-233/EC10-30 DC2 QS-DTM

Article no: 842137

Position29

Antall i tegning1

Logg inn for å se pris

Electronics Module TM2-EC206B-233/EC10-30 DC2 QS-DTM

Article no: 842137

Logg inn for å se pris

Shim NG10 10mm

Article no: 1036293

Position11

Antall i tegning1

Logg inn for å se pris

Shim NG10 10mm

Article no: 1036293

Logg inn for å se pris

Directional valve NG10 24V

Article no: 730339

Position12

Antall i tegning1

Logg inn for å se pris

Directional valve NG10 24V

Article no: 730339

(POS.10, 14, 15 incl.)

Logg inn for å se pris

Screw MC6S 5x30 12.9 untreated ISO4762

Article no: 610403

Position17

Antall i tegning8

Logg inn for å se pris

Screw MC6S 5x30 12.9 untreated ISO4762

Article no: 610403

Torque: 9,7Nm

Logg inn for å se pris

Screw MC6S 5x40 12.9 untreated ISO4762

Article no: 610405

Position16

Antall i tegning3

Logg inn for å se pris

Screw MC6S 5x40 12.9 untreated ISO4762

Article no: 610405

Torque: 9,7Nm

Logg inn for å se pris

Directional valve NG6 24V

Article no: 730103

Position8

Antall i tegning1

Logg inn for å se pris

Directional valve NG6 24V

Article no: 730103

(POS.5, 14, 15 incl.)

Logg inn for å se pris

O-ring 12,42x1,68 square NBR 70 shore NG10

Article no: 750704

Position10

Antall i tegning9

Logg inn for å se pris

O-ring 12,42x1,68 square NBR 70 shore NG10

Article no: 750704

Logg inn for å se pris

Screw MC6S 5x12 12.9 untreated ISO4762

Article no: 6000077

Position30

Antall i tegning2

Logg inn for å se pris

Screw MC6S 5x12 12.9 untreated ISO4762

Article no: 6000077

Logg inn for å se pris

Directional valve NG4 lock 24V JT

Article no: 730310

Position19

Antall i tegning1

Logg inn for å se pris

Directional valve NG4 lock 24V JT

Article no: 730310

(POS.1, 20, 21 incl.)

Logg inn for å se pris

Coil NG4 24V JT

Article no: 730311

Position20

Antall i tegning1

Logg inn for å se pris

Coil NG4 24V JT

Article no: 730311

Logg inn for å se pris

Nut directional valve NG4

Article no: 1006785

Position21

Antall i tegning1

Logg inn for å se pris

Nut directional valve NG4

Article no: 1006785

Logg inn for å se pris

Directional valve NG6 prop 12V engcon JT

Article no: 730190

Position6

Antall i tegning2

Logg inn for å se pris

Directional valve NG6 prop 12V engcon JT

Article no: 730190

(POS.5, 13, 15 incl.)

Logg inn for å se pris

Shim NG6 15mm

Article no: 1037260

Position7

Antall i tegning1

Logg inn for å se pris

Shim NG6 15mm

Article no: 1037260

Logg inn for å se pris

Coil 24V NG6 JT on/off

Article no: 730118

Position14

Antall i tegning4

Logg inn for å se pris

Coil 24V NG6 JT on/off

Article no: 730118

Logg inn for å se pris

Nut directional valve Argo Hytos

Article no: 730135

Position15

Antall i tegning8

Logg inn for å se pris

Nut directional valve Argo Hytos

Article no: 730135

Logg inn for å se pris

Breakout cable CAN DT-DC2 EC 0,32/0,25m

Article no: 8000783

Position36

Antall i tegning1

Logg inn for å se pris

Breakout cable CAN DT-DC2 EC 0,32/0,25m

Article no: 8000783

Logg inn for å se pris

Extension cable 5-pole M12-FULL 0,75m Robo hose

Article no: 8000784

Position37

Antall i tegning1

Logg inn for å se pris

Extension cable 5-pole M12-FULL 0,75m Robo hose

Article no: 8000784

Logg inn for å se pris

Mounting plate-ePS-Tilt sensor except Trimble-ECHF

Article no: 1038119

Position38

Antall i tegning1

Logg inn for å se pris

Mounting plate-ePS-Tilt sensor except Trimble-ECHF

Article no: 1038119

For Topcon/LEICA/Novatron

Logg inn for å se pris

Mounting plate-ePS-Tilt sensor Trimble AS455-ECHF

Article no: 1038117

Position39

Antall i tegning1

Logg inn for å se pris

Mounting plate-ePS-Tilt sensor Trimble AS455-ECHF

Article no: 1038117

For Trimble

Logg inn for å se pris

Adapter cable DTM 12P-DT 2S/4xJT 2S

Article no: 1029599

Position47

Antall i tegning2

Logg inn for å se pris

Adapter cable DTM 12P-DT 2S/4xJT 2S

Article no: 1029599

For EC-Oil. Instead of POS.31,44,46

Logg inn for å se pris

Adapter cable JT 2S-DT 2P

Article no: 8001989

Position48

Antall i tegning1

Logg inn for å se pris

Adapter cable JT 2S-DT 2P

Article no: 8001989

For Left adapter cable

Logg inn for å se pris

Resistor cable 120ohm M12 5S-M12 5S-3m

Article no: 8000824

Position49

Antall i tegning1

Logg inn for å se pris

Resistor cable 120ohm M12 5S-M12 5S-3m

Article no: 8000824

Logg inn for å se pris

Adapter plate NG10-NG6

Article no: 7000147

Position50

Antall i tegning1

Logg inn for å se pris

Adapter plate NG10-NG6

Article no: 7000147

Logg inn for å se pris

Screw MC6S 6x25 12.9 untreated ISO4762

Article no: 6000083

Position51

Antall i tegning4

Logg inn for å se pris

Screw MC6S 6x25 12.9 untreated ISO4762

Article no: 6000083

Torque: 17Nm

Logg inn for å se pris

Extension cable 5-pole M12-FULL 3m Robo hose

Article no: 842187

Position53

Antall i tegning1

Logg inn for å se pris

Extension cable 5-pole M12-FULL 3m Robo hose

Article no: 842187

Replaced by POS.49 from 2019-10

Logg inn for å se pris

Resistor cable 120ohm M12 5S-M12 5S-0,95m

Article no: 842188

Position54

Antall i tegning1

Logg inn for å se pris

Resistor cable 120ohm M12 5S-M12 5S-0,95m

Article no: 842188

Replaced by POS.37 from 2019-10

Logg inn for å se pris

ILME cover21.21 with lever CKAX 03 CXA

Article no: 810208

Position33

Antall i tegning1

Logg inn for å se pris

ILME cover21.21 with lever CKAX 03 CXA

Article no: 810208

(Incl. with agg.cable)

Logg inn for å se pris

Adapter cable DTM 12P-DT 4S-ECO W DC3

Article no: 1042249

Position34

Antall i tegning1

Logg inn for å se pris

Adapter cable DTM 12P-DT 4S-ECO W DC3

Article no: 1042249

For EC-Oil. Instead of POS.31-32

Logg inn for å se pris

Adapter cable JT 2P-DT 2S

Article no: 1017478

Position31

Antall i tegning1

Logg inn for å se pris

Adapter cable JT 2P-DT 2S

Article no: 1017478

For QS, CW, ECPUP, ss SIQ

Logg inn for å se pris

Unit cable DC2 JT EC206-EC233-3,9m

Article no: 8000175

Position32

Antall i tegning1

Logg inn for å se pris

Unit cable DC2 JT EC206-EC233-3,9m

Article no: 8000175

Logg inn for å se pris

Unit cable ss10 JT EC214-EC233-4,5m

Article no: 1015196

Position44

Antall i tegning1

Logg inn for å se pris

Unit cable ss10 JT EC214-EC233-4,5m

Article no: 1015196

Logg inn for å se pris

ILME cover 66.16 with lever CZC 25 LG

Article no: 810235

Position45

Antall i tegning1

Logg inn for å se pris

ILME cover 66.16 with lever CZC 25 LG

Article no: 810235

(Incl. with agg.cable)

Logg inn for å se pris

Screw MC6S 4x10 8.8 FZB ISO4762

Article no: 610523

Position63

Antall i tegning4

Logg inn for å se pris

Screw MC6S 4x10 8.8 FZB ISO4762

Article no: 610523

Logg inn for å se pris

Adapter 234-12-04

Article no: 7000115

Position60

Antall i tegning1

Logg inn for å se pris

Adapter 234-12-04

Article no: 7000115

Logg inn for å se pris

Adapter cable DTM 6P-JT 2S-ECO DTM 1 & 6 Connected

Article no: 1042250

Position55

Antall i tegning1

Logg inn for å se pris

Adapter cable DTM 6P-JT 2S-ECO DTM 1 & 6 Connected

Article no: 1042250

Replaced by POS.35 from 2017-10

Logg inn for å se pris

Protection sensor MACS-EC30

Article no: 1033690

Position56

Antall i tegning1

Logg inn for å se pris

Protection sensor MACS-EC30

Article no: 1033690

Logg inn for å se pris

Nut bulkhead adapter 1270-04

Article no: 710250

Position4

Antall i tegning1

Logg inn for å se pris

Nut bulkhead adapter 1270-04

Article no: 710250

Logg inn for å se pris

Screw MC6S 8x16H 12.9 ZFSHL ISO4762

Article no: 610432

Position26

Antall i tegning2

Logg inn for å se pris

Screw MC6S 8x16H 12.9 ZFSHL ISO4762

Article no: 610432

Logg inn for å se pris

Screw MC6S 5x10 12.9 untreated ISO4762

Article no: 610594

Position40

Antall i tegning4

Logg inn for å se pris

Screw MC6S 5x10 12.9 untreated ISO4762

Article no: 610594

Logg inn for å se pris

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Position25

Antall i tegning2

Logg inn for å se pris

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Logg inn for å se pris

Seal washer GBR04 1/4"

Article no: 710702

Position61

Antall i tegning1

Logg inn for å se pris

Seal washer GBR04 1/4"

Article no: 710702

Used as shim if required

Logg inn for å se pris

Seal washer GBR12 3/4"

Article no: 710706

Position59

Antall i tegning1

Logg inn for å se pris

Seal washer GBR12 3/4"

Article no: 710706

Logg inn for å se pris

Washer BRB FZB 10,5x22x2 ISO7089

Article no: 611006

Position57

Antall i tegning2

Logg inn for å se pris

Washer BRB FZB 10,5x22x2 ISO7089

Article no: 611006

Logg inn for å se pris

Adapter cable M12 8P-DTM 6S

Article no: 842148

Position46

Antall i tegning1

Logg inn for å se pris

Adapter cable M12 8P-DTM 6S

Article no: 842148

For QS

Logg inn for å se pris

Coil 12V NG6 prop JT

Article no: 730192

Position13

Antall i tegning4

Logg inn for å se pris

Coil 12V NG6 prop JT

Article no: 730192

Logg inn for å se pris

Screw M6S 10x20 8.8 FZB ISO4017

Article no: 610141

Position58

Antall i tegning2

Logg inn for å se pris

Screw M6S 10x20 8.8 FZB ISO4017

Article no: 610141

Logg inn for å se pris

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Position42

Antall i tegning3

Logg inn for å se pris

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Logg inn for å se pris

Breakout cable CAN DT-DC2 EC 0,15/0,98m

Article no: 842173

Position52

Antall i tegning1

Logg inn for å se pris

Breakout cable CAN DT-DC2 EC 0,15/0,98m

Article no: 842173

Replaced by POS.36 from 2019-10

Logg inn for å se pris
