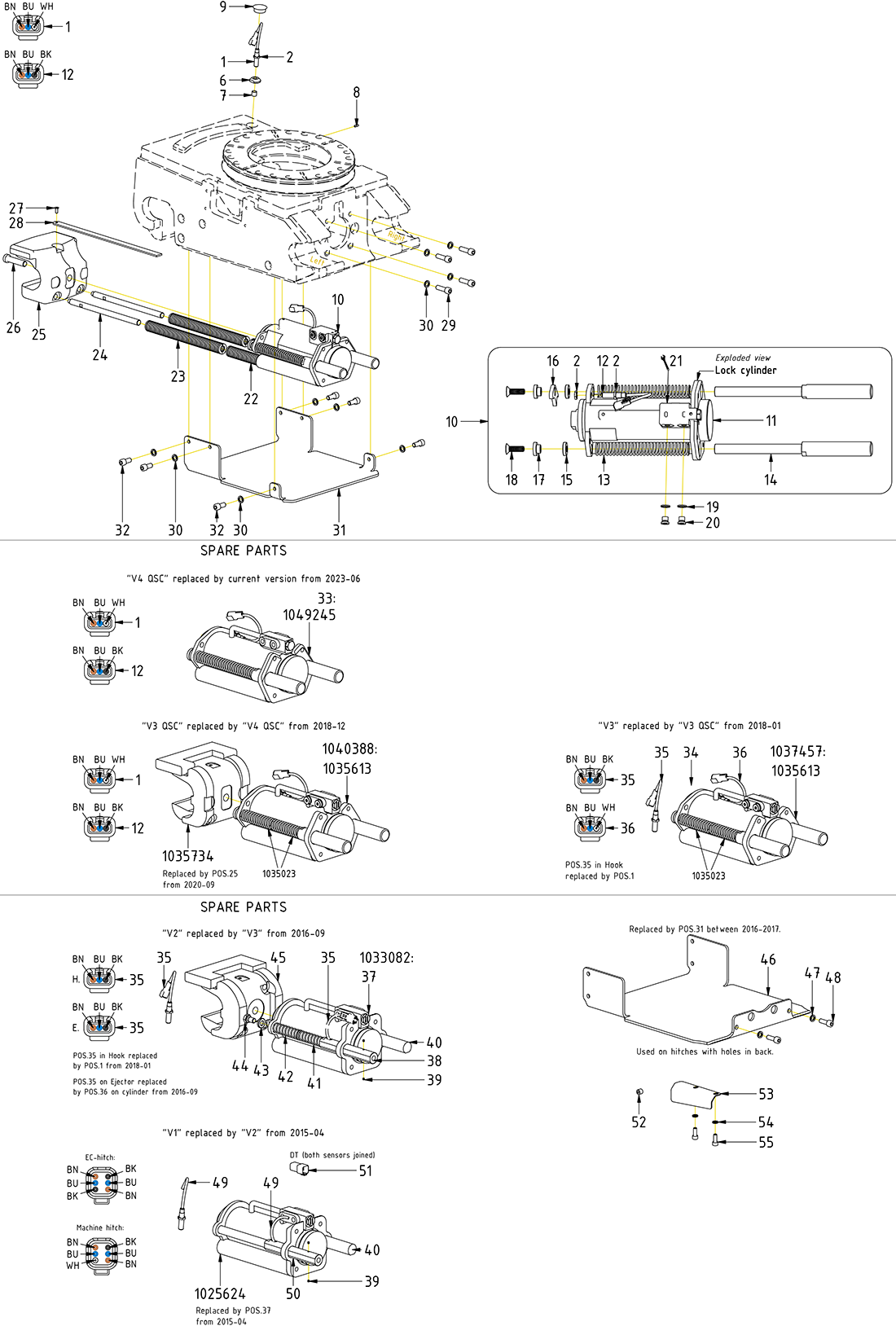

Std comp. QS70

Pos

Artikkel

Ekstra info

Antall i tegning

Pris (eks. MVA)

Inductive sensor M12 DTM04-3P - Locking cylinder

Article no: 1036833

Position36

Antall i tegning1

Logg inn for å se pris

Inductive sensor M12 DTM04-3P - Locking cylinder

Article no: 1036833

Replaced by POS.12 from 2018-01

Logg inn for å se pris

Washer TBRB 13x24x4 ISO4759

Article no: 611099

Position43

Antall i tegning2

Logg inn for å se pris

Washer TBRB 13x24x4 ISO4759

Article no: 611099

Logg inn for å se pris

Ejector QS70 NOT for sensor

Article no: 1024697

Position40

Antall i tegning1

Logg inn for å se pris

Ejector QS70 NOT for sensor

Article no: 1024697

Replaced by POS.14 from 2016-09

Logg inn for å se pris

Ejector QS70 with sensor - DTM

Article no: 1029067

Position38

Antall i tegning1

Logg inn for å se pris

Ejector QS70 with sensor - DTM

Article no: 1029067

Replaced by POS.14 from 2016-09 (POS.35, 39 incl.)

Logg inn for å se pris

Spring QS70 Ejectors short - (20x85)

Article no: 1025857

Position42

Antall i tegning2

Logg inn for å se pris

Spring QS70 Ejectors short - (20x85)

Article no: 1025857

Logg inn for å se pris

Deutsch DT04-6P connector device

Article no: 820109

Position51

Antall i tegning1

Logg inn for å se pris

Deutsch DT04-6P connector device

Article no: 820109

Used until 2015-04

Logg inn for å se pris

Locking cylinder QS70 V4 Forged QSC pre-assembled

Article no: 1058123

Position10

Antall i tegning1

Logg inn for å se pris

Locking cylinder QS70 V4 Forged QSC pre-assembled

Article no: 1058123

(POS.11-18 incl.)

Logg inn for å se pris

Inductive sensor M12 IF6079

Article no: 810463

Position49

Antall i tegning2

Logg inn for å se pris

Inductive sensor M12 IF6079

Article no: 810463

Replaced by POS.35 from 2015-04

Logg inn for å se pris

Locking hook QS70

Article no: 1024200

Position45

Antall i tegning1

Logg inn for å se pris

Locking hook QS70

Article no: 1024200

Replaced by 1035734 from 2016-09

Logg inn for å se pris

Locking cylinder QS70 V4 pre-assembled-NOT QSC

Article no: 1050636

Position34

Antall i tegning1

Logg inn for å se pris

Locking cylinder QS70 V4 pre-assembled-NOT QSC

Article no: 1050636

Spare part use only

Logg inn for å se pris

Locking cylinder QS70 V2 pre-assembled 2017-05-22

Article no: 1028940

Position37

Antall i tegning1

Logg inn for å se pris

Locking cylinder QS70 V2 pre-assembled 2017-05-22

Article no: 1028940

Replaced by 1035613 from 2016-09

Logg inn for å se pris

Ejector QS70 for sensor

Article no: 1024696

Position50

Antall i tegning1

Logg inn for å se pris

Ejector QS70 for sensor

Article no: 1024696

Replaced by POS.38 from 2015-04

Logg inn for å se pris

Inductive sensor M12 DTM04-3P - hook QSC - 645mm

Article no: 1040358

Position1

Antall i tegning1

Logg inn for å se pris

Inductive sensor M12 DTM04-3P - hook QSC - 645mm

Article no: 1040358

Mount just below surface edge

Logg inn for å se pris

Spring QS70 Ejectors - long (20x120)

Article no: 1025177

Position41

Antall i tegning2

Logg inn for å se pris

Spring QS70 Ejectors - long (20x120)

Article no: 1025177

Logg inn for å se pris

Inductive sensor M12 DTM04-3P - hook quick hitch

Article no: 1029068

Position35

Antall i tegning1

Logg inn for å se pris

Inductive sensor M12 DTM04-3P - hook quick hitch

Article no: 1029068

Replaced 2018

Logg inn for å se pris

Inductive sensor M12 DTM04-3P - Locking cylinder QSC - 645mm

Article no: 1040359

Position12

Antall i tegning1

Logg inn for å se pris

Inductive sensor M12 DTM04-3P - Locking cylinder QSC - 645mm

Article no: 1040359

Mount 1mm from Sensor plate

Logg inn for å se pris

Screw-Set Screw P6SS 5x4 A2 ISO4026

Article no: 610816

Position39

Antall i tegning2

Logg inn for å se pris

Screw-Set Screw P6SS 5x4 A2 ISO4026

Article no: 610816

Logg inn for å se pris

Locking cylinder QS70 V4 Forged

Article no: 1058122

Position11

Antall i tegning1

Logg inn for å se pris

Locking cylinder QS70 V4 Forged

Article no: 1058122

Logg inn for å se pris

Spacer QS70

Article no: 1035752

Position15

Antall i tegning2

Logg inn for å se pris

Spacer QS70

Article no: 1035752

Logg inn for å se pris

Sensor plate QS70

Article no: 1035751

Position16

Antall i tegning1

Logg inn for å se pris

Sensor plate QS70

Article no: 1035751

Assemble with slight play

Logg inn for å se pris

Cover plate QS70/QSM70-without ECO-block V2

Article no: 1034902

Position31

Antall i tegning1

Logg inn for å se pris

Cover plate QS70/QSM70-without ECO-block V2

Article no: 1034902

No cover plate for EC-Oil

Logg inn for å se pris

Spring QSM70/QS70/S70 locking hook - short (32x152)

Article no: 1025178

Position22

Antall i tegning2

Logg inn for å se pris

Spring QSM70/QS70/S70 locking hook - short (32x152)

Article no: 1025178

Logg inn for å se pris

Spring QSM70/QS70/S70 locking hook - long (32x305)

Article no: 1025179

Position23

Antall i tegning2

Logg inn for å se pris

Spring QSM70/QS70/S70 locking hook - long (32x305)

Article no: 1025179

Logg inn for å se pris

Locking hook QSM70/QS70/S70 V2 cast

Article no: 1037431

Position25

Antall i tegning1

Logg inn for å se pris

Locking hook QSM70/QS70/S70 V2 cast

Article no: 1037431

Logg inn for å se pris

Positioning nut-Inductive sensor QS/HYDS/S60/QSM45/50/60/70

Article no: 1029432

Position6

Antall i tegning1

Logg inn for å se pris

Positioning nut-Inductive sensor QS/HYDS/S60/QSM45/50/60/70

Article no: 1029432

Logg inn for å se pris

Protective sleeve Inductive sensor M12

Article no: 8000056

Position7

Antall i tegning1

Logg inn for å se pris

Protective sleeve Inductive sensor M12

Article no: 8000056

Logg inn for å se pris

Protection Plug ECO power plug & QS sensor

Article no: 8000068

Position9

Antall i tegning1

Logg inn for å se pris

Protection Plug ECO power plug & QS sensor

Article no: 8000068

Logg inn for å se pris

Spring QS70/80 Ejectors - 21,8x210

Article no: 1049974

Position13

Antall i tegning2

Logg inn for å se pris

Spring QS70/80 Ejectors - 21,8x210

Article no: 1049974

Logg inn for å se pris

Ejector QS70-QS80

Article no: 1034935

Position14

Antall i tegning2

Logg inn for å se pris

Ejector QS70-QS80

Article no: 1034935

Logg inn for å se pris

Screw MF6S 12x40 10.9 FZB ISO10642

Article no: 610670

Position18

Antall i tegning2

Logg inn for å se pris

Screw MF6S 12x40 10.9 FZB ISO10642

Article no: 610670

Loxeal 83-52

Logg inn for å se pris

Steering S70/QS70-80

Article no: 1024695

Position24

Antall i tegning2

Logg inn for å se pris

Steering S70/QS70-80

Article no: 1024695

Loxeal 53-11

Logg inn for å se pris

Indicator pin S40S/QS/QSM/S/HYDS 610mm

Article no: 1036201

Position28

Antall i tegning1

Logg inn for å se pris

Indicator pin S40S/QS/QSM/S/HYDS 610mm

Article no: 1036201

Cut to fit

Logg inn for å se pris

Screw MLC6S 16x70 10.9 DIN7984 untreated

Article no: 610720

Position26

Antall i tegning1

Logg inn for å se pris

Screw MLC6S 16x70 10.9 DIN7984 untreated

Article no: 610720

Loxeal 83-52

Logg inn for å se pris

Screw MC6S 8x20H 12.9 ZFSHL ISO4762

Article no: 6000157

Position55

Antall i tegning2

Logg inn for å se pris

Screw MC6S 8x20H 12.9 ZFSHL ISO4762

Article no: 6000157

Used until 2016-10

Logg inn for å se pris

Screw MF6S 6x16 10.9 untreated ISO10642

Article no: 610604

Position27

Antall i tegning1

Logg inn for å se pris

Screw MF6S 6x16 10.9 untreated ISO10642

Article no: 610604

Loxeal 83-52

Logg inn for å se pris

Screw MS6SS 8x16 ISO4027

Article no: 610808

Position8

Antall i tegning1

Logg inn for å se pris

Screw MS6SS 8x16 ISO4027

Article no: 610808

Logg inn for å se pris

Spacer M12 L15 countersunk

Article no: 1008243

Position17

Antall i tegning2

Logg inn for å se pris

Spacer M12 L15 countersunk

Article no: 1008243

Logg inn for å se pris

Screw MC6S 12x25H 12.9 ZFSHL ISO4762

Article no: 6000164

Position32

Antall i tegning6

Logg inn for å se pris

Screw MC6S 12x25H 12.9 ZFSHL ISO4762

Article no: 6000164

Logg inn for å se pris

Plug Din 908 1/4"

Article no: 711505

Position20

Antall i tegning2

Logg inn for å se pris

Plug Din 908 1/4"

Article no: 711505

Logg inn for å se pris

Washer NL12-DPE 13,0x19,5x2,7

Article no: 611042

Position30

Antall i tegning10

Logg inn for å se pris

Washer NL12-DPE 13,0x19,5x2,7

Article no: 611042

QTY: 4 for EC-Oil

Logg inn for å se pris

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Position54

Antall i tegning2

Logg inn for å se pris

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Used until 2016-10

Logg inn for å se pris

Screw MC6S 10x30 12.9 ZFSHL ISO4762

Article no: 612018

Position48

Antall i tegning2

Logg inn for å se pris

Screw MC6S 10x30 12.9 ZFSHL ISO4762

Article no: 612018

Logg inn for å se pris

Seal washer GBR04 1/4"

Article no: 710702

Position19

Antall i tegning2

Logg inn for å se pris

Seal washer GBR04 1/4"

Article no: 710702

Logg inn for å se pris

Screw M6S 12x20 8.8 FZB ISO4017

Article no: 610163

Position44

Antall i tegning2

Logg inn for å se pris

Screw M6S 12x20 8.8 FZB ISO4017

Article no: 610163

Logg inn for å se pris

Screw MC6S 12x40H 12.9 ZFSHL ISO4762

Article no: 6000141

Position29

Antall i tegning4

Logg inn for å se pris

Screw MC6S 12x40H 12.9 ZFSHL ISO4762

Article no: 6000141

Logg inn for å se pris

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Position47

Antall i tegning2

Logg inn for å se pris

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Logg inn for å se pris
