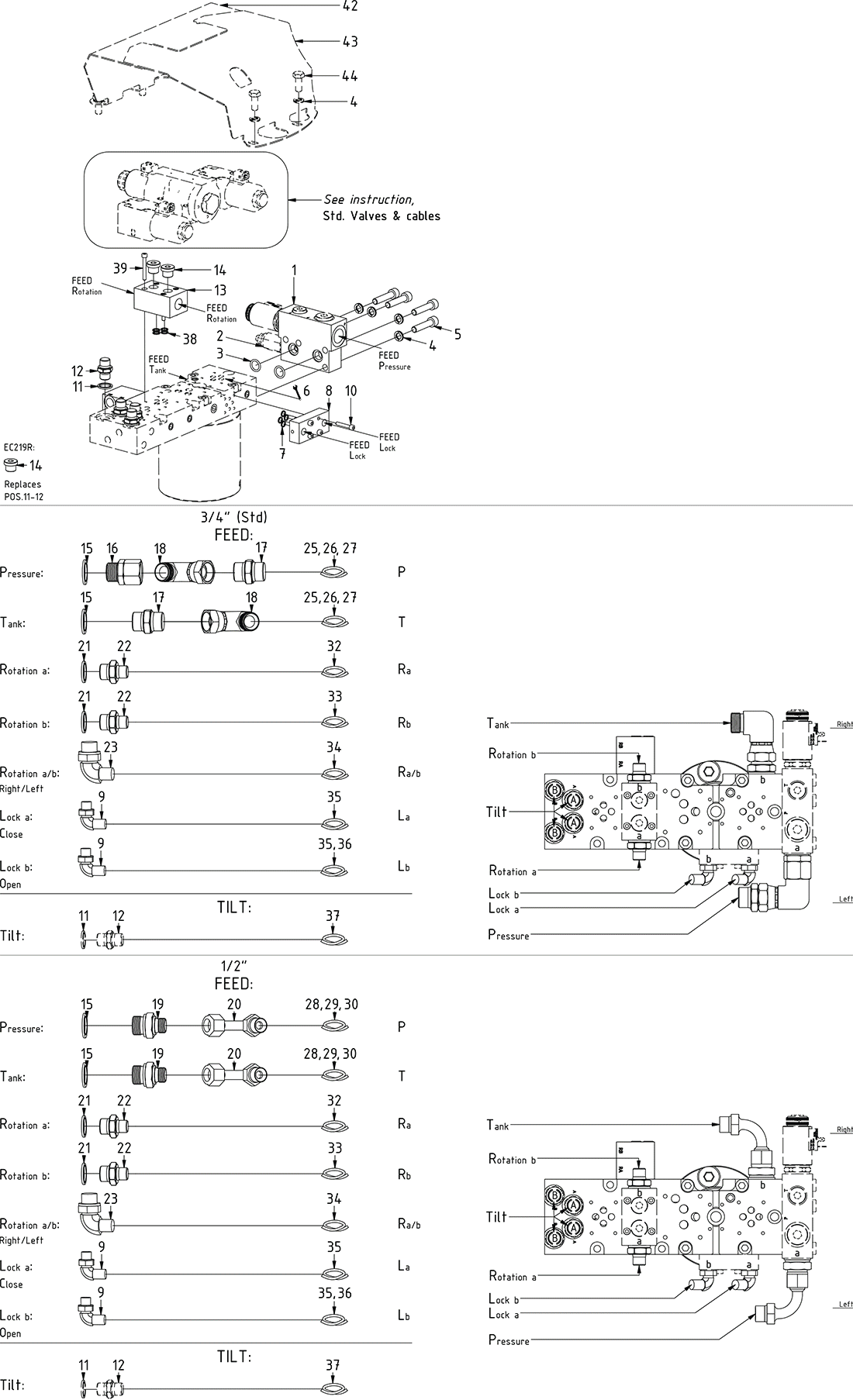

ss9SQ 'ECHF'

Pos

Artikkel

Ekstra info

Antall i tegning

Pris (eks. MVA)

Hose feed - EC219 - valve block ECHF

Article no: 7000028

Position25

Antall i tegning2

Logg inn for å se pris

Hose feed - EC219 - valve block ECHF

Article no: 7000028

Logg inn for å se pris

Hose feed - EC219 - valve block all right / left UNI

Article no: 742657

Position29

Antall i tegning1

Logg inn for å se pris

Hose feed - EC219 - valve block all right / left UNI

Article no: 742657

Feed Right: Mount on left side Feed Left: Mount on right side

Logg inn for å se pris

Hose

Article no: 7000672

Position33

Antall i tegning1

Logg inn for å se pris

Hose

Article no: 7000672

Logg inn for å se pris

Hose

Article no: 742675

Position32

Antall i tegning1

Logg inn for å se pris

Hose

Article no: 742675

Logg inn for å se pris

Hose Tilt Long - EC219 - ECHF/QSM

Article no: 7000027

Position37

Antall i tegning4

Logg inn for å se pris

Hose Tilt Long - EC219 - ECHF/QSM

Article no: 7000027

Logg inn for å se pris

Hose

Article no: 7000033

Position36

Antall i tegning1

Logg inn for å se pris

Hose

Article no: 7000033

Replaces "b" for Lock Left

Logg inn for å se pris

Hose

Article no: 7000323

Position41

Antall i tegning2

Logg inn for å se pris

Hose

Article no: 7000323

Logg inn for å se pris

Protective cover valve block EC219 ECHF/QSM - lip

Article no: 1027796

Position42

Antall i tegning1

Logg inn for å se pris

Protective cover valve block EC219 ECHF/QSM - lip

Article no: 1027796

Logg inn for å se pris

Protective cover valve block EC219 ECHF/QSM

Article no: 1027795

Position43

Antall i tegning1

Logg inn for å se pris

Protective cover valve block EC219 ECHF/QSM

Article no: 1027795

Logg inn for å se pris

Hose feed - EC226 - valve block ECHF-S1,S2,QS70 Top part

Article no: 7000063

Position26

Antall i tegning2

Logg inn for å se pris

Hose feed - EC226 - valve block ECHF-S1,S2,QS70 Top part

Article no: 7000063

QTY: 1 for Feed Right/Left

Logg inn for å se pris

Hose

Article no: 742621

Position30

Antall i tegning2

Logg inn for å se pris

Hose

Article no: 742621

QTY: 1 for Feed Right/Left

Logg inn for å se pris

Hose

Article no: 7000062

Position34

Antall i tegning1

Logg inn for å se pris

Hose

Article no: 7000062

Replaces "a" for Rot. Left Replaces "b" for Rot. Right

Logg inn for å se pris

Hose

Article no: 7000032

Position35

Antall i tegning2

Logg inn for å se pris

Hose

Article no: 7000032

(Same for Lock Right)

Logg inn for å se pris

Hose feed - EC219 - valve block UNI top part

Article no: 742620

Position28

Antall i tegning2

Logg inn for å se pris

Hose feed - EC219 - valve block UNI top part

Article no: 742620

QTY: 1 for Feed Right/Left

Logg inn for å se pris

Connection block 2x 1/2" / 2x 3/8" NG6

Article no: 405670

Position13

Antall i tegning1

Logg inn for å se pris

Connection block 2x 1/2" / 2x 3/8" NG6

Article no: 405670

Logg inn for å se pris

Connection block 2x 1/4" NG4

Article no: 1009586

Position8

Antall i tegning1

Logg inn for å se pris

Connection block 2x 1/4" NG4

Article no: 1009586

Mount before adapters and feed hoses

Logg inn for å se pris

Hose

Article no: 7000065

Position27

Antall i tegning1

Logg inn for å se pris

Hose

Article no: 7000065

Feed Right: Mount on left side Feed Left: Mount on right side

Logg inn for å se pris

Connection block P ss9 ECHF/QSM 24V

Article no: 1027707

Position1

Antall i tegning1

Logg inn for å se pris

Connection block P ss9 ECHF/QSM 24V

Article no: 1027707

(Dump & POS.2 included)

Logg inn for å se pris

Valve-Double pressure relief EC206,209&ECHF

Article no: 730287

Position2

Antall i tegning1

Logg inn for å se pris

Valve-Double pressure relief EC206,209&ECHF

Article no: 730287

Logg inn for å se pris

Adapter 407-12-12 90°

Article no: 7000010

Position18

Antall i tegning2

Logg inn for å se pris

Adapter 407-12-12 90°

Article no: 7000010

Logg inn for å se pris

Adapter 401-06-08 90°

Article no: 710157

Position23

Antall i tegning1

Logg inn for å se pris

Adapter 401-06-08 90°

Article no: 710157

Replaces POS.21-22 for Right/Left

Logg inn for å se pris

O-ring 9,25x1,78 FKM 90 shore Viton Green NG6

Article no: 710901

Position38

Antall i tegning4

Logg inn for å se pris

O-ring 9,25x1,78 FKM 90 shore Viton Green NG6

Article no: 710901

Logg inn for å se pris

O-ring 7,65x1,78 FKM 90 shore Viton NG4

Article no: 710960

Position7

Antall i tegning4

Logg inn for å se pris

O-ring 7,65x1,78 FKM 90 shore Viton NG4

Article no: 710960

Logg inn for å se pris

O-ring 15,54 x 2,62 NBR 70 shore

Article no: 712423

Position3

Antall i tegning2

Logg inn for å se pris

O-ring 15,54 x 2,62 NBR 70 shore

Article no: 712423

Logg inn for å se pris

Screw MC6S 10x45 12.9 untreated ISO4762

Article no: 610589

Position5

Antall i tegning4

Logg inn for å se pris

Screw MC6S 10x45 12.9 untreated ISO4762

Article no: 610589

Logg inn for å se pris

Screw MC6S 5x30 12.9 untreated ISO4762

Article no: 610403

Position10

Antall i tegning4

Logg inn for å se pris

Screw MC6S 5x30 12.9 untreated ISO4762

Article no: 610403

Torque: 9,7Nm

Logg inn for å se pris

Screw MC6S 5x40 12.9 untreated ISO4762

Article no: 610405

Position39

Antall i tegning4

Logg inn for å se pris

Screw MC6S 5x40 12.9 untreated ISO4762

Article no: 610405

Torque: 9,7Nm

Logg inn for å se pris

Adapter 703-12-12

Article no: 710218

Position16

Antall i tegning1

Logg inn for å se pris

Adapter 703-12-12

Article no: 710218

Logg inn for å se pris

Adapter 488-08-08 90°

Article no: 712209

Position20

Antall i tegning2

Logg inn for å se pris

Adapter 488-08-08 90°

Article no: 712209

Logg inn for å se pris

Adapter 236-06-06

Article no: 710131

Position40

Antall i tegning1

Logg inn for å se pris

Adapter 236-06-06

Article no: 710131

For option ST, on Rotation b

Logg inn for å se pris

Adapter 401-04-04 90°

Article no: 710151

Position9

Antall i tegning2

Logg inn for å se pris

Adapter 401-04-04 90°

Article no: 710151

Logg inn for å se pris

Screw M6S 10x25 8.8 FZB ISO4017

Article no: 610142

Position44

Antall i tegning4

Logg inn for å se pris

Screw M6S 10x25 8.8 FZB ISO4017

Article no: 610142

Logg inn for å se pris

Adapter 136-12-12

Article no: 710126

Position17

Antall i tegning2

Logg inn for å se pris

Adapter 136-12-12

Article no: 710126

Logg inn for å se pris

Adapter 135-08-12

Article no: 710109

Position19

Antall i tegning2

Logg inn for å se pris

Adapter 135-08-12

Article no: 710109

Logg inn for å se pris

Seal washer GBR06 3/8"

Article no: 710703

Position11

Antall i tegning4

Logg inn for å se pris

Seal washer GBR06 3/8"

Article no: 710703

QTY: 5 for option ST

Logg inn for å se pris

Seal washer GBR08 1/2"

Article no: 710704

Position21

Antall i tegning2

Logg inn for å se pris

Seal washer GBR08 1/2"

Article no: 710704

Logg inn for å se pris

Plug VSTIR38ED 3/8"

Article no: 711504

Position14

Antall i tegning2

Logg inn for å se pris

Plug VSTIR38ED 3/8"

Article no: 711504

QTY: 6 for EC219R

Logg inn for å se pris

Seal washer GBR12 3/4"

Article no: 710706

Position15

Antall i tegning3

Logg inn for å se pris

Seal washer GBR12 3/4"

Article no: 710706

Logg inn for å se pris

Adapter 135-06-08

Article no: 710122

Position22

Antall i tegning2

Logg inn for å se pris

Adapter 135-06-08

Article no: 710122

Logg inn for å se pris

Adapter 136-06-06

Article no: 710106

Position12

Antall i tegning4

Logg inn for å se pris

Adapter 136-06-06

Article no: 710106

Logg inn for å se pris

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Position4

Antall i tegning8

Logg inn for å se pris

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

QTY: 4 part of make up

Logg inn for å se pris
