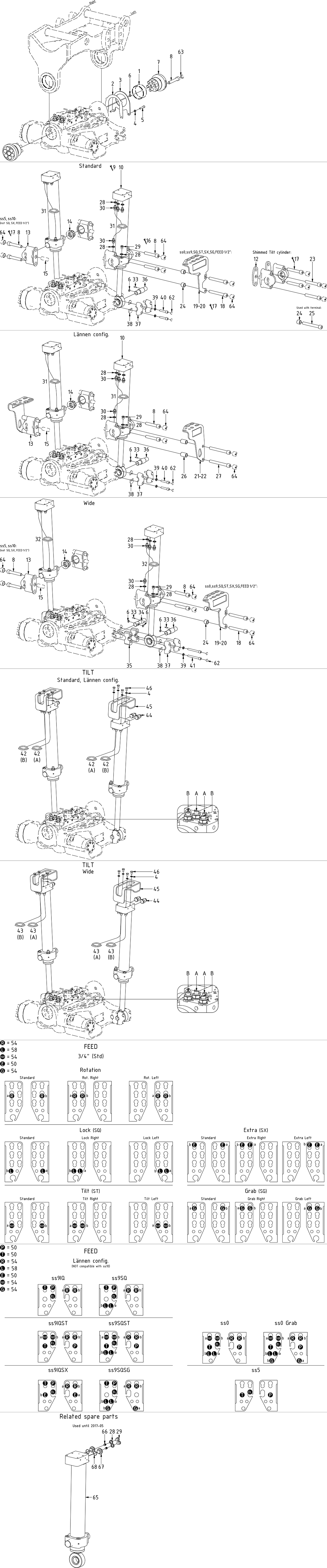

Std. Top components 'ECHF'

Pos

Artikkel

Ekstra info

Antall i tegning

Pris (eks. MVA)

Hose Tilt Short - EC214

Article no: 743002

Position31

Antall i tegning2

Logg inn for å se pris

Hose Tilt Short - EC214

Article no: 743002

Logg inn for å se pris

Hose tilt - EC214 - short wide

Article no: 7000166

Position32

Antall i tegning2

Logg inn for å se pris

Hose tilt - EC214 - short wide

Article no: 7000166

Logg inn for å se pris

Axle for spacer EC209W, EC214W

Article no: 1030070

Position34

Antall i tegning2

Logg inn for å se pris

Axle for spacer EC209W, EC214W

Article no: 1030070

Logg inn for å se pris

Spacer tilt cylinder EC209W, EC214W

Article no: 1030069

Position35

Antall i tegning4

Logg inn for å se pris

Spacer tilt cylinder EC209W, EC214W

Article no: 1030069

Logg inn for å se pris

Tilt axle EC214, EC219

Article no: 1016416

Position7

Antall i tegning2

Logg inn for å se pris

Tilt axle EC214, EC219

Article no: 1016416

Logg inn for å se pris

Yoke Bracket tilt cylinder EC209, EC214 cast grease-free

Article no: 1023212

Position13

Antall i tegning4

Logg inn for å se pris

Yoke Bracket tilt cylinder EC209, EC214 cast grease-free

Article no: 1023212

(POS.14-15 included)

Logg inn for å se pris

Hose bracket Lännen left

Article no: 1045618

Position21

Antall i tegning1

Logg inn for å se pris

Hose bracket Lännen left

Article no: 1045618

Logg inn for å se pris

Hose bracket Lännen right

Article no: 1045619

Position22

Antall i tegning1

Logg inn for å se pris

Hose bracket Lännen right

Article no: 1045619

Logg inn for å se pris

Tilt cylinder EC214 for overcenter 730269

Article no: 1041414

Position10

Antall i tegning2

Logg inn for å se pris

Tilt cylinder EC214 for overcenter 730269

Article no: 1041414

See "Tilt cylinders"

Logg inn for å se pris

Hose Tilt Long - EC214

Article no: 743001

Position42

Antall i tegning4

Logg inn for å se pris

Hose Tilt Long - EC214

Article no: 743001

Logg inn for å se pris

Tilt cylinder EC214W

Article no: 1030380

Position11

Antall i tegning2

Logg inn for å se pris

Tilt cylinder EC214W

Article no: 1030380

See "Tilt cylinders"

Logg inn for å se pris

Screw cover M10 - clamping half EC206,209,214

Article no: 1021468

Position62

Antall i tegning8

Logg inn for å se pris

Screw cover M10 - clamping half EC206,209,214

Article no: 1021468

Part of make up

Logg inn for å se pris

Screw cover M16 - cast yoke & tilt axle

Article no: 1004801

Position63

Antall i tegning14

Logg inn for å se pris

Screw cover M16 - cast yoke & tilt axle

Article no: 1004801

Part of make up

Logg inn for å se pris

Hose tilt - EC214 - long wide

Article no: 7000167

Position43

Antall i tegning4

Logg inn for å se pris

Hose tilt - EC214 - long wide

Article no: 7000167

Logg inn for å se pris

Tilt cylinder EC214

Article no: 1024186

Position65

Antall i tegning2

Logg inn for å se pris

Tilt cylinder EC214

Article no: 1024186

Replaced by POS.10 from 2017-05

Logg inn for å se pris

Shim yoke bracket - EC209-EC226 - 10mm (cast yoke)

Article no: 1007041

Position12

Antall i tegning4

Logg inn for å se pris

Shim yoke bracket - EC209-EC226 - 10mm (cast yoke)

Article no: 1007041

For option Shimmed Tilt cylinder

Logg inn for å se pris

Screw cover M16

Article no: 611302

Position64

Antall i tegning8

Logg inn for å se pris

Screw cover M16

Article no: 611302

Part of make up

Logg inn for å se pris

Shim tilt axle - EC214/EC219 0,5mm

Article no: 1016420

Position2

Antall i tegning4

Logg inn for å se pris

Shim tilt axle - EC214/EC219 0,5mm

Article no: 1016420

Use if required

Logg inn for å se pris

Tilt axial washer EC214, EC219

Article no: 1016417

Position3

Antall i tegning1

Logg inn for å se pris

Tilt axial washer EC214, EC219

Article no: 1016417

Logg inn for å se pris

Bushing tilt EC214/EC219 WB802 85/90x35

Article no: 630321

Position1

Antall i tegning2

Logg inn for å se pris

Bushing tilt EC214/EC219 WB802 85/90x35

Article no: 630321

(Included in Top part)

Logg inn for å se pris

Plug M20x1,5 tilt cylinder EC206, EC209 (overcenter 730269)

Article no: 1022297

Position67

Antall i tegning4

Logg inn for å se pris

Plug M20x1,5 tilt cylinder EC206, EC209 (overcenter 730269)

Article no: 1022297

Only for ss0, ss3 R-X, ss5, ss10 (POS.68 included)

Logg inn for å se pris

Screw MC6S 16x100 12.9 ZFSHL ISO4762

Article no: 6000156

Position23

Antall i tegning4

Logg inn for å se pris

Screw MC6S 16x100 12.9 ZFSHL ISO4762

Article no: 6000156

Torque: 333Nm

Logg inn for å se pris

Spacer Hose Bracket 20mm

Article no: 1023777

Position24

Antall i tegning4

Logg inn for å se pris

Spacer Hose Bracket 20mm

Article no: 1023777

Logg inn for å se pris

Hose bracket 8 Hoses right V2

Article no: 1047138

Position20

Antall i tegning1

Logg inn for å se pris

Hose bracket 8 Hoses right V2

Article no: 1047138

Logg inn for å se pris

Hose bracket 8 Hoses left V2

Article no: 1047137

Position19

Antall i tegning1

Logg inn for å se pris

Hose bracket 8 Hoses left V2

Article no: 1047137

Logg inn for å se pris

O-ring 9,92x2,62 NBR 70 shore EC209/219/226 cylinder axle

Article no: 710968

Position6

Antall i tegning4

Logg inn for å se pris

O-ring 9,92x2,62 NBR 70 shore EC209/219/226 cylinder axle

Article no: 710968

QTY: 8 for option Wide

Logg inn for å se pris

Spacer clamping half rubber EC206,209,214

Article no: 1016465

Position38

Antall i tegning4

Logg inn for å se pris

Spacer clamping half rubber EC206,209,214

Article no: 1016465

Logg inn for å se pris

Slotted pin RPE5x20

Article no: 640413

Position33

Antall i tegning2

Logg inn for å se pris

Slotted pin RPE5x20

Article no: 640413

QTY: 4 for option Wide

Logg inn for å se pris

Clamping half EC206,209,214 EngconYellow complete

Article no: 1022942

Position37

Antall i tegning4

Logg inn for å se pris

Clamping half EC206,209,214 EngconYellow complete

Article no: 1022942

(POS.38 included)

Logg inn for å se pris

O-ring 18x2 NBR 70 shore EC05 motor

Article no: 710955

Position68

Antall i tegning4

Logg inn for å se pris

O-ring 18x2 NBR 70 shore EC05 motor

Article no: 710955

Logg inn for å se pris

Washer NL1/2"-DPE 13,5x19,5x2,5

Article no: 611096

Position59

Antall i tegning2

Logg inn for å se pris

Washer NL1/2"-DPE 13,5x19,5x2,5

Article no: 611096

Logg inn for å se pris

Hose protection Tiltcyl EC05B-15B, 206-214 overcenter

Article no: 1003774

Position45

Antall i tegning2

Logg inn for å se pris

Hose protection Tiltcyl EC05B-15B, 206-214 overcenter

Article no: 1003774

Logg inn for å se pris

Cylindrical pin CPK Ø20x50 m6

Article no: 650211

Position15

Antall i tegning4

Logg inn for å se pris

Cylindrical pin CPK Ø20x50 m6

Article no: 650211

Logg inn for å se pris

Plug 1/8" BSPT

Article no: 711523

Position66

Antall i tegning4

Logg inn for å se pris

Plug 1/8" BSPT

Article no: 711523

Only for ss0, ss3 R-X, ss5, ss10

Logg inn for å se pris

Spacer Hose Bracket 39mm

Article no: 1005911

Position26

Antall i tegning8

Logg inn for å se pris

Spacer Hose Bracket 39mm

Article no: 1005911

Logg inn for å se pris

Screw MC6S 16x140 12.9 ZFSHL ISO4762

Article no: 6000152

Position27

Antall i tegning8

Logg inn for å se pris

Screw MC6S 16x140 12.9 ZFSHL ISO4762

Article no: 6000152

Torque: 333Nm

Logg inn for å se pris

Screw MC6S 16x120 12.9 ZFSHL ISO4762

Article no: 6000162

Position18

Antall i tegning4

Logg inn for å se pris

Screw MC6S 16x120 12.9 ZFSHL ISO4762

Article no: 6000162

Torque: 333Nm

Logg inn for å se pris

Screw MC6S 10x50 12.9 ZFSHL ISO4762

Article no: 611515

Position40

Antall i tegning8

Logg inn for å se pris

Screw MC6S 10x50 12.9 ZFSHL ISO4762

Article no: 611515

Torque: 79Nm

Logg inn for å se pris

Screw MC6S 10x90 12.9 ZFSHL ISO4762

Article no: 6000153

Position41

Antall i tegning8

Logg inn for å se pris

Screw MC6S 10x90 12.9 ZFSHL ISO4762

Article no: 6000153

Torque: 79Nm

Logg inn for å se pris

Adapter bulkhead 1260-04-04

Article no: 710240

Position60

Antall i tegning2

Logg inn for å se pris

Adapter bulkhead 1260-04-04

Article no: 710240

Logg inn for å se pris

Nut bulkhead adapter 1270-04

Article no: 710250

Position61

Antall i tegning2

Logg inn for å se pris

Nut bulkhead adapter 1270-04

Article no: 710250

Logg inn for å se pris

Plug Din 908 1/4"

Article no: 711505

Position29

Antall i tegning6

Logg inn for å se pris

Plug Din 908 1/4"

Article no: 711505

Logg inn for å se pris

Screw MC6S 8x40 12.9 ZFSHL ISO4762

Article no: 6000145

Position5

Antall i tegning2

Logg inn for å se pris

Screw MC6S 8x40 12.9 ZFSHL ISO4762

Article no: 6000145

Logg inn for å se pris

Washer NL20-DPE 21,4x30,7x3,7

Article no: 611098

Position51

Antall i tegning2

Logg inn for å se pris

Washer NL20-DPE 21,4x30,7x3,7

Article no: 611098

Logg inn for å se pris

Adapter 138-04-29 ( compact 136-04-04 )

Article no: 710135

Position30

Antall i tegning8

Logg inn for å se pris

Adapter 138-04-29 ( compact 136-04-04 )

Article no: 710135

Logg inn for å se pris

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Position4

Antall i tegning10

Logg inn for å se pris

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Logg inn for å se pris

Screw MC6S 16x130 12.9 ZFSHL ISO4762

Article no: 6000154

Position25

Antall i tegning4

Logg inn for å se pris

Screw MC6S 16x130 12.9 ZFSHL ISO4762

Article no: 6000154

Torque: 333Nm

Logg inn for å se pris

Washer NL16-DPE 17,0x25,4x3,7

Article no: 611044

Position55

Antall i tegning2

Logg inn for å se pris

Washer NL16-DPE 17,0x25,4x3,7

Article no: 611044

Logg inn for å se pris

Adapter bulkhead 1260-08-08

Article no: 710244

Position52

Antall i tegning2

Logg inn for å se pris

Adapter bulkhead 1260-08-08

Article no: 710244

Logg inn for å se pris

Nut bulkhead adapter 1270-08

Article no: 710254

Position53

Antall i tegning2

Logg inn for å se pris

Nut bulkhead adapter 1270-08

Article no: 710254

Logg inn for å se pris

Seal washer GBR04 1/4"

Article no: 710702

Position28

Antall i tegning10

Logg inn for å se pris

Seal washer GBR04 1/4"

Article no: 710702

Logg inn for å se pris

Overcenter adjustable-EC206/209/214/219W/226W/05B-15B

Article no: 730269

Position44

Antall i tegning4

Logg inn for å se pris

Overcenter adjustable-EC206/209/214/219W/226W/05B-15B

Article no: 730269

Torque: 45Nm

Logg inn for å se pris

Adapter bulkhead 1260-06-32

Article no: 710242

Position56

Antall i tegning2

Logg inn for å se pris

Adapter bulkhead 1260-06-32

Article no: 710242

Logg inn for å se pris

Nut bulkhead adapter 1270-06

Article no: 710252

Position57

Antall i tegning2

Logg inn for å se pris

Nut bulkhead adapter 1270-06

Article no: 710252

Logg inn for å se pris

Screw M6S 8x16 8.8 FZB ISO4017

Article no: 610122

Position46

Antall i tegning8

Logg inn for å se pris

Screw M6S 8x16 8.8 FZB ISO4017

Article no: 610122

Logg inn for å se pris

Bushing BWG-F 35/45/55/5x30

Article no: 631003

Position14

Antall i tegning4

Logg inn for å se pris

Bushing BWG-F 35/45/55/5x30

Article no: 631003

Logg inn for å se pris

Cylinder axle EC206, EC206B, EC209, EC209B, EC214

Article no: 1016458

Position36

Antall i tegning2

Logg inn for å se pris

Cylinder axle EC206, EC206B, EC209, EC209B, EC214

Article no: 1016458

Logg inn for å se pris

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Position39

Antall i tegning8

Logg inn for å se pris

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Logg inn for å se pris

Screw MC6S 16x90 12.9 ZFSHL ISO4762

Article no: 6000151

Position8

Antall i tegning18

Logg inn for å se pris

Screw MC6S 16x90 12.9 ZFSHL ISO4762

Article no: 6000151

Torque: 333Nm. QTY: 24-26 for Wide

Logg inn for å se pris
