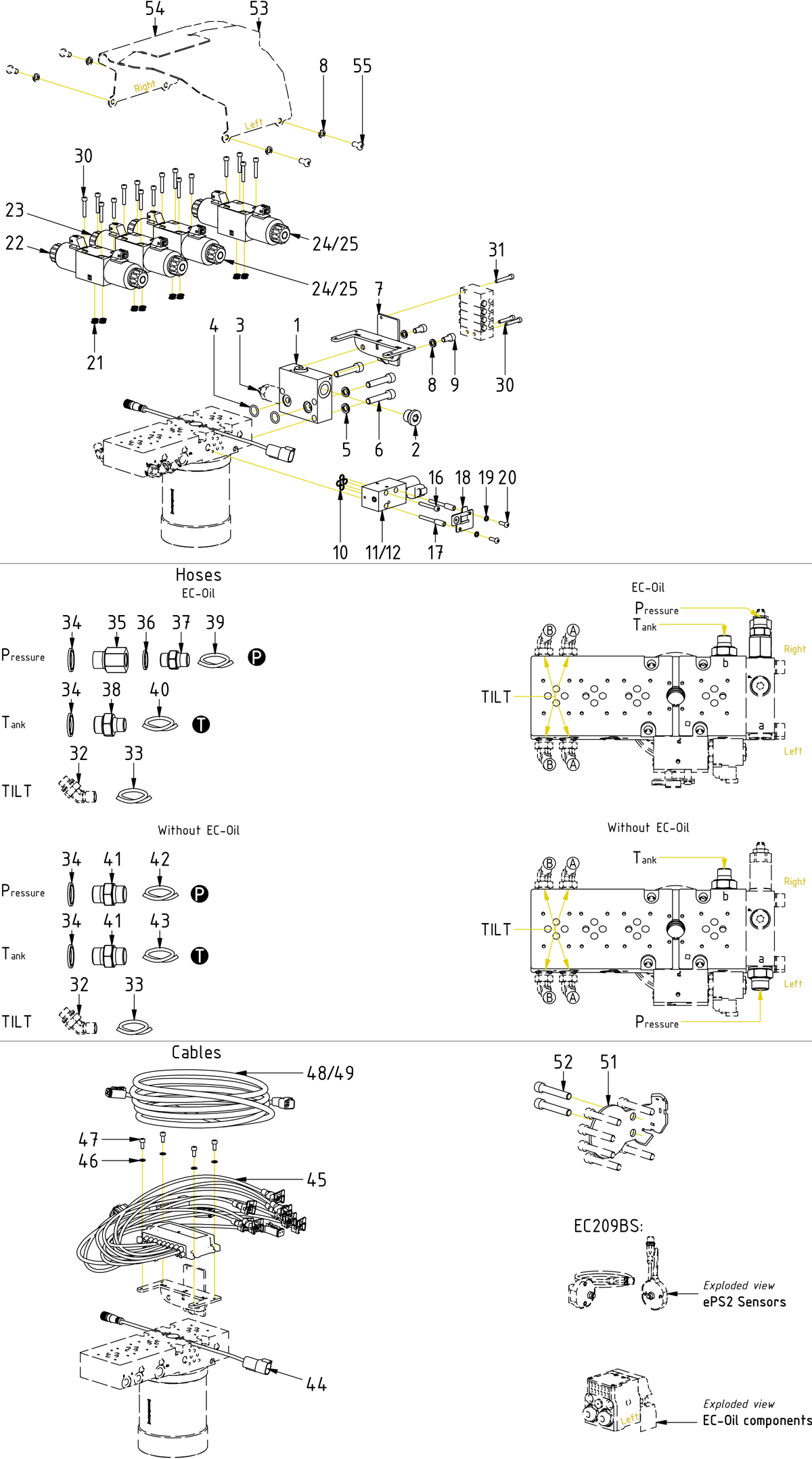

DC3

Pos

Artikkel

Ekstra info

Antall i tegning

Pris (eks. MVA)

Directional valve NG6 prop 12V engcon JT open to tank ATOS

Article no: 7001615

Position22

Antall i tegning1

Logg inn for å se pris

Directional valve NG6 prop 12V engcon JT open to tank ATOS

Article no: 7001615

(POS.21, 26, 29 incl.)

Logg inn for å se pris

Directional valve NG6 prop 12V engcon JT ATOS

Article no: 7001614

Position23

Antall i tegning1

Logg inn for å se pris

Directional valve NG6 prop 12V engcon JT ATOS

Article no: 7001614

(POS.21, 26, 29 incl.)

Logg inn for å se pris

Directional valve NG6 24V JT ATOS

Article no: 7001616

Position25

Antall i tegning2

Logg inn for å se pris

Directional valve NG6 24V JT ATOS

Article no: 7001616

(POS.21, 28, 29 incl.)

Logg inn for å se pris

Screw Valve Distance 5x39

Article no: 1047243

Position17

Antall i tegning2

Logg inn for å se pris

Screw Valve Distance 5x39

Article no: 1047243

For EC-Oil. Torque: 9,7Nm

Logg inn for å se pris

Directional valve NG6 12V. 4D01-3203-0302-B1-GOR-JT ATOS

Article no: 7001617

Position24

Antall i tegning2

Logg inn for å se pris

Directional valve NG6 12V. 4D01-3203-0302-B1-GOR-JT ATOS

Article no: 7001617

(POS.21, 27, 29 incl.)

Logg inn for å se pris

Coil 12V NG6 prop JT ATOS

Article no: 7001734

Position26

Antall i tegning4

Logg inn for å se pris

Coil 12V NG6 prop JT ATOS

Article no: 7001734

Logg inn for å se pris

Electronics Module TM3-EC209B-EC233

Article no: 8001834

Position45

Antall i tegning1

Logg inn for å se pris

Electronics Module TM3-EC209B-EC233

Article no: 8001834

Logg inn for å se pris

Hose

Article no: 7001266

Position43

Antall i tegning1

Logg inn for å se pris

Hose

Article no: 7001266

Logg inn for å se pris

Hose

Article no: 7001265

Position42

Antall i tegning1

Logg inn for å se pris

Hose

Article no: 7001265

Logg inn for å se pris

Protective cover valve block EC209/209B QSM

Article no: 1056632

Position52

Antall i tegning1

Logg inn for å se pris

Protective cover valve block EC209/209B QSM

Article no: 1056632

Part of make up

Logg inn for å se pris

Valve-Pressure reducer-SP4A-B3 EC209

Article no: 730288

Position3

Antall i tegning1

Logg inn for å se pris

Valve-Pressure reducer-SP4A-B3 EC209

Article no: 730288

Logg inn for å se pris

Coil NG4 IQS lock 12V DT

Article no: 1042065

Position13

Antall i tegning1

Logg inn for å se pris

Coil NG4 IQS lock 12V DT

Article no: 1042065

Logg inn for å se pris

Coil 12V NG6 JT on/off ATOS

Article no: 7001735

Position27

Antall i tegning4

Logg inn for å se pris

Coil 12V NG6 JT on/off ATOS

Article no: 7001735

Logg inn for å se pris

Coil 24V NG6 JT on/off ATOS

Article no: 7001736

Position28

Antall i tegning4

Logg inn for å se pris

Coil 24V NG6 JT on/off ATOS

Article no: 7001736

Logg inn for å se pris

Nut directional valve ATOS

Article no: 7001887

Position29

Antall i tegning8

Logg inn for å se pris

Nut directional valve ATOS

Article no: 7001887

Logg inn for å se pris

Hose

Article no: 7001268

Position40

Antall i tegning1

Logg inn for å se pris

Hose

Article no: 7001268

Logg inn for å se pris

Connection block P with pressure reducer QSM45/50

Article no: 1055945

Position1

Antall i tegning1

Logg inn for å se pris

Connection block P with pressure reducer QSM45/50

Article no: 1055945

(POS.2-3 incl.)

Logg inn for å se pris

Hose

Article no: 7001267

Position39

Antall i tegning1

Logg inn for å se pris

Hose

Article no: 7001267

Logg inn for å se pris

Attachment central lubrication & DC2-QSM45/50

Article no: 1055574

Position7

Antall i tegning1

Logg inn for å se pris

Attachment central lubrication & DC2-QSM45/50

Article no: 1055574

Logg inn for å se pris

Mounting plate-1x Deutsch NG4

Article no: 1058235

Position18

Antall i tegning1

Logg inn for å se pris

Mounting plate-1x Deutsch NG4

Article no: 1058235

For EC-Oil

Logg inn for å se pris

Unit cable DC3 EC206B-EC233-3,5m

Article no: 8002371

Position48

Antall i tegning1

Logg inn for å se pris

Unit cable DC3 EC206B-EC233-3,5m

Article no: 8002371

Logg inn for å se pris

End lock protection plate EC209S/EC214S/EC219S

Article no: 1063372

Position50

Antall i tegning1

Logg inn for å se pris

End lock protection plate EC209S/EC214S/EC219S

Article no: 1063372

Logg inn for å se pris

Screw K6S 5x16H 10.9 FZB ISO7380

Article no: 611818

Position20

Antall i tegning2

Logg inn for å se pris

Screw K6S 5x16H 10.9 FZB ISO7380

Article no: 611818

For EC-Oil. Torque: 8,1Nm

Logg inn for å se pris

Washer BRB FZB 5,3x10x1,0 ISO7089

Article no: 611003

Position46

Antall i tegning4

Logg inn for å se pris

Washer BRB FZB 5,3x10x1,0 ISO7089

Article no: 611003

Logg inn for å se pris

Screw MC6S 8x16H 12.9 untreated ISO4762

Article no: 610431

Position9

Antall i tegning2

Logg inn for å se pris

Screw MC6S 8x16H 12.9 untreated ISO4762

Article no: 610431

Logg inn for å se pris

O-ring 15,54 x 2,62 NBR 70 shore

Article no: 712423

Position4

Antall i tegning2

Logg inn for å se pris

O-ring 15,54 x 2,62 NBR 70 shore

Article no: 712423

Logg inn for å se pris

Adapter cable DTM 12P-DT 2S/4xJT 2S

Article no: 1029599

Position63

Antall i tegning1

Logg inn for å se pris

Adapter cable DTM 12P-DT 2S/4xJT 2S

Article no: 1029599

For EC-Oil. Instead of POS.57-58

Logg inn for å se pris

Resistor cable 120ohm M12 5S-M12 5S-3m

Article no: 8000824

Position67

Antall i tegning1

Logg inn for å se pris

Resistor cable 120ohm M12 5S-M12 5S-3m

Article no: 8000824

Logg inn for å se pris

Screw MC6S 5x35 12.9 untreated ISO4762

Article no: 610404

Position31

Antall i tegning1

Logg inn for å se pris

Screw MC6S 5x35 12.9 untreated ISO4762

Article no: 610404

Logg inn for å se pris

Protection plug for DTM06-6S

Article no: 8000090

Position49

Antall i tegning1

Logg inn for å se pris

Protection plug for DTM06-6S

Article no: 8000090

Logg inn for å se pris

Screw MC6S 5x30 12.9 untreated ISO4762

Article no: 610403

Position30

Antall i tegning18

Logg inn for å se pris

Screw MC6S 5x30 12.9 untreated ISO4762

Article no: 610403

Torque: 9,7Nm

Logg inn for å se pris

Screw MC6S 5x12 12.9 untreated ISO4762

Article no: 6000077

Position47

Antall i tegning4

Logg inn for å se pris

Screw MC6S 5x12 12.9 untreated ISO4762

Article no: 6000077

Logg inn for å se pris

Screw MC6S 5x40 12.9 untreated ISO4762

Article no: 610405

Position16

Antall i tegning1

Logg inn for å se pris

Screw MC6S 5x40 12.9 untreated ISO4762

Article no: 610405

QTY: 3 without ECO. Torque: 9,7Nm

Logg inn for å se pris

Directional valve NG6 24V

Article no: 730103

Position58

Antall i tegning2

Logg inn for å se pris

Directional valve NG6 24V

Article no: 730103

Replaced by POS.22 (ATOS)

Logg inn for å se pris

Screw MC6S 10x50 12.9 ZFSHL ISO4762

Article no: 611515

Position6

Antall i tegning3

Logg inn for å se pris

Screw MC6S 10x50 12.9 ZFSHL ISO4762

Article no: 611515

Torque: 79Nm

Logg inn for å se pris

Nut bulkhead adapter 1270-04

Article no: 710250

Position15

Antall i tegning1

Logg inn for å se pris

Nut bulkhead adapter 1270-04

Article no: 710250

Logg inn for å se pris

Adapter 235-08-06

Article no: 7000705

Position35

Antall i tegning1

Logg inn for å se pris

Adapter 235-08-06

Article no: 7000705

Logg inn for å se pris

Washer NL5-DPE 5,4x9,0x1,7

Article no: 611038

Position19

Antall i tegning2

Logg inn for å se pris

Washer NL5-DPE 5,4x9,0x1,7

Article no: 611038

For EC-Oil

Logg inn for å se pris

Plug VSTIR12ED 1/2"

Article no: 711500

Position2

Antall i tegning1

Logg inn for å se pris

Plug VSTIR12ED 1/2"

Article no: 711500

Logg inn for å se pris

Adapter 136-08-08

Article no: 710108

Position41

Antall i tegning2

Logg inn for å se pris

Adapter 136-08-08

Article no: 710108

Logg inn for å se pris

Adapter 135-06-08

Article no: 710122

Position38

Antall i tegning1

Logg inn for å se pris

Adapter 135-06-08

Article no: 710122

Logg inn for å se pris

Adapter 136-06-06

Article no: 710106

Position37

Antall i tegning1

Logg inn for å se pris

Adapter 136-06-06

Article no: 710106

Logg inn for å se pris

Directional valve NG4 IQS lock 24V DT ss10 Coil A

Article no: 1042190

Position12

Antall i tegning1

Logg inn for å se pris

Directional valve NG4 IQS lock 24V DT ss10 Coil A

Article no: 1042190

(POS.10, 14, 15 incl.)

Logg inn for å se pris

Adapter cable M12 8P-DTM 6S

Article no: 842148

Position61

Antall i tegning1

Logg inn for å se pris

Adapter cable M12 8P-DTM 6S

Article no: 842148

Logg inn for å se pris

Hose Tilt Long

Article no: 7001308

Position33

Antall i tegning4

Logg inn for å se pris

Hose Tilt Long

Article no: 7001308

Logg inn for å se pris

Resistor cable 120ohm M12 5S-DTM 6P-0,4m

Article no: 8000825

Position68

Antall i tegning1

Logg inn for å se pris

Resistor cable 120ohm M12 5S-DTM 6P-0,4m

Article no: 8000825

For ECO w. ePS. Instead of POS.68

Logg inn for å se pris

Coil NG4 IQS lock 24V DT

Article no: 1042066

Position14

Antall i tegning1

Logg inn for å se pris

Coil NG4 IQS lock 24V DT

Article no: 1042066

Logg inn for å se pris

Screw MC6S 12x70 12.9 ZFSHL ISO4762

Article no: 611517

Position51

Antall i tegning8

Logg inn for å se pris

Screw MC6S 12x70 12.9 ZFSHL ISO4762

Article no: 611517

Torque: 136Nm

Logg inn for å se pris

Unit cable DC2 JT EC206-EC233-3,9m

Article no: 8000175

Position60

Antall i tegning1

Logg inn for å se pris

Unit cable DC2 JT EC206-EC233-3,9m

Article no: 8000175

Replaced by POS.46 from 2020-12

Logg inn for å se pris

Seal washer GBR08 1/2"

Article no: 710704

Position34

Antall i tegning2

Logg inn for å se pris

Seal washer GBR08 1/2"

Article no: 710704

Logg inn for å se pris

Protective cover valve block EC209/209B QSM - Lip

Article no: 1056633

Position53

Antall i tegning1

Logg inn for å se pris

Protective cover valve block EC209/209B QSM - Lip

Article no: 1056633

Part of make up

Logg inn for å se pris

Adapter 402-04-04 45°

Article no: 7000104

Position32

Antall i tegning4

Logg inn for å se pris

Adapter 402-04-04 45°

Article no: 7000104

Part of quick hitch assy.

Logg inn for å se pris

Directional valve NG6 prop 12V engcon JT

Article no: 730190

Position56

Antall i tegning1

Logg inn for å se pris

Directional valve NG6 prop 12V engcon JT

Article no: 730190

Replaced by POS.20 (ATOS)

Logg inn for å se pris

Unit cable ss10 JT EC206(B)-EC209(B)-3,4m

Article no: 303465

Position62

Antall i tegning1

Logg inn for å se pris

Unit cable ss10 JT EC206(B)-EC209(B)-3,4m

Article no: 303465

Logg inn for å se pris

Directional valve NG4 IQS lock 12V DT ss10 Coil A

Article no: 1042047

Position11

Antall i tegning1

Logg inn for å se pris

Directional valve NG4 IQS lock 12V DT ss10 Coil A

Article no: 1042047

(POS.10, 13, 15 incl.)

Logg inn for å se pris

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Position8

Antall i tegning6

Logg inn for å se pris

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

QTY: 4 part of make up

Logg inn for å se pris

Extension cable 5-pole M12-FULL 0,75m Robo hose

Article no: 8000784

Position65

Antall i tegning1

Logg inn for å se pris

Extension cable 5-pole M12-FULL 0,75m Robo hose

Article no: 8000784

Logg inn for å se pris

Adapter cable M12 5S-DTM 6P/Pin-3rd PTY

Article no: 1048530

Position66

Antall i tegning1

Logg inn for å se pris

Adapter cable M12 5S-DTM 6P/Pin-3rd PTY

Article no: 1048530

For EC-Oil with ePS

Logg inn for å se pris

Breakout cable CAN DT-DC2 EC 0,32/0,25m

Article no: 8000783

Position64

Antall i tegning1

Logg inn for å se pris

Breakout cable CAN DT-DC2 EC 0,32/0,25m

Article no: 8000783

Logg inn for å se pris

Screw K6S 8x16H 10.9 FZB ISO7380

Article no: 611810

Position54

Antall i tegning4

Logg inn for å se pris

Screw K6S 8x16H 10.9 FZB ISO7380

Article no: 611810

Part of make up

Logg inn for å se pris

O-ring 8,73x1,78 NBR 90 shore

Article no: 710959

Position21

Antall i tegning16

Logg inn for å se pris

O-ring 8,73x1,78 NBR 90 shore

Article no: 710959

Logg inn for å se pris

Directional valve NG6 prop 12V engcon JT open to tank

Article no: 7000092

Position55

Antall i tegning1

Logg inn for å se pris

Directional valve NG6 prop 12V engcon JT open to tank

Article no: 7000092

Replaced by POS.19 (ATOS)

Logg inn for å se pris

O-ring 9,25x1,78 FKM 90 shore Viton Green NG6

Article no: 710901

Position59

Antall i tegning16

Logg inn for å se pris

O-ring 9,25x1,78 FKM 90 shore Viton Green NG6

Article no: 710901

Used until 2022-06

Logg inn for å se pris

O-ring 7,65x1,78 FKM 90 shore Viton NG4

Article no: 710960

Position10

Antall i tegning4

Logg inn for å se pris

O-ring 7,65x1,78 FKM 90 shore Viton NG4

Article no: 710960

Logg inn for å se pris

Directional valve NG6 12V. 4D01-3203-0302-B1-GOR-JT

Article no: 730101

Position57

Antall i tegning2

Logg inn for å se pris

Directional valve NG6 12V. 4D01-3203-0302-B1-GOR-JT

Article no: 730101

Replaced by POS.21 (ATOS)

Logg inn for å se pris

Seal washer GBR06 3/8"

Article no: 710703

Position36

Antall i tegning1

Logg inn for å se pris

Seal washer GBR06 3/8"

Article no: 710703

Logg inn for å se pris

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Position5

Antall i tegning3

Logg inn for å se pris

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Logg inn for å se pris
