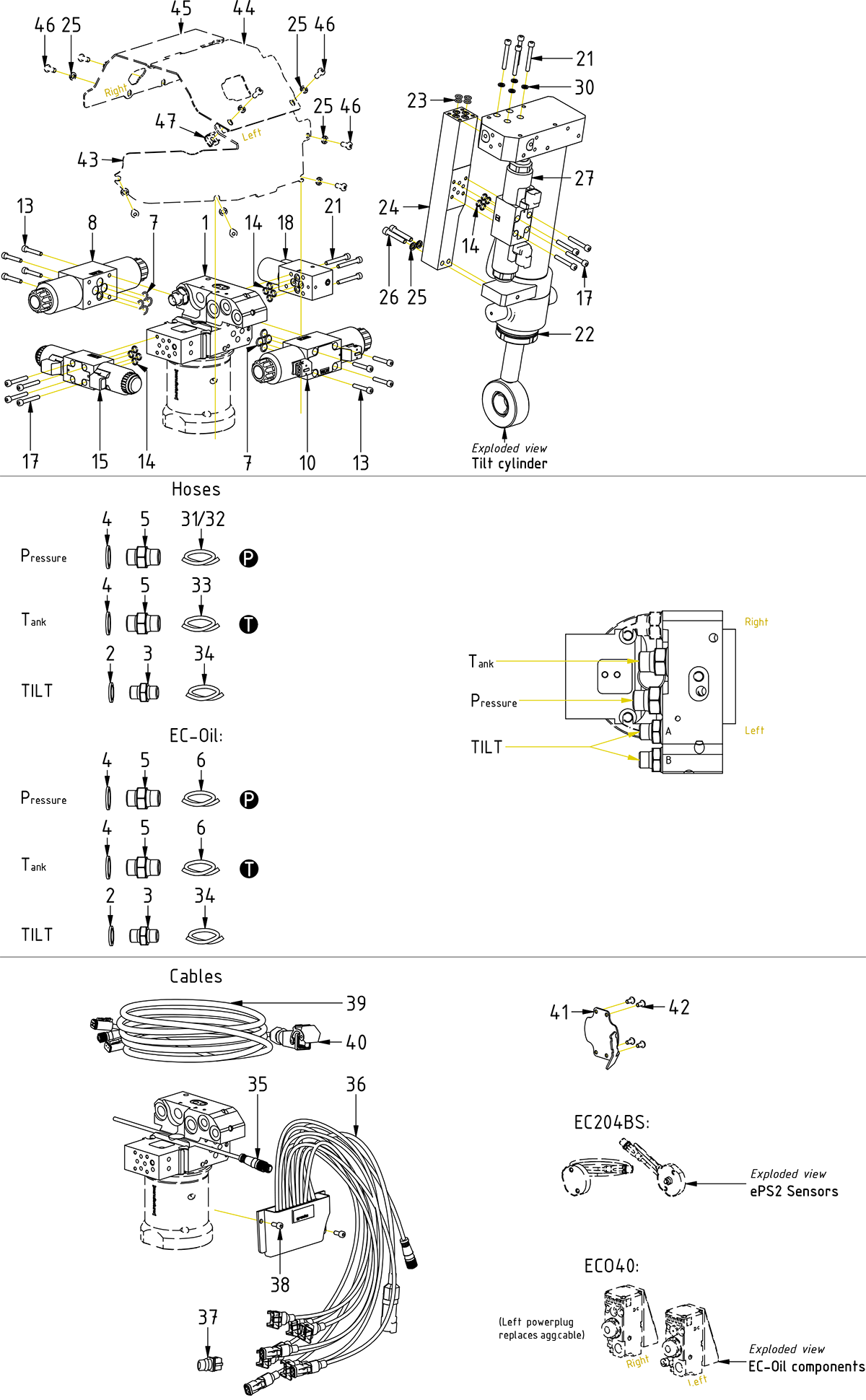

DC2

Pos

Artikkel

Ekstra info

Antall i tegning

Pris (eks. MVA)

Electronics Module TM2-EC204B DC2 QS-M12

Article no: 8002468

Position36

Antall i tegning1

Logg inn for å se pris

Electronics Module TM2-EC204B DC2 QS-M12

Article no: 8002468

Logg inn for å se pris

Hose

Article no: 7001990

Position34

Antall i tegning2

Logg inn for å se pris

Hose

Article no: 7001990

Logg inn for å se pris

Hose

Article no: 7001992

Position33

Antall i tegning1

Logg inn for å se pris

Hose

Article no: 7001992

Logg inn for å se pris

Protective cover valve block EC204B left

Article no: 1076007

Position44

Antall i tegning1

Logg inn for å se pris

Protective cover valve block EC204B left

Article no: 1076007

Part of make up

Logg inn for å se pris

Hose

Article no: 7002065

Position32

Antall i tegning1

Logg inn for å se pris

Hose

Article no: 7002065

Logg inn for å se pris

Valve block EC204B

Article no: 1078622

Position1

Antall i tegning1

Logg inn for å se pris

Valve block EC204B

Article no: 1078622

Part of quick hitch

Logg inn for å se pris

Hose

Article no: 7001991

Position31

Antall i tegning1

Logg inn for å se pris

Hose

Article no: 7001991

Logg inn for å se pris

Nut UNF 1/2" low

Article no: 6000169

Position20

Antall i tegning1

Logg inn for å se pris

Nut UNF 1/2" low

Article no: 6000169

Logg inn for å se pris

Coil NG4 IQS lock 12V DT

Article no: 1042065

Position19

Antall i tegning1

Logg inn for å se pris

Coil NG4 IQS lock 12V DT

Article no: 1042065

Logg inn for å se pris

Coil 12V NG6 JT on/off

Article no: 730117

Position11

Antall i tegning2

Logg inn for å se pris

Coil 12V NG6 JT on/off

Article no: 730117

Logg inn for å se pris

Tilt cylinder EC204B

Article no: 1077744

Position22

Antall i tegning1

Logg inn for å se pris

Tilt cylinder EC204B

Article no: 1077744

Part of top part

Logg inn for å se pris

Coil NG4 12V

Article no: 7000205

Position28

Antall i tegning2

Logg inn for å se pris

Coil NG4 12V

Article no: 7000205

Logg inn for å se pris

Coil 12V NG4 On/Off DT

Article no: 7000897

Position16

Antall i tegning2

Logg inn for å se pris

Coil 12V NG4 On/Off DT

Article no: 7000897

Logg inn for å se pris

Directional valve NG4 Prop tilt 12V DT

Article no: 7000100

Position27

Antall i tegning1

Logg inn for å se pris

Directional valve NG4 Prop tilt 12V DT

Article no: 7000100

(POS.14, 28, 29 incl.)

Logg inn for å se pris

Cage nut M6

Article no: 6000411

Position47

Antall i tegning2

Logg inn for å se pris

Cage nut M6

Article no: 6000411

Part of make up

Logg inn for å se pris

Directional valve NG4 12V DT

Article no: 7000099

Position15

Antall i tegning1

Logg inn for å se pris

Directional valve NG4 12V DT

Article no: 7000099

(POS.14, 16, 29 incl.)

Logg inn for å se pris

Protective cover valve block EC204B right

Article no: 1076360

Position45

Antall i tegning1

Logg inn for å se pris

Protective cover valve block EC204B right

Article no: 1076360

Part of make up

Logg inn for å se pris

Cover plate EC204B TM-module

Article no: 1076425

Position43

Antall i tegning1

Logg inn for å se pris

Cover plate EC204B TM-module

Article no: 1076425

Part of make up

Logg inn for å se pris

Valve block EC204B tilt cylinder

Article no: 1075504

Position24

Antall i tegning1

Logg inn for å se pris

Valve block EC204B tilt cylinder

Article no: 1075504

Logg inn for å se pris

O-ring 6,75x1,78 NBR 70

Article no: 7001940

Position23

Antall i tegning4

Logg inn for å se pris

O-ring 6,75x1,78 NBR 70

Article no: 7001940

Logg inn for å se pris

Unit cable DC2 DT ePS EC204B-3,75m

Article no: 8002470

Position39

Antall i tegning1

Logg inn for å se pris

Unit cable DC2 DT ePS EC204B-3,75m

Article no: 8002470

Logg inn for å se pris

Screw K6S 6x14 10.9 FZB ISO7380

Article no: 6000242

Position46

Antall i tegning8

Logg inn for å se pris

Screw K6S 6x14 10.9 FZB ISO7380

Article no: 6000242

Part of make up

Logg inn for å se pris

End lock protection plate EC204BS

Article no: 1076341

Position41

Antall i tegning1

Logg inn for å se pris

End lock protection plate EC204BS

Article no: 1076341

Logg inn for å se pris

Screw K6S 5x10 10.9 FZB ISO7380

Article no: 6000408

Position42

Antall i tegning4

Logg inn for å se pris

Screw K6S 5x10 10.9 FZB ISO7380

Article no: 6000408

Logg inn for å se pris

Screw MC6S 5x35 12.9 untreated ISO4762

Article no: 610404

Position17

Antall i tegning8

Logg inn for å se pris

Screw MC6S 5x35 12.9 untreated ISO4762

Article no: 610404

Torque: 9,7Nm

Logg inn for å se pris

Jumper JT 2P POS:1-2

Article no: 1018662

Position37

Antall i tegning1

Logg inn for å se pris

Jumper JT 2P POS:1-2

Article no: 1018662

Plug JT connector "1"

Logg inn for å se pris

Screw MC6S 5x30 12.9 untreated ISO4762

Article no: 610403

Position13

Antall i tegning8

Logg inn for å se pris

Screw MC6S 5x30 12.9 untreated ISO4762

Article no: 610403

Torque: 9,7Nm

Logg inn for å se pris

Screw MC6S 5x40 12.9 untreated ISO4762

Article no: 610405

Position21

Antall i tegning7

Logg inn for å se pris

Screw MC6S 5x40 12.9 untreated ISO4762

Article no: 610405

Torque: 9,7Nm

Logg inn for å se pris

Screw MC6S 5x12 12.9 untreated ISO4762

Article no: 6000077

Position38

Antall i tegning2

Logg inn for å se pris

Screw MC6S 5x12 12.9 untreated ISO4762

Article no: 6000077

Logg inn for å se pris

Nut directional valve NG4

Article no: 1006785

Position29

Antall i tegning6

Logg inn for å se pris

Nut directional valve NG4

Article no: 1006785

Logg inn for å se pris

Nut directional valve Argo Hytos

Article no: 730135

Position12

Antall i tegning1

Logg inn for å se pris

Nut directional valve Argo Hytos

Article no: 730135

Logg inn for å se pris

Washer NL5-DPE 5,4x9,0x1,7

Article no: 611038

Position30

Antall i tegning4

Logg inn for å se pris

Washer NL5-DPE 5,4x9,0x1,7

Article no: 611038

Logg inn for å se pris

Washer NL6-DPE 6,5x10,8x1,7

Article no: 611039

Position25

Antall i tegning10

Logg inn for å se pris

Washer NL6-DPE 6,5x10,8x1,7

Article no: 611039

QTY: 8 part of make up

Logg inn for å se pris

Adapter 136-06-06

Article no: 710106

Position5

Antall i tegning2

Logg inn for å se pris

Adapter 136-06-06

Article no: 710106

Logg inn for å se pris

Screw MC6S 6x35 12.9 untreated ISO4762

Article no: 610591

Position26

Antall i tegning2

Logg inn for å se pris

Screw MC6S 6x35 12.9 untreated ISO4762

Article no: 610591

Logg inn for å se pris

Adapter 138-04-29 ( compact 136-04-04 )

Article no: 710135

Position3

Antall i tegning2

Logg inn for å se pris

Adapter 138-04-29 ( compact 136-04-04 )

Article no: 710135

Logg inn for å se pris

ILME cover21.21 with lever CKAX 03 CXA

Article no: 810208

Position40

Antall i tegning1

Logg inn for å se pris

ILME cover21.21 with lever CKAX 03 CXA

Article no: 810208

(Incl. with agg.cable)

Logg inn for å se pris

Coil 12V NG6 prop JT

Article no: 730192

Position9

Antall i tegning2

Logg inn for å se pris

Coil 12V NG6 prop JT

Article no: 730192

Logg inn for å se pris

Directional valve NG4 IQS lock 12V DT ss10 Coil A

Article no: 1042047

Position18

Antall i tegning1

Logg inn for å se pris

Directional valve NG4 IQS lock 12V DT ss10 Coil A

Article no: 1042047

(POS.14, 19, 20 incl.)

Logg inn for å se pris

Directional valve NG6 12V. 4D01-3203-0302-B1-GOR-JT

Article no: 730101

Position10

Antall i tegning1

Logg inn for å se pris

Directional valve NG6 12V. 4D01-3203-0302-B1-GOR-JT

Article no: 730101

(POS.7, 11, 12 incl.)

Logg inn for å se pris

Directional valve NG6 prop 12V engcon JT

Article no: 730190

Position8

Antall i tegning1

Logg inn for å se pris

Directional valve NG6 prop 12V engcon JT

Article no: 730190

(POS.7, 9, 12 incl.)

Logg inn for å se pris

O-ring 9,25x1,78 FKM 90 shore Viton Green NG6

Article no: 710901

Position7

Antall i tegning8

Logg inn for å se pris

O-ring 9,25x1,78 FKM 90 shore Viton Green NG6

Article no: 710901

Logg inn for å se pris

O-ring 7,65x1,78 FKM 90 shore Viton NG4

Article no: 710960

Position14

Antall i tegning12

Logg inn for å se pris

O-ring 7,65x1,78 FKM 90 shore Viton NG4

Article no: 710960

Logg inn for å se pris

Seal washer GBR06 3/8"

Article no: 710703

Position4

Antall i tegning2

Logg inn for å se pris

Seal washer GBR06 3/8"

Article no: 710703

Logg inn for å se pris

Seal washer GBR04 1/4"

Article no: 710702

Position2

Antall i tegning2

Logg inn for å se pris

Seal washer GBR04 1/4"

Article no: 710702

Logg inn for å se pris
