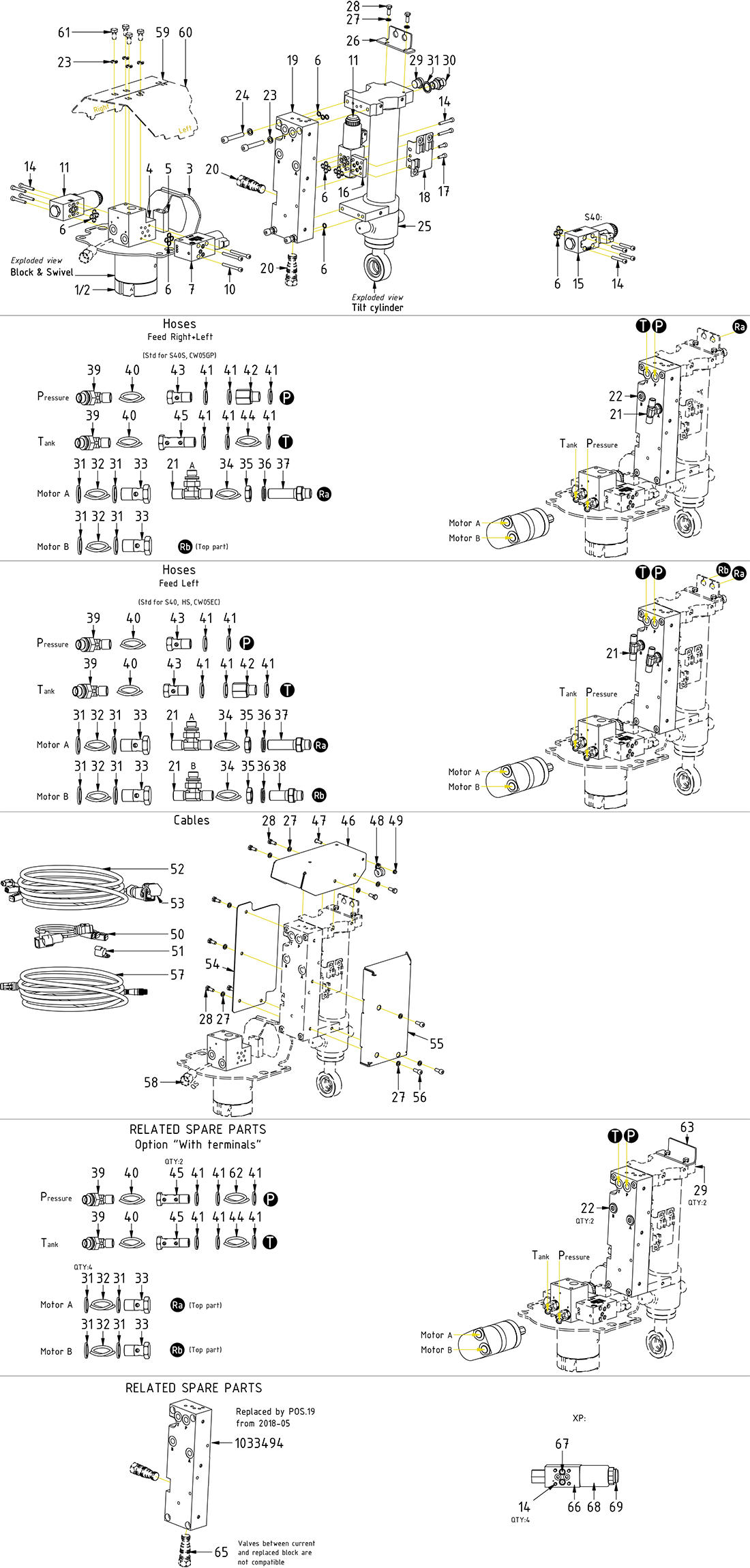

ss9IQ

Pos

Artikkel

Ekstra info

Antall i tegning

Pris (eks. MVA)

Adapter 403-04-04

Article no: 7000106

Position21

Antall i tegning1

Logg inn for å se pris

Adapter 403-04-04

Article no: 7000106

QTY: 2 for Feed Left

Logg inn for å se pris

Hose

Article no: 7000109

Position34

Antall i tegning1

Logg inn for å se pris

Hose

Article no: 7000109

QTY: 2 for Feed Left

Logg inn for å se pris

Unit cable ss9-2 DTM EC02B-EC204-2,5m

Article no: 1036466

Position52

Antall i tegning1

Logg inn for å se pris

Unit cable ss9-2 DTM EC02B-EC204-2,5m

Article no: 1036466

Logg inn for å se pris

Protective cover valve block EC204 QS40 left

Article no: 1062218

Position60

Antall i tegning1

Logg inn for å se pris

Protective cover valve block EC204 QS40 left

Article no: 1062218

Part of make up

Logg inn for å se pris

Deutsch Dust protection to DT06-2S

Article no: 8000086

Position51

Antall i tegning1

Logg inn for å se pris

Deutsch Dust protection to DT06-2S

Article no: 8000086

Plug DT "4"

Logg inn for å se pris

Coil NG4 12V JT

Article no: 730313

Position68

Antall i tegning2

Logg inn for å se pris

Coil NG4 12V JT

Article no: 730313

Logg inn for å se pris

Directional valve NG4 crossparallel external T without Coil

Article no: 730321

Position66

Antall i tegning1

Logg inn for å se pris

Directional valve NG4 crossparallel external T without Coil

Article no: 730321

Nut (POS.69) and o-ring with choke- valve incl.

Logg inn for å se pris

Plug Dysa D0 for NG4 / VRP2-04

Article no: 790191

Position67

Antall i tegning1

Logg inn for å se pris

Plug Dysa D0 for NG4 / VRP2-04

Article no: 790191

O-ring incl.

Logg inn for å se pris

Coil NG4 IQS lock 12V DT

Article no: 1042065

Position8

Antall i tegning1

Logg inn for å se pris

Coil NG4 IQS lock 12V DT

Article no: 1042065

Logg inn for å se pris

Screw MC6S 5x50 12.9 untreated ISO4762

Article no: 610407

Position10

Antall i tegning3

Logg inn for å se pris

Screw MC6S 5x50 12.9 untreated ISO4762

Article no: 610407

Torque: 9,7Nm

Logg inn for å se pris

Directional valve NG4 IQS lock 12V DT ss9 Coil A

Article no: 1042045

Position7

Antall i tegning1

Logg inn for å se pris

Directional valve NG4 IQS lock 12V DT ss9 Coil A

Article no: 1042045

For CW, ss SIQ, EC204 with sensors (POS.6, 8-9 incl.)

Logg inn for å se pris

Protective cover valve block EC204 QS40 right

Article no: 1062212

Position59

Antall i tegning1

Logg inn for å se pris

Protective cover valve block EC204 QS40 right

Article no: 1062212

Part of make up

Logg inn for å se pris

Hose feed (Block) - EC204

Article no: 7000108

Position40

Antall i tegning2

Logg inn for å se pris

Hose feed (Block) - EC204

Article no: 7000108

Logg inn for å se pris

Directional valve NG4 lock 12V DT

Article no: 7000102

Position15

Antall i tegning3

Logg inn for å se pris

Directional valve NG4 lock 12V DT

Article no: 7000102

For S40. (POS.6, 12-13 incl.)

Logg inn for å se pris

Coil 12V NG4 On/Off DT

Article no: 7000897

Position12

Antall i tegning3

Logg inn for å se pris

Coil 12V NG4 On/Off DT

Article no: 7000897

Logg inn for å se pris

Adapter cable DTM 2P/4P/6P-3xDT 2S/DTM 6S-Joint

Article no: 8001373

Position50

Antall i tegning1

Logg inn for å se pris

Adapter cable DTM 2P/4P/6P-3xDT 2S/DTM 6S-Joint

Article no: 8001373

Logg inn for å se pris

Valve plate -EC204 V2

Article no: 1031620

Position3

Antall i tegning1

Logg inn for å se pris

Valve plate -EC204 V2

Article no: 1031620

Logg inn for å se pris

Swivel EC204 with connection block complete

Article no: 1028504

Position2

Antall i tegning1

Logg inn for å se pris

Swivel EC204 with connection block complete

Article no: 1028504

Logg inn for å se pris

Directional valve closed NG4 12V DT

Article no: 7000148

Position11

Antall i tegning2

Logg inn for å se pris

Directional valve closed NG4 12V DT

Article no: 7000148

(POS.6, 12-13 incl.)

Logg inn for å se pris

Attachment greasedistributor BEKA EC204

Article no: 1031608

Position5

Antall i tegning1

Logg inn for å se pris

Attachment greasedistributor BEKA EC204

Article no: 1031608

Logg inn for å se pris

Valve block EC204

Article no: 1027945

Position4

Antall i tegning1

Logg inn for å se pris

Valve block EC204

Article no: 1027945

Logg inn for å se pris

Mounting plate-3x Deutsch NG4

Article no: 1069580

Position18

Antall i tegning1

Logg inn for å se pris

Mounting plate-3x Deutsch NG4

Article no: 1069580

Logg inn for å se pris

Hose

Article no: 7001172

Position62

Antall i tegning1

Logg inn for å se pris

Hose

Article no: 7001172

Logg inn for å se pris

Rubber Steel Clamp Ø10

Article no: 6000003

Position48

Antall i tegning1

Logg inn for å se pris

Rubber Steel Clamp Ø10

Article no: 6000003

Logg inn for å se pris

Screw MC6S 6x16 12.9 ZFSHL ISO4762

Article no: 6000017

Position56

Antall i tegning3

Logg inn for å se pris

Screw MC6S 6x16 12.9 ZFSHL ISO4762

Article no: 6000017

Logg inn for å se pris

Tilt cylinder EC204

Article no: 1029849

Position25

Antall i tegning1

Logg inn for å se pris

Tilt cylinder EC204

Article no: 1029849

Part of top part

Logg inn for å se pris

Hose bracket EC02B,EC204,EC204B-tilt cylinder-ss9/ss0

Article no: 1033484

Position26

Antall i tegning1

Logg inn for å se pris

Hose bracket EC02B,EC204,EC204B-tilt cylinder-ss9/ss0

Article no: 1033484

Logg inn for å se pris

Cover plate EC02B/EC204-tilt cylinder-DC2/ss10/ss5

Article no: 1029826

Position63

Antall i tegning1

Logg inn for å se pris

Cover plate EC02B/EC204-tilt cylinder-DC2/ss10/ss5

Article no: 1029826

Logg inn for å se pris

Protective cover tilt cylinder EC02B/EC204

Article no: 1029902

Position46

Antall i tegning1

Logg inn for å se pris

Protective cover tilt cylinder EC02B/EC204

Article no: 1029902

Logg inn for å se pris

Valve block EC02B/EC204 tilt cylinder

Article no: 7000635

Position19

Antall i tegning1

Logg inn for å se pris

Valve block EC02B/EC204 tilt cylinder

Article no: 7000635

(POS.20 incl.)

Logg inn for å se pris

Cover plate Tilt cylinder-right-EC02B/EC204

Article no: 1029781

Position54

Antall i tegning1

Logg inn for å se pris

Cover plate Tilt cylinder-right-EC02B/EC204

Article no: 1029781

Logg inn for å se pris

Cover plate Tilt cylinder-left-EC02B/EC204

Article no: 1068975

Position55

Antall i tegning1

Logg inn for å se pris

Cover plate Tilt cylinder-left-EC02B/EC204

Article no: 1068975

Logg inn for å se pris

Hose feed T

Article no: 7000584

Position44

Antall i tegning1

Logg inn for å se pris

Hose feed T

Article no: 7000584

Logg inn for å se pris

Screw K6S 5x16H 10.9 FZB ISO7380

Article no: 611818

Position47

Antall i tegning1

Logg inn for å se pris

Screw K6S 5x16H 10.9 FZB ISO7380

Article no: 611818

Logg inn for å se pris

Cover plate UNI NG4

Article no: 730152

Position16

Antall i tegning1

Logg inn for å se pris

Cover plate UNI NG4

Article no: 730152

Logg inn for å se pris

Screw MC6S 5x16 12.9 untreated ISO4762

Article no: 610401

Position17

Antall i tegning4

Logg inn for å se pris

Screw MC6S 5x16 12.9 untreated ISO4762

Article no: 610401

Logg inn for å se pris

Hose Hydraulic motor

Article no: 7000107

Position32

Antall i tegning2

Logg inn for å se pris

Hose Hydraulic motor

Article no: 7000107

Logg inn for å se pris

Nut M6M M5 lock 6. FZB DIN985

Article no: 610920

Position49

Antall i tegning1

Logg inn for å se pris

Nut M6M M5 lock 6. FZB DIN985

Article no: 610920

Logg inn for å se pris

Overcenter RJV cylinder block EC02 / EC204

Article no: 790142

Position65

Antall i tegning2

Logg inn for å se pris

Overcenter RJV cylinder block EC02 / EC204

Article no: 790142

Used until 2018-05

Logg inn for å se pris

Washer NL1/2"-DPE 13,5x19,5x2,5

Article no: 611096

Position36

Antall i tegning1

Logg inn for å se pris

Washer NL1/2"-DPE 13,5x19,5x2,5

Article no: 611096

QTY: 2 for Feed Left

Logg inn for å se pris

Screw MC6S 8x50H 12.9 ISO4762

Article no: 610439

Position24

Antall i tegning4

Logg inn for å se pris

Screw MC6S 8x50H 12.9 ISO4762

Article no: 610439

Logg inn for å se pris

O-ring 7,65x1,78 FKM 90 shore Viton NG4

Article no: 710960

Position6

Antall i tegning20

Logg inn for å se pris

O-ring 7,65x1,78 FKM 90 shore Viton NG4

Article no: 710960

Logg inn for å se pris

Screw MC6S 5x35 12.9 untreated ISO4762

Article no: 610404

Position14

Antall i tegning8

Logg inn for å se pris

Screw MC6S 5x35 12.9 untreated ISO4762

Article no: 610404

Torque: 9,7Nm. QTY: 12 for S40

Logg inn for å se pris

Nut directional valve NG4

Article no: 1006785

Position13

Antall i tegning3

Logg inn for å se pris

Nut directional valve NG4

Article no: 1006785

Logg inn for å se pris

ILME cover21.21 with lever CKAX 03 CXA

Article no: 810208

Position53

Antall i tegning1

Logg inn for å se pris

ILME cover21.21 with lever CKAX 03 CXA

Article no: 810208

(Incl. with agg.cable)

Logg inn for å se pris

Adapter bulkhead extended 1260-04-40

Article no: 710261

Position37

Antall i tegning1

Logg inn for å se pris

Adapter bulkhead extended 1260-04-40

Article no: 710261

Logg inn for å se pris

Adapter bulkhead 1260-04-04

Article no: 710240

Position38

Antall i tegning1

Logg inn for å se pris

Adapter bulkhead 1260-04-04

Article no: 710240

Logg inn for å se pris

Nut bulkhead adapter 1270-04

Article no: 710250

Position9

Antall i tegning1

Logg inn for å se pris

Nut bulkhead adapter 1270-04

Article no: 710250

Logg inn for å se pris

Adapter 236-04-04

Article no: 1013885

Position42

Antall i tegning1

Logg inn for å se pris

Adapter 236-04-04

Article no: 1013885

Logg inn for å se pris

Banjo bolt 4450-04-00 extended

Article no: 712214

Position45

Antall i tegning1

Logg inn for å se pris

Banjo bolt 4450-04-00 extended

Article no: 712214

Logg inn for å se pris

Banjo bolt 4451-04

Article no: 710271

Position43

Antall i tegning1

Logg inn for å se pris

Banjo bolt 4451-04

Article no: 710271

QTY: 2 for Feed Left

Logg inn for å se pris

Plug Din 908 1/4"

Article no: 711505

Position22

Antall i tegning1

Logg inn for å se pris

Plug Din 908 1/4"

Article no: 711505

Logg inn for å se pris

Washer NL6-DPE 6,5x10,8x1,7

Article no: 611039

Position27

Antall i tegning13

Logg inn for å se pris

Washer NL6-DPE 6,5x10,8x1,7

Article no: 611039

Logg inn for å se pris

Banjo bolt 4451-06

Article no: 710272

Position33

Antall i tegning2

Logg inn for å se pris

Banjo bolt 4451-06

Article no: 710272

Logg inn for å se pris

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Position23

Antall i tegning8

Logg inn for å se pris

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

QTY: 4 part of make up

Logg inn for å se pris

Seal washer GBR04 1/4"

Article no: 710702

Position41

Antall i tegning6

Logg inn for å se pris

Seal washer GBR04 1/4"

Article no: 710702

QTY: 5 for Feed Left

Logg inn for å se pris

Seal washer GBR06 3/8"

Article no: 710703

Position31

Antall i tegning5

Logg inn for å se pris

Seal washer GBR06 3/8"

Article no: 710703

QTY: 6 for Feed Left

Logg inn for å se pris

Plug VSTIR38ED 3/8"

Article no: 711504

Position29

Antall i tegning1

Logg inn for å se pris

Plug VSTIR38ED 3/8"

Article no: 711504

Logg inn for å se pris

Screw M6S 8x16 8.8 FZB ISO4017

Article no: 610122

Position61

Antall i tegning4

Logg inn for å se pris

Screw M6S 8x16 8.8 FZB ISO4017

Article no: 610122

Part of make up

Logg inn for å se pris

Adapter 136-06-06

Article no: 710106

Position30

Antall i tegning1

Logg inn for å se pris

Adapter 136-06-06

Article no: 710106

QTY: 2 for Feed Left

Logg inn for å se pris

Screw M6S 6x16 10.9 FZB

Article no: 610109

Position28

Antall i tegning10

Logg inn for å se pris

Screw M6S 6x16 10.9 FZB

Article no: 610109

Logg inn for å se pris

Adapter cable M12 8P-DTM 6S

Article no: 842148

Position57

Antall i tegning1

Logg inn for å se pris

Adapter cable M12 8P-DTM 6S

Article no: 842148

For QS

Logg inn for å se pris

Adapter 402-04-04 45°

Article no: 7000104

Position39

Antall i tegning2

Logg inn for å se pris

Adapter 402-04-04 45°

Article no: 7000104

Logg inn for å se pris

Overcenter adjustable (overcenter) EC02/EC204/EC204B

Article no: 7000647

Position20

Antall i tegning2

Logg inn for å se pris

Overcenter adjustable (overcenter) EC02/EC204/EC204B

Article no: 7000647

(Only compatible with current block)

Logg inn for å se pris
