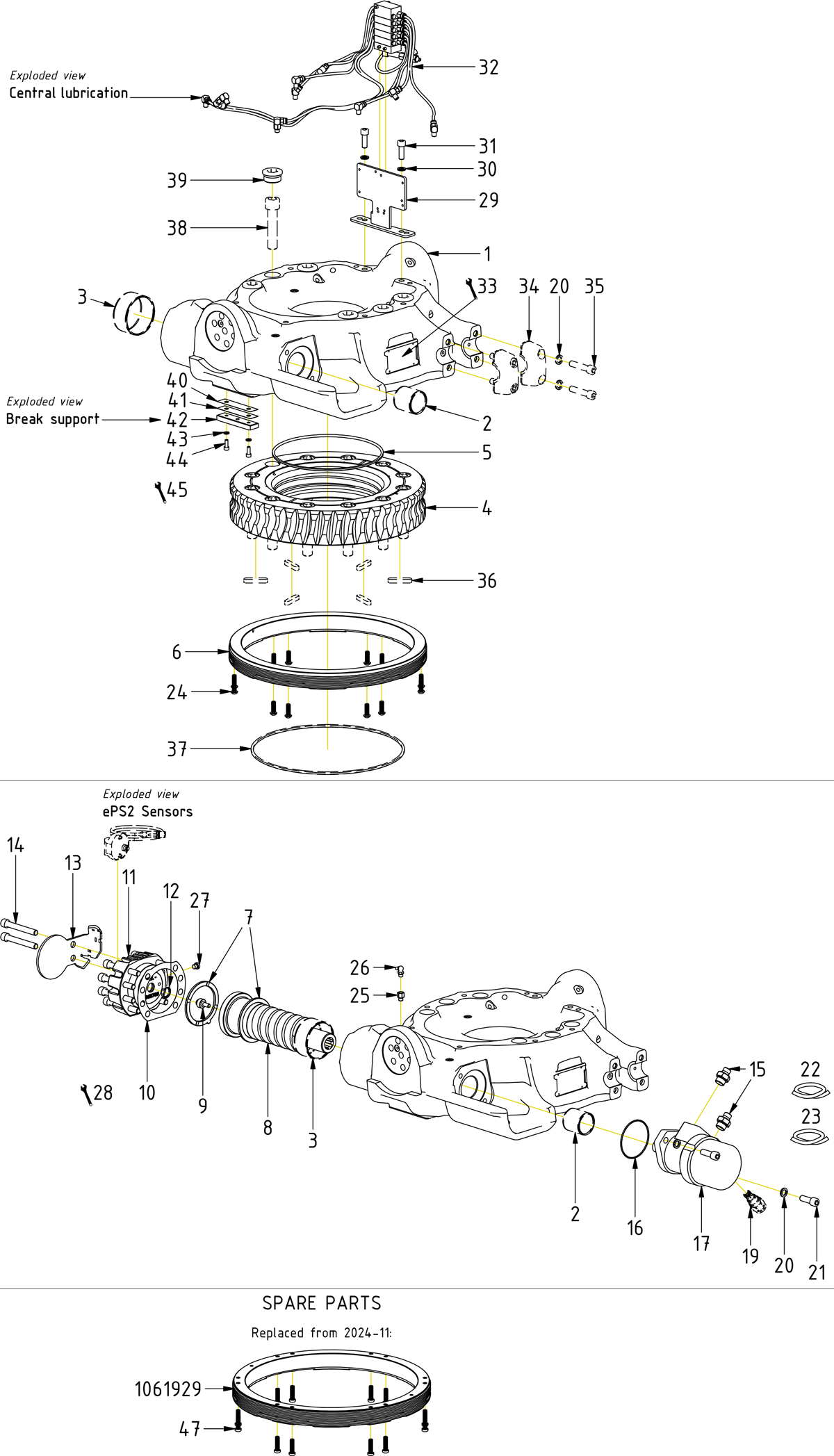

Main components

Pos

Article

Extra Info

Quantity in drawing

Price (excl. VAT)

Attachment central lubrication & TM3 EC314/EC319-QSM

Article no: 1065076

Position29

Quantity in drawing1

830.00 SEK

excl. VAT

Out of stock

Attachment central lubrication & TM3 EC314/EC319-QSM

Article no: 1065076

830.00 SEK

Out of stock

Hose

Article no: 7002038

Position23

Quantity in drawing1

360.00 SEK

excl. VAT

Out of stock

Hose

Article no: 7002038

Part of quick hitch assy.

360.00 SEK

Out of stock

Hose

Article no: 7002037

Position22

Quantity in drawing1

350.00 SEK

excl. VAT

Out of stock

Hose

Article no: 7002037

Part of quick hitch assy.

350.00 SEK

Out of stock

Bushing WB802/EB1 80/85x40

Article no: 630103

Position3

Quantity in drawing1

390.00 SEK

excl. VAT

In stock

Bushing WB802/EB1 80/85x40

Article no: 630103

390.00 SEK

In stock

Screw MC6S 12x55 12.9 ZFSHL ISO4762

Article no: 6000155

Position35

Quantity in drawing8

21.00 SEK

excl. VAT

In stock

Screw MC6S 12x55 12.9 ZFSHL ISO4762

Article no: 6000155

Part of top part. Torque: 136Nm

21.00 SEK

In stock

Clamping half EC219/226/326 EngconYellow complete

Article no: 1016393

Position34

Quantity in drawing4

1,450.00 SEK

excl. VAT

In stock

Clamping half EC219/226/326 EngconYellow complete

Article no: 1016393

Part of top part

1,450.00 SEK

In stock

End lock EC209S/EC214S/EC219S Cast

Article no: 1065789

Position11

Quantity in drawing1

3,200.00 SEK

excl. VAT

In stock

End lock EC209S/EC214S/EC219S Cast

Article no: 1065789

(POS.12 incl.)

3,200.00 SEK

In stock

Seal R09-F 20x27.5x3.2

Article no: 1063616

Position12

Quantity in drawing1

190.00 SEK

excl. VAT

In stock

Seal R09-F 20x27.5x3.2

Article no: 1063616

190.00 SEK

In stock

Worm screw EC214 , EC219

Article no: 1016408

Position8

Quantity in drawing1

21,000.00 SEK

excl. VAT

Few in stock (5)

Worm screw EC214 , EC219

Article no: 1016408

21,000.00 SEK

Few in stock (5)

Washer NL6-DPE 6,5x10,8x1,7

Article no: 611039

Position43

Quantity in drawing2

14.00 SEK

excl. VAT

In stock

Washer NL6-DPE 6,5x10,8x1,7

Article no: 611039

14.00 SEK

In stock

Extender 18mm R1/8" lubrication kit

Article no: 712216

Position25

Quantity in drawing1

118.00 SEK

excl. VAT

Few in stock (5)

Extender 18mm R1/8" lubrication kit

Article no: 712216

118.00 SEK

Few in stock (5)

Screw MC6S 6x16 12.9 ZFSHL ISO4762

Article no: 6000017

Position44

Quantity in drawing2

9.00 SEK

excl. VAT

In stock

Screw MC6S 6x16 12.9 ZFSHL ISO4762

Article no: 6000017

9.00 SEK

In stock

Plug VSTIR18ED 1/8"

Article no: 711503

Position27

Quantity in drawing1

56.00 SEK

excl. VAT

In stock

Plug VSTIR18ED 1/8"

Article no: 711503

56.00 SEK

In stock

Screw MC6S 12x90 12.9 ZFSHL ISO4762

Article no: 6000147

Position14

Quantity in drawing8

25.00 SEK

excl. VAT

In stock

Screw MC6S 12x90 12.9 ZFSHL ISO4762

Article no: 6000147

Torque: 136Nm

25.00 SEK

In stock

Worm wheel EC219

Article no: 1016409

Position4

Quantity in drawing1

62,000.00 SEK

excl. VAT

In stock

Worm wheel EC219

Article no: 1016409

62,000.00 SEK

In stock

Rotator frame 219 V5 EngconYellow complete

Article no: 1062295

Position1

Quantity in drawing1

72,400.00 SEK

excl. VAT

Out of stock

Rotator frame 219 V5 EngconYellow complete

Article no: 1062295

(POS.2-3 incl.)

72,400.00 SEK

Out of stock

Shim break support - EC209, EC214, EC219 - 0,3mm

Article no: 1055260

Position41

Quantity in drawing1

63.00 SEK

excl. VAT

In stock

Shim break support - EC209, EC214, EC219 - 0,3mm

Article no: 1055260

63.00 SEK

In stock

Plate break support - EC209/214/219

Article no: 1055258

Position42

Quantity in drawing1

680.00 SEK

excl. VAT

In stock

Plate break support - EC209/214/219

Article no: 1055258

680.00 SEK

In stock

Magnet Spacer Worm Screw

Article no: 1062693

Position9

Quantity in drawing1

132.00 SEK

excl. VAT

In stock

Magnet Spacer Worm Screw

Article no: 1062693

Loxeal 83-52. Torque: 20Nm

132.00 SEK

In stock

Bearing ring EC219 V2

Article no: 1077005

Position6

Quantity in drawing1

10,500.00 SEK

excl. VAT

In stock

Bearing ring EC219 V2

Article no: 1077005

(Only compatible with 8x25)

10,500.00 SEK

In stock

Plug-RP M36x2 DIN 908 FZB

Article no: 650408

Position39

Quantity in drawing6

162.00 SEK

excl. VAT

In stock

Plug-RP M36x2 DIN 908 FZB

Article no: 650408

162.00 SEK

In stock

Shim break support - EC209, EC214, EC219 - 0,1mm

Article no: 1055262

Position40

Quantity in drawing1

47.00 SEK

excl. VAT

In stock

Shim break support - EC209, EC214, EC219 - 0,1mm

Article no: 1055262

47.00 SEK

In stock

Bushing WB802/EB1 45/50x50

Article no: 630102

Position2

Quantity in drawing1

250.00 SEK

excl. VAT

In stock

Bushing WB802/EB1 45/50x50

Article no: 630102

250.00 SEK

In stock

Lubrication kit EC219 V3

Article no: 1021135

Position32

Quantity in drawing1

14,500.00 SEK

excl. VAT

Out of stock

Lubrication kit EC219 V3

Article no: 1021135

14,500.00 SEK

Out of stock

Screw MC6S 20x90 12.9 untreated ISO4762

Article no: 610556

Position38

Quantity in drawing12

156.00 SEK

excl. VAT

In stock

Screw MC6S 20x90 12.9 untreated ISO4762

Article no: 610556

Part of quick hitch. Torque: 649Nm

156.00 SEK

In stock

Hydraulic motor White 160cc

Article no: 1022290

Position17

Quantity in drawing1

12,000.00 SEK

excl. VAT

Out of stock

Hydraulic motor White 160cc

Article no: 1022290

(POS.18-19 incl.)

12,000.00 SEK

Out of stock

Screw MC6S 10x30 12.9 ZFSHL ISO4762

Article no: 612018

Position31

Quantity in drawing2

20.00 SEK

excl. VAT

In stock

Screw MC6S 10x30 12.9 ZFSHL ISO4762

Article no: 612018

20.00 SEK

In stock

Screw MC6S 12x35 12.9 ZFSHL ISO4762

Article no: 6000150

Position21

Quantity in drawing2

14.00 SEK

excl. VAT

In stock

Screw MC6S 12x35 12.9 ZFSHL ISO4762

Article no: 6000150

Torque: 136Nm

14.00 SEK

In stock

Lubrication nipple 1/8" 90°

Article no: 711409

Position26

Quantity in drawing1

56.00 SEK

excl. VAT

In stock

Lubrication nipple 1/8" 90°

Article no: 711409

56.00 SEK

In stock

Screw TX45 8x30 10.9 FZB ISO7380

Article no: 612201

Position47

Quantity in drawing12

14.00 SEK

excl. VAT

In stock

Screw TX45 8x30 10.9 FZB ISO7380

Article no: 612201

Torque: 34Nm. Used with 1061929

14.00 SEK

In stock

O-ring 319,3x5,7 - Quick hitch EC10/EC219/EC226

Article no: 710908

Position37

Quantity in drawing1

480.00 SEK

excl. VAT

In stock

O-ring 319,3x5,7 - Quick hitch EC10/EC219/EC226

Article no: 710908

Part of quick hitch

480.00 SEK

In stock

Screw TX45 8x25 10.9 FZB

Article no: 1078840

Position24

Quantity in drawing12

9.00 SEK

excl. VAT

In stock

Screw TX45 8x25 10.9 FZB

Article no: 1078840

Torque: 34Nm Tighten in cross pattern

9.00 SEK

In stock

O-ring 82,22x2,62 NBR 70 shore

Article no: 7000920

Position16

Quantity in drawing1

25.00 SEK

excl. VAT

In stock

O-ring 82,22x2,62 NBR 70 shore

Article no: 7000920

25.00 SEK

In stock

Relief valve HydraSpecma White(Danfoss) 160/200cc 200bar

Article no: 7001647

Position19

Quantity in drawing1

1,360.00 SEK

excl. VAT

In stock

Relief valve HydraSpecma White(Danfoss) 160/200cc 200bar

Article no: 7001647

Torque: 77Nm. Assy. before motor

1,360.00 SEK

In stock

Hydraulic motor White(Danfoss) 160cc

Article no: 7001806

Position18

Quantity in drawing1

9,010.00 SEK

excl. VAT

In stock

Hydraulic motor White(Danfoss) 160cc

Article no: 7001806

9,010.00 SEK

In stock

O-ring 225x5 NBR 90 shore EC219 worm wheel

Article no: 7001662

Position5

Quantity in drawing1

83.00 SEK

excl. VAT

In stock

O-ring 225x5 NBR 90 shore EC219 worm wheel

Article no: 7001662

83.00 SEK

In stock

Feather key 10x8x50 C45 EC05B,EC15,EC20,EC214,EC219,EC226

Article no: 650102

Position36

Quantity in drawing6

26.00 SEK

excl. VAT

In stock

Feather key 10x8x50 C45 EC05B,EC15,EC20,EC214,EC219,EC226

Article no: 650102

Part of quick hitch

26.00 SEK

In stock

Axial washer with ear EC209/214/219

Article no: 1079941

Position7

Quantity in drawing2

720.00 SEK

excl. VAT

In stock

Axial washer with ear EC209/214/219

Article no: 1079941

Face groove toward worm screw

720.00 SEK

In stock

Shim kit End lock - EC209/EC214/EC219

Article no: 1034434

Position10

Quantity in drawing1

1,680.00 SEK

excl. VAT

In stock

Shim kit End lock - EC209/EC214/EC219

Article no: 1034434

1,680.00 SEK

In stock

Washer NL12-DPE 13,0x19,5x2,7

Article no: 611042

Position20

Quantity in drawing10

33.00 SEK

excl. VAT

In stock

Washer NL12-DPE 13,0x19,5x2,7

Article no: 611042

QTY: 8 part of top part assy.

33.00 SEK

In stock

End lock protection plate EC209S/EC214S/EC219S

Article no: 1063372

Position13

Quantity in drawing1

480.00 SEK

excl. VAT

In stock

End lock protection plate EC209S/EC214S/EC219S

Article no: 1063372

480.00 SEK

In stock

Adapter 135-06-08

Article no: 710122

Position15

Quantity in drawing2

56.00 SEK

excl. VAT

In stock

Adapter 135-06-08

Article no: 710122

56.00 SEK

In stock

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Position30

Quantity in drawing2

20.00 SEK

excl. VAT

In stock

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

20.00 SEK

In stock
