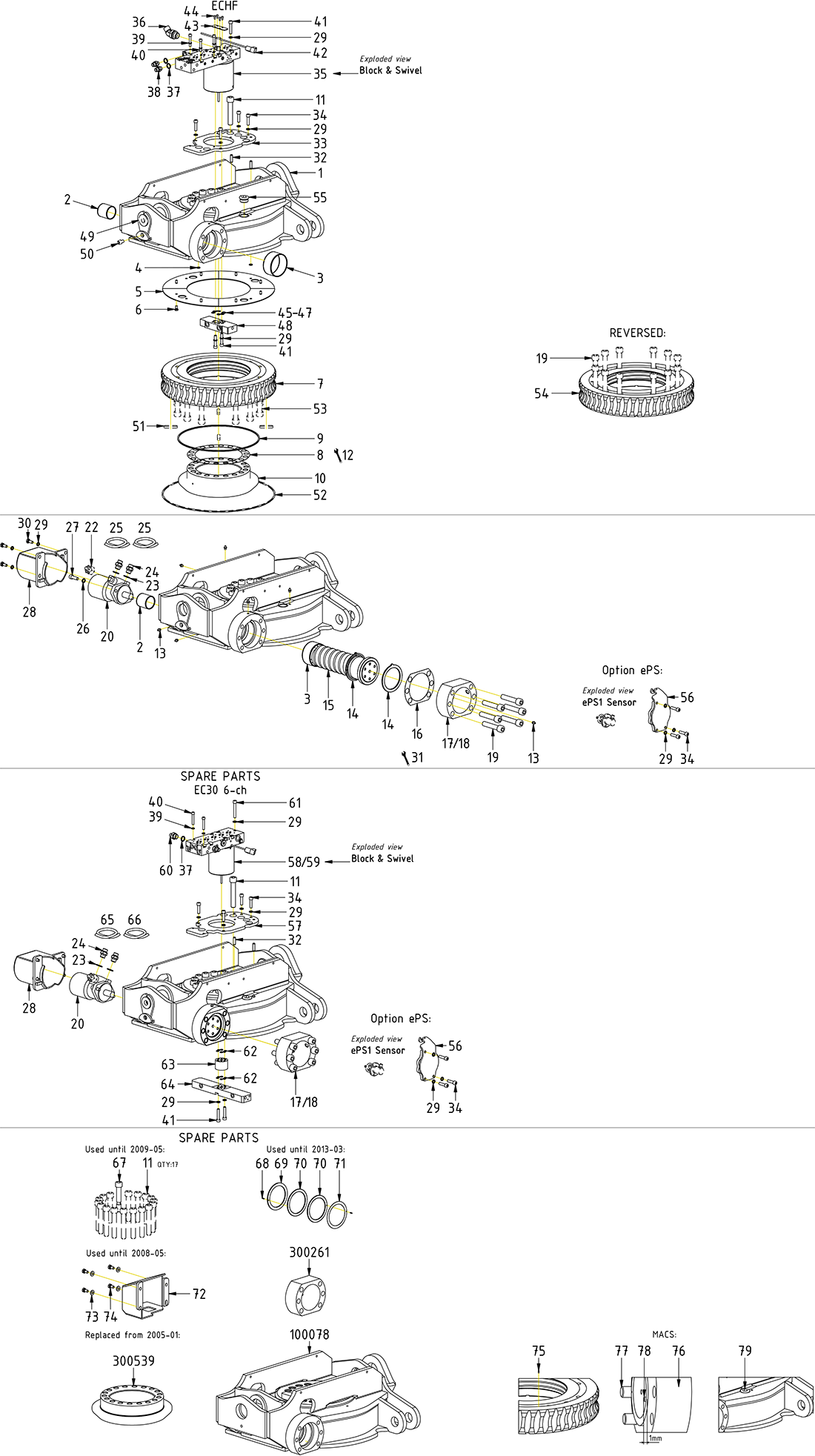

Main components

Pos

Article

Extra Info

Quantity in drawing

Price (excl. VAT)

End lock EC30 outer shim-MACS

Article no: 1033696

Position76

Quantity in drawing1

1,510.00 SEK

excl. VAT

Few in stock (3)

End lock EC30 outer shim-MACS

Article no: 1033696

1,510.00 SEK

Few in stock (3)

Valve block-swivel 5v & 6-ch for Slip ring

Article no: 1023911

Position59

Quantity in drawing1

31,800.00 SEK

excl. VAT

Out of stock

Valve block-swivel 5v & 6-ch for Slip ring

Article no: 1023911

31,800.00 SEK

Out of stock

End lock EC30 outer shim

Article no: 303271

Position17

Quantity in drawing1

6,060.00 SEK

excl. VAT

In stock

End lock EC30 outer shim

Article no: 303271

6,060.00 SEK

In stock

Worm wheel EC30 reversed

Article no: 200245

Position54

Quantity in drawing1

58,500.00 SEK

excl. VAT

Few in stock (3)

Worm wheel EC30 reversed

Article no: 200245

58,500.00 SEK

Few in stock (3)

Worm wheel EC30

Article no: 200112

Position7

Quantity in drawing1

56,300.00 SEK

excl. VAT

In stock

Worm wheel EC30

Article no: 200112

56,300.00 SEK

In stock

Bushing WB802/EB1 100/105x50

Article no: 630304

Position3

Quantity in drawing1

740.00 SEK

excl. VAT

In stock

Bushing WB802/EB1 100/105x50

Article no: 630304

740.00 SEK

In stock

Support ring 100/125 SS100*125*3,5

Article no: 650302

Position69

Quantity in drawing1

350.00 SEK

excl. VAT

Few in stock (5)

Support ring 100/125 SS100*125*3,5

Article no: 650302

Used until 2013-03

350.00 SEK

Few in stock (5)

Swivel extension 6-ch for Slip ring

Article no: 1025487

Position63

Quantity in drawing1

1,400.00 SEK

excl. VAT

Few in stock (3)

Swivel extension 6-ch for Slip ring

Article no: 1025487

1,400.00 SEK

Few in stock (3)

Screw MC6S 12x16H 12.9 ZFSHL ISO4762

Article no: 610470

Position50

Quantity in drawing2

89.00 SEK

excl. VAT

In stock

Screw MC6S 12x16H 12.9 ZFSHL ISO4762

Article no: 610470

Part of top part. Loxeal

89.00 SEK

In stock

Lubrication screw EC30

Article no: 402185

Position67

Quantity in drawing1

630.00 SEK

excl. VAT

In stock

Lubrication screw EC30

Article no: 402185

Used until 2009-05

630.00 SEK

In stock

Valve plate -ECHF-EC30

Article no: 1034258

Position33

Quantity in drawing1

1,780.00 SEK

excl. VAT

Few in stock (3)

Valve plate -ECHF-EC30

Article no: 1034258

1,780.00 SEK

Few in stock (3)

Worm screw EC30

Article no: 300243

Position15

Quantity in drawing1

33,300.00 SEK

excl. VAT

Few in stock (4)

Worm screw EC30

Article no: 300243

33,300.00 SEK

Few in stock (4)

Hose motor - EC30 - long, CL 1170

Article no: 740308

Position65

Quantity in drawing1

890.00 SEK

excl. VAT

Out of stock

Hose motor - EC30 - long, CL 1170

Article no: 740308

890.00 SEK

Out of stock

Connection block 6-ch EC30-for Slip ring

Article no: 1025491

Position64

Quantity in drawing1

5,810.00 SEK

excl. VAT

Out of stock

Connection block 6-ch EC30-for Slip ring

Article no: 1025491

5,810.00 SEK

Out of stock

Centre ring - EC30 - should have shim, as of 05-01

Article no: 302842

Position10

Quantity in drawing1

30,700.00 SEK

excl. VAT

Few in stock (3)

Centre ring - EC30 - should have shim, as of 05-01

Article no: 302842

30,700.00 SEK

Few in stock (3)

Bushing WB802/EB1 55/60x60

Article no: 630303

Position2

Quantity in drawing1

550.00 SEK

excl. VAT

In stock

Bushing WB802/EB1 55/60x60

Article no: 630303

550.00 SEK

In stock

Hose

Article no: 740309

Position66

Quantity in drawing1

740.00 SEK

excl. VAT

Out of stock

Hose

Article no: 740309

740.00 SEK

Out of stock

Wear washer segment EC30

Article no: 400390

Position5

Quantity in drawing4

1,160.00 SEK

excl. VAT

In stock

Wear washer segment EC30

Article no: 400390

1,160.00 SEK

In stock

Shim kit worm screw - EC30

Article no: 1031211

Position71

Quantity in drawing1

680.00 SEK

excl. VAT

Few in stock (4)

Shim kit worm screw - EC30

Article no: 1031211

Used until 2013-03

680.00 SEK

Few in stock (4)

Rotator frame 30 for valve plate

Article no: 1035753

Position1

Quantity in drawing1

136,600.00 SEK

excl. VAT

Few in stock (3)

Rotator frame 30 for valve plate

Article no: 1035753

136,600.00 SEK

Few in stock (3)

Valve plate -6-channel-EC30

Article no: 1034488

Position57

Quantity in drawing1

3,800.00 SEK

excl. VAT

Few in stock (3)

Valve plate -6-channel-EC30

Article no: 1034488

3,800.00 SEK

Few in stock (3)

Motor cover EC30

Article no: 1004478

Position28

Quantity in drawing1

3,630.00 SEK

excl. VAT

In stock

Motor cover EC30

Article no: 1004478

3,630.00 SEK

In stock

Shim kit centre ring - EC30

Article no: 1010173

Position8

Quantity in drawing1

3,500.00 SEK

excl. VAT

Out of stock

Shim kit centre ring - EC30

Article no: 1010173

3,500.00 SEK

Out of stock

Screw MC6S 20x100 12.9 ZFSHL ISO4762

Article no: 6000161

Position19

Quantity in drawing18

91.00 SEK

excl. VAT

In stock

Screw MC6S 20x100 12.9 ZFSHL ISO4762

Article no: 6000161

QTY: 12 part of quick hitch Torque: 649Nm

91.00 SEK

In stock

Cylindrical pin CPK Ø3x12 m6

Article no: 650201

Position68

Quantity in drawing2

10.00 SEK

excl. VAT

In stock

Cylindrical pin CPK Ø3x12 m6

Article no: 650201

Used until 2013-03

10.00 SEK

In stock

Axial washer EC30

Article no: 400248

Position70

Quantity in drawing2

1,020.00 SEK

excl. VAT

In stock

Axial washer EC30

Article no: 400248

Used until 2013-03

1,020.00 SEK

In stock

Feather key 12x8x60 C45 EC30, EC233

Article no: 650103

Position51

Quantity in drawing4

57.00 SEK

excl. VAT

In stock

Feather key 12x8x60 C45 EC30, EC233

Article no: 650103

Part of quick hitch

57.00 SEK

In stock

Adapter 402-12-12 45°

Article no: 712220

Position36

Quantity in drawing1

440.00 SEK

excl. VAT

In stock

Adapter 402-12-12 45°

Article no: 712220

440.00 SEK

In stock

O-ring 10,77x2,62 NBR 70 shore

Article no: 710910

Position4

Quantity in drawing2

9.00 SEK

excl. VAT

In stock

O-ring 10,77x2,62 NBR 70 shore

Article no: 710910

9.00 SEK

In stock

Axial washer with ear EC30

Article no: 1014061

Position14

Quantity in drawing2

1,580.00 SEK

excl. VAT

In stock

Axial washer with ear EC30

Article no: 1014061

Face groove toward worm screw

1,580.00 SEK

In stock

O-ring 479,3x5,7 NBR 90 shore Quick hitch EC30

Article no: 7000310

Position52

Quantity in drawing1

350.00 SEK

excl. VAT

In stock

O-ring 479,3x5,7 NBR 90 shore Quick hitch EC30

Article no: 7000310

Part of quick hitch

350.00 SEK

In stock

Hydraulic motor White 200cc

Article no: 1022288

Position20

Quantity in drawing1

12,700.00 SEK

excl. VAT

Out of stock

Hydraulic motor White 200cc

Article no: 1022288

(POS.21-22 incl.)

12,700.00 SEK

Out of stock

Shim kit End lock - EC30

Article no: 1074090

Position16

Quantity in drawing1

3,150.00 SEK

excl. VAT

In stock

Shim kit End lock - EC30

Article no: 1074090

3,150.00 SEK

In stock

End lock EC30 outer shim-ePS

Article no: 1029629

Position18

Quantity in drawing1

5,600.00 SEK

excl. VAT

Out of stock

End lock EC30 outer shim-ePS

Article no: 1029629

5,600.00 SEK

Out of stock

Screw M6S 10x25 8.8 FZB ISO4017

Article no: 610142

Position30

Quantity in drawing4

9.00 SEK

excl. VAT

In stock

Screw M6S 10x25 8.8 FZB ISO4017

Article no: 610142

9.00 SEK

In stock

Cylindrical pin CPK Ø10x35 m6

Article no: 1015672

Position32

Quantity in drawing2

23.00 SEK

excl. VAT

In stock

Cylindrical pin CPK Ø10x35 m6

Article no: 1015672

23.00 SEK

In stock

Screw MC6S 5x10 12.9 untreated ISO4762

Article no: 610594

Position44

Quantity in drawing4

9.00 SEK

excl. VAT

In stock

Screw MC6S 5x10 12.9 untreated ISO4762

Article no: 610594

9.00 SEK

In stock

Plug-RP M36x2 DIN 908 FZB

Article no: 650408

Position55

Quantity in drawing2

162.00 SEK

excl. VAT

In stock

Plug-RP M36x2 DIN 908 FZB

Article no: 650408

162.00 SEK

In stock

Magnet Neodym35 8x5x3mm SVAB MACS

Article no: 6000047

Position75

Quantity in drawing1

143.00 SEK

excl. VAT

Few in stock (2)

Magnet Neodym35 8x5x3mm SVAB MACS

Article no: 6000047

Loctite 415. Harden 1 minute

143.00 SEK

Few in stock (2)

Slip ring-ECHF-DTM/ Plug

Article no: 1030298

Position42

Quantity in drawing1

12,000.00 SEK

excl. VAT

In stock

Slip ring-ECHF-DTM/ Plug

Article no: 1030298

For QS. See "Slip rings"

12,000.00 SEK

In stock

Connection block under ECHF V3

Article no: 1028391

Position48

Quantity in drawing1

5,090.00 SEK

excl. VAT

Out of stock

Connection block under ECHF V3

Article no: 1028391

Guide with spring pin from swivel

5,090.00 SEK

Out of stock

Screw MC6S 8x50H 12.9 ISO4762

Article no: 610439

Position40

Quantity in drawing3

15.00 SEK

excl. VAT

In stock

Screw MC6S 8x50H 12.9 ISO4762

Article no: 610439

QTY: 2 for 6-ch

15.00 SEK

In stock

Valve block-swivel 7-channel ECHF

Article no: 1027386

Position35

Quantity in drawing1

38,500.00 SEK

excl. VAT

In stock

Valve block-swivel 7-channel ECHF

Article no: 1027386

38,500.00 SEK

In stock

Screw MC6S 20x120 12.9 untreated ISO4762

Article no: 610558

Position11

Quantity in drawing18

180.00 SEK

excl. VAT

In stock

Screw MC6S 20x120 12.9 untreated ISO4762

Article no: 610558

Torque: 649Nm Tighten in cross pattern

180.00 SEK

In stock

Motor cover EC20(&old EC30)

Article no: 100010

Position72

Quantity in drawing1

2,500.00 SEK

excl. VAT

In stock

Motor cover EC20(&old EC30)

Article no: 100010

Replaced by POS.28 from 2008-05

2,500.00 SEK

In stock

Valve block-swivel 5v & 6-ch Slip ring-DTM

Article no: 1030297

Position58

Quantity in drawing1

38,500.00 SEK

excl. VAT

Out of stock

Valve block-swivel 5v & 6-ch Slip ring-DTM

Article no: 1030297

38,500.00 SEK

Out of stock

Screw MC6S 10x40 12.9 ZFSHL ISO4762

Article no: 612020

Position34

Quantity in drawing7

20.00 SEK

excl. VAT

In stock

Screw MC6S 10x40 12.9 ZFSHL ISO4762

Article no: 612020

20.00 SEK

In stock

Screw MC6S 20x90 12.9 untreated ISO4762

Article no: 610556

Position77

Quantity in drawing6

156.00 SEK

excl. VAT

In stock

Screw MC6S 20x90 12.9 untreated ISO4762

Article no: 610556

156.00 SEK

In stock

Cover plate Slip ring ECHF V2

Article no: 1026200

Position43

Quantity in drawing1

155.00 SEK

excl. VAT

In stock

Cover plate Slip ring ECHF V2

Article no: 1026200

155.00 SEK

In stock

Screw M6S 8x16 8.8 FZB ISO4017

Article no: 610122

Position6

Quantity in drawing8

9.00 SEK

excl. VAT

In stock

Screw M6S 8x16 8.8 FZB ISO4017

Article no: 610122

Loxeal

9.00 SEK

In stock

Tilt axle EC30 lubrication at both ends

Article no: 303134

Position49

Quantity in drawing2

4,200.00 SEK

excl. VAT

In stock

Tilt axle EC30 lubrication at both ends

Article no: 303134

Part of top part

4,200.00 SEK

In stock

Washer BRB FZB 10,5x22x2 ISO7089

Article no: 611006

Position73

Quantity in drawing4

9.00 SEK

excl. VAT

In stock

Washer BRB FZB 10,5x22x2 ISO7089

Article no: 611006

9.00 SEK

In stock

Inductive sensor M8 PNP NO 4mm - SVAB MACS

Article no: 1043698

Position78

Quantity in drawing1

7,090.00 SEK

excl. VAT

Out of stock

Inductive sensor M8 PNP NO 4mm - SVAB MACS

Article no: 1043698

Distance 1mm. Nut torque: 3Nm

7,090.00 SEK

Out of stock

Screw M6S 10x20 8.8 FZB ISO4017

Article no: 610141

Position74

Quantity in drawing4

9.00 SEK

excl. VAT

In stock

Screw M6S 10x20 8.8 FZB ISO4017

Article no: 610141

9.00 SEK

In stock

Pipe Plug RP M36x2 Din 908 FZB M8x1 SVAB MACS

Article no: 650411

Position79

Quantity in drawing1

350.00 SEK

excl. VAT

In stock

Pipe Plug RP M36x2 Din 908 FZB M8x1 SVAB MACS

Article no: 650411

350.00 SEK

In stock

Washer NL12-DPE 13,0x19,5x2,7

Article no: 611042

Position26

Quantity in drawing2

33.00 SEK

excl. VAT

In stock

Washer NL12-DPE 13,0x19,5x2,7

Article no: 611042

33.00 SEK

In stock

Lubrication nipple 1/8 straight

Article no: 711403

Position13

Quantity in drawing7

10.00 SEK

excl. VAT

In stock

Lubrication nipple 1/8 straight

Article no: 711403

10.00 SEK

In stock

O-ring 359,3x5,7 centre ring EC30/ quick hitch EC233

Article no: 710924

Position9

Quantity in drawing1

480.00 SEK

excl. VAT

In stock

O-ring 359,3x5,7 centre ring EC30/ quick hitch EC233

Article no: 710924

480.00 SEK

In stock

Protection sensor -ePS-EC30

Article no: 1029734

Position56

Quantity in drawing1

2,170.00 SEK

excl. VAT

Out of stock

Protection sensor -ePS-EC30

Article no: 1029734

2,170.00 SEK

Out of stock

Screw MC6S 10x50 12.9 ZFSHL ISO4762

Article no: 611515

Position41

Quantity in drawing3

36.00 SEK

excl. VAT

In stock

Screw MC6S 10x50 12.9 ZFSHL ISO4762

Article no: 611515

QTY: 2 for 6-ch

36.00 SEK

In stock

Seal washer GBR06 3/8"

Article no: 710703

Position37

Quantity in drawing2

9.00 SEK

excl. VAT

In stock

Seal washer GBR06 3/8"

Article no: 710703

9.00 SEK

In stock

Screw MC6S 12x35 12.9 ZFSHL ISO4762

Article no: 6000150

Position27

Quantity in drawing2

14.00 SEK

excl. VAT

In stock

Screw MC6S 12x35 12.9 ZFSHL ISO4762

Article no: 6000150

14.00 SEK

In stock

Adapter 136-06-06

Article no: 710106

Position38

Quantity in drawing2

26.00 SEK

excl. VAT

In stock

Adapter 136-06-06

Article no: 710106

26.00 SEK

In stock

Hydraulic motor 200cc EC226/EC233

Article no: 7001807

Position21

Quantity in drawing1

7,090.00 SEK

excl. VAT

In stock

Hydraulic motor 200cc EC226/EC233

Article no: 7001807

7,090.00 SEK

In stock

Relief valve HydraSpecma White(Danfoss) 160/200cc 200bar

Article no: 7001647

Position22

Quantity in drawing1

1,360.00 SEK

excl. VAT

In stock

Relief valve HydraSpecma White(Danfoss) 160/200cc 200bar

Article no: 7001647

Assy. before motor

1,360.00 SEK

In stock

Seal washer GBR08 1/2"

Article no: 710704

Position23

Quantity in drawing2

10.00 SEK

excl. VAT

In stock

Seal washer GBR08 1/2"

Article no: 710704

10.00 SEK

In stock

O-ring 9,25x1,78 FKM 90 shore Viton Green NG6

Article no: 710901

Position62

Quantity in drawing12

9.00 SEK

excl. VAT

In stock

O-ring 9,25x1,78 FKM 90 shore Viton Green NG6

Article no: 710901

9.00 SEK

In stock

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Position39

Quantity in drawing3

19.00 SEK

excl. VAT

In stock

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

QTY: 2 for 6-ch

19.00 SEK

In stock

Adapter 136-08-08

Article no: 710108

Position24

Quantity in drawing2

56.00 SEK

excl. VAT

In stock

Adapter 136-08-08

Article no: 710108

56.00 SEK

In stock

Adapter 135-06-08

Article no: 710122

Position60

Quantity in drawing2

56.00 SEK

excl. VAT

In stock

Adapter 135-06-08

Article no: 710122

56.00 SEK

In stock

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Position29

Quantity in drawing11

20.00 SEK

excl. VAT

In stock

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

20.00 SEK

In stock

O-ring 12,42x1,78 NBR 70 shore

Article no: 710973

Position47

Quantity in drawing4

9.00 SEK

excl. VAT

In stock

O-ring 12,42x1,78 NBR 70 shore

Article no: 710973

9.00 SEK

In stock

O-ring 6,07x1,78 NBR 70 shore

Article no: 712422

Position45

Quantity in drawing2

9.00 SEK

excl. VAT

In stock

O-ring 6,07x1,78 NBR 70 shore

Article no: 712422

9.00 SEK

In stock

O-ring 15,6x1,78 NBR 70 shore

Article no: 710912

Position46

Quantity in drawing1

15.00 SEK

excl. VAT

In stock

O-ring 15,6x1,78 NBR 70 shore

Article no: 710912

15.00 SEK

In stock

Screw MC6S 10x70 12.9 untreated ISO4762

Article no: 610461

Position61

Quantity in drawing1

25.00 SEK

excl. VAT

In stock

Screw MC6S 10x70 12.9 untreated ISO4762

Article no: 610461

25.00 SEK

In stock
