Top ECO80 W

Interact to see more

Pos

Article

Extra Info

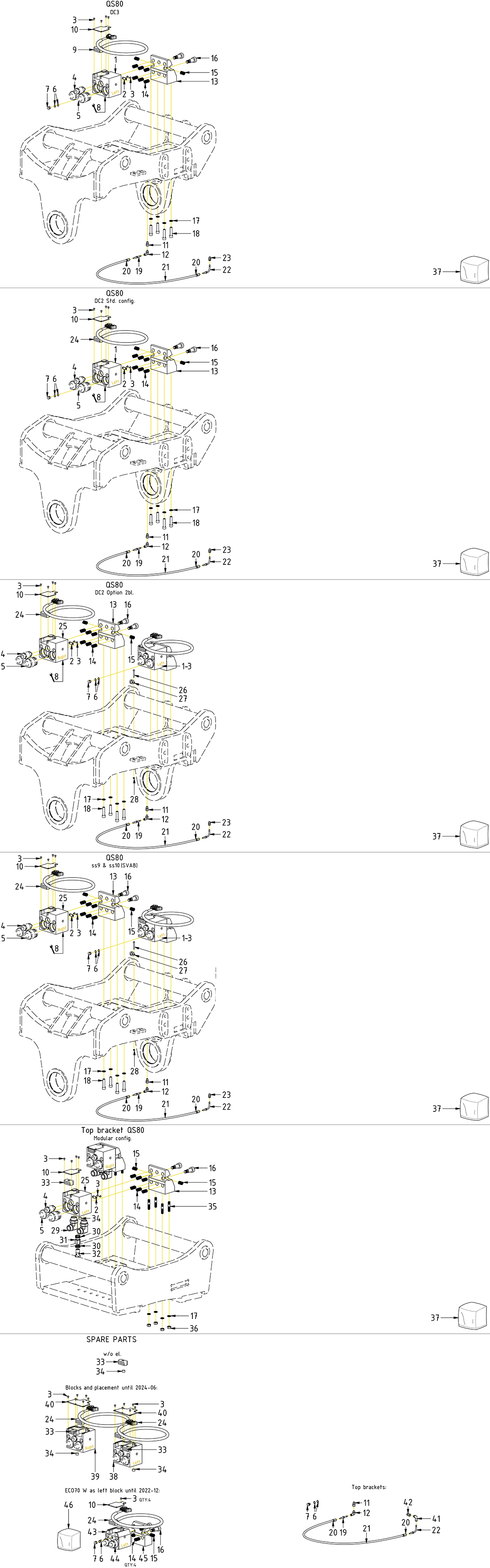

Quantity in drawing

Price (excl. VAT)

Attachment block ECO80 W-top bracket

Article no: 1043644

Position13

Quantity in drawing1

8,860.00 SEK

excl. VAT

Out of stock

Attachment block ECO80 W-top bracket

Article no: 1043644

8,860.00 SEK

Out of stock

Block ECO80 W-top bracket-3hy(2x1" & 1x1/2")

Article no: 1051023

Position39

Quantity in drawing1

47,300.00 SEK

excl. VAT

Few in stock (3)

Block ECO80 W-top bracket-3hy(2x1" & 1x1/2")

Article no: 1051023

Replaced by POS.25. (POS.4-5 incl.)

47,300.00 SEK

Few in stock (3)

Transport Protection ECO80 TECO

Article no: 1052433

Position37

Quantity in drawing1

420.00 SEK

excl. VAT

Out of stock

Transport Protection ECO80 TECO

Article no: 1052433

Part of make up

420.00 SEK

Out of stock

Banjo bolt 4451-08

Article no: 710274

Position32

Quantity in drawing1

109.00 SEK

excl. VAT

In stock

Banjo bolt 4451-08

Article no: 710274

109.00 SEK

In stock

Adapter ORFS 067005-16-16

Article no: 7001427

Position29

Quantity in drawing4

Adapter ORFS 067005-16-16

Article no: 7001427

Power plug ECO70/ECO80 W Top QS80 QSM ECHF

Article no: 8001211

Position24

Quantity in drawing1

2,280.00 SEK

excl. VAT

Few in stock (1)

Power plug ECO70/ECO80 W Top QS80 QSM ECHF

Article no: 8001211

Cable gland torque: 6Nm

2,280.00 SEK

Few in stock (1)

Adapter 236-08-08

Article no: 710132

Position31

Quantity in drawing1

63.00 SEK

excl. VAT

In stock

Adapter 236-08-08

Article no: 710132

63.00 SEK

In stock

Cover plate Power plug-ECO80 W-top bracket

Article no: 1045174

Position40

Quantity in drawing1

194.00 SEK

excl. VAT

Out of stock

Cover plate Power plug-ECO80 W-top bracket

Article no: 1045174

Replaced by POS.10

194.00 SEK

Out of stock

Coupling ECO80 1" male-top bracket

Article no: 1043099

Position5

Quantity in drawing2

4,060.00 SEK

excl. VAT

Few in stock (4)

Coupling ECO80 1" male-top bracket

Article no: 1043099

Torque: 60Nm

4,060.00 SEK

Few in stock (4)

Pipe Plug DIN 906 M16x1,5

Article no: 711529

Position34

Quantity in drawing1

26.00 SEK

excl. VAT

In stock

Pipe Plug DIN 906 M16x1,5

Article no: 711529

Used with POS.33

26.00 SEK

In stock

Nut M12 10. Untreated DIN934

Article no: 611103

Position36

Quantity in drawing4

25.00 SEK

excl. VAT

In stock

Nut M12 10. Untreated DIN934

Article no: 611103

Torque: 115Nm

25.00 SEK

In stock

Power plug ECO W - Plug top bracket

Article no: 1042918

Position33

Quantity in drawing1

360.00 SEK

excl. VAT

In stock

Power plug ECO W - Plug top bracket

Article no: 1042918

360.00 SEK

In stock

Stud bolt M12x45 10.9 DIN939

Article no: 611186

Position35

Quantity in drawing4

81.00 SEK

excl. VAT

In stock

Stud bolt M12x45 10.9 DIN939

Article no: 611186

81.00 SEK

In stock

Nut M6M M5 lock 6. FZB DIN985

Article no: 610920

Position28

Quantity in drawing1

9.00 SEK

excl. VAT

In stock

Nut M6M M5 lock 6. FZB DIN985

Article no: 610920

9.00 SEK

In stock

Cover plate Power plug-ECO70/80 W-Top

Article no: 1042239

Position10

Quantity in drawing1

195.00 SEK

excl. VAT

In stock

Cover plate Power plug-ECO70/80 W-Top

Article no: 1042239

195.00 SEK

In stock

Attachment block ECO70 W-top bracket

Article no: 1042233

Position45

Quantity in drawing1

7,390.00 SEK

excl. VAT

Few in stock (2)

Attachment block ECO70 W-top bracket

Article no: 1042233

7,390.00 SEK

Few in stock (2)

Spring - Top ECO70-80

Article no: 6000125

Position15

Quantity in drawing2

200.00 SEK

excl. VAT

In stock

Spring - Top ECO70-80

Article no: 6000125

200.00 SEK

In stock

Power plug 12P ECO80 W - Top - DC3

Article no: 8002179

Position9

Quantity in drawing1

3,040.00 SEK

excl. VAT

Out of stock

Power plug 12P ECO80 W - Top - DC3

Article no: 8002179

3,040.00 SEK

Out of stock

Coupling ECO70 3/4" male - top bracket V2

Article no: 1029142

Position44

Quantity in drawing2

4,520.00 SEK

excl. VAT

Few in stock (3)

Coupling ECO70 3/4" male - top bracket V2

Article no: 1029142

Torque: 60Nm

4,520.00 SEK

Few in stock (3)

Transport Protection ECO70 TECO

Article no: 1035200

Position46

Quantity in drawing1

360.00 SEK

excl. VAT

In stock

Transport Protection ECO70 TECO

Article no: 1035200

Part of make up

360.00 SEK

In stock

Screw-Shoulder screw Ø20x30/M16 12.9 ISO7379

Article no: 611710

Position16

Quantity in drawing2

550.00 SEK

excl. VAT

Out of stock

Screw-Shoulder screw Ø20x30/M16 12.9 ISO7379

Article no: 611710

Loxeal 83-52

550.00 SEK

Out of stock

Extender 25/17mm KR1/8" - R1/8"

Article no: 7000578

Position42

Quantity in drawing1

92.00 SEK

excl. VAT

In stock

Extender 25/17mm KR1/8" - R1/8"

Article no: 7000578

Loxeal 58-12

92.00 SEK

In stock

Extender 18mm M8x1

Article no: 7000688

Position11

Quantity in drawing1

140.00 SEK

excl. VAT

In stock

Extender 18mm M8x1

Article no: 7000688

Loxeal 58-12

140.00 SEK

In stock

Hose Bulk - HT 8,3x4

Article no: 7001303

Position21

Quantity in drawing1

91.00 SEK

excl. VAT

Out of stock

Hose Bulk - HT 8,3x4

Article no: 7001303

EC233: 1300mm. Top bracket: 2000mm

91.00 SEK

Out of stock

Cable clamp ECO45/60/70/80 W-top bracket

Article no: 1074897

Position2

Quantity in drawing2

125.00 SEK

excl. VAT

Few in stock (3)

Cable clamp ECO45/60/70/80 W-top bracket

Article no: 1074897

125.00 SEK

Few in stock (3)

Tube sleeve 90° Push-In

Article no: 7000318

Position22

Quantity in drawing1

162.00 SEK

excl. VAT

Few in stock (3)

Tube sleeve 90° Push-In

Article no: 7000318

162.00 SEK

Few in stock (3)

Tractor lubrication nipple 1/8" stainless

Article no: 810505

Position7

Quantity in drawing1

350.00 SEK

excl. VAT

In stock

Tractor lubrication nipple 1/8" stainless

Article no: 810505

Loxeal 58-12. Torque: 30Nm

350.00 SEK

In stock

Screw sleeve HT-hose Ø8,6mm

Article no: 7000585

Position20

Quantity in drawing2

89.00 SEK

excl. VAT

In stock

Screw sleeve HT-hose Ø8,6mm

Article no: 7000585

89.00 SEK

In stock

Washer copper 14x10x0,9

Article no: 6000065

Position6

Quantity in drawing2

14.00 SEK

excl. VAT

In stock

Washer copper 14x10x0,9

Article no: 6000065

14.00 SEK

In stock

Push-in swivel 90° M8x1 hose kit Quick hitch lubrication ECO

Article no: 790173

Position12

Quantity in drawing1

290.00 SEK

excl. VAT

In stock

Push-in swivel 90° M8x1 hose kit Quick hitch lubrication ECO

Article no: 790173

Loxeal 58-12

290.00 SEK

In stock

Tube sleeve straight Push-In-30mm

Article no: 790175

Position19

Quantity in drawing1

76.00 SEK

excl. VAT

In stock

Tube sleeve straight Push-In-30mm

Article no: 790175

76.00 SEK

In stock

Spring - 18x35 - Top ECO45-80

Article no: 1024794

Position14

Quantity in drawing6

72.00 SEK

excl. VAT

In stock

Spring - 18x35 - Top ECO45-80

Article no: 1024794

72.00 SEK

In stock

Coupling ECO60 1/2" male - top bracket V2

Article no: 1027633

Position4

Quantity in drawing1

2,260.00 SEK

excl. VAT

In stock

Coupling ECO60 1/2" male - top bracket V2

Article no: 1027633

Torque: 60Nm

2,260.00 SEK

In stock

Washer NL12-DPE 13,0x19,5x2,7

Article no: 611042

Position17

Quantity in drawing4

33.00 SEK

excl. VAT

In stock

Washer NL12-DPE 13,0x19,5x2,7

Article no: 611042

33.00 SEK

In stock

Rubber Steel Clamp Ø16

Article no: 6000009

Position27

Quantity in drawing1

12.00 SEK

excl. VAT

In stock

Rubber Steel Clamp Ø16

Article no: 6000009

12.00 SEK

In stock

Screw MC6S 5x40 12.9 untreated ISO4762

Article no: 610405

Position26

Quantity in drawing1

9.00 SEK

excl. VAT

In stock

Screw MC6S 5x40 12.9 untreated ISO4762

Article no: 610405

9.00 SEK

In stock

Screw MC6S 12x50 12.9 ZFSHL

Article no: 6000443

Position18

Quantity in drawing4

15.00 SEK

excl. VAT

In stock

Screw MC6S 12x50 12.9 ZFSHL

Article no: 6000443

Torque: 136Nm

15.00 SEK

In stock

Push-in Coupling 90° R1/8" SPWE06KR lubrication kit

Article no: 790184

Position41

Quantity in drawing1

290.00 SEK

excl. VAT

In stock

Push-in Coupling 90° R1/8" SPWE06KR lubrication kit

Article no: 790184

Loxeal 58-12

290.00 SEK

In stock

Seal washer GBR08 1/2"

Article no: 710704

Position30

Quantity in drawing4

10.00 SEK

excl. VAT

In stock

Seal washer GBR08 1/2"

Article no: 710704

10.00 SEK

In stock

Push-in Coupling R1/8" PGE06KR lubrication kit

Article no: 790172

Position23

Quantity in drawing1

109.00 SEK

excl. VAT

In stock

Push-in Coupling R1/8" PGE06KR lubrication kit

Article no: 790172

Loxeal 58-12

109.00 SEK

In stock

Screw K6S 5x8H 10.9 FZB ISO7380

Article no: 611801

Position3

Quantity in drawing6

9.00 SEK

excl. VAT

In stock

Screw K6S 5x8H 10.9 FZB ISO7380

Article no: 611801

9.00 SEK

In stock
