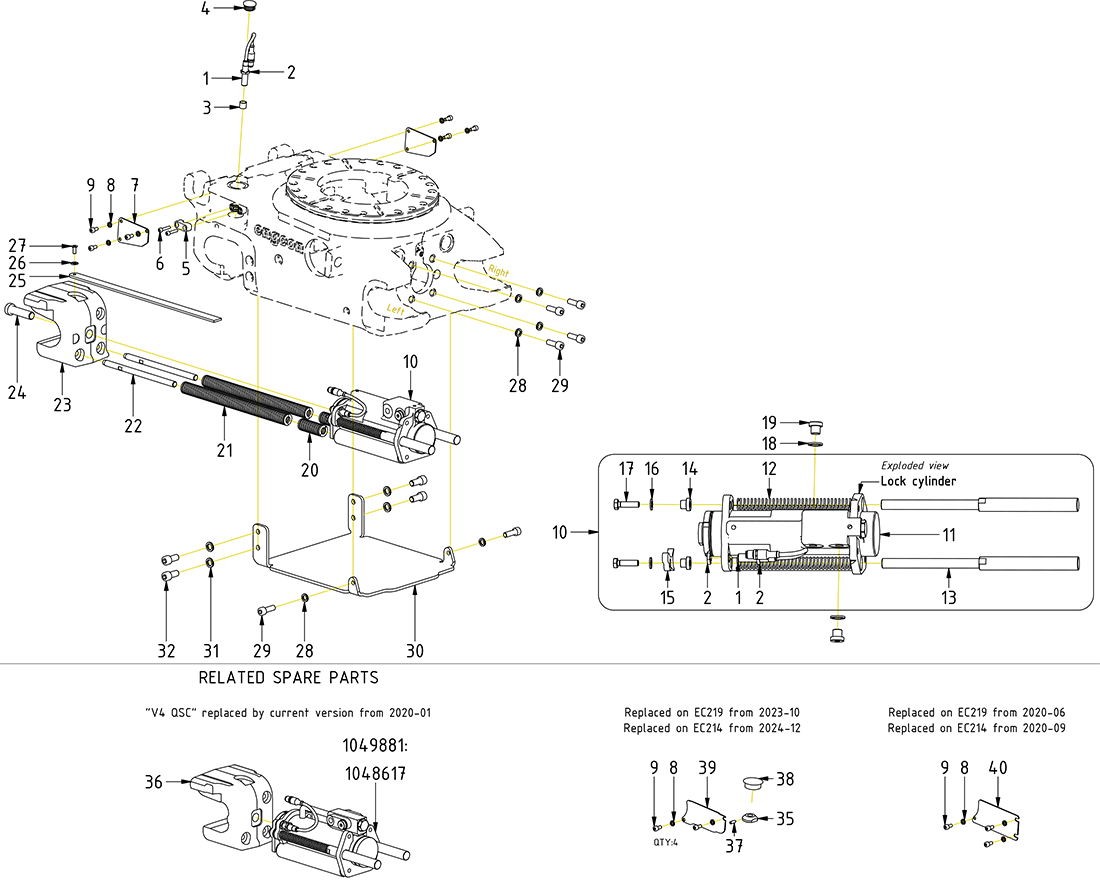

Std comp. QSM60

Pos

Article

Extra Info

Quantity in drawing

Price (excl. VAT)

Locking hook QS60 cast

Article no: 1026154

Position36

Quantity in drawing1

2,860.00 SEK

excl. VAT

Out of stock

Locking hook QS60 cast

Article no: 1026154

Replaced by POS.23 from 2020-01

2,860.00 SEK

Out of stock

Cover plate Side QSM60 V2 - sensor

Article no: 1058912

Position39

Quantity in drawing2

240.00 SEK

excl. VAT

In stock

Cover plate Side QSM60 V2 - sensor

Article no: 1058912

Replaced by POS.7

240.00 SEK

In stock

Cover plate Side QSM60 - sensor

Article no: 1044173

Position40

Quantity in drawing2

350.00 SEK

excl. VAT

Few in stock (3)

Cover plate Side QSM60 - sensor

Article no: 1044173

Replaced by POS.39

350.00 SEK

Few in stock (3)

Locking cylinder QSM60/S60 V5 Forged QSC pre-assembled

Article no: 1083142

Position10

Quantity in drawing1

16,300.00 SEK

excl. VAT

Out of stock

Locking cylinder QSM60/S60 V5 Forged QSC pre-assembled

Article no: 1083142

(POS.1, 11-17 incl.)

16,300.00 SEK

Out of stock

Cover plate QSM60-without ECO-block V2

Article no: 1074015

Position30

Quantity in drawing1

1,250.00 SEK

excl. VAT

In stock

Cover plate QSM60-without ECO-block V2

Article no: 1074015

No cover plate for EC-Oil

1,250.00 SEK

In stock

Locking hook S60/QSM60/QS60 V2 cast

Article no: 1046654

Position23

Quantity in drawing1

4,610.00 SEK

excl. VAT

In stock

Locking hook S60/QSM60/QS60 V2 cast

Article no: 1046654

4,610.00 SEK

In stock

Screw MC6S 5x25 12.9 untreated ISO4762

Article no: 610402

Position6

Quantity in drawing2

15.00 SEK

excl. VAT

In stock

Screw MC6S 5x25 12.9 untreated ISO4762

Article no: 610402

15.00 SEK

In stock

Washer NL6-DPE 6,5x10,8x1,7

Article no: 611039

Position8

Quantity in drawing6

14.00 SEK

excl. VAT

In stock

Washer NL6-DPE 6,5x10,8x1,7

Article no: 611039

14.00 SEK

In stock

Screw MC6S 6x12H 12.9 ZFSHL ISO4762

Article no: 6000352

Position9

Quantity in drawing6

9.00 SEK

excl. VAT

In stock

Screw MC6S 6x12H 12.9 ZFSHL ISO4762

Article no: 6000352

9.00 SEK

In stock

Cover plate Side QSM60 V3 - sensor

Article no: 1069623

Position7

Quantity in drawing2

107.00 SEK

excl. VAT

In stock

Cover plate Side QSM60 V3 - sensor

Article no: 1069623

107.00 SEK

In stock

Clamping half sensor QSM40/60/S40/45/60/70/80 Injection mold

Article no: 1063793

Position5

Quantity in drawing2

12.00 SEK

excl. VAT

In stock

Clamping half sensor QSM40/60/S40/45/60/70/80 Injection mold

Article no: 1063793

12.00 SEK

In stock

Rubber Steel Clamp Ø12

Article no: 790155

Position33

Quantity in drawing1

9.00 SEK

excl. VAT

In stock

Rubber Steel Clamp Ø12

Article no: 790155

9.00 SEK

In stock

Screw MC6S 10x30 12.9 ZFSHL ISO4762

Article no: 612018

Position29

Quantity in drawing6

20.00 SEK

excl. VAT

In stock

Screw MC6S 10x30 12.9 ZFSHL ISO4762

Article no: 612018

QTY: 4 for EC-Oil

20.00 SEK

In stock

Washer NL12-DPE 13,0x19,5x2,7

Article no: 611042

Position31

Quantity in drawing4

33.00 SEK

excl. VAT

In stock

Washer NL12-DPE 13,0x19,5x2,7

Article no: 611042

33.00 SEK

In stock

Screw MC6S 5x16 12.9 untreated ISO4762

Article no: 610401

Position34

Quantity in drawing1

9.00 SEK

excl. VAT

In stock

Screw MC6S 5x16 12.9 untreated ISO4762

Article no: 610401

Loxeal 55-02

9.00 SEK

In stock

Sensor plate QS60

Article no: 1036413

Position15

Quantity in drawing1

189.00 SEK

excl. VAT

In stock

Sensor plate QS60

Article no: 1036413

Assemble with sligth play

189.00 SEK

In stock

Screw MF6S 6x16 10.9 untreated ISO10642

Article no: 610604

Position27

Quantity in drawing1

9.00 SEK

excl. VAT

In stock

Screw MF6S 6x16 10.9 untreated ISO10642

Article no: 610604

Loxeal 83-52

9.00 SEK

In stock

Protection Plug QS sensor GL26

Article no: 1068462

Position4

Quantity in drawing1

9.00 SEK

excl. VAT

In stock

Protection Plug QS sensor GL26

Article no: 1068462

9.00 SEK

In stock

Ejector QS60

Article no: 1036405

Position13

Quantity in drawing2

1,000.00 SEK

excl. VAT

In stock

Ejector QS60

Article no: 1036405

1,000.00 SEK

In stock

Spacer QS45-60 V3

Article no: 1036406

Position14

Quantity in drawing2

118.00 SEK

excl. VAT

In stock

Spacer QS45-60 V3

Article no: 1036406

118.00 SEK

In stock

Screw MC6S 12x25H 12.9 ZFSHL ISO4762

Article no: 6000164

Position32

Quantity in drawing4

14.00 SEK

excl. VAT

In stock

Screw MC6S 12x25H 12.9 ZFSHL ISO4762

Article no: 6000164

14.00 SEK

In stock

Spring S60/QSM60/QS60 locking hook - short (25x64)

Article no: 1024022

Position20

Quantity in drawing2

168.00 SEK

excl. VAT

In stock

Spring S60/QSM60/QS60 locking hook - short (25x64)

Article no: 1024022

168.00 SEK

In stock

Inductive sensor M12-hook quick hitch&Locking cylinder QSM

Article no: 1048262

Position1

Quantity in drawing2

1,680.00 SEK

excl. VAT

In stock

Inductive sensor M12-hook quick hitch&Locking cylinder QSM

Article no: 1048262

Connect to slip ring QSM

1,680.00 SEK

In stock

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Position28

Quantity in drawing6

20.00 SEK

excl. VAT

In stock

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

QTY: 4 for EC-Oil

20.00 SEK

In stock

Screw MS6SS 8x16 ISO4027

Article no: 610808

Position37

Quantity in drawing1

9.00 SEK

excl. VAT

In stock

Screw MS6SS 8x16 ISO4027

Article no: 610808

9.00 SEK

In stock

Spring QS45/50/60 Ejectors - 16x175

Article no: 1049973

Position12

Quantity in drawing2

149.00 SEK

excl. VAT

In stock

Spring QS45/50/60 Ejectors - 16x175

Article no: 1049973

149.00 SEK

In stock

Washer BRB FZB 8,4x16x1,6 ISO7089

Article no: 611005

Position16

Quantity in drawing2

9.00 SEK

excl. VAT

In stock

Washer BRB FZB 8,4x16x1,6 ISO7089

Article no: 611005

9.00 SEK

In stock

Screw MLC6S 16x60 10.9 DIN7984 untreated

Article no: 610721

Position24

Quantity in drawing1

81.00 SEK

excl. VAT

In stock

Screw MLC6S 16x60 10.9 DIN7984 untreated

Article no: 610721

Loxeal 83-52. Torque 136Nm

81.00 SEK

In stock

Protective sleeve Inductive sensor M12

Article no: 8000056

Position3

Quantity in drawing1

9.00 SEK

excl. VAT

In stock

Protective sleeve Inductive sensor M12

Article no: 8000056

9.00 SEK

In stock

Washer Starlock 6mm

Article no: 6000415

Position26

Quantity in drawing1

9.00 SEK

excl. VAT

In stock

Washer Starlock 6mm

Article no: 6000415

9.00 SEK

In stock

Seal washer GBR04 1/4"

Article no: 710702

Position18

Quantity in drawing4

9.00 SEK

excl. VAT

In stock

Seal washer GBR04 1/4"

Article no: 710702

9.00 SEK

In stock

Plug Din 908 1/4"

Article no: 711505

Position19

Quantity in drawing4

25.00 SEK

excl. VAT

In stock

Plug Din 908 1/4"

Article no: 711505

25.00 SEK

In stock

Screw M6S 8x30 8.8 FZB ISO4017

Article no: 611538

Position17

Quantity in drawing2

9.00 SEK

excl. VAT

In stock

Screw M6S 8x30 8.8 FZB ISO4017

Article no: 611538

Loxeal 83-52

9.00 SEK

In stock

Positioning nut-Inductive sensor QS/HYDS/S60/QSM45/50/60/70

Article no: 1029432

Position35

Quantity in drawing1

260.00 SEK

excl. VAT

In stock

Positioning nut-Inductive sensor QS/HYDS/S60/QSM45/50/60/70

Article no: 1029432

260.00 SEK

In stock

Protection Plug ECO power plug & QS sensor

Article no: 8000068

Position38

Quantity in drawing1

9.00 SEK

excl. VAT

In stock

Protection Plug ECO power plug & QS sensor

Article no: 8000068

Replaced by POS.4

9.00 SEK

In stock

Steering S45/S60/QSM45/50/60/QS45/50/60

Article no: 1025621

Position22

Quantity in drawing2

460.00 SEK

excl. VAT

In stock

Steering S45/S60/QSM45/50/60/QS45/50/60

Article no: 1025621

Loxeal 83-52

460.00 SEK

In stock

Spring S45/S60/QS45/50/60 locking hook-long (25x305)

Article no: 1024021

Position21

Quantity in drawing2

890.00 SEK

excl. VAT

In stock

Spring S45/S60/QS45/50/60 locking hook-long (25x305)

Article no: 1024021

890.00 SEK

In stock

Indicator pin S40S/QS/QSM/S/HYDS 605mm

Article no: 1036201

Position25

Quantity in drawing1

180.00 SEK

excl. VAT

In stock

Indicator pin S40S/QS/QSM/S/HYDS 605mm

Article no: 1036201

Cut to fit

180.00 SEK

In stock
