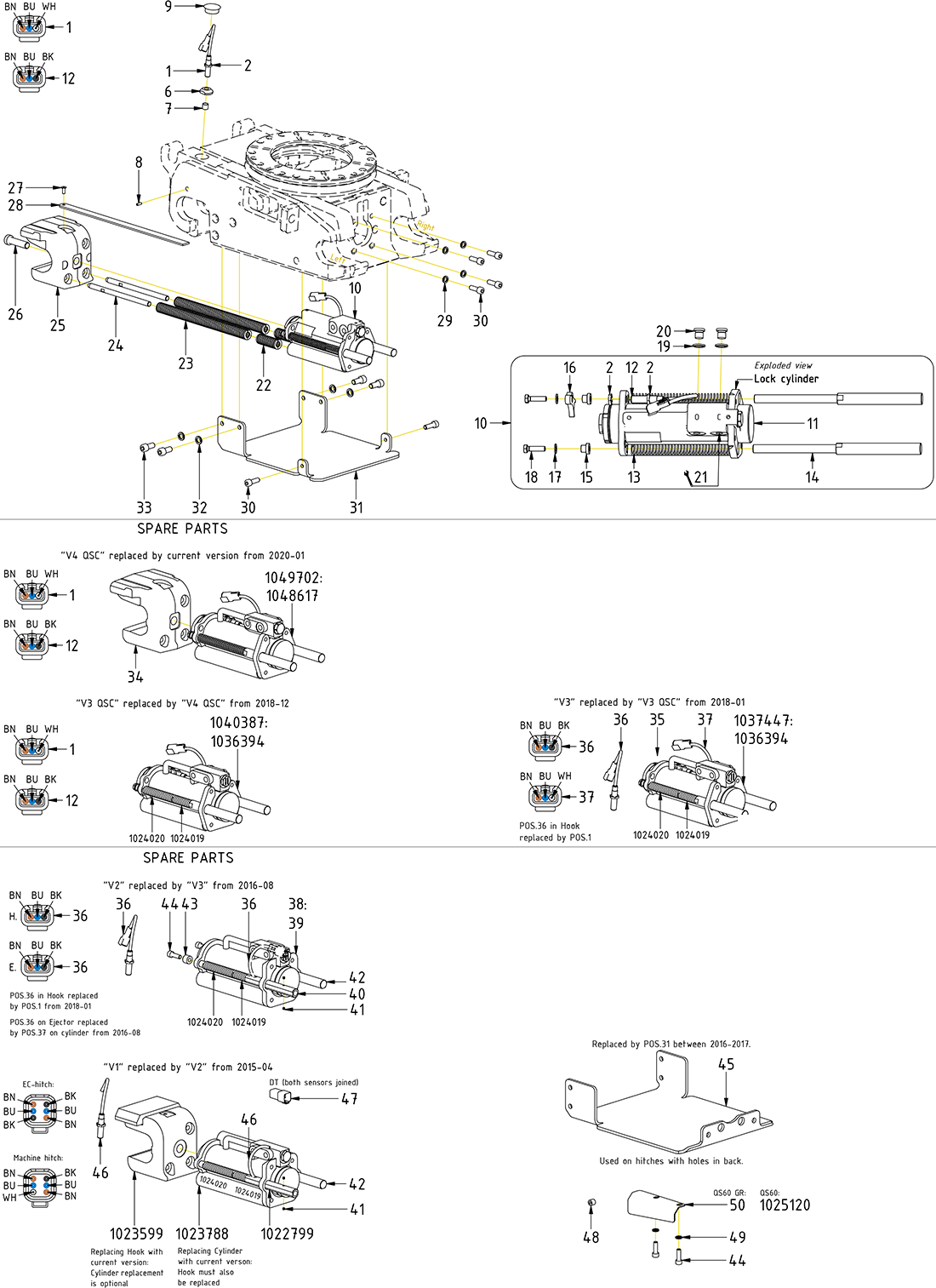

Std comp. QS60 / QSD60

Pos

Article

Extra Info

Quantity in drawing

Price (excl. VAT)

Locking hook QS60 cast

Article no: 1026154

Position35

Quantity in drawing1

2,860.00 SEK

excl. VAT

Out of stock

Locking hook QS60 cast

Article no: 1026154

Replaced by POS.25 from 2020-01

2,860.00 SEK

Out of stock

Ejector QS60 for sensor

Article no: 1022799

Position41

Quantity in drawing1

6,660.00 SEK

excl. VAT

In stock

Ejector QS60 for sensor

Article no: 1022799

Replaced by POS.14 from 2016-08 (POS.37, 42 incl.)

6,660.00 SEK

In stock

Locking cylinder QS60 pre-assembled

Article no: 1033081

Position39

Quantity in drawing1

27,600.00 SEK

excl. VAT

Out of stock

Locking cylinder QS60 pre-assembled

Article no: 1033081

Replaced by 1037447 from 2016-08 (POS.19-20, 40-41, 43-45 incl.)

27,600.00 SEK

Out of stock

Ejector QS60 not for sensor

Article no: 1022930

Position43

Quantity in drawing1

3,160.00 SEK

excl. VAT

In stock

Ejector QS60 not for sensor

Article no: 1022930

Replaced by POS.14 from 2016-08

3,160.00 SEK

In stock

Locking cylinder QS60 V5 Forged pre-assembled-NOT QSC

Article no: 1083144

Position36

Quantity in drawing1

16,400.00 SEK

excl. VAT

Few in stock (1)

Locking cylinder QS60 V5 Forged pre-assembled-NOT QSC

Article no: 1083144

Spare part use only

16,400.00 SEK

Few in stock (1)

Cover plate QS60-without ECO-block

Article no: 1028105

Position46

Quantity in drawing1

1,550.00 SEK

excl. VAT

Few in stock (1)

Cover plate QS60-without ECO-block

Article no: 1028105

Replacd by POS.32. Note holes

1,550.00 SEK

Few in stock (1)

Locking hook S60/QSM60/QS60 V2 cast

Article no: 1046654

Position25

Quantity in drawing1

4,610.00 SEK

excl. VAT

In stock

Locking hook S60/QSM60/QS60 V2 cast

Article no: 1046654

4,610.00 SEK

In stock

Cover plate QS60-without ECO-block V2

Article no: 1034517

Position32

Quantity in drawing1

1,490.00 SEK

excl. VAT

In stock

Cover plate QS60-without ECO-block V2

Article no: 1034517

No cover plate for EC-Oil

1,490.00 SEK

In stock

Locking cylinder S60/QS60 V5 Forged QSC pre-assembled

Article no: 1083143

Position10

Quantity in drawing1

15,800.00 SEK

excl. VAT

In stock

Locking cylinder S60/QS60 V5 Forged QSC pre-assembled

Article no: 1083143

(POS.11-18 incl.)

15,800.00 SEK

In stock

Screw MC6S 10x30 12.9 ZFSHL ISO4762

Article no: 612018

Position31

Quantity in drawing6

20.00 SEK

excl. VAT

In stock

Screw MC6S 10x30 12.9 ZFSHL ISO4762

Article no: 612018

QTY: 4 for EC-Oil

20.00 SEK

In stock

Washer NL12-DPE 13,0x19,5x2,7

Article no: 611042

Position33

Quantity in drawing4

33.00 SEK

excl. VAT

In stock

Washer NL12-DPE 13,0x19,5x2,7

Article no: 611042

33.00 SEK

In stock

Sensor plate QS60

Article no: 1036413

Position16

Quantity in drawing1

189.00 SEK

excl. VAT

In stock

Sensor plate QS60

Article no: 1036413

Assemble with slight play

189.00 SEK

In stock

Screw MF6S 6x16 10.9 untreated ISO10642

Article no: 610604

Position29

Quantity in drawing1

9.00 SEK

excl. VAT

In stock

Screw MF6S 6x16 10.9 untreated ISO10642

Article no: 610604

Loxeal 83-52

9.00 SEK

In stock

Ejector QS60

Article no: 1036405

Position14

Quantity in drawing2

1,000.00 SEK

excl. VAT

In stock

Ejector QS60

Article no: 1036405

1,000.00 SEK

In stock

Spacer QS45-60 V3

Article no: 1036406

Position15

Quantity in drawing2

118.00 SEK

excl. VAT

In stock

Spacer QS45-60 V3

Article no: 1036406

118.00 SEK

In stock

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Position50

Quantity in drawing2

19.00 SEK

excl. VAT

In stock

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Used until 2016-01

19.00 SEK

In stock

Screw MC6S 12x25H 12.9 ZFSHL ISO4762

Article no: 6000164

Position34

Quantity in drawing4

14.00 SEK

excl. VAT

In stock

Screw MC6S 12x25H 12.9 ZFSHL ISO4762

Article no: 6000164

14.00 SEK

In stock

Spring S60/QSM60/QS60 locking hook - short (25x64)

Article no: 1024022

Position22

Quantity in drawing2

168.00 SEK

excl. VAT

In stock

Spring S60/QSM60/QS60 locking hook - short (25x64)

Article no: 1024022

168.00 SEK

In stock

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Position30

Quantity in drawing4

20.00 SEK

excl. VAT

In stock

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

20.00 SEK

In stock

Screw MS6SS 8x16 ISO4027

Article no: 610808

Position8

Quantity in drawing1

9.00 SEK

excl. VAT

In stock

Screw MS6SS 8x16 ISO4027

Article no: 610808

9.00 SEK

In stock

Inductive sensor M12 IF6079

Article no: 810463

Position47

Quantity in drawing2

1,720.00 SEK

excl. VAT

Few in stock (3)

Inductive sensor M12 IF6079

Article no: 810463

Replaced by POS.37 from 2015-04

1,720.00 SEK

Few in stock (3)

Screw MC6S 8x25 12.9 ZFSHL ISO4762

Article no: 6000143

Position45

Quantity in drawing4

9.00 SEK

excl. VAT

In stock

Screw MC6S 8x25 12.9 ZFSHL ISO4762

Article no: 6000143

9.00 SEK

In stock

Spring QS45/50/60 Ejectors - 16x175

Article no: 1049973

Position13

Quantity in drawing2

149.00 SEK

excl. VAT

In stock

Spring QS45/50/60 Ejectors - 16x175

Article no: 1049973

149.00 SEK

In stock

Inductive sensor M12 DTM04-3P - Locking cylinder

Article no: 1036833

Position38

Quantity in drawing1

2,600.00 SEK

excl. VAT

In stock

Inductive sensor M12 DTM04-3P - Locking cylinder

Article no: 1036833

Replaced by POS.12 from 2018-01

2,600.00 SEK

In stock

Inductive sensor M12 DTM04-3P - Locking cylinder QSC - 645mm

Article no: 1040359

Position12

Quantity in drawing1

2,600.00 SEK

excl. VAT

In stock

Inductive sensor M12 DTM04-3P - Locking cylinder QSC - 645mm

Article no: 1040359

Mount 1mm from Sensor plate

2,600.00 SEK

In stock

Deutsch DT04-6P connector device

Article no: 820109

Position48

Quantity in drawing1

280.00 SEK

excl. VAT

Few in stock (5)

Deutsch DT04-6P connector device

Article no: 820109

Used until 2015-04

280.00 SEK

Few in stock (5)

Washer BRB FZB 8,4x16x1,6 ISO7089

Article no: 611005

Position17

Quantity in drawing2

9.00 SEK

excl. VAT

In stock

Washer BRB FZB 8,4x16x1,6 ISO7089

Article no: 611005

9.00 SEK

In stock

Screw MLC6S 16x60 10.9 DIN7984 untreated

Article no: 610721

Position26

Quantity in drawing1

81.00 SEK

excl. VAT

In stock

Screw MLC6S 16x60 10.9 DIN7984 untreated

Article no: 610721

Loxeal 83-52. Torque 136Nm

81.00 SEK

In stock

Protective sleeve Inductive sensor M12

Article no: 8000056

Position7

Quantity in drawing1

9.00 SEK

excl. VAT

In stock

Protective sleeve Inductive sensor M12

Article no: 8000056

9.00 SEK

In stock

Washer Starlock 6mm

Article no: 6000415

Position28

Quantity in drawing1

9.00 SEK

excl. VAT

In stock

Washer Starlock 6mm

Article no: 6000415

9.00 SEK

In stock

Seal washer GBR04 1/4"

Article no: 710702

Position19

Quantity in drawing2

9.00 SEK

excl. VAT

In stock

Seal washer GBR04 1/4"

Article no: 710702

9.00 SEK

In stock

Plug Din 908 1/4"

Article no: 711505

Position20

Quantity in drawing2

25.00 SEK

excl. VAT

In stock

Plug Din 908 1/4"

Article no: 711505

25.00 SEK

In stock

Screw M6S 8x30 8.8 FZB ISO4017

Article no: 611538

Position18

Quantity in drawing2

9.00 SEK

excl. VAT

In stock

Screw M6S 8x30 8.8 FZB ISO4017

Article no: 611538

Loxeal 83-52

9.00 SEK

In stock

Positioning nut-Inductive sensor QS/HYDS/S60/QSM45/50/60/70

Article no: 1029432

Position6

Quantity in drawing1

260.00 SEK

excl. VAT

In stock

Positioning nut-Inductive sensor QS/HYDS/S60/QSM45/50/60/70

Article no: 1029432

260.00 SEK

In stock

Protection Plug ECO power plug & QS sensor

Article no: 8000068

Position9

Quantity in drawing1

9.00 SEK

excl. VAT

In stock

Protection Plug ECO power plug & QS sensor

Article no: 8000068

9.00 SEK

In stock

Steering S45/S60/QSM45/50/60/QS45/50/60

Article no: 1025621

Position24

Quantity in drawing2

460.00 SEK

excl. VAT

In stock

Steering S45/S60/QSM45/50/60/QS45/50/60

Article no: 1025621

Loxeal 83-52

460.00 SEK

In stock

Screw-Set Screw P6SS 5x4 A2 ISO4026

Article no: 610816

Position42

Quantity in drawing2

8.00 SEK

excl. VAT

In stock

Screw-Set Screw P6SS 5x4 A2 ISO4026

Article no: 610816

8.00 SEK

In stock

Spacer QS45-QS60

Article no: 1025462

Position44

Quantity in drawing2

200.00 SEK

excl. VAT

In stock

Spacer QS45-QS60

Article no: 1025462

200.00 SEK

In stock

Spring S45/S60/QS45/50/60 locking hook-long (25x305)

Article no: 1024021

Position23

Quantity in drawing2

890.00 SEK

excl. VAT

In stock

Spring S45/S60/QS45/50/60 locking hook-long (25x305)

Article no: 1024021

890.00 SEK

In stock

Inductive sensor M12 DTM04-3P - hook quick hitch

Article no: 1029068

Position37

Quantity in drawing1

2,600.00 SEK

excl. VAT

In stock

Inductive sensor M12 DTM04-3P - hook quick hitch

Article no: 1029068

Replaced 2018

2,600.00 SEK

In stock

Inductive sensor M12 DTM04-3P - hook QSC - 645mm

Article no: 1040358

Position1

Quantity in drawing1

2,600.00 SEK

excl. VAT

In stock

Inductive sensor M12 DTM04-3P - hook QSC - 645mm

Article no: 1040358

Mount just below surface edge

2,600.00 SEK

In stock

Indicator pin S40S/QS/QSM/S/HYDS 605mm

Article no: 1036201

Position27

Quantity in drawing1

180.00 SEK

excl. VAT

In stock

Indicator pin S40S/QS/QSM/S/HYDS 605mm

Article no: 1036201

Cut to fit

180.00 SEK

In stock
