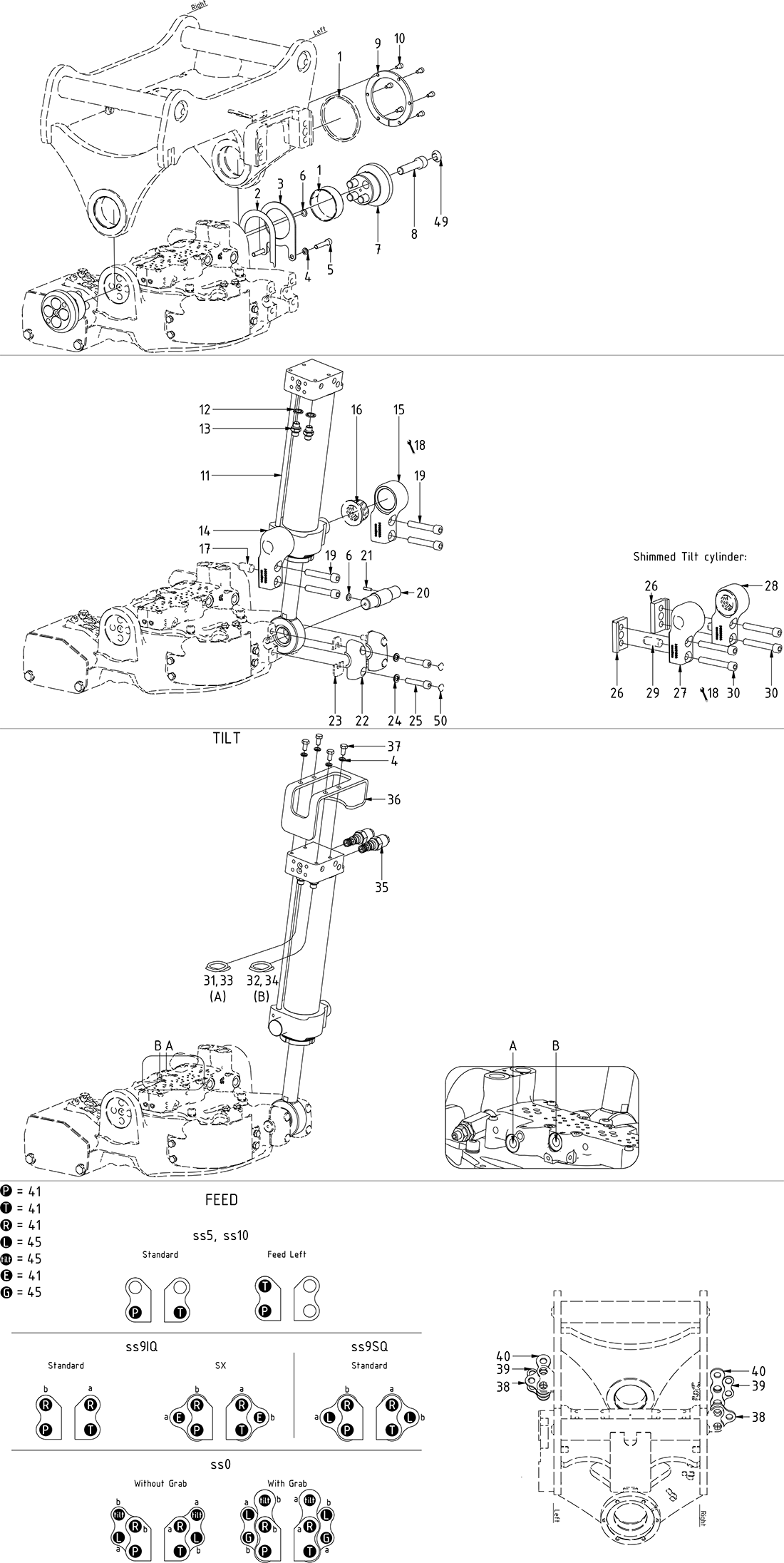

Std. Top components

Pos

Article

Extra Info

Quantity in drawing

Price (excl. VAT)

Hose

Article no: 7000324

Position33

Quantity in drawing1

760.00 SEK

excl. VAT

Out of stock

Hose

Article no: 7000324

Connect to terminal

760.00 SEK

Out of stock

Hose Tilt Short - EC206

Article no: 742911

Position32

Quantity in drawing1

700.00 SEK

excl. VAT

Out of stock

Hose Tilt Short - EC206

Article no: 742911

Connect to valve block B

700.00 SEK

Out of stock

Yoke Bracket EC206 rear complete cast wide

Article no: 1040380

Position28

Quantity in drawing1

1,870.00 SEK

excl. VAT

Out of stock

Yoke Bracket EC206 rear complete cast wide

Article no: 1040380

(POS.16, 29 included)

1,870.00 SEK

Out of stock

Hose

Article no: 7000325

Position34

Quantity in drawing1

680.00 SEK

excl. VAT

Out of stock

Hose

Article no: 7000325

Connect to terminal

680.00 SEK

Out of stock

Cylindrical pin CPK Ø16x45 m6

Article no: 650218

Position29

Quantity in drawing2

80.00 SEK

excl. VAT

In stock

Cylindrical pin CPK Ø16x45 m6

Article no: 650218

80.00 SEK

In stock

Hose bracket expansion (3x3/8")

Article no: 1011565

Position38

Quantity in drawing2

250.00 SEK

excl. VAT

Out of stock

Hose bracket expansion (3x3/8")

Article no: 1011565

For ss9

250.00 SEK

Out of stock

Hose bracket EC206-sheet metal for 2 locking hose-fixed

Article no: 1026096

Position39

Quantity in drawing2

230.00 SEK

excl. VAT

In stock

Hose bracket EC206-sheet metal for 2 locking hose-fixed

Article no: 1026096

For ss0

230.00 SEK

In stock

Hose bracket EC05B/EC206-straight Plate for locking hose

Article no: 1011454

Position40

Quantity in drawing2

310.00 SEK

excl. VAT

Few in stock (1)

Hose bracket EC05B/EC206-straight Plate for locking hose

Article no: 1011454

For ss0 with Grab

310.00 SEK

Few in stock (1)

Hose Tilt Long - EC206

Article no: 742912

Position31

Quantity in drawing1

720.00 SEK

excl. VAT

Out of stock

Hose Tilt Long - EC206

Article no: 742912

Connect to valve block A

720.00 SEK

Out of stock

Cylindrical pin CPK Ø16x36 m6

Article no: 650215

Position17

Quantity in drawing2

67.00 SEK

excl. VAT

In stock

Cylindrical pin CPK Ø16x36 m6

Article no: 650215

67.00 SEK

In stock

Yoke Bracket EC206/206B front complete cast

Article no: 1023824

Position14

Quantity in drawing2

1,900.00 SEK

excl. VAT

In stock

Yoke Bracket EC206/206B front complete cast

Article no: 1023824

(POS.16-17 included)

1,900.00 SEK

In stock

Yoke Bracket EC206/206B rear complete cast

Article no: 1023823

Position15

Quantity in drawing2

1,900.00 SEK

excl. VAT

In stock

Yoke Bracket EC206/206B rear complete cast

Article no: 1023823

(POS.16-17 included)

1,900.00 SEK

In stock

Screw MC6S 16x65 12.9 ZFSHL

Article no: 6000170

Position8

Quantity in drawing8

63.00 SEK

excl. VAT

In stock

Screw MC6S 16x65 12.9 ZFSHL

Article no: 6000170

Torque: 333Nm

63.00 SEK

In stock

Screw MC6S 6x12H 12.9 ZFSHL ISO4762

Article no: 6000352

Position10

Quantity in drawing6

9.00 SEK

excl. VAT

In stock

Screw MC6S 6x12H 12.9 ZFSHL ISO4762

Article no: 6000352

9.00 SEK

In stock

Protection Plate tilt axle EC106/EC206/EC209

Article no: 1064716

Position9

Quantity in drawing1

210.00 SEK

excl. VAT

Few in stock (5)

Protection Plate tilt axle EC106/EC206/EC209

Article no: 1064716

210.00 SEK

Few in stock (5)

Tilt axial washer EC206, EC206B, EC209, EC209B

Article no: 1016461

Position3

Quantity in drawing1

760.00 SEK

excl. VAT

In stock

Tilt axial washer EC206, EC206B, EC209, EC209B

Article no: 1016461

760.00 SEK

In stock

Screw M6S 8x16 8.8 FZB ISO4017

Article no: 610122

Position37

Quantity in drawing4

9.00 SEK

excl. VAT

In stock

Screw M6S 8x16 8.8 FZB ISO4017

Article no: 610122

9.00 SEK

In stock

Hose protection Tiltcyl EC05B-15B, 206-214 overcenter

Article no: 1003774

Position36

Quantity in drawing1

310.00 SEK

excl. VAT

In stock

Hose protection Tiltcyl EC05B-15B, 206-214 overcenter

Article no: 1003774

310.00 SEK

In stock

Shim yoke bracket - EC05B, EC206 - 11mm

Article no: 1006199

Position26

Quantity in drawing2

2,390.00 SEK

excl. VAT

Few in stock (1)

Shim yoke bracket - EC05B, EC206 - 11mm

Article no: 1006199

For option Shimmed Tilt cylinder

2,390.00 SEK

Few in stock (1)

Nut bulkhead adapter 1270-06

Article no: 710252

Position44

Quantity in drawing2

25.00 SEK

excl. VAT

In stock

Nut bulkhead adapter 1270-06

Article no: 710252

25.00 SEK

In stock

Nut bulkhead adapter 1270-04

Article no: 710250

Position48

Quantity in drawing2

25.00 SEK

excl. VAT

In stock

Nut bulkhead adapter 1270-04

Article no: 710250

25.00 SEK

In stock

Washer NL1/2"-DPE 13,5x19,5x2,5

Article no: 611096

Position46

Quantity in drawing2

36.00 SEK

excl. VAT

In stock

Washer NL1/2"-DPE 13,5x19,5x2,5

Article no: 611096

36.00 SEK

In stock

Washer NL16-DPE 17,0x25,4x3,7

Article no: 611044

Position42

Quantity in drawing2

52.00 SEK

excl. VAT

In stock

Washer NL16-DPE 17,0x25,4x3,7

Article no: 611044

52.00 SEK

In stock

Spacer clamping half rubber EC206,209,214

Article no: 1016465

Position23

Quantity in drawing2

21.00 SEK

excl. VAT

In stock

Spacer clamping half rubber EC206,209,214

Article no: 1016465

21.00 SEK

In stock

Screw cover M10 - clamping half EC206,209,214

Article no: 1021468

Position50

Quantity in drawing4

9.00 SEK

excl. VAT

In stock

Screw cover M10 - clamping half EC206,209,214

Article no: 1021468

Part of make up

9.00 SEK

In stock

Screw cover M16 - cast yoke & tilt axle

Article no: 1004801

Position49

Quantity in drawing8

9.00 SEK

excl. VAT

In stock

Screw cover M16 - cast yoke & tilt axle

Article no: 1004801

Part of make up

9.00 SEK

In stock

Clamping half EC206,209,214 EngconYellow complete

Article no: 1022942

Position22

Quantity in drawing2

1,330.00 SEK

excl. VAT

In stock

Clamping half EC206,209,214 EngconYellow complete

Article no: 1022942

(POS.23 included)

1,330.00 SEK

In stock

Overcenter adjustable-EC206/209/214/219W/226W/05B-15B

Article no: 730269

Position35

Quantity in drawing2

3,240.00 SEK

excl. VAT

In stock

Overcenter adjustable-EC206/209/214/219W/226W/05B-15B

Article no: 730269

Torque: 45Nm

3,240.00 SEK

In stock

Tilt axle EC206S/EC206BS/EC209S/EC209BS

Article no: 1062499

Position7

Quantity in drawing2

2,800.00 SEK

excl. VAT

In stock

Tilt axle EC206S/EC206BS/EC209S/EC209BS

Article no: 1062499

2,800.00 SEK

In stock

Adapter bulkhead 1260-04-04

Article no: 710240

Position47

Quantity in drawing2

80.00 SEK

excl. VAT

In stock

Adapter bulkhead 1260-04-04

Article no: 710240

80.00 SEK

In stock

Slotted pin RPE5x20

Article no: 640413

Position21

Quantity in drawing1

14.00 SEK

excl. VAT

In stock

Slotted pin RPE5x20

Article no: 640413

14.00 SEK

In stock

Adapter 138-04-29 ( compact 136-04-04 )

Article no: 710135

Position13

Quantity in drawing2

26.00 SEK

excl. VAT

In stock

Adapter 138-04-29 ( compact 136-04-04 )

Article no: 710135

26.00 SEK

In stock

Adapter bulkhead 1260-06-32

Article no: 710242

Position43

Quantity in drawing2

111.00 SEK

excl. VAT

In stock

Adapter bulkhead 1260-06-32

Article no: 710242

111.00 SEK

In stock

Screw MC6S 10x50 12.9 ZFSHL ISO4762

Article no: 611515

Position25

Quantity in drawing4

36.00 SEK

excl. VAT

In stock

Screw MC6S 10x50 12.9 ZFSHL ISO4762

Article no: 611515

Torque: 79Nm

36.00 SEK

In stock

O-ring 9,92x2,62 NBR 70 shore EC209/219/226 cylinder axle

Article no: 710968

Position6

Quantity in drawing3

9.00 SEK

excl. VAT

In stock

O-ring 9,92x2,62 NBR 70 shore EC209/219/226 cylinder axle

Article no: 710968

9.00 SEK

In stock

Screw MC6S 8x40 12.9 ZFSHL ISO4762

Article no: 6000145

Position5

Quantity in drawing2

19.00 SEK

excl. VAT

In stock

Screw MC6S 8x40 12.9 ZFSHL ISO4762

Article no: 6000145

19.00 SEK

In stock

Bushing tilt EC206, EC209 WB802/EB1 65/70x25

Article no: 630322

Position1

Quantity in drawing2

580.00 SEK

excl. VAT

In stock

Bushing tilt EC206, EC209 WB802/EB1 65/70x25

Article no: 630322

(Included in Top part)

580.00 SEK

In stock

Shim tilt axle - EC206, EC206B, EC209, EC209B 0,5mm

Article no: 1016499

Position2

Quantity in drawing1

103.00 SEK

excl. VAT

In stock

Shim tilt axle - EC206, EC206B, EC209, EC209B 0,5mm

Article no: 1016499

Use if required

103.00 SEK

In stock

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Position4

Quantity in drawing6

19.00 SEK

excl. VAT

In stock

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

QTY: 4 part of Tilt cylinder

19.00 SEK

In stock

Screw MC6S 12x80 12.9 ZFSHL ISO4762

Article no: 6000148

Position30

Quantity in drawing4

21.00 SEK

excl. VAT

In stock

Screw MC6S 12x80 12.9 ZFSHL ISO4762

Article no: 6000148

Torque: 136Nm

21.00 SEK

In stock

Screw MC6S 12x70 12.9 ZFSHL ISO4762

Article no: 611517

Position19

Quantity in drawing4

39.00 SEK

excl. VAT

In stock

Screw MC6S 12x70 12.9 ZFSHL ISO4762

Article no: 611517

Torque: 136Nm

39.00 SEK

In stock

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Position24

Quantity in drawing4

20.00 SEK

excl. VAT

In stock

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

20.00 SEK

In stock

Bushing BWG-F 35/45/55/5x30

Article no: 631003

Position16

Quantity in drawing2

740.00 SEK

excl. VAT

In stock

Bushing BWG-F 35/45/55/5x30

Article no: 631003

740.00 SEK

In stock

Tilt cylinder EC206, EC206B

Article no: 1066135

Position11

Quantity in drawing1

18,700.00 SEK

excl. VAT

In stock

Tilt cylinder EC206, EC206B

Article no: 1066135

See "Tilt cylinders"

18,700.00 SEK

In stock

Cylinder axle EC206, EC206B, EC209, EC209B, EC214

Article no: 1016458

Position20

Quantity in drawing1

1,730.00 SEK

excl. VAT

In stock

Cylinder axle EC206, EC206B, EC209, EC209B, EC214

Article no: 1016458

1,730.00 SEK

In stock

Seal washer GBR04 1/4"

Article no: 710702

Position12

Quantity in drawing2

9.00 SEK

excl. VAT

In stock

Seal washer GBR04 1/4"

Article no: 710702

9.00 SEK

In stock
