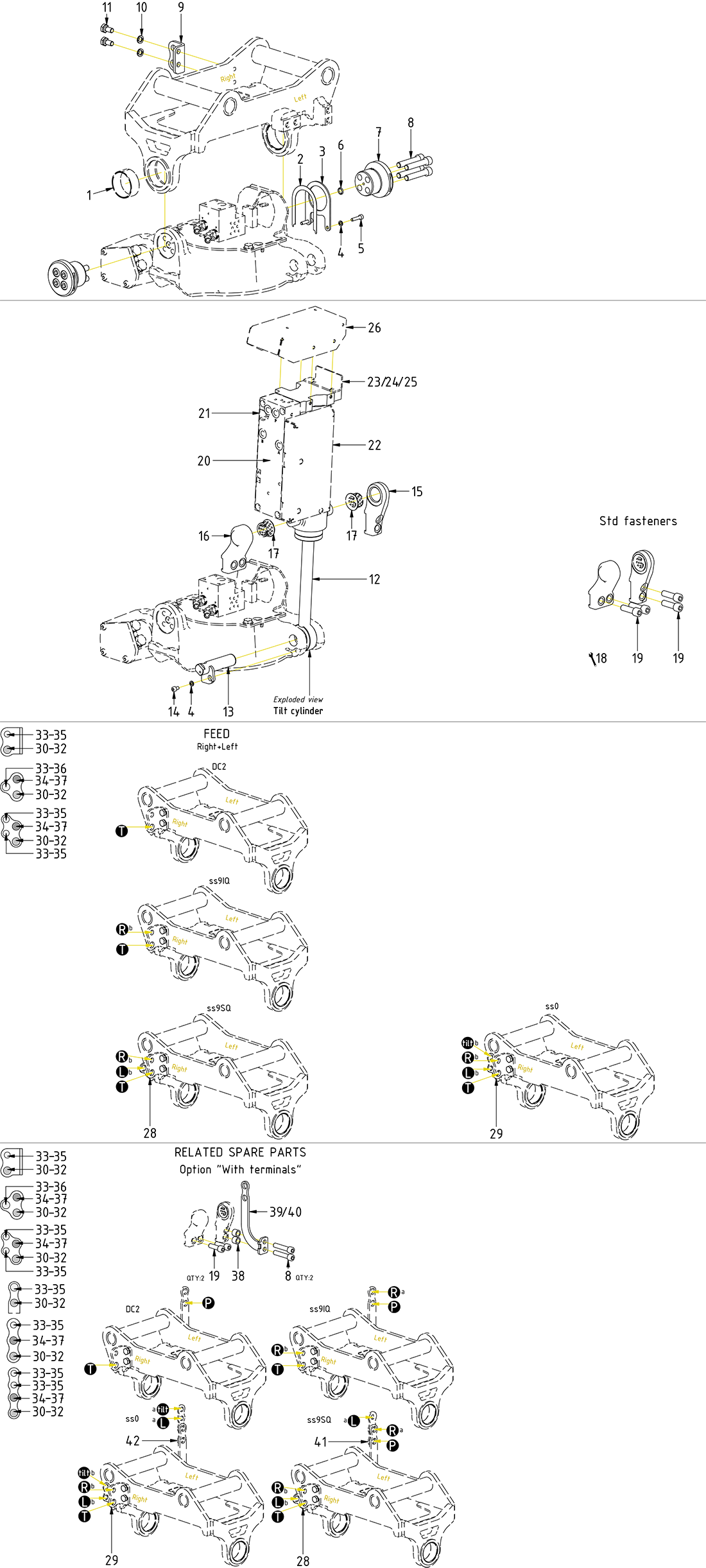

Std. Top components

Pos

Article

Extra Info

Quantity in drawing

Price (excl. VAT)

Tilt axial washer EC204/EC204B

Article no: 1027785

Position3

Quantity in drawing1

910.00 SEK

excl. VAT

Few in stock (5)

Tilt axial washer EC204/EC204B

Article no: 1027785

910.00 SEK

Few in stock (5)

Hose bracket EC204-tilt cylinder-ss9/ss0 R/L

Article no: 1043991

Position25

Quantity in drawing1

270.00 SEK

excl. VAT

In stock

Hose bracket EC204-tilt cylinder-ss9/ss0 R/L

Article no: 1043991

Part of control system

270.00 SEK

In stock

Hose bracket EC206-sheet metal for 2 locking hose-fixed

Article no: 1026096

Position29

Quantity in drawing1

230.00 SEK

excl. VAT

In stock

Hose bracket EC206-sheet metal for 2 locking hose-fixed

Article no: 1026096

For ss0

230.00 SEK

In stock

Hose bracket S40- top part EC204/EC204B left

Article no: 1053732

Position40

Quantity in drawing1

720.00 SEK

excl. VAT

Few in stock (2)

Hose bracket S40- top part EC204/EC204B left

Article no: 1053732

720.00 SEK

Few in stock (2)

Hose bracket expansion (3x3/8")

Article no: 1011565

Position28

Quantity in drawing1

250.00 SEK

excl. VAT

Out of stock

Hose bracket expansion (3x3/8")

Article no: 1011565

For ss9SQ

250.00 SEK

Out of stock

Spacer 15mm Hose Bracket left EC204/EC204B

Article no: 1009999

Position38

Quantity in drawing2

149.00 SEK

excl. VAT

In stock

Spacer 15mm Hose Bracket left EC204/EC204B

Article no: 1009999

149.00 SEK

In stock

Hose bracket EC02B,EC204,EC204B-tilt cylinder-ss9/ss0

Article no: 1033484

Position24

Quantity in drawing1

290.00 SEK

excl. VAT

Out of stock

Hose bracket EC02B,EC204,EC204B-tilt cylinder-ss9/ss0

Article no: 1033484

Part of control system

290.00 SEK

Out of stock

Cover plate EC02B/EC204-tilt cylinder-DC2/ss10/ss5

Article no: 1029826

Position23

Quantity in drawing1

500.00 SEK

excl. VAT

Few in stock (1)

Cover plate EC02B/EC204-tilt cylinder-DC2/ss10/ss5

Article no: 1029826

Part of control system

500.00 SEK

Few in stock (1)

Hose bracket EC05B/EC206-straight Plate for locking hose

Article no: 1011454

Position41

Quantity in drawing1

310.00 SEK

excl. VAT

Few in stock (1)

Hose bracket EC05B/EC206-straight Plate for locking hose

Article no: 1011454

For ss9SQ

310.00 SEK

Few in stock (1)

Hose bracket EC204/EC206-straight Plate 2x locking hose

Article no: 1055284

Position42

Quantity in drawing1

210.00 SEK

excl. VAT

In stock

Hose bracket EC204/EC206-straight Plate 2x locking hose

Article no: 1055284

For ss0

210.00 SEK

In stock

Valve block EC02B/EC204 tilt cylinder

Article no: 7000635

Position20

Quantity in drawing1

18,600.00 SEK

excl. VAT

In stock

Valve block EC02B/EC204 tilt cylinder

Article no: 7000635

Part of control system

18,600.00 SEK

In stock

Hose bracket UNI Top part EC204 left

Article no: 1053333

Position39

Quantity in drawing1

680.00 SEK

excl. VAT

In stock

Hose bracket UNI Top part EC204 left

Article no: 1053333

680.00 SEK

In stock

Cover plate Tilt cylinder-right-EC02B/EC204

Article no: 1029781

Position21

Quantity in drawing1

390.00 SEK

excl. VAT

In stock

Cover plate Tilt cylinder-right-EC02B/EC204

Article no: 1029781

Part of control system

390.00 SEK

In stock

Hose bracket Top part EC204/EC204B right

Article no: 1045070

Position9

Quantity in drawing1

390.00 SEK

excl. VAT

Few in stock (3)

Hose bracket Top part EC204/EC204B right

Article no: 1045070

For Feed Right+Left

390.00 SEK

Few in stock (3)

Shim tilt axle - EC204/EC204B 0,5mm

Article no: 1027820

Position2

Quantity in drawing1

156.00 SEK

excl. VAT

In stock

Shim tilt axle - EC204/EC204B 0,5mm

Article no: 1027820

Use as required

156.00 SEK

In stock

Protective cover tilt cylinder EC02B/EC204

Article no: 1029902

Position26

Quantity in drawing1

830.00 SEK

excl. VAT

In stock

Protective cover tilt cylinder EC02B/EC204

Article no: 1029902

Part of control system

830.00 SEK

In stock

Screw MC6S 6x25 12.9 untreated ISO4762

Article no: 6000083

Position5

Quantity in drawing2

9.00 SEK

excl. VAT

In stock

Screw MC6S 6x25 12.9 untreated ISO4762

Article no: 6000083

9.00 SEK

In stock

Tilt cylinder EC204

Article no: 1029849

Position12

Quantity in drawing1

16,800.00 SEK

excl. VAT

In stock

Tilt cylinder EC204

Article no: 1029849

16,800.00 SEK

In stock

Adapter bulkhead extended 1260-04-40

Article no: 710261

Position37

Quantity in drawing-

144.00 SEK

excl. VAT

In stock

Adapter bulkhead extended 1260-04-40

Article no: 710261

144.00 SEK

In stock

Yoke Bracket EC204/EC204B rear cast complete

Article no: 1036606

Position15

Quantity in drawing1

2,160.00 SEK

excl. VAT

In stock

Yoke Bracket EC204/EC204B rear cast complete

Article no: 1036606

(POS.17 incl.)

2,160.00 SEK

In stock

Screw MC6S 6x10 12.9 ZFSHL ISO4762

Article no: 611512

Position14

Quantity in drawing1

9.00 SEK

excl. VAT

In stock

Screw MC6S 6x10 12.9 ZFSHL ISO4762

Article no: 611512

9.00 SEK

In stock

Yoke Bracket EC204/EC204B forward complete

Article no: 1029052

Position16

Quantity in drawing1

2,370.00 SEK

excl. VAT

In stock

Yoke Bracket EC204/EC204B forward complete

Article no: 1029052

(POS.17 incl.)

2,370.00 SEK

In stock

Washer NL6-DPE 6,5x10,8x1,7

Article no: 611039

Position4

Quantity in drawing3

14.00 SEK

excl. VAT

In stock

Washer NL6-DPE 6,5x10,8x1,7

Article no: 611039

14.00 SEK

In stock

O-ring 12,37x2,62 NBR 70 shore EC05B hydraulic pipes/motor

Article no: 710961

Position36

Quantity in drawing-

9.00 SEK

excl. VAT

In stock

O-ring 12,37x2,62 NBR 70 shore EC05B hydraulic pipes/motor

Article no: 710961

9.00 SEK

In stock

Cover plate Tilt cylinder-left-EC02B/EC204

Article no: 1068975

Position22

Quantity in drawing1

450.00 SEK

excl. VAT

In stock

Cover plate Tilt cylinder-left-EC02B/EC204

Article no: 1068975

Part of control system

450.00 SEK

In stock

Nut bulkhead adapter 1270-06

Article no: 710252

Position32

Quantity in drawing-

25.00 SEK

excl. VAT

In stock

Nut bulkhead adapter 1270-06

Article no: 710252

25.00 SEK

In stock

Adapter bulkhead 1260-04-04

Article no: 710240

Position33

Quantity in drawing-

80.00 SEK

excl. VAT

In stock

Adapter bulkhead 1260-04-04

Article no: 710240

80.00 SEK

In stock

Nut bulkhead adapter 1270-04

Article no: 710250

Position34

Quantity in drawing-

25.00 SEK

excl. VAT

In stock

Nut bulkhead adapter 1270-04

Article no: 710250

25.00 SEK

In stock

Washer NL16-DPE 17,0x25,4x3,7

Article no: 611044

Position30

Quantity in drawing-

52.00 SEK

excl. VAT

In stock

Washer NL16-DPE 17,0x25,4x3,7

Article no: 611044

52.00 SEK

In stock

Washer NL1/2"-DPE 13,5x19,5x2,5

Article no: 611096

Position35

Quantity in drawing-

36.00 SEK

excl. VAT

In stock

Washer NL1/2"-DPE 13,5x19,5x2,5

Article no: 611096

36.00 SEK

In stock

Screw MC6S 12x40H 12.9 ZFSHL ISO4762

Article no: 6000141

Position19

Quantity in drawing4

15.00 SEK

excl. VAT

In stock

Screw MC6S 12x40H 12.9 ZFSHL ISO4762

Article no: 6000141

Torque: 136Nm

15.00 SEK

In stock

O-ring 9,92x2,62 NBR 70 shore EC209/219/226 cylinder axle

Article no: 710968

Position6

Quantity in drawing2

9.00 SEK

excl. VAT

In stock

O-ring 9,92x2,62 NBR 70 shore EC209/219/226 cylinder axle

Article no: 710968

9.00 SEK

In stock

Screw M6S 10x20 8.8 FZB ISO4017

Article no: 610141

Position11

Quantity in drawing2

9.00 SEK

excl. VAT

In stock

Screw M6S 10x20 8.8 FZB ISO4017

Article no: 610141

For Feed Right+Left

9.00 SEK

In stock

Bushing tilt EC204 WB802/EB1 55/60x25

Article no: 6000004

Position1

Quantity in drawing2

500.00 SEK

excl. VAT

In stock

Bushing tilt EC204 WB802/EB1 55/60x25

Article no: 6000004

(Incl. in Top part)

500.00 SEK

In stock

Screw MC6S 12x60 12.9 ZFSHL ISO4762

Article no: 6000140

Position8

Quantity in drawing8

23.00 SEK

excl. VAT

In stock

Screw MC6S 12x60 12.9 ZFSHL ISO4762

Article no: 6000140

Torque: 136Nm

23.00 SEK

In stock

Tilt axle EC204B

Article no: 1074348

Position7

Quantity in drawing2

730.00 SEK

excl. VAT

In stock

Tilt axle EC204B

Article no: 1074348

730.00 SEK

In stock

Adapter bulkhead 1260-06-32

Article no: 710242

Position31

Quantity in drawing-

111.00 SEK

excl. VAT

In stock

Adapter bulkhead 1260-06-32

Article no: 710242

111.00 SEK

In stock

Bushing BWG-F 25/31/38/1,5x20

Article no: 6000001

Position17

Quantity in drawing2

560.00 SEK

excl. VAT

In stock

Bushing BWG-F 25/31/38/1,5x20

Article no: 6000001

560.00 SEK

In stock

Cylinder axle EC204

Article no: 1016572

Position13

Quantity in drawing1

810.00 SEK

excl. VAT

In stock

Cylinder axle EC204

Article no: 1016572

810.00 SEK

In stock

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Position10

Quantity in drawing4

20.00 SEK

excl. VAT

In stock

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

For Feed Right+Left

20.00 SEK

In stock
