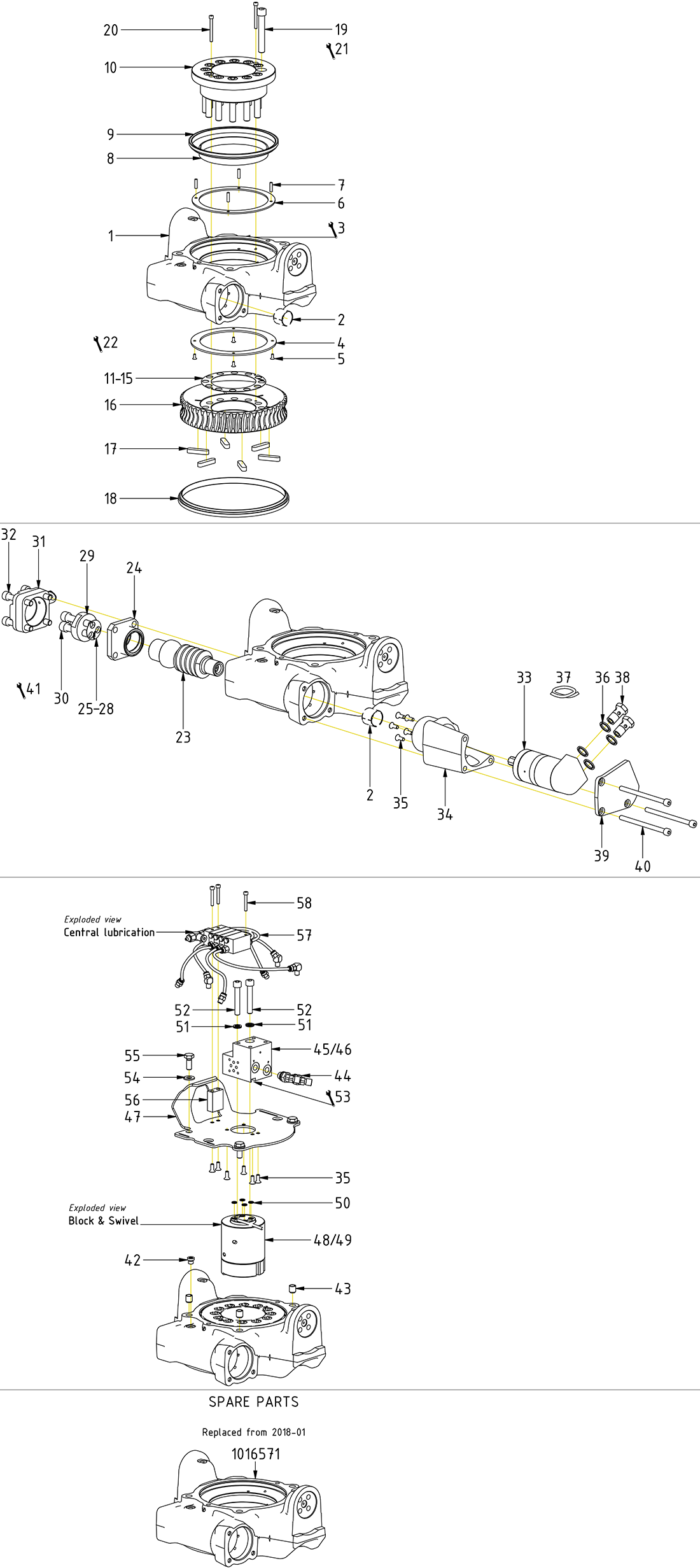

Main components

Pos

Article

Extra Info

Quantity in drawing

Price (excl. VAT)

Motor cover / Attachment yellow EC204

Article no: 1016578

Position34

Quantity in drawing1

3,570.00 SEK

excl. VAT

Few in stock (3)

Motor cover / Attachment yellow EC204

Article no: 1016578

3,570.00 SEK

Few in stock (3)

Rotator frame 204 EngconYellow complete

Article no: 1041830

Position1

Quantity in drawing1

27,300.00 SEK

excl. VAT

In stock

Rotator frame 204 EngconYellow complete

Article no: 1041830

(POS.2 incl.)

27,300.00 SEK

In stock

Washer worm screw EC02/EC204

Article no: 405234

Position29

Quantity in drawing1

960.00 SEK

excl. VAT

In stock

Washer worm screw EC02/EC204

Article no: 405234

960.00 SEK

In stock

Hose Hydraulic motor

Article no: 7000107

Position37

Quantity in drawing2

780.00 SEK

excl. VAT

Out of stock

Hose Hydraulic motor

Article no: 7000107

780.00 SEK

Out of stock

Centre ring EC204

Article no: 1016565

Position10

Quantity in drawing1

5,070.00 SEK

excl. VAT

Few in stock (5)

Centre ring EC204

Article no: 1016565

5,070.00 SEK

Few in stock (5)

Valve block EC204

Article no: 1027945

Position45

Quantity in drawing1

4,500.00 SEK

excl. VAT

In stock

Valve block EC204

Article no: 1027945

Part of control system

4,500.00 SEK

In stock

Attachment greasedistributor BEKA EC204

Article no: 1031608

Position56

Quantity in drawing1

890.00 SEK

excl. VAT

In stock

Attachment greasedistributor BEKA EC204

Article no: 1031608

890.00 SEK

In stock

Motor cover / cover EC204

Article no: 1016579

Position39

Quantity in drawing1

760.00 SEK

excl. VAT

In stock

Motor cover / cover EC204

Article no: 1016579

760.00 SEK

In stock

Valve plate -EC204 V2

Article no: 1031620

Position47

Quantity in drawing1

1,330.00 SEK

excl. VAT

In stock

Valve plate -EC204 V2

Article no: 1031620

Part of control system

1,330.00 SEK

In stock

End lock EC204

Article no: 1027476

Position31

Quantity in drawing1

2,240.00 SEK

excl. VAT

In stock

End lock EC204

Article no: 1027476

2,240.00 SEK

In stock

Worm screw EC02/EC204

Article no: 202898

Position23

Quantity in drawing1

8,080.00 SEK

excl. VAT

Few in stock (4)

Worm screw EC02/EC204

Article no: 202898

8,080.00 SEK

Few in stock (4)

Screw MF6S 4x10 10.9 untreated ISO10642

Article no: 610605

Position5

Quantity in drawing4

9.00 SEK

excl. VAT

In stock

Screw MF6S 4x10 10.9 untreated ISO10642

Article no: 610605

9.00 SEK

In stock

Bushing WB700/EB4 28/31x25

Article no: 630004

Position2

Quantity in drawing1

109.00 SEK

excl. VAT

In stock

Bushing WB700/EB4 28/31x25

Article no: 630004

109.00 SEK

In stock

Wear washer EC204

Article no: 1027496

Position4

Quantity in drawing1

2,580.00 SEK

excl. VAT

In stock

Wear washer EC204

Article no: 1027496

2,580.00 SEK

In stock

Shim worm screw - EC02/EC204 - 0,7mm

Article no: 405220

Position27

Quantity in drawing1

57.00 SEK

excl. VAT

In stock

Shim worm screw - EC02/EC204 - 0,7mm

Article no: 405220

Use as required

57.00 SEK

In stock

Guide belt EC204

Article no: 712426

Position8

Quantity in drawing1

350.00 SEK

excl. VAT

In stock

Guide belt EC204

Article no: 712426

350.00 SEK

In stock

Slotted pin 5x20 S5 Brass V2

Article no: 6000441

Position7

Quantity in drawing4

21.00 SEK

excl. VAT

In stock

Slotted pin 5x20 S5 Brass V2

Article no: 6000441

Must not exceed Wear ring surface

21.00 SEK

In stock

Feather key 10x8x45 C45 EC10, EC02, EC209 550475

Article no: 650101

Position17

Quantity in drawing6

26.00 SEK

excl. VAT

In stock

Feather key 10x8x45 C45 EC10, EC02, EC209 550475

Article no: 650101

26.00 SEK

In stock

Swivel EC204 with connection block complete

Article no: 1028504

Position49

Quantity in drawing1

12,700.00 SEK

excl. VAT

In stock

Swivel EC204 with connection block complete

Article no: 1028504

Part of control system

12,700.00 SEK

In stock

Spring rod 13x14 ISO13337

Article no: 640414

Position43

Quantity in drawing3

76.00 SEK

excl. VAT

In stock

Spring rod 13x14 ISO13337

Article no: 640414

76.00 SEK

In stock

Shim worm screw - EC02/EC204 - 0,8mm

Article no: 405217

Position28

Quantity in drawing1

57.00 SEK

excl. VAT

In stock

Shim worm screw - EC02/EC204 - 0,8mm

Article no: 405217

Use as required

57.00 SEK

In stock

Wear ring EC204

Article no: 1027495

Position6

Quantity in drawing1

1,790.00 SEK

excl. VAT

In stock

Wear ring EC204

Article no: 1027495

1,790.00 SEK

In stock

Shim worm screw - EC02/EC204 - 0,5mm

Article no: 405218

Position25

Quantity in drawing1

57.00 SEK

excl. VAT

In stock

Shim worm screw - EC02/EC204 - 0,5mm

Article no: 405218

Use as required

57.00 SEK

In stock

Shim centre ring - EC204 - 0,7mm

Article no: 1031298

Position13

Quantity in drawing1

125.00 SEK

excl. VAT

In stock

Shim centre ring - EC204 - 0,7mm

Article no: 1031298

Use as required

125.00 SEK

In stock

Shim centre ring - EC204 - 0,6mm

Article no: 1031297

Position12

Quantity in drawing1

116.00 SEK

excl. VAT

In stock

Shim centre ring - EC204 - 0,6mm

Article no: 1031297

Use as required

116.00 SEK

In stock

Screw MC6S 10x60 12.9 ZFSHL ISO4762

Article no: 611503

Position32

Quantity in drawing4

35.00 SEK

excl. VAT

In stock

Screw MC6S 10x60 12.9 ZFSHL ISO4762

Article no: 611503

Torque: 79Nm

35.00 SEK

In stock

Screw bushing EC204

Article no: 1027319

Position24

Quantity in drawing1

1,530.00 SEK

excl. VAT

In stock

Screw bushing EC204

Article no: 1027319

1,530.00 SEK

In stock

Shim centre ring - EC204 - 0,5mm

Article no: 1031296

Position11

Quantity in drawing1

210.00 SEK

excl. VAT

In stock

Shim centre ring - EC204 - 0,5mm

Article no: 1031296

Use as required

210.00 SEK

In stock

Shim worm screw - EC02/EC204 - 0,6mm

Article no: 405219

Position26

Quantity in drawing1

140.00 SEK

excl. VAT

In stock

Shim worm screw - EC02/EC204 - 0,6mm

Article no: 405219

Use as required

140.00 SEK

In stock

Worm wheel EC204

Article no: 1016564

Position16

Quantity in drawing1

15,100.00 SEK

excl. VAT

Few in stock (5)

Worm wheel EC204

Article no: 1016564

15,100.00 SEK

Few in stock (5)

Swivel EC204-QS40 complete with slip ring

Article no: 1062975

Position48

Quantity in drawing1

18,200.00 SEK

excl. VAT

In stock

Swivel EC204-QS40 complete with slip ring

Article no: 1062975

Part of control system

18,200.00 SEK

In stock

Hydraulic motor Charlynn 50cc J-motor - EC02/EC204/EC204B

Article no: 720119

Position33

Quantity in drawing1

9,540.00 SEK

excl. VAT

In stock

Hydraulic motor Charlynn 50cc J-motor - EC02/EC204/EC204B

Article no: 720119

9,540.00 SEK

In stock

Shim centre ring - EC204 - 0,8mm

Article no: 1031299

Position14

Quantity in drawing1

183.00 SEK

excl. VAT

In stock

Shim centre ring - EC204 - 0,8mm

Article no: 1031299

Use as required

183.00 SEK

In stock

Plug VSTIR18ED 1/8"

Article no: 711503

Position42

Quantity in drawing3

56.00 SEK

excl. VAT

In stock

Plug VSTIR18ED 1/8"

Article no: 711503

56.00 SEK

In stock

Screw MC6S 10x60 12.9 untreated ISO4762

Article no: 610460

Position52

Quantity in drawing2

25.00 SEK

excl. VAT

In stock

Screw MC6S 10x60 12.9 untreated ISO4762

Article no: 610460

25.00 SEK

In stock

Screw M6S 10x25 8.8 FZB ISO4017

Article no: 610142

Position55

Quantity in drawing3

9.00 SEK

excl. VAT

In stock

Screw M6S 10x25 8.8 FZB ISO4017

Article no: 610142

Torque: 47Nm

9.00 SEK

In stock

Shim centre ring - EC204 - 1,0mm

Article no: 1031300

Position15

Quantity in drawing1

190.00 SEK

excl. VAT

In stock

Shim centre ring - EC204 - 1,0mm

Article no: 1031300

Use as required

190.00 SEK

In stock

Screw MC6S 8x120 12.9 ZFSHL ISO4762

Article no: 6000139

Position40

Quantity in drawing3

47.00 SEK

excl. VAT

In stock

Screw MC6S 8x120 12.9 ZFSHL ISO4762

Article no: 6000139

Torque: 40Nm

47.00 SEK

In stock

Wiper seal Quick hitch EC204

Article no: 712428

Position18

Quantity in drawing1

580.00 SEK

excl. VAT

In stock

Wiper seal Quick hitch EC204

Article no: 712428

580.00 SEK

In stock

Wiper seal centre ring EC204

Article no: 712427

Position9

Quantity in drawing1

360.00 SEK

excl. VAT

In stock

Wiper seal centre ring EC204

Article no: 712427

360.00 SEK

In stock

Banjo bolt 4451-06

Article no: 710272

Position38

Quantity in drawing2

56.00 SEK

excl. VAT

In stock

Banjo bolt 4451-06

Article no: 710272

56.00 SEK

In stock

Washer BRB FZB 10,5x22x2 ISO7089

Article no: 611006

Position54

Quantity in drawing3

9.00 SEK

excl. VAT

In stock

Washer BRB FZB 10,5x22x2 ISO7089

Article no: 611006

9.00 SEK

In stock

Screw MC6S 12x60 12.9 ZFSHL ISO4762

Article no: 6000140

Position30

Quantity in drawing3

23.00 SEK

excl. VAT

In stock

Screw MC6S 12x60 12.9 ZFSHL ISO4762

Article no: 6000140

Torque: 136Nm

23.00 SEK

In stock

Adapter 402-04-04 45°

Article no: 7000104

Position44

Quantity in drawing2

198.00 SEK

excl. VAT

In stock

Adapter 402-04-04 45°

Article no: 7000104

Assemble before valve block

198.00 SEK

In stock

O-ring 7,65x1,78 FKM 90 shore Viton NG4

Article no: 710960

Position50

Quantity in drawing8

9.00 SEK

excl. VAT

In stock

O-ring 7,65x1,78 FKM 90 shore Viton NG4

Article no: 710960

9.00 SEK

In stock

Screw MC6S 5x50 12.9 untreated ISO4762

Article no: 610407

Position20

Quantity in drawing2

9.00 SEK

excl. VAT

In stock

Screw MC6S 5x50 12.9 untreated ISO4762

Article no: 610407

9.00 SEK

In stock

Screw MC6S 5x35 12.9 untreated ISO4762

Article no: 610404

Position57

Quantity in drawing3

9.00 SEK

excl. VAT

In stock

Screw MC6S 5x35 12.9 untreated ISO4762

Article no: 610404

9.00 SEK

In stock

Screw MC6S 12x80 12.9 ZFSHL ISO4762

Article no: 6000148

Position19

Quantity in drawing12

21.00 SEK

excl. VAT

In stock

Screw MC6S 12x80 12.9 ZFSHL ISO4762

Article no: 6000148

Torque: 136Nm

21.00 SEK

In stock

Seal washer GBR06 3/8"

Article no: 710703

Position36

Quantity in drawing4

9.00 SEK

excl. VAT

In stock

Seal washer GBR06 3/8"

Article no: 710703

9.00 SEK

In stock

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Position51

Quantity in drawing2

20.00 SEK

excl. VAT

In stock

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

20.00 SEK

In stock

Screw MF6S 6x16 10.9 untreated ISO10642

Article no: 610604

Position35

Quantity in drawing14

9.00 SEK

excl. VAT

In stock

Screw MF6S 6x16 10.9 untreated ISO10642

Article no: 610604

Torque: 14Nm. Loxeal 55-02

9.00 SEK

In stock
