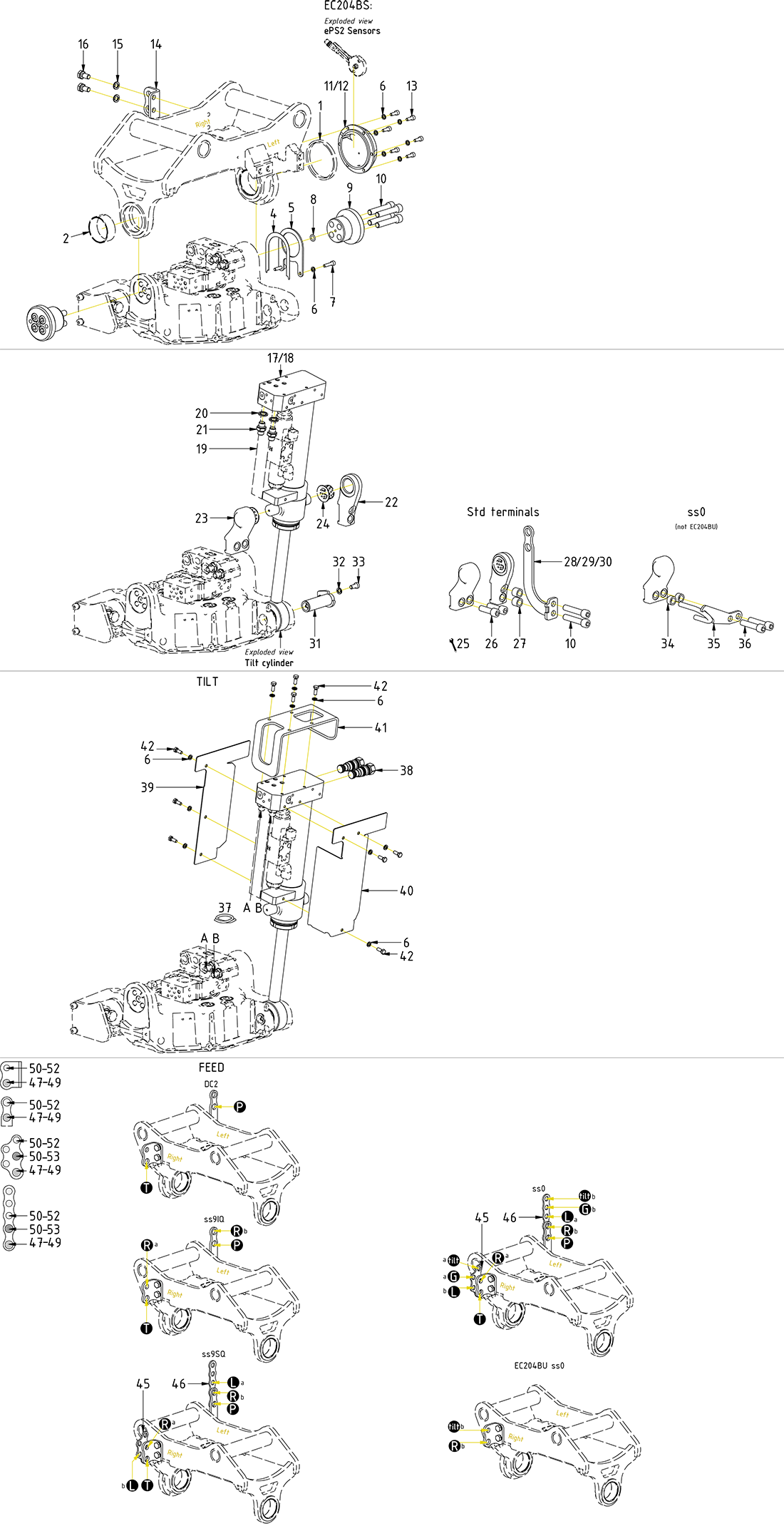

Std. Top components

Pos

Article

Extra Info

Quantity in drawing

Price (excl. VAT)

Hose bracket S40- top part EC204/EC204B left

Article no: 1053732

Position25

Quantity in drawing1

720.00 SEK

excl. VAT

Few in stock (2)

Hose bracket S40- top part EC204/EC204B left

Article no: 1053732

720.00 SEK

Few in stock (2)

Tilt axial washer EC204/EC204B

Article no: 1027785

Position4

Quantity in drawing1

910.00 SEK

excl. VAT

Few in stock (5)

Tilt axial washer EC204/EC204B

Article no: 1027785

910.00 SEK

Few in stock (5)

Cover Tilt Axle EC204BS

Article no: 1074349

Position10

Quantity in drawing1

2,080.00 SEK

excl. VAT

Out of stock

Cover Tilt Axle EC204BS

Article no: 1074349

2,080.00 SEK

Out of stock

Hose

Article no: 7001990

Position34

Quantity in drawing2

460.00 SEK

excl. VAT

Out of stock

Hose

Article no: 7001990

For DC3, DC2, ss10 (SVAB), ss9

460.00 SEK

Out of stock

Protective cover tilt cylinder EC204B

Article no: 1075507

Position39

Quantity in drawing1

240.00 SEK

excl. VAT

Out of stock

Protective cover tilt cylinder EC204B

Article no: 1075507

240.00 SEK

Out of stock

Hose guide EC204B

Article no: 1078845

Position32

Quantity in drawing1

270.00 SEK

excl. VAT

Out of stock

Hose guide EC204B

Article no: 1078845

270.00 SEK

Out of stock

Hose bracket EC204B-straight Plate for 3x hose

Article no: 1079464

Position44

Quantity in drawing1

91.00 SEK

excl. VAT

Out of stock

Hose bracket EC204B-straight Plate for 3x hose

Article no: 1079464

91.00 SEK

Out of stock

Tilt cylinder EC204B

Article no: 1077744

Position15

Quantity in drawing1

15,400.00 SEK

excl. VAT

In stock

Tilt cylinder EC204B

Article no: 1077744

15,400.00 SEK

In stock

Spacer 10mm

Article no: 1071704

Position31

Quantity in drawing2

Spacer 10mm

Article no: 1071704

Cover plate Tilt cylinder-right-EC204B

Article no: 1076686

Position36

Quantity in drawing1

187.00 SEK

excl. VAT

Out of stock

Cover plate Tilt cylinder-right-EC204B

Article no: 1076686

187.00 SEK

Out of stock

Hose bracket CW05- top part EC204B left

Article no: 1079664

Position27

Quantity in drawing1

250.00 SEK

excl. VAT

Out of stock

Hose bracket CW05- top part EC204B left

Article no: 1079664

250.00 SEK

Out of stock

Seal PAK 80x90x7-L

Article no: 1076113

Position1

Quantity in drawing1

197.00 SEK

excl. VAT

In stock

Seal PAK 80x90x7-L

Article no: 1076113

Face groove toward top part (Incl. in Top part)

197.00 SEK

In stock

Spacer 15mm Hose Bracket left EC204/EC204B

Article no: 1009999

Position24

Quantity in drawing2

149.00 SEK

excl. VAT

In stock

Spacer 15mm Hose Bracket left EC204/EC204B

Article no: 1009999

149.00 SEK

In stock

Hose bracket UNI top part EC204B left

Article no: 1079699

Position26

Quantity in drawing1

320.00 SEK

excl. VAT

Out of stock

Hose bracket UNI top part EC204B left

Article no: 1079699

320.00 SEK

Out of stock

Hose bracket Top part EC204/EC204B right

Article no: 1045070

Position12

Quantity in drawing1

390.00 SEK

excl. VAT

Few in stock (3)

Hose bracket Top part EC204/EC204B right

Article no: 1045070

Without EC-Oil

390.00 SEK

Few in stock (3)

Valve block EC204B tilt cylinder

Article no: 1075504

Position16

Quantity in drawing1

3,720.00 SEK

excl. VAT

Out of stock

Valve block EC204B tilt cylinder

Article no: 1075504

Part of control system

3,720.00 SEK

Out of stock

Hose bracket EC204B-sheet metal for 3x hose-fixed

Article no: 1079468

Position43

Quantity in drawing1

182.00 SEK

excl. VAT

Out of stock

Hose bracket EC204B-sheet metal for 3x hose-fixed

Article no: 1079468

182.00 SEK

Out of stock

Screw MC6S 6x25 12.9 untreated ISO4762

Article no: 6000083

Position6

Quantity in drawing2

9.00 SEK

excl. VAT

In stock

Screw MC6S 6x25 12.9 untreated ISO4762

Article no: 6000083

9.00 SEK

In stock

Yoke Bracket EC204/EC204B forward complete

Article no: 1029052

Position20

Quantity in drawing1

2,370.00 SEK

excl. VAT

In stock

Yoke Bracket EC204/EC204B forward complete

Article no: 1029052

(POS.21 incl.)

2,370.00 SEK

In stock

Yoke Bracket EC204/EC204B rear cast complete

Article no: 1036606

Position19

Quantity in drawing1

2,160.00 SEK

excl. VAT

In stock

Yoke Bracket EC204/EC204B rear cast complete

Article no: 1036606

(POS.21 incl.)

2,160.00 SEK

In stock

Shim tilt axle - EC204/EC204B 0,5mm

Article no: 1027820

Position3

Quantity in drawing1

156.00 SEK

excl. VAT

In stock

Shim tilt axle - EC204/EC204B 0,5mm

Article no: 1027820

Use as required

156.00 SEK

In stock

Screw MC6S 6x16 12.9 ZFSHL ISO4762

Article no: 6000017

Position11

Quantity in drawing8

9.00 SEK

excl. VAT

In stock

Screw MC6S 6x16 12.9 ZFSHL ISO4762

Article no: 6000017

9.00 SEK

In stock

Washer NL6-DPE 6,5x10,8x1,7

Article no: 611039

Position5

Quantity in drawing18

14.00 SEK

excl. VAT

In stock

Washer NL6-DPE 6,5x10,8x1,7

Article no: 611039

QTY: 8 for EC204BU

14.00 SEK

In stock

Screw K6S 6x14 10.9 FZB ISO7380

Article no: 6000242

Position38

Quantity in drawing6

9.00 SEK

excl. VAT

In stock

Screw K6S 6x14 10.9 FZB ISO7380

Article no: 6000242

Loxeal 55-02

9.00 SEK

In stock

Adapter bulkhead extended 1260-04-40

Article no: 710261

Position48

Quantity in drawing2

144.00 SEK

excl. VAT

In stock

Adapter bulkhead extended 1260-04-40

Article no: 710261

QTY depends on config.

144.00 SEK

In stock

Cover plate Tilt cylinder-leftEC204B

Article no: 1076687

Position37

Quantity in drawing1

220.00 SEK

excl. VAT

Out of stock

Cover plate Tilt cylinder-leftEC204B

Article no: 1076687

220.00 SEK

Out of stock

Overcenter adjustable (overcenter) EC02/EC204/EC204B

Article no: 7000647

Position35

Quantity in drawing2

2,580.00 SEK

excl. VAT

Few in stock (5)

Overcenter adjustable (overcenter) EC02/EC204/EC204B

Article no: 7000647

Torque: 45Nm

2,580.00 SEK

Few in stock (5)

Adapter bulkhead extended 1260-06-43

Article no: 710262

Position46

Quantity in drawing2

210.00 SEK

excl. VAT

In stock

Adapter bulkhead extended 1260-06-43

Article no: 710262

210.00 SEK

In stock

O-ring 12,37x2,62 NBR 70 shore EC05B hydraulic pipes/motor

Article no: 710961

Position51

Quantity in drawing2

9.00 SEK

excl. VAT

In stock

O-ring 12,37x2,62 NBR 70 shore EC05B hydraulic pipes/motor

Article no: 710961

9.00 SEK

In stock

Screw MC6S 12x55 12.9 ZFSHL ISO4762

Article no: 6000155

Position33

Quantity in drawing2

21.00 SEK

excl. VAT

In stock

Screw MC6S 12x55 12.9 ZFSHL ISO4762

Article no: 6000155

Torque: 136Nm

21.00 SEK

In stock

Screw M6S 6x16 10.9 FZB

Article no: 610109

Position40

Quantity in drawing4

7.00 SEK

excl. VAT

In stock

Screw M6S 6x16 10.9 FZB

Article no: 610109

Loxeal 55-02

7.00 SEK

In stock

Nut bulkhead adapter 1270-06

Article no: 710252

Position47

Quantity in drawing2

25.00 SEK

excl. VAT

In stock

Nut bulkhead adapter 1270-06

Article no: 710252

25.00 SEK

In stock

Nut bulkhead adapter 1270-04

Article no: 710250

Position49

Quantity in drawing2

25.00 SEK

excl. VAT

In stock

Nut bulkhead adapter 1270-04

Article no: 710250

QTY depends on config.

25.00 SEK

In stock

Washer NL1/2"-DPE 13,5x19,5x2,5

Article no: 611096

Position50

Quantity in drawing2

36.00 SEK

excl. VAT

In stock

Washer NL1/2"-DPE 13,5x19,5x2,5

Article no: 611096

QTY depends on config.

36.00 SEK

In stock

Washer NL16-DPE 17,0x25,4x3,7

Article no: 611044

Position45

Quantity in drawing2

52.00 SEK

excl. VAT

In stock

Washer NL16-DPE 17,0x25,4x3,7

Article no: 611044

52.00 SEK

In stock

Screw MC6S 12x40H 12.9 ZFSHL ISO4762

Article no: 6000141

Position23

Quantity in drawing2

15.00 SEK

excl. VAT

In stock

Screw MC6S 12x40H 12.9 ZFSHL ISO4762

Article no: 6000141

Torque: 136Nm

15.00 SEK

In stock

Screw M6S 10x20 8.8 FZB ISO4017

Article no: 610141

Position14

Quantity in drawing2

9.00 SEK

excl. VAT

In stock

Screw M6S 10x20 8.8 FZB ISO4017

Article no: 610141

Without EC-Oil

9.00 SEK

In stock

Adapter 138-04-29 ( compact 136-04-04 )

Article no: 710135

Position18

Quantity in drawing2

26.00 SEK

excl. VAT

In stock

Adapter 138-04-29 ( compact 136-04-04 )

Article no: 710135

26.00 SEK

In stock

Screw MC6S 12x60 12.9 ZFSHL ISO4762

Article no: 6000140

Position9

Quantity in drawing10

23.00 SEK

excl. VAT

In stock

Screw MC6S 12x60 12.9 ZFSHL ISO4762

Article no: 6000140

Torque: 136Nm QTY: 8 when EC-Oil

23.00 SEK

In stock

O-ring 9,92x2,62 NBR 70 shore EC209/219/226 cylinder axle

Article no: 710968

Position7

Quantity in drawing2

9.00 SEK

excl. VAT

In stock

O-ring 9,92x2,62 NBR 70 shore EC209/219/226 cylinder axle

Article no: 710968

9.00 SEK

In stock

Tilt axle EC204B

Article no: 1074348

Position8

Quantity in drawing2

730.00 SEK

excl. VAT

In stock

Tilt axle EC204B

Article no: 1074348

730.00 SEK

In stock

Cylinder axle EC204B

Article no: 1075902

Position28

Quantity in drawing1

560.00 SEK

excl. VAT

Out of stock

Cylinder axle EC204B

Article no: 1075902

560.00 SEK

Out of stock

Bushing tilt EC204 WB802/EB1 55/60x25

Article no: 6000004

Position2

Quantity in drawing2

500.00 SEK

excl. VAT

In stock

Bushing tilt EC204 WB802/EB1 55/60x25

Article no: 6000004

(Incl. in Top part)

500.00 SEK

In stock

Screw MLC6S 8x16 10.9 FZB DIN7984

Article no: 6000220

Position30

Quantity in drawing1

9.00 SEK

excl. VAT

In stock

Screw MLC6S 8x16 10.9 FZB DIN7984

Article no: 6000220

9.00 SEK

In stock

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Position29

Quantity in drawing1

19.00 SEK

excl. VAT

In stock

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

19.00 SEK

In stock

Bushing BWG-F 25/31/38/1,5x20

Article no: 6000001

Position21

Quantity in drawing2

560.00 SEK

excl. VAT

In stock

Bushing BWG-F 25/31/38/1,5x20

Article no: 6000001

560.00 SEK

In stock

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Position13

Quantity in drawing2

20.00 SEK

excl. VAT

In stock

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Without EC-Oil

20.00 SEK

In stock

Seal washer GBR04 1/4"

Article no: 710702

Position17

Quantity in drawing2

9.00 SEK

excl. VAT

In stock

Seal washer GBR04 1/4"

Article no: 710702

9.00 SEK

In stock
