QS40

Pos

Article

Extra Info

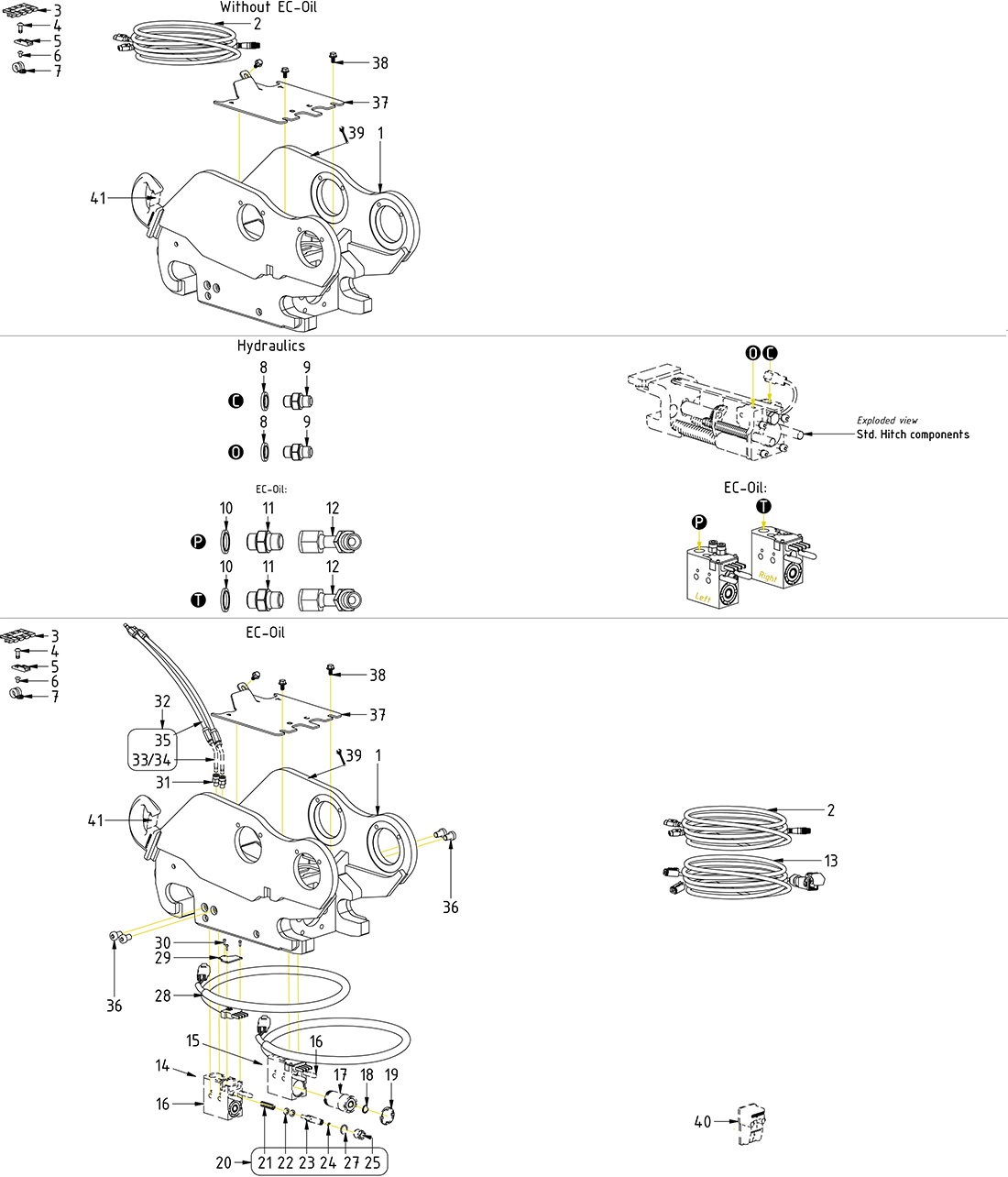

Quantity in drawing

Price (excl. VAT)

Adapter 136-02-02

Article no: 710102

Position9

Quantity in drawing2

31.00 SEK

excl. VAT

In stock

Adapter 136-02-02

Article no: 710102

31.00 SEK

In stock

Block ECO40 W-QH-with dowel pins V2

Article no: 1077485

Position16

Quantity in drawing2

3,800.00 SEK

excl. VAT

Few in stock (5)

Block ECO40 W-QH-with dowel pins V2

Article no: 1077485

3,800.00 SEK

Few in stock (5)

Locktab kit Pejo 201

Article no: 404249

Position41

Quantity in drawing1

680.00 SEK

excl. VAT

In stock

Locktab kit Pejo 201

Article no: 404249

Lifting hook spare part

680.00 SEK

In stock

Block ECO40 W QH-1hy

Article no: 1077488

Position15

Quantity in drawing1

9,580.00 SEK

excl. VAT

In stock

Block ECO40 W QH-1hy

Article no: 1077488

(POS.16-17, 19 incl.)

9,580.00 SEK

In stock

Screw MLC6S 10x16 10.9 FZB

Article no: 6000326

Position36

Quantity in drawing4

9.00 SEK

excl. VAT

In stock

Screw MLC6S 10x16 10.9 FZB

Article no: 6000326

Torque: 65Nm

9.00 SEK

In stock

Cover plate Power plug-ECO40W-quick hitch

Article no: 1057688

Position29

Quantity in drawing2

183.00 SEK

excl. VAT

Out of stock

Cover plate Power plug-ECO40W-quick hitch

Article no: 1057688

183.00 SEK

Out of stock

Strain relief plate ZL60 4x

Article no: 8000703

Position3

Quantity in drawing1

290.00 SEK

excl. VAT

In stock

Strain relief plate ZL60 4x

Article no: 8000703

290.00 SEK

In stock

O-ring 9,25 x 1,78 NBR 70 shore

Article no: 712429

Position26

Quantity in drawing1

9.00 SEK

excl. VAT

In stock

O-ring 9,25 x 1,78 NBR 70 shore

Article no: 712429

Located inside POS.27

9.00 SEK

In stock

Blind rivet 4,0x12,3 DIN7337 alu/steel

Article no: 6000294

Position4

Quantity in drawing4

9.00 SEK

excl. VAT

In stock

Blind rivet 4,0x12,3 DIN7337 alu/steel

Article no: 6000294

9.00 SEK

In stock

Holder Deutsch DT/DTM connector

Article no: 810662

Position5

Quantity in drawing2

55.00 SEK

excl. VAT

In stock

Holder Deutsch DT/DTM connector

Article no: 810662

55.00 SEK

In stock

Grease piston for ECO block

Article no: 1024111

Position23

Quantity in drawing1

1,420.00 SEK

excl. VAT

Out of stock

Grease piston for ECO block

Article no: 1024111

1,420.00 SEK

Out of stock

Nut greasepiston V2

Article no: 1047688

Position25

Quantity in drawing1

640.00 SEK

excl. VAT

Out of stock

Nut greasepiston V2

Article no: 1047688

Wrap with thread sealing tape

640.00 SEK

Out of stock

Piston sealing KPOR130 12x7,1x2,2

Article no: 1024112

Position22

Quantity in drawing2

103.00 SEK

excl. VAT

In stock

Piston sealing KPOR130 12x7,1x2,2

Article no: 1024112

(O-ring included with seal ring)

103.00 SEK

In stock

Tube sleeve straight Push-In - 20mm

Article no: 7001521

Position34

Quantity in drawing2

85.00 SEK

excl. VAT

Out of stock

Tube sleeve straight Push-In - 20mm

Article no: 7001521

Depends on the specific hitch model

85.00 SEK

Out of stock

O-ring 14x2 70 shore

Article no: 7000767

Position27

Quantity in drawing1

9.00 SEK

excl. VAT

In stock

O-ring 14x2 70 shore

Article no: 7000767

9.00 SEK

In stock

Spring 6058

Article no: 1024113

Position21

Quantity in drawing1

330.00 SEK

excl. VAT

In stock

Spring 6058

Article no: 1024113

330.00 SEK

In stock

Adapter 489-06-06

Article no: 710164

Position12

Quantity in drawing2

290.00 SEK

excl. VAT

In stock

Adapter 489-06-06

Article no: 710164

290.00 SEK

In stock

Cover QS40

Article no: 1058260

Position37

Quantity in drawing1

290.00 SEK

excl. VAT

In stock

Cover QS40

Article no: 1058260

290.00 SEK

In stock

Hose kit - Machine hitch - Lubrication ECO40 W

Article no: 7001531

Position32

Quantity in drawing1

1,650.00 SEK

excl. VAT

Out of stock

Hose kit - Machine hitch - Lubrication ECO40 W

Article no: 7001531

(POS.33-35 incl.)

1,650.00 SEK

Out of stock

Block ECO40 W-QH-1hy 1cl V2

Article no: 1077487

Position14

Quantity in drawing1

11,100.00 SEK

excl. VAT

In stock

Block ECO40 W-QH-1hy 1cl V2

Article no: 1077487

(POS.16-17, 19-20 incl.)

11,100.00 SEK

In stock

Screw MC6S 2.5x8 8.8 FZB ISO4762

Article no: 6000325

Position30

Quantity in drawing6

9.00 SEK

excl. VAT

In stock

Screw MC6S 2.5x8 8.8 FZB ISO4762

Article no: 6000325

9.00 SEK

In stock

Seal washer GBR02 1/8"

Article no: 710701

Position8

Quantity in drawing2

9.00 SEK

excl. VAT

In stock

Seal washer GBR02 1/8"

Article no: 710701

9.00 SEK

In stock

Unit cable DC2 ECO W QS40-2,5m

Article no: 1057842

Position13

Quantity in drawing1

2,080.00 SEK

excl. VAT

In stock

Unit cable DC2 ECO W QS40-2,5m

Article no: 1057842

Attach to both 4P

2,080.00 SEK

In stock

Screw M6SF 8x12H 8.8 FZB(A2K) DIN6921 Ribbed flange

Article no: 6000120

Position38

Quantity in drawing3

9.00 SEK

excl. VAT

Out of stock

Screw M6SF 8x12H 8.8 FZB(A2K) DIN6921 Ribbed flange

Article no: 6000120

9.00 SEK

Out of stock

Power plug ECO40 W-quick hitch -DT

Article no: 1057840

Position28

Quantity in drawing2

1,370.00 SEK

excl. VAT

In stock

Power plug ECO40 W-quick hitch -DT

Article no: 1057840

Cable gland torque: 6Nm

1,370.00 SEK

In stock

Rubber Steel Clamp Ø6

Article no: 6000027

Position7

Quantity in drawing1

43.00 SEK

excl. VAT

In stock

Rubber Steel Clamp Ø6

Article no: 6000027

43.00 SEK

In stock

Adapter cable M12 8P-DTM 3S-QLM 3,4m

Article no: 8000863

Position2

Quantity in drawing1

1,680.00 SEK

excl. VAT

Out of stock

Adapter cable M12 8P-DTM 3S-QLM 3,4m

Article no: 8000863

Attach to QS sensors

1,680.00 SEK

Out of stock

O-ring 3,69x1,78 NBR 90 shore

Article no: 1024115

Position24

Quantity in drawing1

9.00 SEK

excl. VAT

In stock

O-ring 3,69x1,78 NBR 90 shore

Article no: 1024115

9.00 SEK

In stock

Protection-ECO40 W-Quick hitch

Article no: 1062401

Position40

Quantity in drawing2

520.00 SEK

excl. VAT

In stock

Protection-ECO40 W-Quick hitch

Article no: 1062401

Part of make up

520.00 SEK

In stock

Central lubrication kit ECO W V2

Article no: 1050794

Position20

Quantity in drawing1

2,940.00 SEK

excl. VAT

Few in stock (4)

Central lubrication kit ECO W V2

Article no: 1050794

(POS.21-27 incl.)

2,940.00 SEK

Few in stock (4)

Push-In coupling straight Ø6mm M8x1

Article no: 790185

Position31

Quantity in drawing2

181.00 SEK

excl. VAT

In stock

Push-In coupling straight Ø6mm M8x1

Article no: 790185

181.00 SEK

In stock

Adapter 136-06-06

Article no: 710106

Position11

Quantity in drawing2

26.00 SEK

excl. VAT

In stock

Adapter 136-06-06

Article no: 710106

26.00 SEK

In stock

Dirt protection block/coupling ECO 3/8"

Article no: 1028274

Position19

Quantity in drawing2

144.00 SEK

excl. VAT

In stock

Dirt protection block/coupling ECO 3/8"

Article no: 1028274

144.00 SEK

In stock

Flat seal for ECO 3/8" V3

Article no: 1052976

Position18

Quantity in drawing2

30.00 SEK

excl. VAT

In stock

Flat seal for ECO 3/8" V3

Article no: 1052976

30.00 SEK

In stock

Coupling ECO 3/8" female V3

Article no: 1053029

Position17

Quantity in drawing2

2,990.00 SEK

excl. VAT

In stock

Coupling ECO 3/8" female V3

Article no: 1053029

Torque: 60Nm. (POS.18 incl.)

2,990.00 SEK

In stock

Screw K6S 5x8H 10.9 FZB ISO7380

Article no: 611801

Position6

Quantity in drawing1

9.00 SEK

excl. VAT

In stock

Screw K6S 5x8H 10.9 FZB ISO7380

Article no: 611801

9.00 SEK

In stock

Seal washer GBR06 3/8"

Article no: 710703

Position10

Quantity in drawing2

9.00 SEK

excl. VAT

In stock

Seal washer GBR06 3/8"

Article no: 710703

9.00 SEK

In stock
