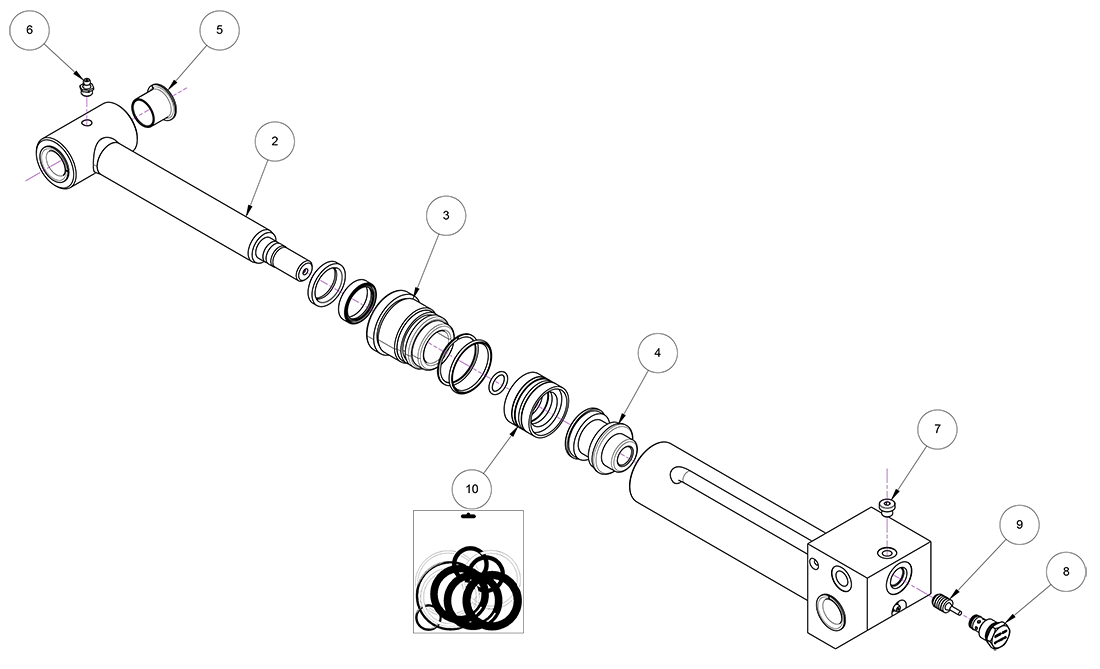

SG03/SK02 Cylinder 1047677

Pos

Article

Extra Info

Quantity in drawing

Price (excl. VAT)

Piston-grab cylinder 10-50/32 tilt cylinder EC02 50/25

Article no: 750406

Position4

Quantity in drawing1

Piston-grab cylinder 10-50/32 tilt cylinder EC02 50/25

Article no: 750406

Loctite 648

Overcenter adjustable-EC206/209/214/219W/226W/05B-15B

Article no: 730269

Position7

Quantity in drawing1

Overcenter adjustable-EC206/209/214/219W/226W/05B-15B

Article no: 730269

Seal kit-50/32-Grab cylinder 10/Locking cylinder 20

Article no: 750239

Position10

Quantity in drawing1

Seal kit-50/32-Grab cylinder 10/Locking cylinder 20

Article no: 750239

Cylinder SK02/SG03

Article no: 1047677

Position1

Quantity in drawing1

Cylinder SK02/SG03

Article no: 1047677

(POS.2-10 included)

Top nut 50/32-grab cylinder 10

Article no: 750306

Position3

Quantity in drawing1

Top nut 50/32-grab cylinder 10

Article no: 750306

Loctite 648

Non-return valve D02B2-6,0N - grab & Locking cylinder

Article no: 730243

Position8

Quantity in drawing1

Non-return valve D02B2-6,0N - grab & Locking cylinder

Article no: 730243

Pilot cartridge PP02SP

Article no: 730244

Position9

Quantity in drawing1

Pilot cartridge PP02SP

Article no: 730244

Lubrication nipple M10x1 straight Lubrication kit

Article no: 790166

Position6

Quantity in drawing2

Lubrication nipple M10x1 straight Lubrication kit

Article no: 790166
