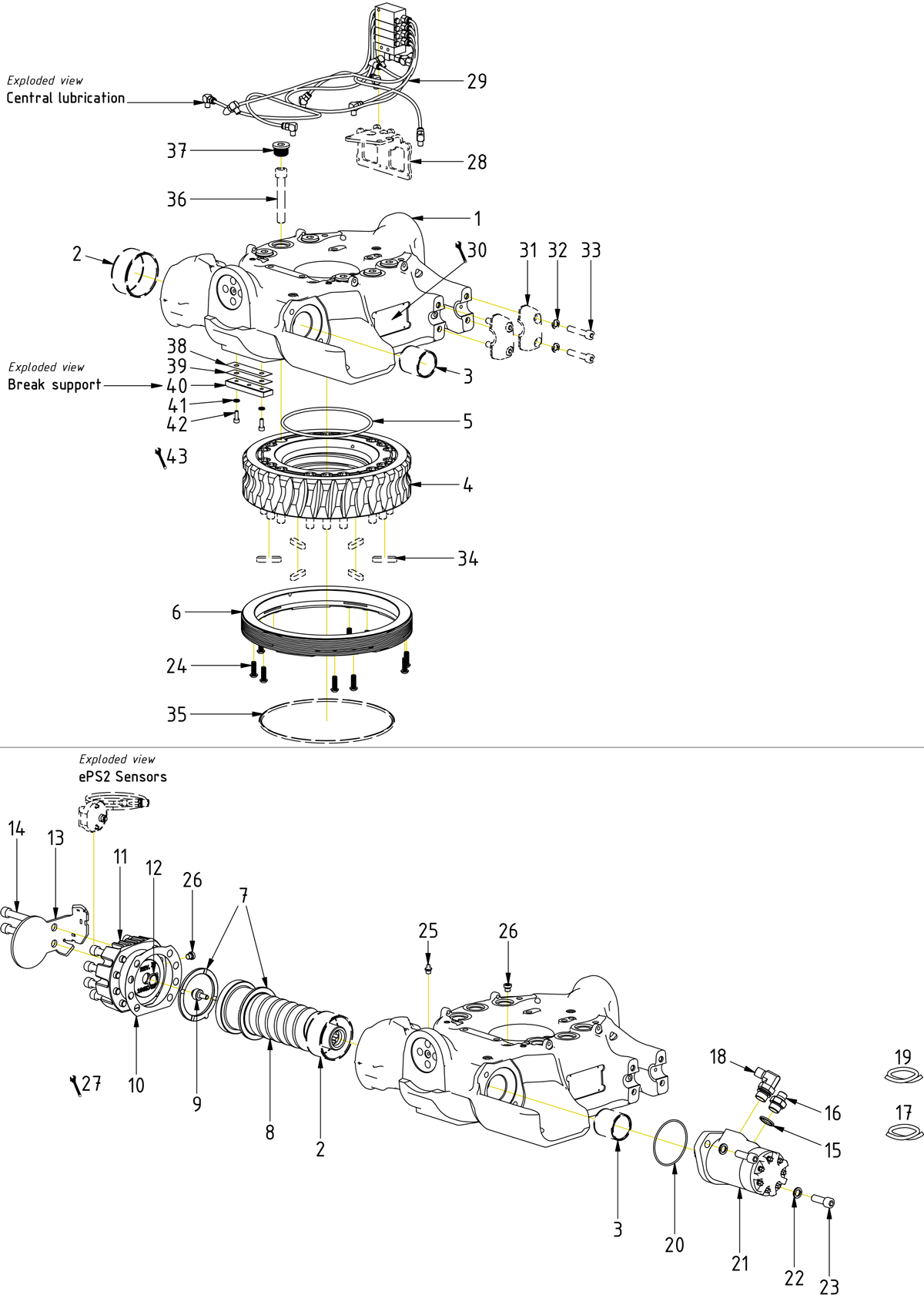

Main components

Pos

Article

Extra Info

Quantity in drawing

Price (excl. VAT)

Lubrication kit EC209 QSM

Article no: 1056598

Position29

Quantity in drawing1

€1.253,00

excl. VAT

Out of stock

Lubrication kit EC209 QSM

Article no: 1056598

€1.253,00

Out of stock

Rotator frame 209 V2 EngconYellow complete

Article no: 1056657

Position1

Quantity in drawing1

€2.967,00

excl. VAT

Out of stock

Rotator frame 209 V2 EngconYellow complete

Article no: 1056657

(POS.2-3 incl.)

€2.967,00

Out of stock

Attachment central lubrication & TM EC309-DC3-QSM

Article no: 1075317

Position28

Quantity in drawing1

€28,60

excl. VAT

Out of stock

Attachment central lubrication & TM EC309-DC3-QSM

Article no: 1075317

Part of control system

€28,60

Out of stock

Bearing ring EC209 V2

Article no: 1077029

Position6

Quantity in drawing1

€958,20

excl. VAT

Few in stock (1)

Bearing ring EC209 V2

Article no: 1077029

€958,20

Few in stock (1)

Worm wheel EC209 18 bolt

Article no: 1054242

Position4

Quantity in drawing1

€3.703,00

excl. VAT

Few in stock (2)

Worm wheel EC209 18 bolt

Article no: 1054242

€3.703,00

Few in stock (2)

Hose

Article no: 7002080

Position19

Quantity in drawing1

€31,90

excl. VAT

Out of stock

Hose

Article no: 7002080

Part of quick hitch

€31,90

Out of stock

Hose

Article no: 7002079

Position17

Quantity in drawing1

€35,20

excl. VAT

Out of stock

Hose

Article no: 7002079

Part of quick hitch

€35,20

Out of stock

Pipe Plug RP M26x1,5 DIN908 FZB

Article no: 650409

Position37

Quantity in drawing6

€6,20

excl. VAT

Out of stock

Pipe Plug RP M26x1,5 DIN908 FZB

Article no: 650409

€6,20

Out of stock

Worm screw EC209

Article no: 1016453

Position8

Quantity in drawing1

€1.692,00

excl. VAT

Few in stock (1)

Worm screw EC209

Article no: 1016453

€1.692,00

Few in stock (1)

O-ring 160x5 NBR 90 shore EC209 worm wheel

Article no: 7001660

Position5

Quantity in drawing1

€8,50

excl. VAT

Few in stock (4)

O-ring 160x5 NBR 90 shore EC209 worm wheel

Article no: 7001660

€8,50

Few in stock (4)

Feather key 10x8x45 C45 EC10, EC02, EC209 550475

Article no: 650101

Position34

Quantity in drawing6

€2,90

excl. VAT

Few in stock (4)

Feather key 10x8x45 C45 EC10, EC02, EC209 550475

Article no: 650101

Part of quick hitch

€2,90

Few in stock (4)

Plate break support - EC209/214/219

Article no: 1055258

Position40

Quantity in drawing1

€74,70

excl. VAT

Few in stock (4)

Plate break support - EC209/214/219

Article no: 1055258

€74,70

Few in stock (4)

Shim break support - EC209, EC214, EC219 - 0,3mm

Article no: 1055260

Position39

Quantity in drawing1

€6,90

excl. VAT

Few in stock (4)

Shim break support - EC209, EC214, EC219 - 0,3mm

Article no: 1055260

€6,90

Few in stock (4)

Washer NL6-DPE 6,5x10,8x1,7

Article no: 611039

Position41

Quantity in drawing2

€1,50

excl. VAT

In stock

Washer NL6-DPE 6,5x10,8x1,7

Article no: 611039

€1,50

In stock

Shim break support - EC209, EC214, EC219 - 0,1mm

Article no: 1055262

Position38

Quantity in drawing1

€5,20

excl. VAT

Few in stock (4)

Shim break support - EC209, EC214, EC219 - 0,1mm

Article no: 1055262

€5,20

Few in stock (4)

Plug VSTIR18ED 1/8"

Article no: 711503

Position26

Quantity in drawing2

€6,20

excl. VAT

In stock

Plug VSTIR18ED 1/8"

Article no: 711503

€6,20

In stock

O-ring 242x5 NBR 90 shore EC226 worm wheel / EC209 QH

Article no: 7001663

Position35

Quantity in drawing1

€10,30

excl. VAT

Few in stock (4)

O-ring 242x5 NBR 90 shore EC226 worm wheel / EC209 QH

Article no: 7001663

Part of quick hitch

€10,30

Few in stock (4)

Screw MC6S 14x90 12.9 ZFSHL ISO4762

Article no: 6000158

Position36

Quantity in drawing18

€14,10

excl. VAT

In stock

Screw MC6S 14x90 12.9 ZFSHL ISO4762

Article no: 6000158

Part of quick hitch. Torque: 217Nm

€14,10

In stock

Bushing WB802 80/85x40

Article no: 630103

Position2

Quantity in drawing1

€42,90

excl. VAT

In stock

Bushing WB802 80/85x40

Article no: 630103

€42,90

In stock

Clamping half EC206,209,214 EngconYellow complete

Article no: 1022942

Position31

Quantity in drawing4

€146,20

excl. VAT

In stock

Clamping half EC206,209,214 EngconYellow complete

Article no: 1022942

Part of top part

€146,20

In stock

Seal R09-F 20x27.5x3.2

Article no: 1063616

Position12

Quantity in drawing1

€20,90

excl. VAT

Out of stock

Seal R09-F 20x27.5x3.2

Article no: 1063616

€20,90

Out of stock

Screw MC6S 6x16 12.9 ZFSHL ISO4762

Article no: 6000017

Position42

Quantity in drawing2

€1,00

excl. VAT

In stock

Screw MC6S 6x16 12.9 ZFSHL ISO4762

Article no: 6000017

€1,00

In stock

Magnet Spacer Worm Screw

Article no: 1062693

Position9

Quantity in drawing1

€14,50

excl. VAT

Few in stock (3)

Magnet Spacer Worm Screw

Article no: 1062693

Loxeal 83-52. Torque: 20Nm

€14,50

Few in stock (3)

Bushing WB802 45/50x50

Article no: 630102

Position3

Quantity in drawing1

€27,50

excl. VAT

In stock

Bushing WB802 45/50x50

Article no: 630102

€27,50

In stock

End lock EC209S/EC214S/EC219S Cast

Article no: 1065789

Position11

Quantity in drawing1

€351,60

excl. VAT

Out of stock

End lock EC209S/EC214S/EC219S Cast

Article no: 1065789

(POS.12 incl.)

€351,60

Out of stock

Axial washer with ear EC209/214/219

Article no: 1079941

Position7

Quantity in drawing2

€79,10

excl. VAT

Out of stock

Axial washer with ear EC209/214/219

Article no: 1079941

Face grooves toward worm screw

€79,10

Out of stock

Adapter 401-06-08 90°

Article no: 710157

Position18

Quantity in drawing1

€30,80

excl. VAT

In stock

Adapter 401-06-08 90°

Article no: 710157

€30,80

In stock

Shim kit End lock - EC209/EC214/EC219

Article no: 1034434

Position10

Quantity in drawing1

€184,60

excl. VAT

In stock

Shim kit End lock - EC209/EC214/EC219

Article no: 1034434

€184,60

In stock

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Position32

Quantity in drawing8

€2,20

excl. VAT

In stock

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Part of top part

€2,20

In stock

Screw MC6S 10x50 12.9 ZFSHL ISO4762

Article no: 611515

Position33

Quantity in drawing8

€4,00

excl. VAT

In stock

Screw MC6S 10x50 12.9 ZFSHL ISO4762

Article no: 611515

Part of top part. Torque: 79Nm

€4,00

In stock

End lock protection plate EC209S/EC214S/EC219S

Article no: 1063372

Position13

Quantity in drawing1

€52,80

excl. VAT

Out of stock

End lock protection plate EC209S/EC214S/EC219S

Article no: 1063372

€52,80

Out of stock

Washer NL12-DPE 13,0x19,5x2,7

Article no: 611042

Position22

Quantity in drawing2

€3,60

excl. VAT

In stock

Washer NL12-DPE 13,0x19,5x2,7

Article no: 611042

€3,60

In stock

Hydraulic motor Charlynn 131cc - EC209, EC214, EC10, EC15

Article no: 720112

Position21

Quantity in drawing1

€1.025,00

excl. VAT

Few in stock (1)

Hydraulic motor Charlynn 131cc - EC209, EC214, EC10, EC15

Article no: 720112

€1.025,00

Few in stock (1)

O-ring 82,22x2,62 NBR 70 shore

Article no: 7000920

Position20

Quantity in drawing1

€2,70

excl. VAT

Few in stock (2)

O-ring 82,22x2,62 NBR 70 shore

Article no: 7000920

€2,70

Few in stock (2)

Lubrication nipple 1/8 straight

Article no: 711403

Position25

Quantity in drawing1

€1,10

excl. VAT

In stock

Lubrication nipple 1/8 straight

Article no: 711403

€1,10

In stock

Screw TX45 8x25 10,9 FZB

Article no: 1078840

Position24

Quantity in drawing10

€1,00

excl. VAT

In stock

Screw TX45 8x25 10,9 FZB

Article no: 1078840

Torque: 34Nm Tighten in cross pattern

€1,00

In stock

Seal washer GBR08 1/2"

Article no: 710704

Position15

Quantity in drawing1

€1,10

excl. VAT

In stock

Seal washer GBR08 1/2"

Article no: 710704

€1,10

In stock

Adapter 135-06-08

Article no: 710122

Position16

Quantity in drawing1

€6,20

excl. VAT

In stock

Adapter 135-06-08

Article no: 710122

€6,20

In stock

Screw MC6S 12x35 12.9 ZFSHL ISO4762

Article no: 6000150

Position23

Quantity in drawing2

€1,50

excl. VAT

In stock

Screw MC6S 12x35 12.9 ZFSHL ISO4762

Article no: 6000150

Torque: 136Nm

€1,50

In stock

Screw MC6S 12x70 12.9 ZFSHL ISO4762

Article no: 611517

Position14

Quantity in drawing8

€4,30

excl. VAT

In stock

Screw MC6S 12x70 12.9 ZFSHL ISO4762

Article no: 611517

Torque: 136Nm

€4,30

In stock
