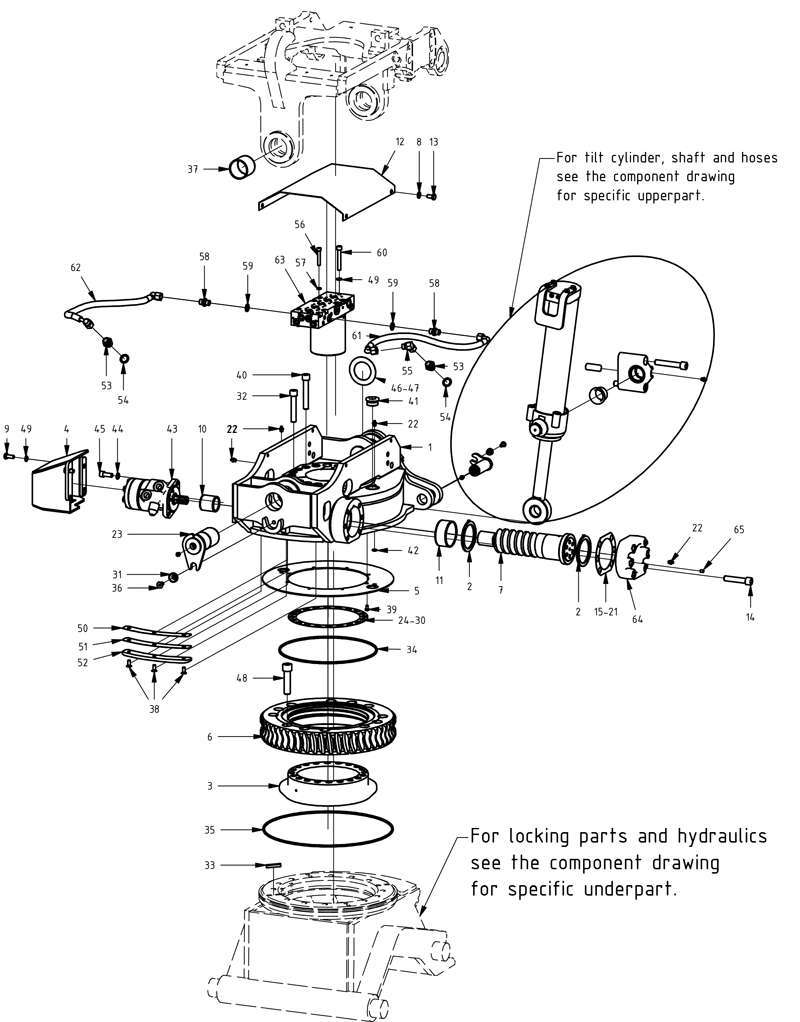

Main components 'Reversed'

Pos

Article

Extra Info

Quantity in drawing

Price (excl. VAT)

Shim centre ring - EC20 - 0,4mm

Article no: 202055

Position24

Quantity in drawing1

€34,10

excl. VAT

Few in stock (3)

Shim centre ring - EC20 - 0,4mm

Article no: 202055

€34,10

Few in stock (3)

Worm screw EC20

Article no: 300030

Position7

Quantity in drawing1

€2.670,00

excl. VAT

Out of stock

Worm screw EC20

Article no: 300030

€2.670,00

Out of stock

Rotator frame 20HD Yellow

Article no: 101277

Position1

Quantity in drawing1

€5.571,00

excl. VAT

Out of stock

Rotator frame 20HD Yellow

Article no: 101277

€5.571,00

Out of stock

Shim centre ring - EC20 - 1,1mm

Article no: 201407

Position30

Quantity in drawing1

€34,10

excl. VAT

Out of stock

Shim centre ring - EC20 - 1,1mm

Article no: 201407

€34,10

Out of stock

Hose motor - EC20 - White & Parker, CL 410

Article no: 740240

Position62

Quantity in drawing1

€61,50

excl. VAT

Out of stock

Hose motor - EC20 - White & Parker, CL 410

Article no: 740240

RM06 4509-06-06/4509-06-06 KL410

€61,50

Out of stock

End lock EC10/EC15/EC20 outer shim cast

Article no: 1014716

Position64

Quantity in drawing1

€383,50

excl. VAT

Out of stock

End lock EC10/EC15/EC20 outer shim cast

Article no: 1014716

Replaces 303270 From 1306

€383,50

Out of stock

Shim centre ring - EC20 - 0,8mm

Article no: 201405

Position27

Quantity in drawing1

€34,10

excl. VAT

Few in stock (2)

Shim centre ring - EC20 - 0,8mm

Article no: 201405

€34,10

Few in stock (2)

Plug Din 906 (M8x1) electrogalvanized

Article no: 711527

Position65

Quantity in drawing1

€2,70

excl. VAT

Out of stock

Plug Din 906 (M8x1) electrogalvanized

Article no: 711527

€2,70

Out of stock

Shim tilt axle - EC20 - spring steel 61x95x1

Article no: 650502

Position47

Quantity in drawing1

€11,80

excl. VAT

In stock

Shim tilt axle - EC20 - spring steel 61x95x1

Article no: 650502

1 mm

€11,80

In stock

Screw MF6S 8x20 10.9 untreated ISO10642

Article no: 610634

Position38

Quantity in drawing5

€1,00

excl. VAT

In stock

Screw MF6S 8x20 10.9 untreated ISO10642

Article no: 610634

€1,00

In stock

Shim tilt axle - EC20 - spring steel 61x95x0,5

Article no: 650501

Position46

Quantity in drawing1

€10,00

excl. VAT

In stock

Shim tilt axle - EC20 - spring steel 61x95x0,5

Article no: 650501

0,5 mm

€10,00

In stock

Hose

Article no: 740208

Position61

Quantity in drawing1

€61,50

excl. VAT

Out of stock

Hose

Article no: 740208

RM06 4512-06-06/4512-06-06 KL500

€61,50

Out of stock

Worm wheel EC20 reversed

Article no: 300945

Position6

Quantity in drawing1

€8.769,00

excl. VAT

Out of stock

Worm wheel EC20 reversed

Article no: 300945

€8.769,00

Out of stock

Protective cover valve block EC20

Article no: 300118

Position12

Quantity in drawing1

€89,00

excl. VAT

Out of stock

Protective cover valve block EC20

Article no: 300118

€89,00

Out of stock

Plate break support - EC15B, EC20B

Article no: 1006878

Position52

Quantity in drawing1

€119,80

excl. VAT

Few in stock (4)

Plate break support - EC15B, EC20B

Article no: 1006878

€119,80

Few in stock (4)

Shim break support - EC15B, EC20B - 0,3mm

Article no: 1013256

Position51

Quantity in drawing1

€17,60

excl. VAT

In stock

Shim break support - EC15B, EC20B - 0,3mm

Article no: 1013256

If needed

€17,60

In stock

Shim break support - EC15B, EC20B - 0,1mm

Article no: 1008262

Position50

Quantity in drawing1

€23,10

excl. VAT

In stock

Shim break support - EC15B, EC20B - 0,1mm

Article no: 1008262

If needed

€23,10

In stock

Screw MF6S 10x20 10.9 untreated ISO10642

Article no: 610633

Position36

Quantity in drawing2

€1,10

excl. VAT

In stock

Screw MF6S 10x20 10.9 untreated ISO10642

Article no: 610633

€1,10

In stock

Shim centre ring - EC20 - 1,0mm

Article no: 201365

Position29

Quantity in drawing1

€46,20

excl. VAT

Out of stock

Shim centre ring - EC20 - 1,0mm

Article no: 201365

€46,20

Out of stock

Hydraulic motor White 160cc EC15 option without relief valve

Article no: 720123

Position43

Quantity in drawing1

€914,30

excl. VAT

Out of stock

Hydraulic motor White 160cc EC15 option without relief valve

Article no: 720123

255-160-A68-04-BAAAA

€914,30

Out of stock

Centre ring - EC20 - should have shim, as of 05-01-01

Article no: 302807

Position3

Quantity in drawing1

€3.088,00

excl. VAT

Out of stock

Centre ring - EC20 - should have shim, as of 05-01-01

Article no: 302807

€3.088,00

Out of stock

Shim centre ring - EC20 - 0,5mm

Article no: 202056

Position25

Quantity in drawing1

€34,10

excl. VAT

Few in stock (5)

Shim centre ring - EC20 - 0,5mm

Article no: 202056

€34,10

Few in stock (5)

Shim centre ring - EC20 - 0,7mm

Article no: 201793

Position26

Quantity in drawing1

€34,10

excl. VAT

Out of stock

Shim centre ring - EC20 - 0,7mm

Article no: 201793

€34,10

Out of stock

Screw M6S 6x12 8.8 FZB ISO4017

Article no: 610108

Position39

Quantity in drawing8

Screw M6S 6x12 8.8 FZB ISO4017

Article no: 610108

Screw M6S 10x25 8.8 FZB ISO4017

Article no: 610142

Position9

Quantity in drawing4

€1,00

excl. VAT

In stock

Screw M6S 10x25 8.8 FZB ISO4017

Article no: 610142

€1,00

In stock

Bushing WB802 80/85x40

Article no: 630103

Position11

Quantity in drawing1

€42,90

excl. VAT

In stock

Bushing WB802 80/85x40

Article no: 630103

€42,90

In stock

Screw MC6S 8x50H 12.9 ISO4762

Article no: 610439

Position56

Quantity in drawing2

€1,60

excl. VAT

In stock

Screw MC6S 8x50H 12.9 ISO4762

Article no: 610439

€1,60

In stock

Bushing WB802 45/50x50

Article no: 630102

Position10

Quantity in drawing1

€27,50

excl. VAT

In stock

Bushing WB802 45/50x50

Article no: 630102

€27,50

In stock

Screw MC6S 16x80 12.9 untreated ISO4762

Article no: 610528

Position14

Quantity in drawing6

€8,80

excl. VAT

In stock

Screw MC6S 16x80 12.9 untreated ISO4762

Article no: 610528

12.9

€8,80

In stock

Adapter 030090-06-06 90°

Article no: 710216

Position55

Quantity in drawing1

€20,20

excl. VAT

In stock

Adapter 030090-06-06 90°

Article no: 710216

€20,20

In stock

Screw MC6S 10x70 12.9 untreated ISO4762

Article no: 610461

Position60

Quantity in drawing1

€2,70

excl. VAT

In stock

Screw MC6S 10x70 12.9 untreated ISO4762

Article no: 610461

€2,70

In stock

O-ring 10,77x2,62 NBR 70 shore

Article no: 710910

Position42

Quantity in drawing1

€1,00

excl. VAT

In stock

O-ring 10,77x2,62 NBR 70 shore

Article no: 710910

€1,00

In stock

Wear washer EC20

Article no: 400310

Position5

Quantity in drawing1

€412,10

excl. VAT

Out of stock

Wear washer EC20

Article no: 400310

€412,10

Out of stock

Shim End lock EC10/EC15/EC20 0,5mm

Article no: 405127

Position17

Quantity in drawing1

€23,10

excl. VAT

In stock

Shim End lock EC10/EC15/EC20 0,5mm

Article no: 405127

€23,10

In stock

Shim End lock EC10/EC15/EC20 0,4mm

Article no: 405126

Position16

Quantity in drawing1

€20,20

excl. VAT

In stock

Shim End lock EC10/EC15/EC20 0,4mm

Article no: 405126

€20,20

In stock

Tilt axle EC20 hardened

Article no: 302830

Position23

Quantity in drawing2

€217,60

excl. VAT

In stock

Tilt axle EC20 hardened

Article no: 302830

€217,60

In stock

Shim End lock EC10/EC15/EC20 0,3mm

Article no: 1001639

Position15

Quantity in drawing1

€16,80

excl. VAT

In stock

Shim End lock EC10/EC15/EC20 0,3mm

Article no: 1001639

€16,80

In stock

Axial washer with ear EC10,15,20

Article no: 1010758

Position2

Quantity in drawing2

€113,20

excl. VAT

Few in stock (1)

Axial washer with ear EC10,15,20

Article no: 1010758

€113,20

Few in stock (1)

O-ring 419,3x5,7 Quick hitch EC20

Article no: 710909

Position35

Quantity in drawing1

€69,20

excl. VAT

Few in stock (4)

O-ring 419,3x5,7 Quick hitch EC20

Article no: 710909

€69,20

Few in stock (4)

Motor cover EC20(&old EC30)

Article no: 100010

Position4

Quantity in drawing1

€274,70

excl. VAT

Out of stock

Motor cover EC20(&old EC30)

Article no: 100010

€274,70

Out of stock

Feather key 10x8x50 C45 EC05B,EC15,EC20,EC214,EC219,EC226

Article no: 650102

Position33

Quantity in drawing4

€2,90

excl. VAT

In stock

Feather key 10x8x50 C45 EC05B,EC15,EC20,EC214,EC219,EC226

Article no: 650102

€2,90

In stock

Adapter 136-06-06

Article no: 710106

Position58

Quantity in drawing2

€2,90

excl. VAT

In stock

Adapter 136-06-06

Article no: 710106

€2,90

In stock

O-ring 319,3x5,7 - Quick hitch EC10/EC219/EC226

Article no: 710908

Position34

Quantity in drawing1

€52,80

excl. VAT

In stock

O-ring 319,3x5,7 - Quick hitch EC10/EC219/EC226

Article no: 710908

€52,80

In stock

Spacer M12 L15 countersunk

Article no: 1008243

Position31

Quantity in drawing2

€25,30

excl. VAT

In stock

Spacer M12 L15 countersunk

Article no: 1008243

€25,30

In stock

Washer NL12-DPE 13,0x19,5x2,7

Article no: 611042

Position44

Quantity in drawing2

€3,60

excl. VAT

In stock

Washer NL12-DPE 13,0x19,5x2,7

Article no: 611042

€3,60

In stock

Screw M6S 10x20 8.8 FZB ISO4017

Article no: 610141

Position13

Quantity in drawing4

€1,00

excl. VAT

In stock

Screw M6S 10x20 8.8 FZB ISO4017

Article no: 610141

€1,00

In stock

Washer BRB FZB 10,5x22x2 ISO7089

Article no: 611006

Position8

Quantity in drawing4

€1,00

excl. VAT

In stock

Washer BRB FZB 10,5x22x2 ISO7089

Article no: 611006

€1,00

In stock

Bushing tilt EC20 WB802 60/65x60

Article no: 630301

Position37

Quantity in drawing2

€46,20

excl. VAT

In stock

Bushing tilt EC20 WB802 60/65x60

Article no: 630301

€46,20

In stock

Lubrication nipple 1/8 straight

Article no: 711403

Position22

Quantity in drawing15

€1,10

excl. VAT

In stock

Lubrication nipple 1/8 straight

Article no: 711403

€1,10

In stock

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Position57

Quantity in drawing2

€2,10

excl. VAT

In stock

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

€2,10

In stock

Seal washer GBR08 1/2"

Article no: 710704

Position54

Quantity in drawing2

€1,10

excl. VAT

In stock

Seal washer GBR08 1/2"

Article no: 710704

€1,10

In stock

Adapter 135-06-08

Article no: 710122

Position53

Quantity in drawing2

€6,20

excl. VAT

In stock

Adapter 135-06-08

Article no: 710122

€6,20

In stock

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Position49

Quantity in drawing5

€2,20

excl. VAT

In stock

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

€2,20

In stock

Seal washer GBR06 3/8"

Article no: 710703

Position59

Quantity in drawing2

€1,00

excl. VAT

In stock

Seal washer GBR06 3/8"

Article no: 710703

€1,00

In stock
