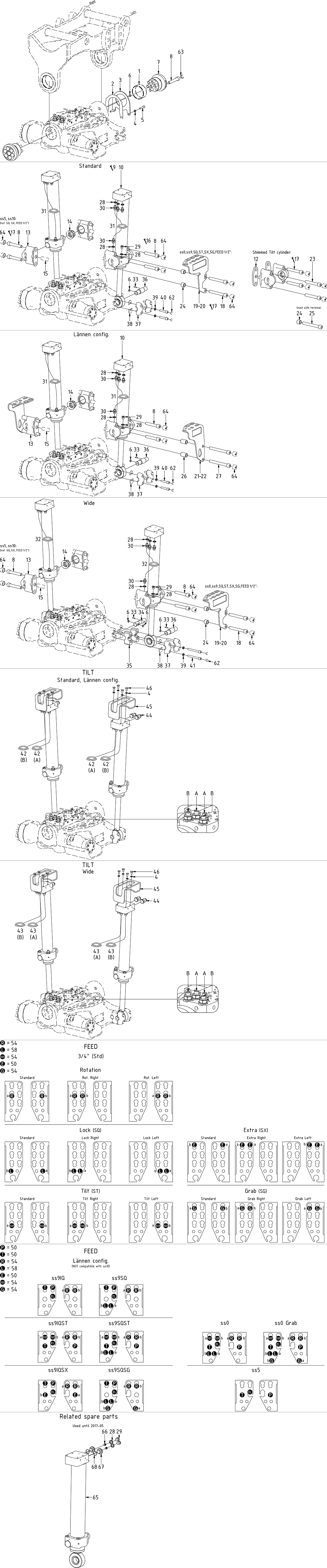

Std. Top components 'ECHF'

Interact to see more

Pos

Article

Extra Info

Quantity in drawing

Price (excl. VAT)

Hose tilt - EC214 - short wide

Article no: 7000166

Position32

Quantity in drawing2

KRW81,200

excl. VAT

Out of stock

Hose tilt - EC214 - short wide

Article no: 7000166

KRW81,200

Out of stock

Hose tilt - EC214 - long wide

Article no: 7000167

Position43

Quantity in drawing4

KRW69,600

excl. VAT

Out of stock

Hose tilt - EC214 - long wide

Article no: 7000167

KRW69,600

Out of stock

Screw MC6S 10x90 12.9 ZFSHL ISO4762

Article no: 6000153

Position41

Quantity in drawing8

KRW3,000

excl. VAT

In stock

Screw MC6S 10x90 12.9 ZFSHL ISO4762

Article no: 6000153

Torque: 79Nm

KRW3,000

In stock

Hose Tilt Short - EC214

Article no: 743002

Position31

Quantity in drawing2

KRW81,200

excl. VAT

In stock

Hose Tilt Short - EC214

Article no: 743002

KRW81,200

In stock

Tilt cylinder EC214W

Article no: 1030380

Position11

Quantity in drawing2

KRW3,507,200

excl. VAT

Out of stock

Tilt cylinder EC214W

Article no: 1030380

See "Tilt cylinders"

KRW3,507,200

Out of stock

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Position39

Quantity in drawing8

KRW2,900

excl. VAT

Out of stock

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

KRW2,900

Out of stock

Adapter 138-04-29 ( compact 136-04-04 )

Article no: 710135

Position30

Quantity in drawing8

KRW3,800

excl. VAT

In stock

Adapter 138-04-29 ( compact 136-04-04 )

Article no: 710135

KRW3,800

In stock

Screw MC6S 10x50 12.9 ZFSHL ISO4762

Article no: 611515

Position40

Quantity in drawing8

KRW5,200

excl. VAT

In stock

Screw MC6S 10x50 12.9 ZFSHL ISO4762

Article no: 611515

Torque: 79Nm

KRW5,200

In stock

Screw cover M16

Article no: 611302

Position64

Quantity in drawing8

KRW1,300

excl. VAT

In stock

Screw cover M16

Article no: 611302

Part of make up

KRW1,300

In stock

Screw cover M16 - cast yoke & tilt axle

Article no: 1004801

Position63

Quantity in drawing14

KRW1,300

excl. VAT

Few in stock (2)

Screw cover M16 - cast yoke & tilt axle

Article no: 1004801

Part of make up

KRW1,300

Few in stock (2)

Hose bracket Lännen right

Article no: 1045619

Position22

Quantity in drawing1

KRW160,900

excl. VAT

Out of stock

Hose bracket Lännen right

Article no: 1045619

KRW160,900

Out of stock

Clamping half EC206,209,214 EngconYellow complete

Article no: 1022942

Position37

Quantity in drawing4

KRW192,800

excl. VAT

Out of stock

Clamping half EC206,209,214 EngconYellow complete

Article no: 1022942

(POS.38 included)

KRW192,800

Out of stock

Spacer tilt cylinder EC209W, EC214W

Article no: 1030069

Position35

Quantity in drawing4

KRW176,800

excl. VAT

Out of stock

Spacer tilt cylinder EC209W, EC214W

Article no: 1030069

KRW176,800

Out of stock

Plug 1/8" BSPT

Article no: 711523

Position66

Quantity in drawing4

KRW11,600

excl. VAT

Out of stock

Plug 1/8" BSPT

Article no: 711523

Only for ss0, ss3 R-X, ss5, ss10

KRW11,600

Out of stock

Screw cover M10 - clamping half EC206,209,214

Article no: 1021468

Position62

Quantity in drawing8

KRW1,300

excl. VAT

In stock

Screw cover M10 - clamping half EC206,209,214

Article no: 1021468

Part of make up

KRW1,300

In stock

O-ring 18x2 NBR 70 shore EC05 motor

Article no: 710955

Position68

Quantity in drawing4

KRW1,300

excl. VAT

Out of stock

O-ring 18x2 NBR 70 shore EC05 motor

Article no: 710955

KRW1,300

Out of stock

Axle for spacer EC209W, EC214W

Article no: 1030070

Position34

Quantity in drawing2

KRW120,300

excl. VAT

Out of stock

Axle for spacer EC209W, EC214W

Article no: 1030070

KRW120,300

Out of stock

Yoke Bracket tilt cylinder EC209, EC214 cast grease-free

Article no: 1023212

Position13

Quantity in drawing4

KRW262,300

excl. VAT

Out of stock

Yoke Bracket tilt cylinder EC209, EC214 cast grease-free

Article no: 1023212

(POS.14-15 included)

KRW262,300

Out of stock

Plug M20x1,5 tilt cylinder EC206, EC209 (overcenter 730269)

Article no: 1022297

Position67

Quantity in drawing4

KRW36,200

excl. VAT

Out of stock

Plug M20x1,5 tilt cylinder EC206, EC209 (overcenter 730269)

Article no: 1022297

Only for ss0, ss3 R-X, ss5, ss10 (POS.68 included)

KRW36,200

Out of stock

Tilt cylinder EC214 for overcenter 730269

Article no: 1041414

Position10

Quantity in drawing2

KRW2,942,000

excl. VAT

Out of stock

Tilt cylinder EC214 for overcenter 730269

Article no: 1041414

See "Tilt cylinders"

KRW2,942,000

Out of stock

Hose bracket Lännen left

Article no: 1045618

Position21

Quantity in drawing1

KRW160,900

excl. VAT

Out of stock

Hose bracket Lännen left

Article no: 1045618

KRW160,900

Out of stock

Screw MC6S 16x120 12.9 ZFSHL ISO4762

Article no: 6000162

Position18

Quantity in drawing4

KRW9,100

excl. VAT

Out of stock

Screw MC6S 16x120 12.9 ZFSHL ISO4762

Article no: 6000162

Torque: 333Nm

KRW9,100

Out of stock

Spacer Hose Bracket 39mm

Article no: 1005911

Position26

Quantity in drawing8

KRW44,900

excl. VAT

Out of stock

Spacer Hose Bracket 39mm

Article no: 1005911

KRW44,900

Out of stock

Hose Tilt Long - EC214

Article no: 743001

Position42

Quantity in drawing4

KRW129,000

excl. VAT

Out of stock

Hose Tilt Long - EC214

Article no: 743001

KRW129,000

Out of stock

Cylinder axle EC206, EC206B, EC209, EC209B, EC214

Article no: 1016458

Position36

Quantity in drawing2

KRW250,700

excl. VAT

In stock

Cylinder axle EC206, EC206B, EC209, EC209B, EC214

Article no: 1016458

KRW250,700

In stock

Spacer clamping half rubber EC206,209,214

Article no: 1016465

Position38

Quantity in drawing4

KRW3,000

excl. VAT

Out of stock

Spacer clamping half rubber EC206,209,214

Article no: 1016465

KRW3,000

Out of stock

Adapter bulkhead 1260-04-04

Article no: 710240

Position60

Quantity in drawing2

KRW11,600

excl. VAT

Few in stock (4)

Adapter bulkhead 1260-04-04

Article no: 710240

KRW11,600

Few in stock (4)

Nut bulkhead adapter 1270-08

Article no: 710254

Position53

Quantity in drawing2

KRW3,600

excl. VAT

Few in stock (4)

Nut bulkhead adapter 1270-08

Article no: 710254

KRW3,600

Few in stock (4)

Screw MC6S 8x40 12.9 ZFSHL ISO4762

Article no: 6000145

Position5

Quantity in drawing2

KRW2,800

excl. VAT

Out of stock

Screw MC6S 8x40 12.9 ZFSHL ISO4762

Article no: 6000145

KRW2,800

Out of stock

Cylindrical pin CPK Ø20x50 m6

Article no: 650211

Position15

Quantity in drawing4

KRW44,900

excl. VAT

In stock

Cylindrical pin CPK Ø20x50 m6

Article no: 650211

KRW44,900

In stock

Shim tilt axle - EC214/EC219 0,5mm

Article no: 1016420

Position2

Quantity in drawing4

KRW23,200

excl. VAT

In stock

Shim tilt axle - EC214/EC219 0,5mm

Article no: 1016420

Use if required

KRW23,200

In stock

Tilt axial washer EC214, EC219

Article no: 1016417

Position3

Quantity in drawing1

KRW155,100

excl. VAT

Few in stock (1)

Tilt axial washer EC214, EC219

Article no: 1016417

KRW155,100

Few in stock (1)

Screw MC6S 16x140 12.9 ZFSHL ISO4762

Article no: 6000152

Position27

Quantity in drawing8

KRW16,800

excl. VAT

In stock

Screw MC6S 16x140 12.9 ZFSHL ISO4762

Article no: 6000152

Torque: 333Nm

KRW16,800

In stock

Plug Din 908 1/4"

Article no: 711505

Position29

Quantity in drawing6

KRW3,600

excl. VAT

Few in stock (1)

Plug Din 908 1/4"

Article no: 711505

KRW3,600

Few in stock (1)

Adapter bulkhead 1260-08-08

Article no: 710244

Position52

Quantity in drawing2

KRW18,400

excl. VAT

Few in stock (2)

Adapter bulkhead 1260-08-08

Article no: 710244

KRW18,400

Few in stock (2)

Hose bracket EC214-EC333 10x Hoses left

Article no: 1047137

Position19

Quantity in drawing1

KRW102,900

excl. VAT

Out of stock

Hose bracket EC214-EC333 10x Hoses left

Article no: 1047137

KRW102,900

Out of stock

Washer NL16-DPE 17,0x25,4x3,7

Article no: 611044

Position55

Quantity in drawing2

KRW7,500

excl. VAT

In stock

Washer NL16-DPE 17,0x25,4x3,7

Article no: 611044

KRW7,500

In stock

O-ring 9,92x2,62 NBR 70 shore EC209/219/226 cylinder axle

Article no: 710968

Position6

Quantity in drawing4

KRW1,300

excl. VAT

In stock

O-ring 9,92x2,62 NBR 70 shore EC209/219/226 cylinder axle

Article no: 710968

QTY: 8 for option Wide

KRW1,300

In stock

Bushing tilt EC214/EC219 WB802/EB1 85/90x35

Article no: 630321

Position1

Quantity in drawing2

KRW124,600

excl. VAT

In stock

Bushing tilt EC214/EC219 WB802/EB1 85/90x35

Article no: 630321

(Included in Top part)

KRW124,600

In stock

Tilt cylinder EC214

Article no: 1024186

Position65

Quantity in drawing2

KRW2,840,600

excl. VAT

Out of stock

Tilt cylinder EC214

Article no: 1024186

Replaced by POS.10 from 2017-05

KRW2,840,600

Out of stock

Adapter bulkhead 1260-06-32

Article no: 710242

Position56

Quantity in drawing2

KRW16,100

excl. VAT

Few in stock (2)

Adapter bulkhead 1260-06-32

Article no: 710242

KRW16,100

Few in stock (2)

Screw M6S 8x16 8.8 FZB ISO4017

Article no: 610122

Position46

Quantity in drawing8

KRW1,300

excl. VAT

Out of stock

Screw M6S 8x16 8.8 FZB ISO4017

Article no: 610122

KRW1,300

Out of stock

Nut bulkhead adapter 1270-06

Article no: 710252

Position57

Quantity in drawing2

KRW3,600

excl. VAT

Few in stock (3)

Nut bulkhead adapter 1270-06

Article no: 710252

KRW3,600

Few in stock (3)

Overcenter adjustable-EC206/209/214/219W/226W/05B-15B

Article no: 730269

Position44

Quantity in drawing4

KRW469,600

excl. VAT

Few in stock (5)

Overcenter adjustable-EC206/209/214/219W/226W/05B-15B

Article no: 730269

Torque: 45Nm

KRW469,600

Few in stock (5)

Hose bracket EC214-EC333 10x Hoses right

Article no: 1047138

Position20

Quantity in drawing1

KRW102,900

excl. VAT

Out of stock

Hose bracket EC214-EC333 10x Hoses right

Article no: 1047138

KRW102,900

Out of stock

Screw MC6S 16x100 12.9 ZFSHL ISO4762

Article no: 6000156

Position23

Quantity in drawing4

KRW14,600

excl. VAT

Few in stock (4)

Screw MC6S 16x100 12.9 ZFSHL ISO4762

Article no: 6000156

Torque: 333Nm

KRW14,600

Few in stock (4)

Screw MC6S 16x130 12.9 ZFSHL ISO4762

Article no: 6000154

Position25

Quantity in drawing4

KRW18,600

excl. VAT

In stock

Screw MC6S 16x130 12.9 ZFSHL ISO4762

Article no: 6000154

Torque: 333Nm

KRW18,600

In stock

Spacer Hose Bracket 20mm

Article no: 1023777

Position24

Quantity in drawing4

KRW40,600

excl. VAT

Out of stock

Spacer Hose Bracket 20mm

Article no: 1023777

KRW40,600

Out of stock

Shim yoke bracket - EC209-EC226 - 10mm (cast yoke)

Article no: 1007041

Position12

Quantity in drawing4

KRW102,900

excl. VAT

In stock

Shim yoke bracket - EC209-EC226 - 10mm (cast yoke)

Article no: 1007041

For option Shimmed Tilt cylinder

KRW102,900

In stock

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Position4

Quantity in drawing10

KRW2,800

excl. VAT

Out of stock

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

KRW2,800

Out of stock

Nut bulkhead adapter 1270-04

Article no: 710250

Position61

Quantity in drawing2

KRW3,600

excl. VAT

In stock

Nut bulkhead adapter 1270-04

Article no: 710250

KRW3,600

In stock

Hose protection Tiltcyl EC05B-15B, 206-214 overcenter

Article no: 1003774

Position45

Quantity in drawing2

KRW44,900

excl. VAT

Few in stock (2)

Hose protection Tiltcyl EC05B-15B, 206-214 overcenter

Article no: 1003774

KRW44,900

Few in stock (2)

Washer NL1/2"-DPE 13,5x19,5x2,5

Article no: 611096

Position59

Quantity in drawing2

KRW5,200

excl. VAT

In stock

Washer NL1/2"-DPE 13,5x19,5x2,5

Article no: 611096

KRW5,200

In stock

Washer NL20-DPE 21,4x30,7x3,7

Article no: 611098

Position51

Quantity in drawing2

KRW11,300

excl. VAT

Few in stock (4)

Washer NL20-DPE 21,4x30,7x3,7

Article no: 611098

KRW11,300

Few in stock (4)

Screw MC6S 16x90 12.9 ZFSHL ISO4762

Article no: 6000151

Position8

Quantity in drawing18

KRW13,200

excl. VAT

In stock

Screw MC6S 16x90 12.9 ZFSHL ISO4762

Article no: 6000151

Torque: 333Nm. QTY: 24-26 for Wide

KRW13,200

In stock

Seal washer GBR04 1/4"

Article no: 710702

Position28

Quantity in drawing10

KRW1,300

excl. VAT

In stock

Seal washer GBR04 1/4"

Article no: 710702

KRW1,300

In stock

Bushing BWG-F 35/45/55/5x30

Article no: 631003

Position14

Quantity in drawing4

KRW107,200

excl. VAT

In stock

Bushing BWG-F 35/45/55/5x30

Article no: 631003

KRW107,200

In stock

Tilt shaft EC214/EC219

Article no: 1080804

Position7

Quantity in drawing2

KRW113,000

excl. VAT

Out of stock

Tilt shaft EC214/EC219

Article no: 1080804

KRW113,000

Out of stock

Tilt shaft flange EC214/EC219

Article no: 1080805

Position7

Quantity in drawing2

KRW71,000

excl. VAT

Out of stock

Tilt shaft flange EC214/EC219

Article no: 1080805

KRW71,000

Out of stock

Slotted pin RPE5x20

Article no: 640413

Position33

Quantity in drawing2

KRW2,000

excl. VAT

Few in stock (2)

Slotted pin RPE5x20

Article no: 640413

QTY: 4 for option Wide

KRW2,000

Few in stock (2)
