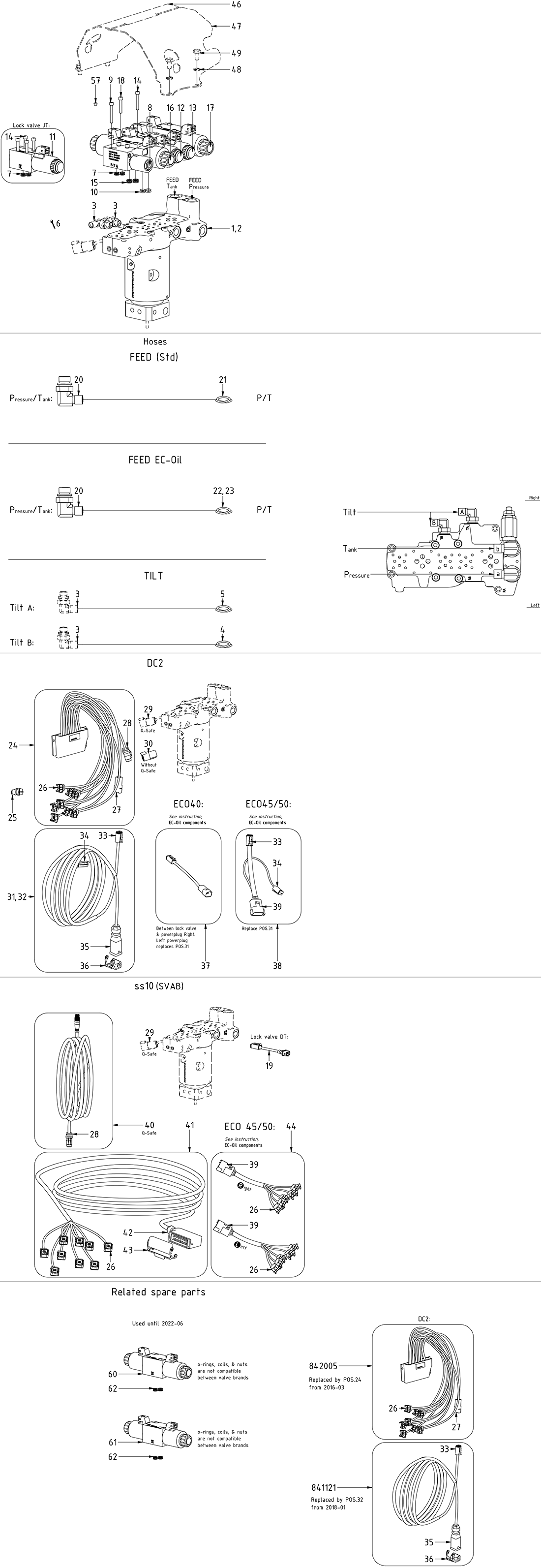

ss10 (DC2/SVAB)

Pos

Article

Extra Info

Quantity in drawing

Price (excl. VAT)

Directional valve NG4 crossparallel external T without Coil

Article no: 730321

Position50

Quantity in drawing1

KRW976,800

excl. VAT

Out of stock

Directional valve NG4 crossparallel external T without Coil

Article no: 730321

Nut (POS.53) and o-ring with chokevalve included. Assemble with POS.52

KRW976,800

Out of stock

Hose

Article no: 7000701

Position23

Quantity in drawing2

KRW313,000

excl. VAT

Few in stock (2)

Hose

Article no: 7000701

KRW313,000

Few in stock (2)

Hose

Article no: 7001628

Position22

Quantity in drawing2

KRW343,500

excl. VAT

Out of stock

Hose

Article no: 7001628

KRW343,500

Out of stock

Nut directional valve NG4

Article no: 1006785

Position53

Quantity in drawing4

KRW43,500

excl. VAT

Few in stock (2)

Nut directional valve NG4

Article no: 1006785

KRW43,500

Few in stock (2)

Hose

Article no: 7000321

Position55

Quantity in drawing1

KRW69,600

excl. VAT

Out of stock

Hose

Article no: 7000321

KRW69,600

Out of stock

Adapter cable DT 4P-DT 2S

Article no: 1057843

Position37

Quantity in drawing1

KRW126,100

excl. VAT

Few in stock (2)

Adapter cable DT 4P-DT 2S

Article no: 1057843

For ECO40

KRW126,100

Few in stock (2)

Plug Dysa D0 for NG4 / VRP2-04

Article no: 790191

Position51

Quantity in drawing1

KRW29,000

excl. VAT

Out of stock

Plug Dysa D0 for NG4 / VRP2-04

Article no: 790191

O-ring included

KRW29,000

Out of stock

Electronics Module TM2-EC206 DC2 QS - DTM

Article no: 842139

Position24

Quantity in drawing1

KRW1,811,600

excl. VAT

Few in stock (1)

Electronics Module TM2-EC206 DC2 QS - DTM

Article no: 842139

KRW1,811,600

Few in stock (1)

Coil NG4 12V JT

Article no: 730313

Position52

Quantity in drawing2

KRW171,000

excl. VAT

Few in stock (4)

Coil NG4 12V JT

Article no: 730313

KRW171,000

Few in stock (4)

ILME 66.16 16P MZO 25 L20 connector device

Article no: 810203

Position42

Quantity in drawing1

KRW149,300

excl. VAT

Few in stock (2)

ILME 66.16 16P MZO 25 L20 connector device

Article no: 810203

KRW149,300

Few in stock (2)

Directional valve NG6 12V. 4D01-3203-0302-B1-GOR-JT ATOS

Article no: 7001617

Position16

Quantity in drawing1

KRW310,100

excl. VAT

Few in stock (1)

Directional valve NG6 12V. 4D01-3203-0302-B1-GOR-JT ATOS

Article no: 7001617

(POS.15 included)

KRW310,100

Few in stock (1)

Unit cable ss10 JT EC206(B)-EC209(B)-3,4m

Article no: 303465

Position41

Quantity in drawing1

KRW798,600

excl. VAT

Out of stock

Unit cable ss10 JT EC206(B)-EC209(B)-3,4m

Article no: 303465

KRW798,600

Out of stock

Directional valve NG4 12V JT

Article no: 730328

Position13

Quantity in drawing1

KRW489,900

excl. VAT

Few in stock (3)

Directional valve NG4 12V JT

Article no: 730328

(POS.10 included)

KRW489,900

Few in stock (3)

Screw MC6S 5x30 12.9 untreated ISO4762

Article no: 610403

Position18

Quantity in drawing8

KRW1,300

excl. VAT

Out of stock

Screw MC6S 5x30 12.9 untreated ISO4762

Article no: 610403

Torque: 9,7Nm

KRW1,300

Out of stock

Adapter 401-04-04 90°

Article no: 710151

Position3

Quantity in drawing2

KRW26,700

excl. VAT

In stock

Adapter 401-04-04 90°

Article no: 710151

Part of rotator frame assembly

KRW26,700

In stock

Directional valve NG6 prop 12V engcon JT ATOS

Article no: 7001614

Position17

Quantity in drawing1

KRW911,600

excl. VAT

Few in stock (1)

Directional valve NG6 prop 12V engcon JT ATOS

Article no: 7001614

(POS.15 included)

KRW911,600

Few in stock (1)

Directional valve NG4 IQS lock 12V DT ss10 Coil A

Article no: 1042047

Position8

Quantity in drawing1

KRW1,492,800

excl. VAT

Few in stock (2)

Directional valve NG4 IQS lock 12V DT ss10 Coil A

Article no: 1042047

QS, CW, ECPUP, ss SIQ (POS.7 included)

KRW1,492,800

Few in stock (2)

Screw MC6S 5x35 12.9 untreated ISO4762

Article no: 610404

Position14

Quantity in drawing8

KRW1,300

excl. VAT

In stock

Screw MC6S 5x35 12.9 untreated ISO4762

Article no: 610404

Torque: 9,7Nm. QTY: 12 for Lock JT

KRW1,300

In stock

Plug JT

Article no: 1045154

Position45

Quantity in drawing1

KRW16,800

excl. VAT

Few in stock (2)

Plug JT

Article no: 1045154

Plug JT connector "1" on Right

KRW16,800

Few in stock (2)

Adapter cable JT 2P-DT 2S

Article no: 1017478

Position19

Quantity in drawing1

KRW92,800

excl. VAT

Few in stock (4)

Adapter cable JT 2P-DT 2S

Article no: 1017478

QS, CW, ECPUP, ss SIQ (Previously also for DC2)

KRW92,800

Few in stock (4)

Unit cable DC2 DT EC206-EC233-3,9m

Article no: 8001201

Position31

Quantity in drawing1

KRW439,100

excl. VAT

Out of stock

Unit cable DC2 DT EC206-EC233-3,9m

Article no: 8001201

KRW439,100

Out of stock

Plug plastic - valve screw hole

Article no: 790156

Position57

Quantity in drawing16

KRW1,300

excl. VAT

In stock

Plug plastic - valve screw hole

Article no: 790156

KRW1,300

In stock

Valve block-swivel 5v & 6-ch for Slip ring-EC206

Article no: 1026703

Position1

Quantity in drawing1

KRW5,246,400

excl. VAT

Out of stock

Valve block-swivel 5v & 6-ch for Slip ring-EC206

Article no: 1026703

KRW5,246,400

Out of stock

Cable tie 4,8x371

Article no: 1021586

Position59

Quantity in drawing1

KRW36,200

excl. VAT

Out of stock

Cable tie 4,8x371

Article no: 1021586

KRW36,200

Out of stock

Valve block-swivel 5v & 6-ch Slip ring-DTM-EC206

Article no: 1031333

Position2

Quantity in drawing1

KRW6,855,100

excl. VAT

Few in stock (1)

Valve block-swivel 5v & 6-ch Slip ring-DTM-EC206

Article no: 1031333

KRW6,855,100

Few in stock (1)

Adapter 401-06-08 90°

Article no: 710157

Position20

Quantity in drawing2

KRW40,600

excl. VAT

In stock

Adapter 401-06-08 90°

Article no: 710157

KRW40,600

In stock

Deutsch DT06-4S connector device

Article no: 820218

Position33

Quantity in drawing1

KRW37,700

excl. VAT

In stock

Deutsch DT06-4S connector device

Article no: 820218

KRW37,700

In stock

Deutsch DTM06-6S connector device

Article no: 8000053

Position28

Quantity in drawing1

KRW56,500

excl. VAT

Few in stock (5)

Deutsch DTM06-6S connector device

Article no: 8000053

KRW56,500

Few in stock (5)

Cable tie 7,8x360

Article no: 1021587

Position58

Quantity in drawing1

KRW1,300

excl. VAT

Out of stock

Cable tie 7,8x360

Article no: 1021587

KRW1,300

Out of stock

Deutsch DT04-4P connector device

Article no: 820108

Position27

Quantity in drawing2

KRW33,300

excl. VAT

In stock

Deutsch DT04-4P connector device

Article no: 820108

KRW33,300

In stock

Protection plug for DTM06-6S

Article no: 8000090

Position30

Quantity in drawing1

KRW42,000

excl. VAT

In stock

Protection plug for DTM06-6S

Article no: 8000090

KRW42,000

In stock

Deutsch DT06-2S connector device

Article no: 820219

Position34

Quantity in drawing1

KRW26,700

excl. VAT

In stock

Deutsch DT06-2S connector device

Article no: 820219

KRW26,700

In stock

Deutsch DTM04-12PA connector device

Article no: 8000177

Position39

Quantity in drawing1

KRW60,900

excl. VAT

In stock

Deutsch DTM04-12PA connector device

Article no: 8000177

KRW60,900

In stock

Protective cover valve block EC206 right

Article no: 1016524

Position46

Quantity in drawing1

KRW113,000

excl. VAT

Out of stock

Protective cover valve block EC206 right

Article no: 1016524

KRW113,000

Out of stock

Directional valve NG6 12V. 4D01-3203-0302-B1-GOR-JT

Article no: 730101

Position60

Quantity in drawing1

KRW684,100

excl. VAT

Few in stock (1)

Directional valve NG6 12V. 4D01-3203-0302-B1-GOR-JT

Article no: 730101

Replaced by POS.16 (ATOS)

KRW684,100

Few in stock (1)

AMP Junior Timer (JT) 2S connector device

Article no: 810218

Position26

Quantity in drawing9

KRW20,900

excl. VAT

In stock

AMP Junior Timer (JT) 2S connector device

Article no: 810218

KRW20,900

In stock

Adapter cable DTM 12P-DT 2S/4xJT 2S

Article no: 1029599

Position44

Quantity in drawing1

KRW324,600

excl. VAT

Few in stock (4)

Adapter cable DTM 12P-DT 2S/4xJT 2S

Article no: 1029599

For ECO45/50. Replace POS.40-41

KRW324,600

Few in stock (4)

Adapter cable DTM 12P-DT 4S/2S

Article no: 1048529

Position38

Quantity in drawing1

KRW266,700

excl. VAT

Few in stock (4)

Adapter cable DTM 12P-DT 4S/2S

Article no: 1048529

For ECO45/50

KRW266,700

Few in stock (4)

Screw MC6S 5x40 12.9 untreated ISO4762

Article no: 610405

Position9

Quantity in drawing3

KRW1,300

excl. VAT

In stock

Screw MC6S 5x40 12.9 untreated ISO4762

Article no: 610405

Torque: 9,7Nm

KRW1,300

In stock

Protective cover valve block EC206 left

Article no: 1016523

Position47

Quantity in drawing1

KRW113,000

excl. VAT

Out of stock

Protective cover valve block EC206 left

Article no: 1016523

KRW113,000

Out of stock

ILME cover21.21 with lever CKAX 03 CXA

Article no: 810208

Position36

Quantity in drawing2

KRW52,200

excl. VAT

Few in stock (2)

ILME cover21.21 with lever CKAX 03 CXA

Article no: 810208

KRW52,200

Few in stock (2)

ILME cover 66.16 with lever CZC 25 LG

Article no: 810235

Position43

Quantity in drawing1

KRW79,700

excl. VAT

Few in stock (2)

ILME cover 66.16 with lever CZC 25 LG

Article no: 810235

KRW79,700

Few in stock (2)

Banjo bolt 4451-04

Article no: 710271

Position56

Quantity in drawing1

KRW4,800

excl. VAT

In stock

Banjo bolt 4451-04

Article no: 710271

KRW4,800

In stock

Directional valve NG4 Prop tilt 12V JT

Article no: 730329

Position12

Quantity in drawing1

KRW1,043,500

excl. VAT

Out of stock

Directional valve NG4 Prop tilt 12V JT

Article no: 730329

(POS.10 included)

KRW1,043,500

Out of stock

Hose Tilt Short - EC206

Article no: 742911

Position4

Quantity in drawing1

KRW101,400

excl. VAT

Few in stock (3)

Hose Tilt Short - EC206

Article no: 742911

KRW101,400

Few in stock (3)

Hose Tilt Long - EC206

Article no: 742912

Position5

Quantity in drawing1

KRW104,300

excl. VAT

Few in stock (4)

Hose Tilt Long - EC206

Article no: 742912

KRW104,300

Few in stock (4)

Jumper JT 2P POS:1-2

Article no: 1018662

Position25

Quantity in drawing1

KRW27,500

excl. VAT

In stock

Jumper JT 2P POS:1-2

Article no: 1018662

Plug JT connector "1"

KRW27,500

In stock

O-ring 8,73x1,78 NBR 90 shore

Article no: 710959

Position15

Quantity in drawing8

KRW2,200

excl. VAT

In stock

O-ring 8,73x1,78 NBR 90 shore

Article no: 710959

KRW2,200

In stock

Adapter cable M12 8P-DTM 6S

Article no: 842148

Position40

Quantity in drawing1

KRW391,300

excl. VAT

Out of stock

Adapter cable M12 8P-DTM 6S

Article no: 842148

For Q-Safe

KRW391,300

Out of stock

Unit cable DC2 JT EC206-EC233-3,9m

Article no: 8000175

Position32

Quantity in drawing1

KRW469,600

excl. VAT

Few in stock (2)

Unit cable DC2 JT EC206-EC233-3,9m

Article no: 8000175

For Lock valve JT. Replace POS.31

KRW469,600

Few in stock (2)

ILME 21.21 12P MKA V20 connector device

Article no: 841192

Position35

Quantity in drawing2

KRW208,700

excl. VAT

Few in stock (5)

ILME 21.21 12P MKA V20 connector device

Article no: 841192

KRW208,700

Few in stock (5)

O-ring 7,65x1,78 FKM 90 shore Viton NG4

Article no: 710960

Position7

Quantity in drawing4

KRW1,300

excl. VAT

Out of stock

O-ring 7,65x1,78 FKM 90 shore Viton NG4

Article no: 710960

KRW1,300

Out of stock

Directional valve NG4 lock 12V JT

Article no: 730312

Position11

Quantity in drawing1

KRW402,900

excl. VAT

Few in stock (2)

Directional valve NG4 lock 12V JT

Article no: 730312

(POS.7 included)

KRW402,900

Few in stock (2)

O-ring 7,66x1,68 square NBR 70 shore NG4

Article no: 7000579

Position10

Quantity in drawing8

KRW9,300

excl. VAT

In stock

O-ring 7,66x1,68 square NBR 70 shore NG4

Article no: 7000579

KRW9,300

In stock

O-ring 9,25x1,78 FKM 90 shore Viton Green NG6

Article no: 710901

Position62

Quantity in drawing8

KRW1,300

excl. VAT

In stock

O-ring 9,25x1,78 FKM 90 shore Viton Green NG6

Article no: 710901

Used until 2022-06

KRW1,300

In stock

Screw M6S 8x16 8.8 FZB ISO4017

Article no: 610122

Position49

Quantity in drawing4

KRW1,300

excl. VAT

Out of stock

Screw M6S 8x16 8.8 FZB ISO4017

Article no: 610122

KRW1,300

Out of stock

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Position48

Quantity in drawing4

KRW2,800

excl. VAT

Out of stock

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

KRW2,800

Out of stock

Seal washer GBR04 1/4"

Article no: 710702

Position54

Quantity in drawing2

KRW1,300

excl. VAT

In stock

Seal washer GBR04 1/4"

Article no: 710702

KRW1,300

In stock

Directional valve NG6 prop 12V engcon JT

Article no: 730190

Position61

Quantity in drawing1

KRW1,579,700

excl. VAT

In stock

Directional valve NG6 prop 12V engcon JT

Article no: 730190

Replaced by POS.17 (ATOS)

KRW1,579,700

In stock

Hose feed - EC206 valve block

Article no: 742913

Position21

Quantity in drawing2

KRW244,900

excl. VAT

Out of stock

Hose feed - EC206 valve block

Article no: 742913

KRW244,900

Out of stock
