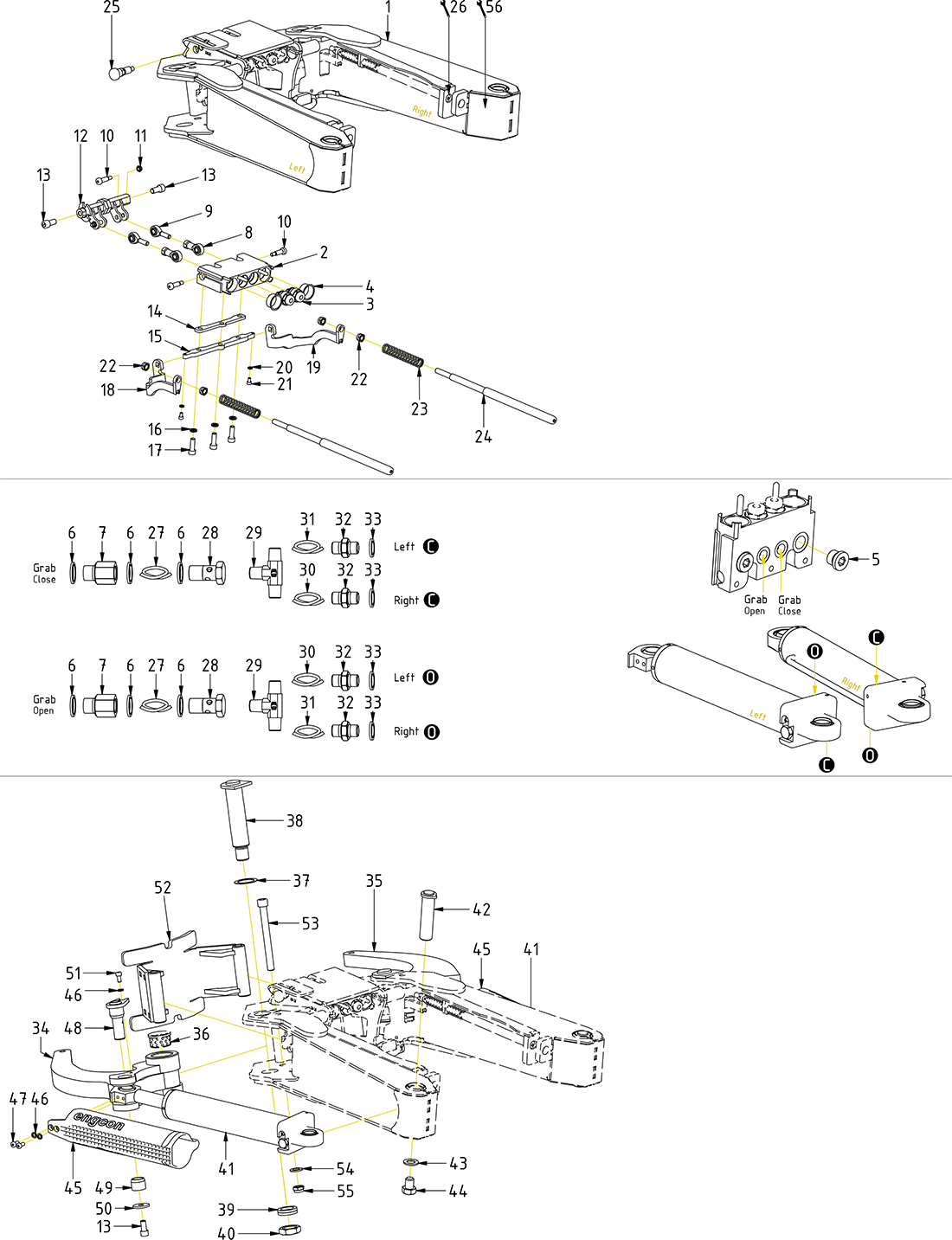

GRD60B

Pos

Article

Extra Info

Quantity in drawing

Price (excl. VAT)

Hose

Article no: 7001059

Position27

Quantity in drawing2

JPY8,000

excl. VAT

Out of stock

Hose

Article no: 7001059

JPY8,000

Out of stock

Frame GRD60B

Article no: 1068911

Position1

Quantity in drawing1

JPY452,200

excl. VAT

Out of stock

Frame GRD60B

Article no: 1068911

JPY452,200

Out of stock

Carrier Right GRD60B

Article no: 1079923

Position19

Quantity in drawing1

JPY18,200

excl. VAT

Out of stock

Carrier Right GRD60B

Article no: 1079923

JPY18,200

Out of stock

Hydraulic block ECO GRD60 V2

Article no: 1055206

Position2

Quantity in drawing1

JPY166,700

excl. VAT

Few in stock (2)

Hydraulic block ECO GRD60 V2

Article no: 1055206

JPY166,700

Few in stock (2)

Carrier Left GRD60B

Article no: 1079922

Position18

Quantity in drawing1

JPY18,200

excl. VAT

Out of stock

Carrier Left GRD60B

Article no: 1079922

JPY18,200

Out of stock

Eccenter GRD60,SWD60 ECO

Article no: 1037048

Position12

Quantity in drawing1

JPY54,500

excl. VAT

Few in stock (2)

Eccenter GRD60,SWD60 ECO

Article no: 1037048

JPY54,500

Few in stock (2)

Grab arm GRD60 right

Article no: 1031147

Position35

Quantity in drawing1

JPY338,000

excl. VAT

Few in stock (2)

Grab arm GRD60 right

Article no: 1031147

(POS.36 incl.)

JPY338,000

Few in stock (2)

Hose

Article no: 7000888

Position31

Quantity in drawing2

JPY9,400

excl. VAT

Few in stock (1)

Hose

Article no: 7000888

JPY9,400

Few in stock (1)

Shim carrier GRD60

Article no: 1034333

Position14

Quantity in drawing1

JPY2,300

excl. VAT

Few in stock (2)

Shim carrier GRD60

Article no: 1034333

JPY2,300

Few in stock (2)

Adapter 851-04-04

Article no: 7000883

Position29

Quantity in drawing2

JPY3,200

excl. VAT

Few in stock (5)

Adapter 851-04-04

Article no: 7000883

JPY3,200

Few in stock (5)

Carrier GRD60

Article no: 1034084

Position15

Quantity in drawing1

JPY19,000

excl. VAT

Out of stock

Carrier GRD60

Article no: 1034084

JPY19,000

Out of stock

Hose

Article no: 7000889

Position30

Quantity in drawing2

JPY9,000

excl. VAT

Few in stock (2)

Hose

Article no: 7000889

JPY9,000

Few in stock (2)

Protection Plug TECO60 hydraulic

Article no: 7000154

Position4

Quantity in drawing2

JPY100

excl. VAT

Out of stock

Protection Plug TECO60 hydraulic

Article no: 7000154

JPY100

Out of stock

Washer BRB FZB 17x30x3 ISO7089

Article no: 611009

Position54

Quantity in drawing2

JPY100

excl. VAT

In stock

Washer BRB FZB 17x30x3 ISO7089

Article no: 611009

JPY100

In stock

Screw M6S 20x25 FZB 8.8 ISO4017

Article no: 6000054

Position44

Quantity in drawing2

JPY600

excl. VAT

In stock

Screw M6S 20x25 FZB 8.8 ISO4017

Article no: 6000054

Loxeal 83-52

JPY600

In stock

Screw MC6S 16x160 12.9 ZFSHL ISO4762

Article no: 6000166

Position53

Quantity in drawing2

JPY1,400

excl. VAT

In stock

Screw MC6S 16x160 12.9 ZFSHL ISO4762

Article no: 6000166

JPY1,400

In stock

Screw MC6S 6x10 12.9 ZFSHL ISO4762

Article no: 611512

Position21

Quantity in drawing2

JPY100

excl. VAT

In stock

Screw MC6S 6x10 12.9 ZFSHL ISO4762

Article no: 611512

JPY100

In stock

Spring lock arm GRD60/GRD70/SWD60

Article no: 1038209

Position23

Quantity in drawing2

JPY2,700

excl. VAT

Few in stock (2)

Spring lock arm GRD60/GRD70/SWD60

Article no: 1038209

JPY2,700

Few in stock (2)

Washer BRB FZB 21x36x3 ISO7089

Article no: 611010

Position43

Quantity in drawing2

JPY400

excl. VAT

In stock

Washer BRB FZB 21x36x3 ISO7089

Article no: 611010

JPY400

In stock

Grab arm GRD60 left

Article no: 1031144

Position34

Quantity in drawing1

JPY313,300

excl. VAT

Few in stock (2)

Grab arm GRD60 left

Article no: 1031144

(POS.36 incl.)

JPY313,300

Few in stock (2)

Lock arm GRD60

Article no: 1034056

Position24

Quantity in drawing2

JPY37,700

excl. VAT

Few in stock (1)

Lock arm GRD60

Article no: 1034056

JPY37,700

Few in stock (1)

Washer NL6-DPE 6,5x10,8x1,7

Article no: 611039

Position20

Quantity in drawing2

JPY200

excl. VAT

In stock

Washer NL6-DPE 6,5x10,8x1,7

Article no: 611039

JPY200

In stock

Link head M10/Ø10 female

Article no: 1033284

Position8

Quantity in drawing2

JPY12,000

excl. VAT

Few in stock (4)

Link head M10/Ø10 female

Article no: 1033284

JPY12,000

Few in stock (4)

Adapter 138-04-29 ( compact 136-04-04 )

Article no: 710135

Position32

Quantity in drawing4

JPY400

excl. VAT

In stock

Adapter 138-04-29 ( compact 136-04-04 )

Article no: 710135

JPY400

In stock

Nut M6LM 6. FZB M12

Article no: 610924

Position22

Quantity in drawing4

JPY100

excl. VAT

In stock

Nut M6LM 6. FZB M12

Article no: 610924

JPY100

In stock

Support GRD60 standard

Article no: 1034063

Position52

Quantity in drawing1

JPY107,600

excl. VAT

Few in stock (1)

Support GRD60 standard

Article no: 1034063

JPY107,600

Few in stock (1)

Axle grab cylinder against frame GRD60B/70B

Article no: 1068863

Position42

Quantity in drawing2

JPY12,200

excl. VAT

Few in stock (4)

Axle grab cylinder against frame GRD60B/70B

Article no: 1068863

JPY12,200

Few in stock (4)

Adapter 236-06-06

Article no: 710131

Position7

Quantity in drawing2

JPY900

excl. VAT

Out of stock

Adapter 236-06-06

Article no: 710131

JPY900

Out of stock

Plug VSTIR12ED 1/2"

Article no: 711500

Position5

Quantity in drawing2

JPY1,200

excl. VAT

In stock

Plug VSTIR12ED 1/2"

Article no: 711500

JPY1,200

In stock

Washer NL30-DPE 31,4x47,0x6,7

Article no: 6000122

Position39

Quantity in drawing2

JPY2,400

excl. VAT

In stock

Washer NL30-DPE 31,4x47,0x6,7

Article no: 6000122

JPY2,400

In stock

Link head M10/Ø10 Male, 42mm

Article no: 1033283

Position9

Quantity in drawing2

JPY13,300

excl. VAT

Few in stock (4)

Link head M10/Ø10 Male, 42mm

Article no: 1033283

Unscrew 4,5 turns from bottomed

JPY13,300

Few in stock (4)

Banjo bolt 4451-06

Article no: 710272

Position28

Quantity in drawing2

JPY900

excl. VAT

In stock

Banjo bolt 4451-06

Article no: 710272

JPY900

In stock

Coupling ECO45/50 3/8" male - top bracket V2

Article no: 1028873

Position3

Quantity in drawing2

JPY32,400

excl. VAT

In stock

Coupling ECO45/50 3/8" male - top bracket V2

Article no: 1028873

Torque: 60Nm

JPY32,400

In stock

Screw-Shoulder screw Ø10x25/M8 12.9 ISO7379

Article no: 611703

Position10

Quantity in drawing4

JPY1,700

excl. VAT

In stock

Screw-Shoulder screw Ø10x25/M8 12.9 ISO7379

Article no: 611703

Loxeal 83-52 against POS.2

JPY1,700

In stock

Nut M6LM low-NYLOC M8 8. FZB

Article no: 610922

Position11

Quantity in drawing2

JPY100

excl. VAT

In stock

Nut M6LM low-NYLOC M8 8. FZB

Article no: 610922

JPY100

In stock

Screw MC6S 8x16H 12.9 ZFSHL ISO4762

Article no: 610432

Position51

Quantity in drawing2

JPY200

excl. VAT

In stock

Screw MC6S 8x16H 12.9 ZFSHL ISO4762

Article no: 610432

JPY200

In stock

Axle Grab arm GRD60B/70/70B

Article no: 1044793

Position38

Quantity in drawing2

JPY17,100

excl. VAT

Few in stock (4)

Axle Grab arm GRD60B/70/70B

Article no: 1044793

JPY17,100

Few in stock (4)

Seal washer GBR04 1/4"

Article no: 710702

Position33

Quantity in drawing4

JPY100

excl. VAT

In stock

Seal washer GBR04 1/4"

Article no: 710702

JPY100

In stock

Sleeve axle grab cylinder against Grab arm GRD45/50/60/70

Article no: 1034641

Position49

Quantity in drawing2

JPY7,400

excl. VAT

In stock

Sleeve axle grab cylinder against Grab arm GRD45/50/60/70

Article no: 1034641

JPY7,400

In stock

Washer BRB FZB 13x40x4 DIN522

Article no: 6000056

Position50

Quantity in drawing2

JPY100

excl. VAT

In stock

Washer BRB FZB 13x40x4 DIN522

Article no: 6000056

JPY100

In stock

Shim GRD60 56x40,5x1

Article no: 1042067

Position37

Quantity in drawing4

JPY1,100

excl. VAT

Few in stock (4)

Shim GRD60 56x40,5x1

Article no: 1042067

Also used between grab arm and grab frame if required

JPY1,100

Few in stock (4)

Grab cylinder GRD60/GRD70-right/left

Article no: 1048549

Position41

Quantity in drawing2

JPY206,800

excl. VAT

Few in stock (2)

Grab cylinder GRD60/GRD70-right/left

Article no: 1048549

JPY206,800

Few in stock (2)

Seal washer GBR06 3/8"

Article no: 710703

Position6

Quantity in drawing6

JPY100

excl. VAT

In stock

Seal washer GBR06 3/8"

Article no: 710703

JPY100

In stock

Nut M30x2 low A2 DIN 439

Article no: 6000059

Position40

Quantity in drawing2

JPY4,800

excl. VAT

In stock

Nut M30x2 low A2 DIN 439

Article no: 6000059

Loxeal 83-52. Torque: 333Nm

JPY4,800

In stock

Axle grab cylinder against Grab arm GRD45/50/60/70

Article no: 1034640

Position48

Quantity in drawing2

JPY17,400

excl. VAT

Few in stock (4)

Axle grab cylinder against Grab arm GRD45/50/60/70

Article no: 1034640

JPY17,400

Few in stock (4)

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Position46

Quantity in drawing6

JPY300

excl. VAT

In stock

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

JPY300

In stock

Bushing BWG-F 40/50/55/5x30

Article no: 631001

Position36

Quantity in drawing4

JPY5,600

excl. VAT

Few in stock (4)

Bushing BWG-F 40/50/55/5x30

Article no: 631001

JPY5,600

Few in stock (4)

Nut M6M M16 NYLOC 8. FZB (A2K) DIN 985 NV24

Article no: 610926

Position55

Quantity in drawing2

JPY100

excl. VAT

In stock

Nut M6M M16 NYLOC 8. FZB (A2K) DIN 985 NV24

Article no: 610926

JPY100

In stock

Grab guard GRD60/GRD70-right/left-plastic

Article no: 1051368

Position45

Quantity in drawing2

JPY6,000

excl. VAT

In stock

Grab guard GRD60/GRD70-right/left-plastic

Article no: 1051368

JPY6,000

In stock

Screw MC6S 10x30 12.9 ZFSHL ISO4762

Article no: 612018

Position17

Quantity in drawing3

JPY300

excl. VAT

In stock

Screw MC6S 10x30 12.9 ZFSHL ISO4762

Article no: 612018

JPY300

In stock

Screw MLC6S 8x16 10.9 FZB DIN7984

Article no: 6000220

Position47

Quantity in drawing4

JPY100

excl. VAT

In stock

Screw MLC6S 8x16 10.9 FZB DIN7984

Article no: 6000220

JPY100

In stock

Screw MC6S 12x25H 12.9 ZFSHL ISO4762

Article no: 6000164

Position13

Quantity in drawing4

JPY200

excl. VAT

In stock

Screw MC6S 12x25H 12.9 ZFSHL ISO4762

Article no: 6000164

Loxeal 83-52

JPY200

In stock

Indexing bolt - spring loaded M16 x 1,5

Article no: 6000061

Position25

Quantity in drawing1

JPY13,700

excl. VAT

Few in stock (4)

Indexing bolt - spring loaded M16 x 1,5

Article no: 6000061

JPY13,700

Few in stock (4)

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Position16

Quantity in drawing3

JPY300

excl. VAT

In stock

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

JPY300

In stock
