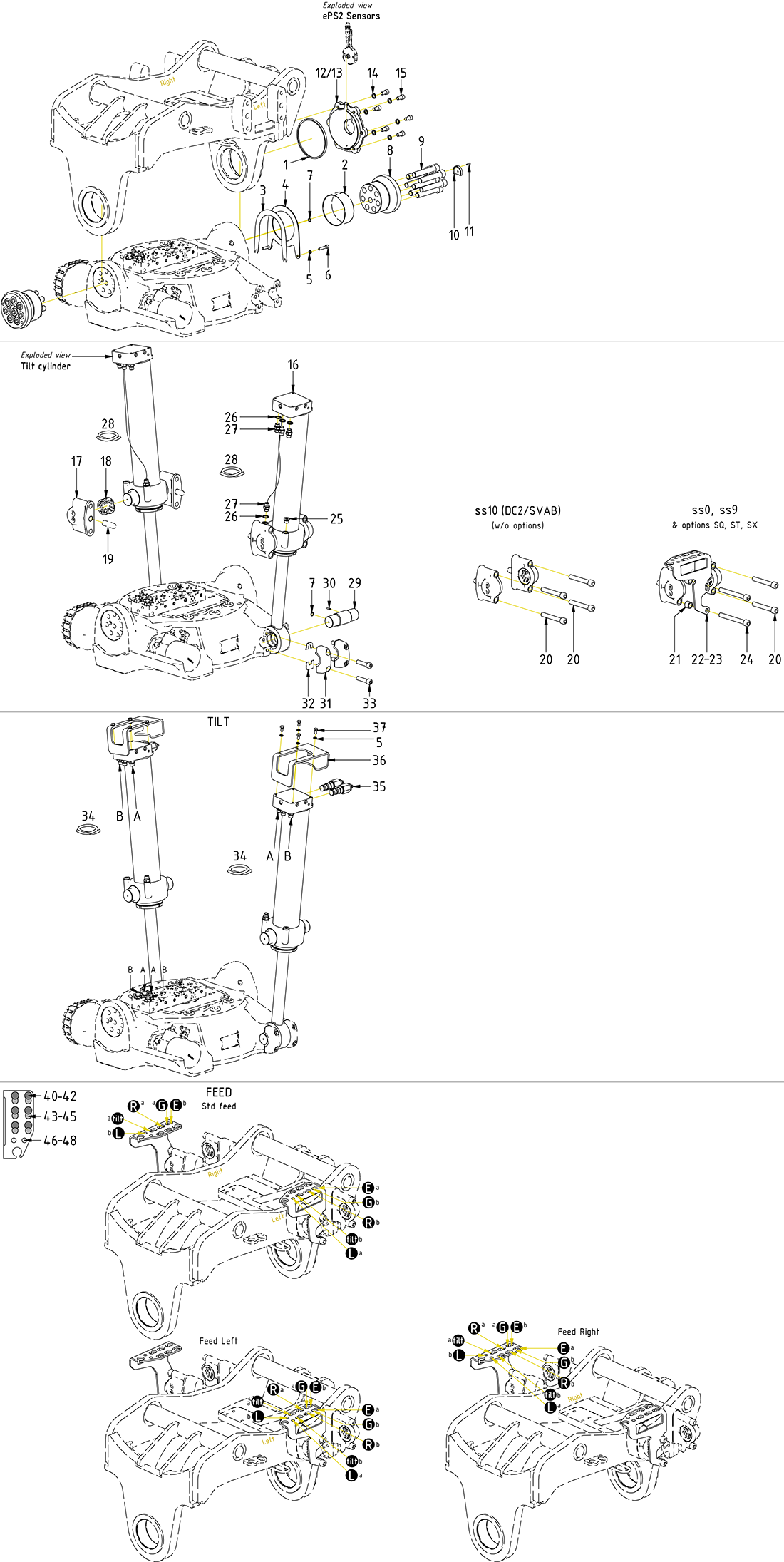

Std. Top components 'ECHF'

Pos

Article

Extra Info

Quantity in drawing

Price (excl. VAT)

Seal PAK-150x160x7-L

Article no: 1064192

Position1

Quantity in drawing1

JPY1,800

excl. VAT

Out of stock

Seal PAK-150x160x7-L

Article no: 1064192

NB! Face groove toward top part

JPY1,800

Out of stock

Protection Plate tilt axle EC233

Article no: 1064719

Position13

Quantity in drawing1

JPY4,800

excl. VAT

Out of stock

Protection Plate tilt axle EC233

Article no: 1064719

For EC233/EC233PS Face the groove downwards

JPY4,800

Out of stock

Hose Tilt Long

Article no: 7000452

Position34

Quantity in drawing4

JPY15,100

excl. VAT

Out of stock

Hose Tilt Long

Article no: 7000452

JPY15,100

Out of stock

Hose Tilt Short

Article no: 7000453

Position28

Quantity in drawing2

JPY9,000

excl. VAT

Out of stock

Hose Tilt Short

Article no: 7000453

JPY9,000

Out of stock

Cover Tilt Axle EC233S/EC333 Cast

Article no: 1065908

Position12

Quantity in drawing1

JPY31,000

excl. VAT

Out of stock

Cover Tilt Axle EC233S/EC333 Cast

Article no: 1065908

For EC233S

JPY31,000

Out of stock

Screw MC6S 20x110 12.9 ZFSHL ISO4762

Article no: 6000159

Position9

Quantity in drawing16

JPY1,400

excl. VAT

Out of stock

Screw MC6S 20x110 12.9 ZFSHL ISO4762

Article no: 6000159

Torque: 649Nm

JPY1,400

Out of stock

Clamping half EC233/EC333 EngconYellow complete

Article no: 1040020

Position31

Quantity in drawing4

JPY22,400

excl. VAT

Out of stock

Clamping half EC233/EC333 EngconYellow complete

Article no: 1040020

(POS.32 incl.)

JPY22,400

Out of stock

Yoke Bracket EC233/EC333 cast grease-free

Article no: 1039018

Position17

Quantity in drawing4

JPY43,400

excl. VAT

Few in stock (4)

Yoke Bracket EC233/EC333 cast grease-free

Article no: 1039018

(POS.18-19 incl.)

JPY43,400

Few in stock (4)

Cylindrical pin CPK Ø20x60 m6

Article no: 650217

Position19

Quantity in drawing4

JPY3,200

excl. VAT

Few in stock (4)

Cylindrical pin CPK Ø20x60 m6

Article no: 650217

JPY3,200

Few in stock (4)

Screw MC6S 4x14 8.8 FZB ISO4762

Article no: 610420

Position11

Quantity in drawing1

JPY100

excl. VAT

In stock

Screw MC6S 4x14 8.8 FZB ISO4762

Article no: 610420

For EC233S

JPY100

In stock

Screw M6S 8x16 8.8 FZB ISO4017

Article no: 610122

Position37

Quantity in drawing8

JPY100

excl. VAT

In stock

Screw M6S 8x16 8.8 FZB ISO4017

Article no: 610122

JPY100

In stock

Overcenter adjustable-EC219/226/233/20/30

Article no: 730277

Position35

Quantity in drawing4

JPY54,800

excl. VAT

In stock

Overcenter adjustable-EC219/226/233/20/30

Article no: 730277

Torque: 60Nm

JPY54,800

In stock

Screw MC6S 14x60 12.9 ZFSHL ISO4762

Article no: 6000160

Position33

Quantity in drawing8

JPY500

excl. VAT

Out of stock

Screw MC6S 14x60 12.9 ZFSHL ISO4762

Article no: 6000160

Torque: 217Nm

JPY500

Out of stock

Hose bracket EC214-EC333 10x Hoses right

Article no: 1047138

Position23

Quantity in drawing1

JPY11,000

excl. VAT

Out of stock

Hose bracket EC214-EC333 10x Hoses right

Article no: 1047138

JPY11,000

Out of stock

Nut bulkhead adapter 1270-06

Article no: 710252

Position45

Quantity in drawing2

JPY400

excl. VAT

In stock

Nut bulkhead adapter 1270-06

Article no: 710252

JPY400

In stock

Screw MC6S 16x110 12.9 ZFSHL ISO4762

Article no: 6000253

Position20

Quantity in drawing4

JPY900

excl. VAT

In stock

Screw MC6S 16x110 12.9 ZFSHL ISO4762

Article no: 6000253

QTY: 8 for ss10 (DC2/SVAB) Torque: 333Nm

JPY900

In stock

Nut bulkhead adapter 1270-08

Article no: 710254

Position42

Quantity in drawing2

JPY400

excl. VAT

In stock

Nut bulkhead adapter 1270-08

Article no: 710254

JPY400

In stock

Washer NL20-DPE 21,4x30,7x3,7

Article no: 611098

Position40

Quantity in drawing2

JPY1,200

excl. VAT

In stock

Washer NL20-DPE 21,4x30,7x3,7

Article no: 611098

JPY1,200

In stock

Adapter bulkhead 1260-04-04

Article no: 710240

Position47

Quantity in drawing2

JPY1,200

excl. VAT

In stock

Adapter bulkhead 1260-04-04

Article no: 710240

JPY1,200

In stock

Washer NL16-DPE 17,0x25,4x3,7

Article no: 611044

Position43

Quantity in drawing2

JPY800

excl. VAT

In stock

Washer NL16-DPE 17,0x25,4x3,7

Article no: 611044

JPY800

In stock

Spacer clamping half rubber EC233

Article no: 1040018

Position32

Quantity in drawing4

JPY800

excl. VAT

Out of stock

Spacer clamping half rubber EC233

Article no: 1040018

JPY800

Out of stock

Magnet spacer tilt axle EC226S/EC233S, EC326/EC333

Article no: 1064185

Position10

Quantity in drawing1

JPY2,700

excl. VAT

Out of stock

Magnet spacer tilt axle EC226S/EC233S, EC326/EC333

Article no: 1064185

For EC233S

JPY2,700

Out of stock

Screw MC6S 12x20H 12.9 ZFSHL ISO4762

Article no: 6000356

Position15

Quantity in drawing6

JPY300

excl. VAT

In stock

Screw MC6S 12x20H 12.9 ZFSHL ISO4762

Article no: 6000356

JPY300

In stock

Adapter 136-06-06

Article no: 710106

Position27

Quantity in drawing8

JPY400

excl. VAT

In stock

Adapter 136-06-06

Article no: 710106

JPY400

In stock

Washer NL1/2"-DPE 13,5x19,5x2,5

Article no: 611096

Position46

Quantity in drawing2

JPY600

excl. VAT

In stock

Washer NL1/2"-DPE 13,5x19,5x2,5

Article no: 611096

JPY600

In stock

Spacer Hose Bracket 20mm

Article no: 1023777

Position21

Quantity in drawing4

JPY4,300

excl. VAT

Few in stock (4)

Spacer Hose Bracket 20mm

Article no: 1023777

JPY4,300

Few in stock (4)

Screw MC6S 16x140 12.9 ZFSHL ISO4762

Article no: 6000152

Position24

Quantity in drawing4

JPY1,800

excl. VAT

In stock

Screw MC6S 16x140 12.9 ZFSHL ISO4762

Article no: 6000152

Torque: 333Nm

JPY1,800

In stock

Hose bracket EC214-EC333 10x Hoses left

Article no: 1047137

Position22

Quantity in drawing1

JPY11,000

excl. VAT

Out of stock

Hose bracket EC214-EC333 10x Hoses left

Article no: 1047137

JPY11,000

Out of stock

Nut bulkhead adapter 1270-04

Article no: 710250

Position48

Quantity in drawing2

JPY400

excl. VAT

In stock

Nut bulkhead adapter 1270-04

Article no: 710250

JPY400

In stock

Washer NL12-DPE 13,0x19,5x2,7

Article no: 611042

Position14

Quantity in drawing6

JPY500

excl. VAT

Few in stock (3)

Washer NL12-DPE 13,0x19,5x2,7

Article no: 611042

JPY500

Few in stock (3)

O-ring 9,92x2,62 NBR 70 shore EC209/219/226 cylinder axle

Article no: 710968

Position7

Quantity in drawing4

JPY100

excl. VAT

In stock

O-ring 9,92x2,62 NBR 70 shore EC209/219/226 cylinder axle

Article no: 710968

JPY100

In stock

Slotted pin RPE5x20

Article no: 640413

Position30

Quantity in drawing2

JPY200

excl. VAT

Few in stock (5)

Slotted pin RPE5x20

Article no: 640413

JPY200

Few in stock (5)

Tilt axle EC233S/EC333

Article no: 1064182

Position8

Quantity in drawing2

JPY119,600

excl. VAT

Few in stock (2)

Tilt axle EC233S/EC333

Article no: 1064182

JPY119,600

Few in stock (2)

Bushing tilt EC233 WB802/EB1 120/125x50

Article no: 6000087

Position2

Quantity in drawing2

JPY15,000

excl. VAT

Few in stock (2)

Bushing tilt EC233 WB802/EB1 120/125x50

Article no: 6000087

(Incl. in Top part)

JPY15,000

Few in stock (2)

Bushing BWG-F 50/60/65/5x35

Article no: 6000086

Position18

Quantity in drawing4

JPY7,700

excl. VAT

Few in stock (2)

Bushing BWG-F 50/60/65/5x35

Article no: 6000086

JPY7,700

Few in stock (2)

Cylinder axle EC233/EC333

Article no: 1039687

Position29

Quantity in drawing2

JPY27,500

excl. VAT

Few in stock (2)

Cylinder axle EC233/EC333

Article no: 1039687

JPY27,500

Few in stock (2)

Tilt axial washer EC233/EC333

Article no: 1039639

Position4

Quantity in drawing1

JPY25,500

excl. VAT

Few in stock (2)

Tilt axial washer EC233/EC333

Article no: 1039639

JPY25,500

Few in stock (2)

Shim tilt axle - EC233 0,5mm

Article no: 1040014

Position3

Quantity in drawing1

JPY3,700

excl. VAT

Few in stock (2)

Shim tilt axle - EC233 0,5mm

Article no: 1040014

Use as required

JPY3,700

Few in stock (2)

Hose protection Tiltcyl EC20B/30/219/226/233/326/ Overcenter

Article no: 1014280

Position36

Quantity in drawing2

JPY5,600

excl. VAT

Few in stock (4)

Hose protection Tiltcyl EC20B/30/219/226/233/326/ Overcenter

Article no: 1014280

JPY5,600

Few in stock (4)

Plug VSTIR38ED 3/8"

Article no: 711504

Position25

Quantity in drawing2

JPY900

excl. VAT

In stock

Plug VSTIR38ED 3/8"

Article no: 711504

JPY900

In stock

Adapter bulkhead 1260-08-08

Article no: 710244

Position41

Quantity in drawing2

JPY2,000

excl. VAT

In stock

Adapter bulkhead 1260-08-08

Article no: 710244

JPY2,000

In stock

Adapter bulkhead 1260-06-32

Article no: 710242

Position44

Quantity in drawing2

JPY1,700

excl. VAT

In stock

Adapter bulkhead 1260-06-32

Article no: 710242

JPY1,700

In stock

Seal washer GBR06 3/8"

Article no: 710703

Position26

Quantity in drawing8

JPY100

excl. VAT

In stock

Seal washer GBR06 3/8"

Article no: 710703

JPY100

In stock

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Position5

Quantity in drawing10

JPY300

excl. VAT

In stock

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

JPY300

In stock

Tilt cylinder EC233/EC333 Ø90/45 for overcenter

Article no: 1039112

Position16

Quantity in drawing2

JPY316,400

excl. VAT

Few in stock (1)

Tilt cylinder EC233/EC333 Ø90/45 for overcenter

Article no: 1039112

JPY316,400

Few in stock (1)

Screw MC6S 8x40 12.9 ZFSHL ISO4762

Article no: 6000145

Position6

Quantity in drawing2

JPY300

excl. VAT

In stock

Screw MC6S 8x40 12.9 ZFSHL ISO4762

Article no: 6000145

JPY300

In stock
