QSM QS80

Pos

Article

Extra Info

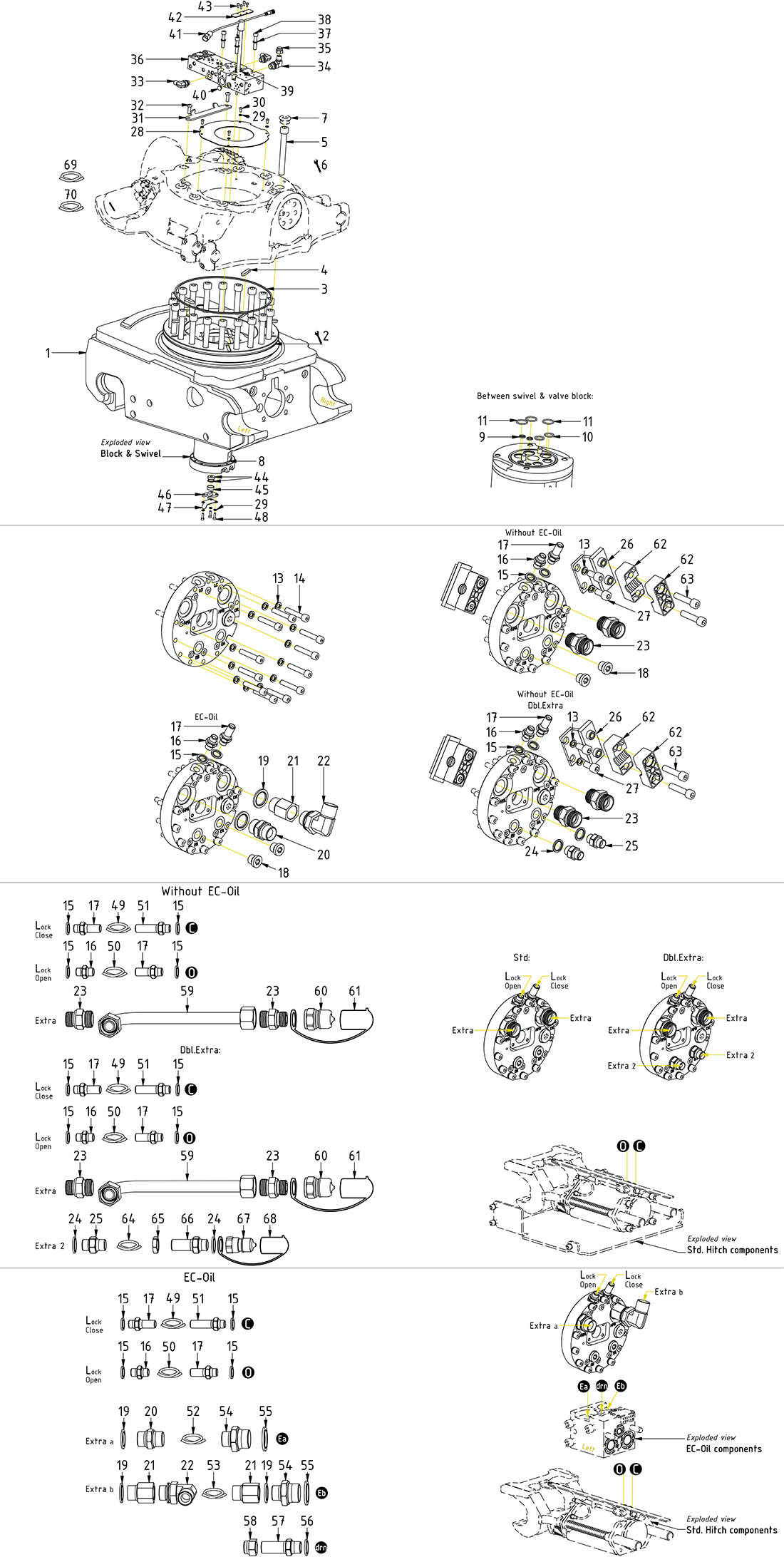

Quantity in drawing

Price (excl. VAT)

Screw MC6S 8x45 12.9 Geomet ISO4762

Article no: 6000399

Position14

Quantity in drawing12

JPY200

excl. VAT

Out of stock

Screw MC6S 8x45 12.9 Geomet ISO4762

Article no: 6000399

JPY200

Out of stock

Hose drain - ECO

Article no: 7001875

Position72

Quantity in drawing1

Hose drain - ECO

Article no: 7001875

Drain

Cover Swivel EC233/EC333 QSM

Article no: 1052691

Position28

Quantity in drawing1

JPY12,300

excl. VAT

Out of stock

Cover Swivel EC233/EC333 QSM

Article no: 1052691

JPY12,300

Out of stock

Hose - Extra 1 - B - ECO

Article no: 7001874

Position53

Quantity in drawing1

Hose - Extra 1 - B - ECO

Article no: 7001874

Pipe extra QS80 QSM/CW30,40 QSM

Article no: 1072343

Position59

Quantity in drawing2

JPY7,700

excl. VAT

Out of stock

Pipe extra QS80 QSM/CW30,40 QSM

Article no: 1072343

JPY7,700

Out of stock

Swivel 7-channel QSM with connection block QS80/CW30/40

Article no: 1072872

Position8

Quantity in drawing1

JPY538,600

excl. VAT

Out of stock

Swivel 7-channel QSM with connection block QS80/CW30/40

Article no: 1072872

JPY538,600

Out of stock

Plastic plug KS 15 G 1/4"

Article no: 7001983

Position40

Quantity in drawing1

JPY100

excl. VAT

In stock

Plastic plug KS 15 G 1/4"

Article no: 7001983

(Incl. with valve block)

JPY100

In stock

Hose lock - A - Closed

Article no: 7001876

Position49

Quantity in drawing1

Hose lock - A - Closed

Article no: 7001876

Swivel stop QSM EC233

Article no: 1048076

Position31

Quantity in drawing1

JPY7,700

excl. VAT

Out of stock

Swivel stop QSM EC233

Article no: 1048076

JPY7,700

Out of stock

Adapter - cutting ring M30x2 - G3/4

Article no: 7001855

Position23

Quantity in drawing4

JPY3,000

excl. VAT

Out of stock

Adapter - cutting ring M30x2 - G3/4

Article no: 7001855

JPY3,000

Out of stock

Adapter 135-12-16 - 3/4"x1"

Article no: 7000723

Position54

Quantity in drawing2

JPY4,800

excl. VAT

Out of stock

Adapter 135-12-16 - 3/4"x1"

Article no: 7000723

JPY4,800

Out of stock

Pipe holder QS80GR30/QS80 QSM

Article no: 1072385

Position26

Quantity in drawing2

JPY15,900

excl. VAT

Out of stock

Pipe holder QS80GR30/QS80 QSM

Article no: 1072385

JPY15,900

Out of stock

Quick hitch QS80 EC233/EC333 QSM

Article no: 1069824

Position1

Quantity in drawing1

JPY2,034,000

excl. VAT

Out of stock

Quick hitch QS80 EC233/EC333 QSM

Article no: 1069824

JPY2,034,000

Out of stock

Protective cover 0301550600

Article no: 711626

Position35

Quantity in drawing1

JPY500

excl. VAT

Out of stock

Protective cover 0301550600

Article no: 711626

JPY500

Out of stock

Hose - Extra 1 - A - ECO

Article no: 7000681

Position52

Quantity in drawing1

JPY25,000

excl. VAT

Out of stock

Hose - Extra 1 - A - ECO

Article no: 7000681

JPY25,000

Out of stock

Adapter 236-12-12

Article no: 712226

Position21

Quantity in drawing2

JPY1,400

excl. VAT

Out of stock

Adapter 236-12-12

Article no: 712226

JPY1,400

Out of stock

Tube clamp TSLK4020 PP

Article no: 7001889

Position62

Quantity in drawing4

JPY1,300

excl. VAT

Out of stock

Tube clamp TSLK4020 PP

Article no: 7001889

JPY1,300

Out of stock

Hose lock - B - Open

Article no: 7001893

Position50

Quantity in drawing1

Hose lock - B - Open

Article no: 7001893

Screw MC6S 10x20 12.9 untreated ISO4762

Article no: 610451

Position27

Quantity in drawing4

JPY100

excl. VAT

Out of stock

Screw MC6S 10x20 12.9 untreated ISO4762

Article no: 610451

JPY100

Out of stock

Seal washer GBR16 1"

Article no: 710707

Position55

Quantity in drawing2

JPY700

excl. VAT

In stock

Seal washer GBR16 1"

Article no: 710707

JPY700

In stock

Screw MC6S 10x45 12.9 ZFSHL ISO4762

Article no: 612021

Position63

Quantity in drawing4

JPY300

excl. VAT

In stock

Screw MC6S 10x45 12.9 ZFSHL ISO4762

Article no: 612021

JPY300

In stock

Hose Extra 2 - A/B

Article no: 7001894

Position64

Quantity in drawing2

Hose Extra 2 - A/B

Article no: 7001894

Dbl.Extra

Dust protection 3/8" male 3826

Article no: 790120

Position68

Quantity in drawing2

JPY900

excl. VAT

Few in stock (4)

Dust protection 3/8" male 3826

Article no: 790120

JPY900

Few in stock (4)

Hose

Article no: 7000903

Position70

Quantity in drawing1

JPY5,600

excl. VAT

Out of stock

Hose

Article no: 7000903

JPY5,600

Out of stock

Hose

Article no: 7000451

Position69

Quantity in drawing1

JPY6,000

excl. VAT

Out of stock

Hose

Article no: 7000451

JPY6,000

Out of stock

Screw MC6S 10x55 12.9 ZFSHL ISO4762

Article no: 612022

Position38

Quantity in drawing4

JPY400

excl. VAT

In stock

Screw MC6S 10x55 12.9 ZFSHL ISO4762

Article no: 612022

Torque: 79Nm Tighten in cross pattern

JPY400

In stock

Feather key 12x8x60 C45 EC30, EC233

Article no: 650103

Position4

Quantity in drawing5

JPY900

excl. VAT

Out of stock

Feather key 12x8x60 C45 EC30, EC233

Article no: 650103

JPY900

Out of stock

Valve block QSM-steel

Article no: 1049297

Position36

Quantity in drawing1

JPY194,400

excl. VAT

Few in stock (1)

Valve block QSM-steel

Article no: 1049297

JPY194,400

Few in stock (1)

Adapter bulkhead extended 1260-04-40

Article no: 710261

Position51

Quantity in drawing1

JPY2,200

excl. VAT

Few in stock (5)

Adapter bulkhead extended 1260-04-40

Article no: 710261

JPY2,200

Few in stock (5)

Screw MC6S 20x170 12.9 untreated ISO4762

Article no: 6000101

Position5

Quantity in drawing20

JPY1,700

excl. VAT

In stock

Screw MC6S 20x170 12.9 untreated ISO4762

Article no: 6000101

Torque: 649Nm

JPY1,700

In stock

Nut bulkhead adapter 1270-06

Article no: 710252

Position65

Quantity in drawing2

JPY400

excl. VAT

In stock

Nut bulkhead adapter 1270-06

Article no: 710252

JPY400

In stock

Spacer ring-Slip ring QSM

Article no: 1046692

Position45

Quantity in drawing1

JPY10,300

excl. VAT

Few in stock (2)

Spacer ring-Slip ring QSM

Article no: 1046692

JPY10,300

Few in stock (2)

Dust protection 3/4" Coupling-male 7526

Article no: 790195

Position61

Quantity in drawing2

JPY1,500

excl. VAT

Few in stock (4)

Dust protection 3/4" Coupling-male 7526

Article no: 790195

JPY1,500

Few in stock (4)

Screw K6S 10x30H 10.9 FZB ISO7380

Article no: 6000193

Position32

Quantity in drawing2

JPY200

excl. VAT

In stock

Screw K6S 10x30H 10.9 FZB ISO7380

Article no: 6000193

Loxeal 83-52

JPY200

In stock

Adapter bulkhead extended 1260-08-45

Article no: 710263

Position57

Quantity in drawing1

JPY3,100

excl. VAT

In stock

Adapter bulkhead extended 1260-08-45

Article no: 710263

JPY3,100

In stock

Quick coupling 3/8" male 3820

Article no: 790113

Position67

Quantity in drawing2

JPY4,300

excl. VAT

In stock

Quick coupling 3/8" male 3820

Article no: 790113

JPY4,300

In stock

Adapter bulkhead 1260-04-04

Article no: 710240

Position17

Quantity in drawing2

JPY1,200

excl. VAT

In stock

Adapter bulkhead 1260-04-04

Article no: 710240

JPY1,200

In stock

Screw MC6S 6x20 8.8 FZB ISO4762

Article no: 610310

Position48

Quantity in drawing3

JPY100

excl. VAT

In stock

Screw MC6S 6x20 8.8 FZB ISO4762

Article no: 610310

JPY100

In stock

Screw K6S 6x14 10.9 FZB ISO7380

Article no: 6000242

Position30

Quantity in drawing4

JPY100

excl. VAT

Out of stock

Screw K6S 6x14 10.9 FZB ISO7380

Article no: 6000242

JPY100

Out of stock

Plate Slip ring QSM

Article no: 1046689

Position46

Quantity in drawing1

JPY4,800

excl. VAT

Few in stock (2)

Plate Slip ring QSM

Article no: 1046689

JPY4,800

Few in stock (2)

Quick coupling 3/4" male 7520

Article no: 790193

Position60

Quantity in drawing2

JPY19,900

excl. VAT

In stock

Quick coupling 3/4" male 7520

Article no: 790193

JPY19,900

In stock

Rubber buffer Ø25,5/10 L7,5 Slip ring QSM

Article no: 1046691

Position44

Quantity in drawing1

JPY700

excl. VAT

Few in stock (2)

Rubber buffer Ø25,5/10 L7,5 Slip ring QSM

Article no: 1046691

Use the outer ring. Washer down

JPY700

Few in stock (2)

Washer NL6-DPE 6,5x10,8x1,7

Article no: 611039

Position29

Quantity in drawing7

JPY200

excl. VAT

In stock

Washer NL6-DPE 6,5x10,8x1,7

Article no: 611039

JPY200

In stock

Adapter 136-12-12

Article no: 710126

Position20

Quantity in drawing1

JPY1,400

excl. VAT

In stock

Adapter 136-12-12

Article no: 710126

JPY1,400

In stock

Adapter 401-12-12 90°

Article no: 712201

Position22

Quantity in drawing1

JPY5,600

excl. VAT

In stock

Adapter 401-12-12 90°

Article no: 712201

JPY5,600

In stock

Screw MC6S 5x10 12.9 untreated ISO4762

Article no: 610594

Position43

Quantity in drawing4

JPY100

excl. VAT

In stock

Screw MC6S 5x10 12.9 untreated ISO4762

Article no: 610594

JPY100

In stock

Plate Steering cable Slip ring QSM

Article no: 1046694

Position47

Quantity in drawing1

JPY5,400

excl. VAT

Few in stock (2)

Plate Steering cable Slip ring QSM

Article no: 1046694

JPY5,400

Few in stock (2)

Cover plate Slip ring QSM

Article no: 1050384

Position42

Quantity in drawing1

JPY1,400

excl. VAT

Few in stock (2)

Cover plate Slip ring QSM

Article no: 1050384

JPY1,400

Few in stock (2)

Plug-RP M36x2 DIN 908 FZB

Article no: 650408

Position7

Quantity in drawing6

JPY2,500

excl. VAT

Out of stock

Plug-RP M36x2 DIN 908 FZB

Article no: 650408

Part of rotator frame

JPY2,500

Out of stock

Seal washer GBR12 3/4"

Article no: 710706

Position19

Quantity in drawing3

JPY200

excl. VAT

In stock

Seal washer GBR12 3/4"

Article no: 710706

JPY200

In stock

Adapter 136-06-06

Article no: 710106

Position25

Quantity in drawing2

JPY400

excl. VAT

In stock

Adapter 136-06-06

Article no: 710106

JPY400

In stock

Adapter 401-06-08 90°

Article no: 710157

Position34

Quantity in drawing1

JPY4,300

excl. VAT

In stock

Adapter 401-06-08 90°

Article no: 710157

Assemble before valve block

JPY4,300

In stock

Protective cover 0301550800

Article no: 711627

Position58

Quantity in drawing1

JPY1,000

excl. VAT

In stock

Protective cover 0301550800

Article no: 711627

JPY1,000

In stock

O-ring 359,3x5,7 centre ring EC30/ quick hitch EC233

Article no: 710924

Position3

Quantity in drawing1

JPY7,400

excl. VAT

Few in stock (2)

O-ring 359,3x5,7 centre ring EC30/ quick hitch EC233

Article no: 710924

JPY7,400

Few in stock (2)

O-ring 14x1,78 NBR 70 shore

Article no: 710975

Position10

Quantity in drawing2

JPY100

excl. VAT

In stock

O-ring 14x1,78 NBR 70 shore

Article no: 710975

JPY100

In stock

Quick coupling 1/2" male 5020

Article no: 790115

Position75

Quantity in drawing1

JPY4,300

excl. VAT

Few in stock (4)

Quick coupling 1/2" male 5020

Article no: 790115

Drain

JPY4,300

Few in stock (4)

Dust protection 1/2" male 5026

Article no: 790121

Position76

Quantity in drawing1

JPY900

excl. VAT

Few in stock (4)

Dust protection 1/2" male 5026

Article no: 790121

Drain

JPY900

Few in stock (4)

Plug VSTIR38ED 3/8"

Article no: 711504

Position18

Quantity in drawing2

JPY900

excl. VAT

In stock

Plug VSTIR38ED 3/8"

Article no: 711504

JPY900

In stock

Adapter bulkhead 1260-08-08

Article no: 710244

Position74

Quantity in drawing1

JPY2,000

excl. VAT

In stock

Adapter bulkhead 1260-08-08

Article no: 710244

Drain

JPY2,000

In stock

Adapter bulkhead 1260-06-32

Article no: 710242

Position66

Quantity in drawing2

JPY1,700

excl. VAT

In stock

Adapter bulkhead 1260-06-32

Article no: 710242

JPY1,700

In stock

Adapter 401-06-06 90°

Article no: 710152

Position33

Quantity in drawing2

JPY3,200

excl. VAT

In stock

Adapter 401-06-06 90°

Article no: 710152

Assemble before valve block

JPY3,200

In stock

Seal washer GBR06 3/8"

Article no: 710703

Position24

Quantity in drawing4

JPY100

excl. VAT

In stock

Seal washer GBR06 3/8"

Article no: 710703

JPY100

In stock

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Position13

Quantity in drawing16

JPY300

excl. VAT

In stock

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

JPY300

In stock

Adapter 136-08-08

Article no: 710108

Position71

Quantity in drawing1

JPY900

excl. VAT

In stock

Adapter 136-08-08

Article no: 710108

Drain. Remove plug fr. connectionbl.

JPY900

In stock

Slip ring-QSM60/QS80 QSM M12

Article no: 1046763

Position41

Quantity in drawing1

JPY169,800

excl. VAT

Few in stock (2)

Slip ring-QSM60/QS80 QSM M12

Article no: 1046763

Mount with marine silicone

JPY169,800

Few in stock (2)

O-ring 7,66x1,68 square NBR 70 shore NG4

Article no: 7000579

Position9

Quantity in drawing2

JPY1,000

excl. VAT

In stock

O-ring 7,66x1,68 square NBR 70 shore NG4

Article no: 7000579

JPY1,000

In stock

Seal washer GBR08 1/2"

Article no: 710704

Position56

Quantity in drawing1

JPY200

excl. VAT

In stock

Seal washer GBR08 1/2"

Article no: 710704

QTY: 2 w/o EC-Oil

JPY200

In stock

O-ring 17,17x1,78 NBR 70 shore

Article no: 710977

Position11

Quantity in drawing3

JPY100

excl. VAT

In stock

O-ring 17,17x1,78 NBR 70 shore

Article no: 710977

JPY100

In stock

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Position37

Quantity in drawing4

JPY300

excl. VAT

In stock

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

JPY300

In stock

Seal washer GBR04 1/4"

Article no: 710702

Position15

Quantity in drawing4

JPY100

excl. VAT

In stock

Seal washer GBR04 1/4"

Article no: 710702

JPY100

In stock

O-ring 21,95x1,78 NBR 70 shore

Article no: 710983

Position39

Quantity in drawing2

JPY200

excl. VAT

In stock

O-ring 21,95x1,78 NBR 70 shore

Article no: 710983

(Incl. with valve block)

JPY200

In stock
