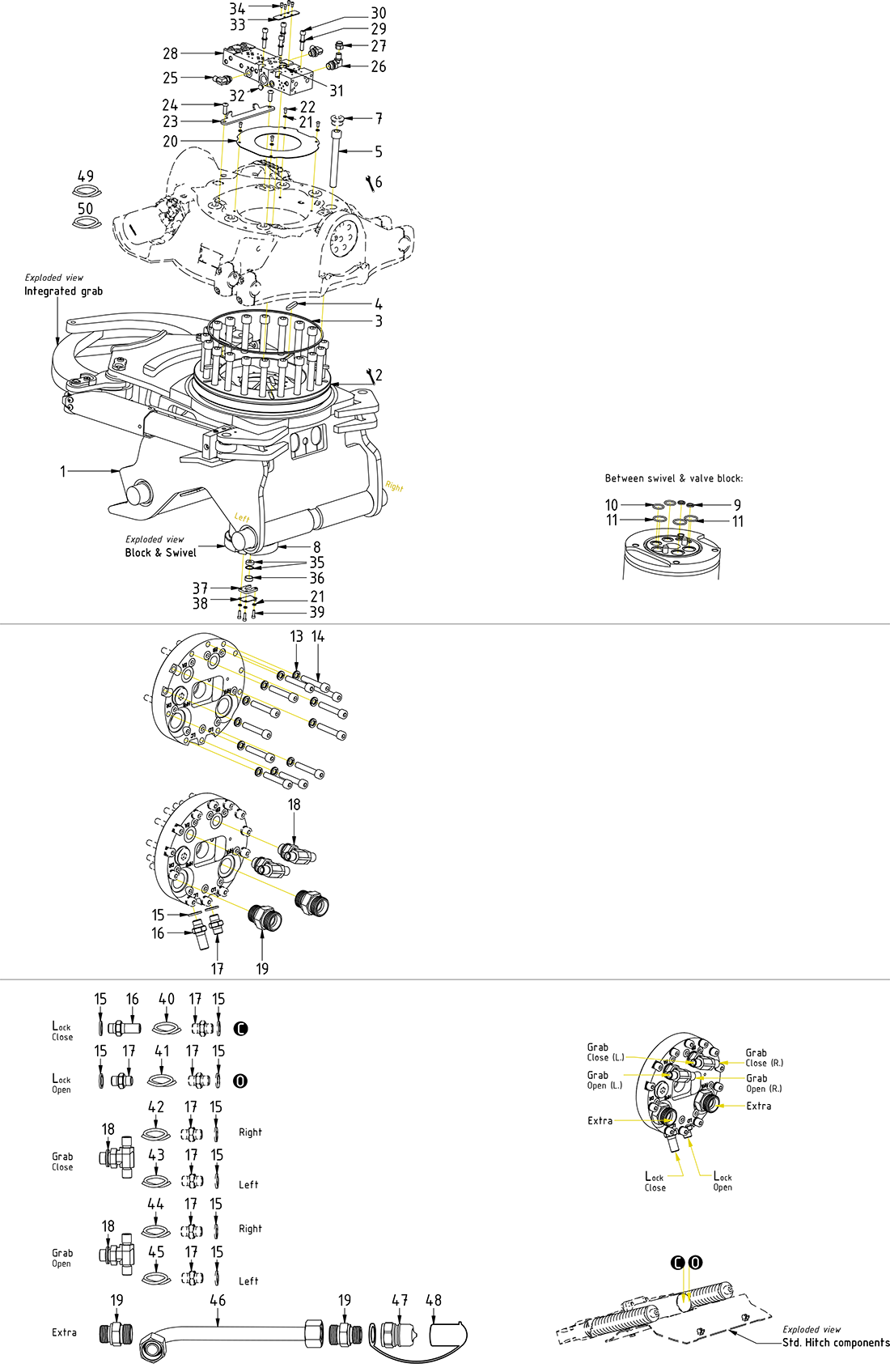

QSM CW40 GR20

Pos

Article

Extra Info

Quantity in drawing

Price (excl. VAT)

Screw MC6S 8x45 12.9 Geomet ISO4762

Article no: 6000399

Position14

Quantity in drawing12

JPY200

excl. VAT

Out of stock

Screw MC6S 8x45 12.9 Geomet ISO4762

Article no: 6000399

JPY200

Out of stock

Cover Swivel EC233/EC333 QSM

Article no: 1052691

Position20

Quantity in drawing1

JPY12,300

excl. VAT

Out of stock

Cover Swivel EC233/EC333 QSM

Article no: 1052691

JPY12,300

Out of stock

Pipe extra QS80 QSM/CW30,40 QSM

Article no: 1072343

Position46

Quantity in drawing2

JPY7,700

excl. VAT

Out of stock

Pipe extra QS80 QSM/CW30,40 QSM

Article no: 1072343

JPY7,700

Out of stock

Swivel 7-channel QSM with connection block QS80/CW30/40

Article no: 1072872

Position8

Quantity in drawing1

JPY538,600

excl. VAT

Out of stock

Swivel 7-channel QSM with connection block QS80/CW30/40

Article no: 1072872

JPY538,600

Out of stock

Plastic plug KS 15 G 1/4"

Article no: 7001983

Position32

Quantity in drawing1

JPY100

excl. VAT

In stock

Plastic plug KS 15 G 1/4"

Article no: 7001983

(Incl. with valve block)

JPY100

In stock

Swivel stop QSM EC233

Article no: 1048076

Position23

Quantity in drawing1

JPY7,700

excl. VAT

Out of stock

Swivel stop QSM EC233

Article no: 1048076

JPY7,700

Out of stock

Adapter - cutting ring M30x2 - G3/4

Article no: 7001855

Position19

Quantity in drawing4

JPY3,000

excl. VAT

Out of stock

Adapter - cutting ring M30x2 - G3/4

Article no: 7001855

JPY3,000

Out of stock

Protective cover 0301550600

Article no: 711626

Position27

Quantity in drawing1

JPY500

excl. VAT

Out of stock

Protective cover 0301550600

Article no: 711626

JPY500

Out of stock

Quick hitch CW40ec 0° GR20 EC233 QSM with grab kit

Article no: 1077736

Position1

Quantity in drawing1

Quick hitch CW40ec 0° GR20 EC233 QSM with grab kit

Article no: 1077736

Hose

Article no: 7000903

Position50

Quantity in drawing1

JPY5,600

excl. VAT

Out of stock

Hose

Article no: 7000903

JPY5,600

Out of stock

Hose

Article no: 7000451

Position49

Quantity in drawing1

JPY6,000

excl. VAT

Out of stock

Hose

Article no: 7000451

JPY6,000

Out of stock

Adapter 403-04-06

Article no: 712224

Position18

Quantity in drawing2

JPY4,600

excl. VAT

In stock

Adapter 403-04-06

Article no: 712224

JPY4,600

In stock

Screw MC6S 10x55 12.9 ZFSHL ISO4762

Article no: 612022

Position30

Quantity in drawing4

JPY400

excl. VAT

In stock

Screw MC6S 10x55 12.9 ZFSHL ISO4762

Article no: 612022

Torque: 79Nm Tighten in cross pattern

JPY400

In stock

Feather key 12x8x60 C45 EC30, EC233

Article no: 650103

Position4

Quantity in drawing5

JPY900

excl. VAT

Out of stock

Feather key 12x8x60 C45 EC30, EC233

Article no: 650103

JPY900

Out of stock

Valve block QSM-steel

Article no: 1049297

Position28

Quantity in drawing1

JPY194,400

excl. VAT

Few in stock (1)

Valve block QSM-steel

Article no: 1049297

JPY194,400

Few in stock (1)

Screw MC6S 20x170 12.9 untreated ISO4762

Article no: 6000101

Position5

Quantity in drawing20

JPY1,700

excl. VAT

In stock

Screw MC6S 20x170 12.9 untreated ISO4762

Article no: 6000101

Torque: 649Nm

JPY1,700

In stock

Nut bulkhead adapter 1270-06

Article no: 710252

Position54

Quantity in drawing1

JPY400

excl. VAT

In stock

Nut bulkhead adapter 1270-06

Article no: 710252

Drain

JPY400

In stock

Spacer ring-Slip ring QSM

Article no: 1046692

Position36

Quantity in drawing1

JPY10,300

excl. VAT

Few in stock (2)

Spacer ring-Slip ring QSM

Article no: 1046692

JPY10,300

Few in stock (2)

Dust protection 3/4" Coupling-male 7526

Article no: 790195

Position48

Quantity in drawing2

JPY1,500

excl. VAT

Few in stock (4)

Dust protection 3/4" Coupling-male 7526

Article no: 790195

JPY1,500

Few in stock (4)

Screw K6S 10x30H 10.9 FZB ISO7380

Article no: 6000193

Position24

Quantity in drawing2

JPY200

excl. VAT

In stock

Screw K6S 10x30H 10.9 FZB ISO7380

Article no: 6000193

Loxeal 83-52

JPY200

In stock

Adapter bulkhead extended 1260-08-45

Article no: 710263

Position55

Quantity in drawing1

JPY3,100

excl. VAT

In stock

Adapter bulkhead extended 1260-08-45

Article no: 710263

Drain

JPY3,100

In stock

Adapter bulkhead 1260-04-04

Article no: 710240

Position16

Quantity in drawing1

JPY1,200

excl. VAT

In stock

Adapter bulkhead 1260-04-04

Article no: 710240

JPY1,200

In stock

Screw MC6S 6x20 8.8 FZB ISO4762

Article no: 610310

Position39

Quantity in drawing3

JPY100

excl. VAT

In stock

Screw MC6S 6x20 8.8 FZB ISO4762

Article no: 610310

JPY100

In stock

Screw K6S 6x14 10.9 FZB ISO7380

Article no: 6000242

Position22

Quantity in drawing4

JPY100

excl. VAT

Out of stock

Screw K6S 6x14 10.9 FZB ISO7380

Article no: 6000242

JPY100

Out of stock

Plate Slip ring QSM

Article no: 1046689

Position37

Quantity in drawing1

JPY4,800

excl. VAT

Few in stock (2)

Plate Slip ring QSM

Article no: 1046689

JPY4,800

Few in stock (2)

Quick coupling 3/4" male 7520

Article no: 790193

Position47

Quantity in drawing2

JPY19,900

excl. VAT

In stock

Quick coupling 3/4" male 7520

Article no: 790193

JPY19,900

In stock

Rubber buffer Ø25,5/10 L7,5 Slip ring QSM

Article no: 1046691

Position35

Quantity in drawing1

JPY700

excl. VAT

Few in stock (2)

Rubber buffer Ø25,5/10 L7,5 Slip ring QSM

Article no: 1046691

Use the outer ring. Washer down

JPY700

Few in stock (2)

Washer NL6-DPE 6,5x10,8x1,7

Article no: 611039

Position21

Quantity in drawing7

JPY200

excl. VAT

In stock

Washer NL6-DPE 6,5x10,8x1,7

Article no: 611039

JPY200

In stock

Screw MC6S 5x10 12.9 untreated ISO4762

Article no: 610594

Position34

Quantity in drawing4

JPY100

excl. VAT

In stock

Screw MC6S 5x10 12.9 untreated ISO4762

Article no: 610594

JPY100

In stock

Plate Steering cable Slip ring QSM

Article no: 1046694

Position38

Quantity in drawing1

JPY5,400

excl. VAT

Few in stock (2)

Plate Steering cable Slip ring QSM

Article no: 1046694

JPY5,400

Few in stock (2)

Cover plate Slip ring QSM

Article no: 1050384

Position33

Quantity in drawing1

JPY1,400

excl. VAT

Few in stock (2)

Cover plate Slip ring QSM

Article no: 1050384

JPY1,400

Few in stock (2)

Plug-RP M36x2 DIN 908 FZB

Article no: 650408

Position7

Quantity in drawing6

JPY2,500

excl. VAT

Out of stock

Plug-RP M36x2 DIN 908 FZB

Article no: 650408

Part of rotator frame

JPY2,500

Out of stock

Adapter 401-06-08 90°

Article no: 710157

Position26

Quantity in drawing1

JPY4,300

excl. VAT

In stock

Adapter 401-06-08 90°

Article no: 710157

Assemble before valve block

JPY4,300

In stock

Adapter 138-04-29 ( compact 136-04-04 )

Article no: 710135

Position17

Quantity in drawing7

JPY400

excl. VAT

In stock

Adapter 138-04-29 ( compact 136-04-04 )

Article no: 710135

QTY: 4 part of integrated grab

JPY400

In stock

O-ring 359,3x5,7 centre ring EC30/ quick hitch EC233

Article no: 710924

Position3

Quantity in drawing1

JPY7,400

excl. VAT

Few in stock (2)

O-ring 359,3x5,7 centre ring EC30/ quick hitch EC233

Article no: 710924

JPY7,400

Few in stock (2)

O-ring 14x1,78 NBR 70 shore

Article no: 710975

Position10

Quantity in drawing2

JPY100

excl. VAT

In stock

O-ring 14x1,78 NBR 70 shore

Article no: 710975

JPY100

In stock

Quick coupling 1/2" male 5020

Article no: 790115

Position56

Quantity in drawing1

JPY4,300

excl. VAT

Few in stock (4)

Quick coupling 1/2" male 5020

Article no: 790115

Drain

JPY4,300

Few in stock (4)

Dust protection 1/2" male 5026

Article no: 790121

Position57

Quantity in drawing1

JPY900

excl. VAT

Few in stock (4)

Dust protection 1/2" male 5026

Article no: 790121

Drain

JPY900

Few in stock (4)

Adapter 401-06-06 90°

Article no: 710152

Position25

Quantity in drawing2

JPY3,200

excl. VAT

In stock

Adapter 401-06-06 90°

Article no: 710152

Assemble before valve block

JPY3,200

In stock

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Position13

Quantity in drawing12

JPY300

excl. VAT

In stock

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

JPY300

In stock

Adapter 136-08-08

Article no: 710108

Position52

Quantity in drawing1

JPY900

excl. VAT

In stock

Adapter 136-08-08

Article no: 710108

Drain

JPY900

In stock

O-ring 7,66x1,68 square NBR 70 shore NG4

Article no: 7000579

Position9

Quantity in drawing2

JPY1,000

excl. VAT

In stock

O-ring 7,66x1,68 square NBR 70 shore NG4

Article no: 7000579

JPY1,000

In stock

Seal washer GBR08 1/2"

Article no: 710704

Position51

Quantity in drawing2

JPY200

excl. VAT

In stock

Seal washer GBR08 1/2"

Article no: 710704

Drain. Remove plug fr. connectionbl.

JPY200

In stock

O-ring 17,17x1,78 NBR 70 shore

Article no: 710977

Position11

Quantity in drawing3

JPY100

excl. VAT

In stock

O-ring 17,17x1,78 NBR 70 shore

Article no: 710977

JPY100

In stock

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Position29

Quantity in drawing8

JPY300

excl. VAT

In stock

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

JPY300

In stock

Seal washer GBR04 1/4"

Article no: 710702

Position15

Quantity in drawing8

JPY100

excl. VAT

In stock

Seal washer GBR04 1/4"

Article no: 710702

QTY: 4 part of integrated grab

JPY100

In stock

O-ring 21,95x1,78 NBR 70 shore

Article no: 710983

Position31

Quantity in drawing2

JPY200

excl. VAT

In stock

O-ring 21,95x1,78 NBR 70 shore

Article no: 710983

(Incl. with valve block)

JPY200

In stock
