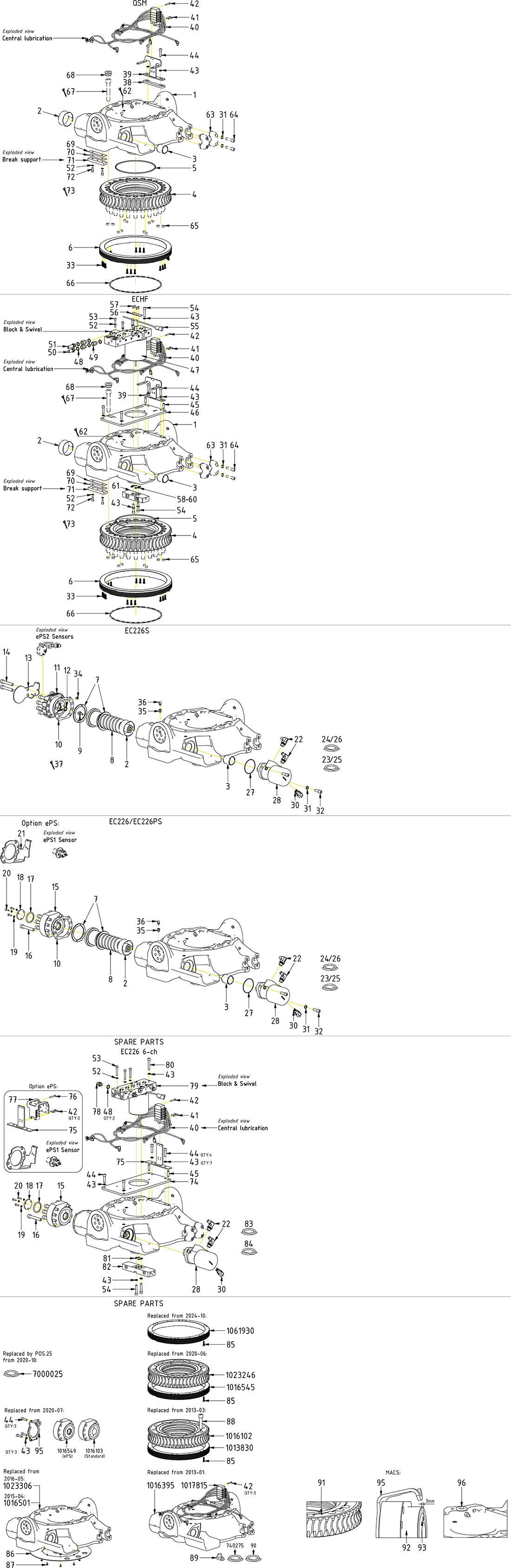

Main components

Pos

Article

Extra Info

Quantity in drawing

Price (excl. VAT)

End lock EC226 V2

Article no: 1056095

Position64

Quantity in drawing1

JPY67,000

excl. VAT

Out of stock

End lock EC226 V2

Article no: 1056095

JPY67,000

Out of stock

End lock EC226 MACS

Article no: 1028331

Position91

Quantity in drawing1

JPY79,300

excl. VAT

Out of stock

End lock EC226 MACS

Article no: 1028331

JPY79,300

Out of stock

Hose

Article no: 7000957

Position16

Quantity in drawing1

JPY9,700

excl. VAT

Out of stock

Hose

Article no: 7000957

Part of quick hitch assy.

JPY9,700

Out of stock

Hose motor - EC226 - long - V3 Rotated motor

Article no: 742332

Position82

Quantity in drawing1

JPY9,000

excl. VAT

Out of stock

Hose motor - EC226 - long - V3 Rotated motor

Article no: 742332

JPY9,000

Out of stock

Hose

Article no: 7000958

Position17

Quantity in drawing1

JPY6,500

excl. VAT

Few in stock (1)

Hose

Article no: 7000958

Part of quick hitch assy.

JPY6,500

Few in stock (1)

Hose motor - EC26/226 - short

Article no: 740274

Position89

Quantity in drawing1

JPY7,400

excl. VAT

Out of stock

Hose motor - EC26/226 - short

Article no: 740274

Replaced by POS.83 from 2013-03

JPY7,400

Out of stock

Wear washer EC26/EC226

Article no: 1011242

Position85

Quantity in drawing1

JPY80,100

excl. VAT

Out of stock

Wear washer EC26/EC226

Article no: 1011242

Used until 2016-05

JPY80,100

Out of stock

Connection block 6-ch EC15,EC226-for Slip ring

Article no: 1024045

Position81

Quantity in drawing1

JPY60,200

excl. VAT

Out of stock

Connection block 6-ch EC15,EC226-for Slip ring

Article no: 1024045

"1" on swivel against "X" on block

JPY60,200

Out of stock

Attachment angle sensor EC219,EC226-5V/6CH-swivel

Article no: 1029973

Position76

Quantity in drawing1

JPY19,800

excl. VAT

Out of stock

Attachment angle sensor EC219,EC226-5V/6CH-swivel

Article no: 1029973

JPY19,800

Out of stock

Valve plate -ECHF-EC219, EC226

Article no: 1024824

Position49

Quantity in drawing1

JPY24,700

excl. VAT

Out of stock

Valve plate -ECHF-EC219, EC226

Article no: 1024824

JPY24,700

Out of stock

Hose

Article no: 7001404

Position71

Quantity in drawing1

JPY6,500

excl. VAT

Out of stock

Hose

Article no: 7001404

JPY6,500

Out of stock

Screw MC6S 20x90 12.9 untreated ISO4762

Article no: 610556

Position87

Quantity in drawing12

JPY2,400

excl. VAT

In stock

Screw MC6S 20x90 12.9 untreated ISO4762

Article no: 610556

Used until 2013-10

JPY2,400

In stock

Valve plate -EC219/EC26/EC226

Article no: 1011515

Position73

Quantity in drawing1

JPY19,600

excl. VAT

Out of stock

Valve plate -EC219/EC26/EC226

Article no: 1011515

JPY19,600

Out of stock

Attachment central lubrication EC219-EC226

Article no: 1018052

Position74

Quantity in drawing1

JPY15,700

excl. VAT

Out of stock

Attachment central lubrication EC219-EC226

Article no: 1018052

JPY15,700

Out of stock

Hose motor - EC219/EC226 - ECHF short

Article no: 7000026

Position72

Quantity in drawing1

JPY10,300

excl. VAT

Out of stock

Hose motor - EC219/EC226 - ECHF short

Article no: 7000026

JPY10,300

Out of stock

Valve block-swivel 5v & 6-ch Slip ring-DTM

Article no: 1030297

Position78

Quantity in drawing1

JPY594,100

excl. VAT

Out of stock

Valve block-swivel 5v & 6-ch Slip ring-DTM

Article no: 1030297

JPY594,100

Out of stock

Screw MC6S 10x40 12.9 ZFSHL ISO4762

Article no: 612020

Position34

Quantity in drawing2

JPY300

excl. VAT

In stock

Screw MC6S 10x40 12.9 ZFSHL ISO4762

Article no: 612020

Torque: 79Nm

JPY300

In stock

Adapter bulkhead extended 1260-06-43

Article no: 710262

Position54

Quantity in drawing1

JPY3,200

excl. VAT

In stock

Adapter bulkhead extended 1260-06-43

Article no: 710262

JPY3,200

In stock

Screw MC6S 10x60 12.9 untreated ISO4762

Article no: 610460

Position79

Quantity in drawing1

JPY400

excl. VAT

Out of stock

Screw MC6S 10x60 12.9 untreated ISO4762

Article no: 610460

JPY400

Out of stock

Adapter DSVW-15 LR HFX banjo

Article no: 710510

Position88

Quantity in drawing1

JPY12,500

excl. VAT

Out of stock

Adapter DSVW-15 LR HFX banjo

Article no: 710510

Used until 2013-03

JPY12,500

Out of stock

Connection block under ECHF V3

Article no: 1028391

Position63

Quantity in drawing1

JPY78,500

excl. VAT

Out of stock

Connection block under ECHF V3

Article no: 1028391

Guide with spring pin from swivel

JPY78,500

Out of stock

Valve block-swivel 7-channel ECHF

Article no: 1027386

Position50

Quantity in drawing1

JPY594,100

excl. VAT

Out of stock

Valve block-swivel 7-channel ECHF

Article no: 1027386

JPY594,100

Out of stock

Screw MC6S 8x50H 12.9 ISO4762

Article no: 610439

Position55

Quantity in drawing3

JPY200

excl. VAT

In stock

Screw MC6S 8x50H 12.9 ISO4762

Article no: 610439

JPY200

In stock

Slip ring-ECHF-DTM/ Plug

Article no: 1030298

Position57

Quantity in drawing1

JPY185,200

excl. VAT

Out of stock

Slip ring-ECHF-DTM/ Plug

Article no: 1030298

For QS. See "Slip rings"

JPY185,200

Out of stock

Cylindrical pin CPK Ø10x35 m6

Article no: 1015672

Position48

Quantity in drawing2

JPY400

excl. VAT

Few in stock (4)

Cylindrical pin CPK Ø10x35 m6

Article no: 1015672

JPY400

Few in stock (4)

Worm wheel EC226/EC326 24 bolt

Article no: 1057021

Position4

Quantity in drawing1

JPY779,300

excl. VAT

Out of stock

Worm wheel EC226/EC326 24 bolt

Article no: 1057021

JPY779,300

Out of stock

Lubrication kit EC226 V3/EC326

Article no: 1021136

Position30

Quantity in drawing1

JPY222,200

excl. VAT

Out of stock

Lubrication kit EC226 V3/EC326

Article no: 1021136

JPY222,200

Out of stock

Plug-RP M36x2 DIN 908 FZB

Article no: 650408

Position41

Quantity in drawing6

JPY2,500

excl. VAT

Out of stock

Plug-RP M36x2 DIN 908 FZB

Article no: 650408

JPY2,500

Out of stock

Magnet Spacer Worm Screw

Article no: 1062693

Position9

Quantity in drawing1

JPY2,000

excl. VAT

Few in stock (2)

Magnet Spacer Worm Screw

Article no: 1062693

Loxeal 83-52. Torque: 20Nm

JPY2,000

Few in stock (2)

Rotator frame 226/326 V4 EngconYellow complete

Article no: 1023732

Position1

Quantity in drawing1

JPY1,506,200

excl. VAT

Out of stock

Rotator frame 226/326 V4 EngconYellow complete

Article no: 1023732

(POS.2-3 incl.)

JPY1,506,200

Out of stock

Shim break support - EC226, EC233 - 0,1mm

Article no: 1023344

Position42

Quantity in drawing1

JPY600

excl. VAT

In stock

Shim break support - EC226, EC233 - 0,1mm

Article no: 1023344

JPY600

In stock

Cover End lock None ePS

Article no: 1041613

Position67

Quantity in drawing1

JPY2,900

excl. VAT

Out of stock

Cover End lock None ePS

Article no: 1041613

JPY2,900

Out of stock

O-ring 242x5 NBR 90 shore EC226 worm wheel / EC209 QH

Article no: 7001663

Position5

Quantity in drawing1

JPY1,500

excl. VAT

Few in stock (2)

O-ring 242x5 NBR 90 shore EC226 worm wheel / EC209 QH

Article no: 7001663

JPY1,500

Few in stock (2)

Screw M6S 6x12 8.8 FZB ISO4017

Article no: 610108

Position86

Quantity in drawing8

JPY100

excl. VAT

In stock

Screw M6S 6x12 8.8 FZB ISO4017

Article no: 610108

Used until 2016-05

JPY100

In stock

Magnet Neodym35 8x5x3mm SVAB MACS

Article no: 6000047

Position90

Quantity in drawing1

JPY2,200

excl. VAT

Out of stock

Magnet Neodym35 8x5x3mm SVAB MACS

Article no: 6000047

Loctite 415. Harden 1 minute

JPY2,200

Out of stock

Cover plate Slip ring ECHF V2

Article no: 1026200

Position58

Quantity in drawing1

JPY2,400

excl. VAT

Out of stock

Cover plate Slip ring ECHF V2

Article no: 1026200

JPY2,400

Out of stock

Spacer central lubrication QSM EC214,EC219,EC226

Article no: 1047832

Position28

Quantity in drawing1

JPY4,800

excl. VAT

Out of stock

Spacer central lubrication QSM EC214,EC219,EC226

Article no: 1047832

JPY4,800

Out of stock

Screw MC6S 6x20 A4 stainless ISO4762

Article no: 611513

Position69

Quantity in drawing3

JPY100

excl. VAT

In stock

Screw MC6S 6x20 A4 stainless ISO4762

Article no: 611513

JPY100

In stock

Screw MC6S 14x80 12.9 ZFSHL ISO4762

Article no: 6000354

Position14

Quantity in drawing8

JPY900

excl. VAT

Out of stock

Screw MC6S 14x80 12.9 ZFSHL ISO4762

Article no: 6000354

Torque: 217Nm

JPY900

Out of stock

Plate break support - EC226/EC326, EC233/EC333

Article no: 1023292

Position44

Quantity in drawing1

JPY17,400

excl. VAT

Few in stock (2)

Plate break support - EC226/EC326, EC233/EC333

Article no: 1023292

JPY17,400

Few in stock (2)

Seal R09-F 20x27.5x3.2

Article no: 1063616

Position12

Quantity in drawing1

JPY2,900

excl. VAT

Out of stock

Seal R09-F 20x27.5x3.2

Article no: 1063616

JPY2,900

Out of stock

End lock protection plate EC226S/EC326

Article no: 1063521

Position13

Quantity in drawing1

JPY7,600

excl. VAT

Out of stock

End lock protection plate EC226S/EC326

Article no: 1063521

JPY7,600

Out of stock

Bearing ring EC226/326 V2

Article no: 1077002

Position6

Quantity in drawing1

JPY192,900

excl. VAT

Out of stock

Bearing ring EC226/326 V2

Article no: 1077002

(Only compatible with 8x25)

JPY192,900

Out of stock

Extender 18mm R1/8" lubrication kit

Article no: 712216

Position25

Quantity in drawing1

JPY1,800

excl. VAT

Few in stock (2)

Extender 18mm R1/8" lubrication kit

Article no: 712216

JPY1,800

Few in stock (2)

Washer NL6-DPE 6,5x10,8x1,7

Article no: 611039

Position68

Quantity in drawing3

JPY200

excl. VAT

In stock

Washer NL6-DPE 6,5x10,8x1,7

Article no: 611039

JPY200

In stock

Bushing WB802/EB1 85/90x40

Article no: 630319

Position2

Quantity in drawing1

JPY14,000

excl. VAT

Few in stock (2)

Bushing WB802/EB1 85/90x40

Article no: 630319

JPY14,000

Few in stock (2)

Plug VSTIR18ED 1/8"

Article no: 711503

Position24

Quantity in drawing1

JPY900

excl. VAT

In stock

Plug VSTIR18ED 1/8"

Article no: 711503

JPY900

In stock

Screw MC6S 5x10 12.9 untreated ISO4762

Article no: 610594

Position59

Quantity in drawing4

JPY100

excl. VAT

In stock

Screw MC6S 5x10 12.9 untreated ISO4762

Article no: 610594

JPY100

In stock

End lock EC226S/EC326 Cast

Article no: 1065859

Position11

Quantity in drawing1

JPY54,800

excl. VAT

Out of stock

End lock EC226S/EC326 Cast

Article no: 1065859

(POS.12 incl.)

JPY54,800

Out of stock

Shim break support - EC226, EC233 - 0,3mm

Article no: 1023447

Position43

Quantity in drawing1

JPY1,100

excl. VAT

In stock

Shim break support - EC226, EC233 - 0,3mm

Article no: 1023447

JPY1,100

In stock

Screw MC6S 14x90 12.9 ZFSHL ISO4762

Article no: 6000158

Position65

Quantity in drawing8

JPY2,000

excl. VAT

In stock

Screw MC6S 14x90 12.9 ZFSHL ISO4762

Article no: 6000158

Torque: 217Nm

JPY2,000

In stock

Screw MC6S 8x20H 12.9 ZFSHL ISO4762

Article no: 6000157

Position46

Quantity in drawing2

JPY200

excl. VAT

In stock

Screw MC6S 8x20H 12.9 ZFSHL ISO4762

Article no: 6000157

JPY200

In stock

Lubrication nipple 1/8" 90°

Article no: 711409

Position26

Quantity in drawing1

JPY900

excl. VAT

In stock

Lubrication nipple 1/8" 90°

Article no: 711409

JPY900

In stock

Feather key 10x8x50 C45 EC05B,EC15,EC20,EC214,EC219,EC226

Article no: 650102

Position38

Quantity in drawing6

JPY400

excl. VAT

In stock

Feather key 10x8x50 C45 EC05B,EC15,EC20,EC214,EC219,EC226

Article no: 650102

Part of quick hitch

JPY400

In stock

Pipe Plug RP M36x2 Din 908 FZB M8x1 SVAB MACS

Article no: 650411

Position95

Quantity in drawing1

JPY5,400

excl. VAT

Out of stock

Pipe Plug RP M36x2 Din 908 FZB M8x1 SVAB MACS

Article no: 650411

JPY5,400

Out of stock

Protection sensor -ePS, SVAB MACS - EC226

Article no: 1016554

Position94

Quantity in drawing1

JPY30,600

excl. VAT

Out of stock

Protection sensor -ePS, SVAB MACS - EC226

Article no: 1016554

(Also for ePS until 2020-07)

JPY30,600

Out of stock

Washer NL12-DPE 13,0x19,5x2,7

Article no: 611042

Position21

Quantity in drawing10

JPY500

excl. VAT

Few in stock (3)

Washer NL12-DPE 13,0x19,5x2,7

Article no: 611042

QTY: 8 part of top part assembly

JPY500

Few in stock (3)

Protection sensor -ePS V2-EC226

Article no: 1055677

Position70

Quantity in drawing1

JPY19,800

excl. VAT

Out of stock

Protection sensor -ePS V2-EC226

Article no: 1055677

For ePS1

JPY19,800

Out of stock

Shim kit End lock - EC226

Article no: 1043983

Position10

Quantity in drawing1

JPY25,600

excl. VAT

Few in stock (1)

Shim kit End lock - EC226

Article no: 1043983

JPY25,600

Few in stock (1)

O-ring 27x5 NBR 70 shore End lock ePS

Article no: 7000485

Position66

Quantity in drawing1

JPY600

excl. VAT

Few in stock (2)

O-ring 27x5 NBR 70 shore End lock ePS

Article no: 7000485

JPY600

Few in stock (2)

Bushing WB802/EB1 45/50x50

Article no: 630102

Position3

Quantity in drawing1

JPY3,900

excl. VAT

Few in stock (2)

Bushing WB802/EB1 45/50x50

Article no: 630102

JPY3,900

Few in stock (2)

Screw MC6S 12x55 12.9 ZFSHL ISO4762

Article no: 6000155

Position37

Quantity in drawing8

JPY300

excl. VAT

In stock

Screw MC6S 12x55 12.9 ZFSHL ISO4762

Article no: 6000155

Part of top part. Torque: 136Nm

JPY300

In stock

Clamping half EC219/226/326 EngconYellow complete

Article no: 1016393

Position36

Quantity in drawing4

JPY22,400

excl. VAT

Few in stock (1)

Clamping half EC219/226/326 EngconYellow complete

Article no: 1016393

Part of top part

JPY22,400

Few in stock (1)

Adapter 236-06-06

Article no: 710131

Position52

Quantity in drawing3

JPY900

excl. VAT

Out of stock

Adapter 236-06-06

Article no: 710131

JPY900

Out of stock

Adapter 401-06-08 90°

Article no: 710157

Position15

Quantity in drawing2

JPY4,300

excl. VAT

In stock

Adapter 401-06-08 90°

Article no: 710157

JPY4,300

In stock

Inductive sensor M8 PNP NO 4mm - SVAB MACS

Article no: 1043698

Position92

Quantity in drawing1

JPY109,400

excl. VAT

Out of stock

Inductive sensor M8 PNP NO 4mm - SVAB MACS

Article no: 1043698

Distance 3mm. Nut torque: 3Nm

JPY109,400

Out of stock

Attachment central lubrication & TM DC2 -ECHF/QSM

Article no: 1031517

Position29

Quantity in drawing1

JPY15,900

excl. VAT

Out of stock

Attachment central lubrication & TM DC2 -ECHF/QSM

Article no: 1031517

JPY15,900

Out of stock

Screw MC6S 12x35 12.9 ZFSHL ISO4762

Article no: 6000150

Position22

Quantity in drawing2

JPY200

excl. VAT

In stock

Screw MC6S 12x35 12.9 ZFSHL ISO4762

Article no: 6000150

Torque: 136Nm

JPY200

In stock

Adapter 136-06-06

Article no: 710106

Position77

Quantity in drawing2

JPY400

excl. VAT

In stock

Adapter 136-06-06

Article no: 710106

JPY400

In stock

O-ring 82,22x2,62 NBR 70 shore

Article no: 7000920

Position18

Quantity in drawing1

JPY400

excl. VAT

In stock

O-ring 82,22x2,62 NBR 70 shore

Article no: 7000920

JPY400

In stock

Worm screw EC26/EC226

Article no: 1016101

Position8

Quantity in drawing1

JPY367,300

excl. VAT

Few in stock (1)

Worm screw EC26/EC226

Article no: 1016101

JPY367,300

Few in stock (1)

Screw TX45 8x30 10.9 FZB ISO7380

Article no: 612201

Position84

Quantity in drawing18

JPY200

excl. VAT

In stock

Screw TX45 8x30 10.9 FZB ISO7380

Article no: 612201

Torque: 34Nm. Used until 2024-10

JPY200

In stock

Relief valve HydraSpecma White(Danfoss) 160/200cc 200bar

Article no: 7001647

Position20

Quantity in drawing1

JPY21,000

excl. VAT

Few in stock (2)

Relief valve HydraSpecma White(Danfoss) 160/200cc 200bar

Article no: 7001647

Torque: 77Nm. Assy. before motor

JPY21,000

Few in stock (2)

Hydraulic motor White(Danfoss) 200cc

Article no: 7001807

Position19

Quantity in drawing1

JPY109,400

excl. VAT

Out of stock

Hydraulic motor White(Danfoss) 200cc

Article no: 7001807

JPY109,400

Out of stock

O-ring 319,3x5,7 - Quick hitch EC10/EC219/EC226

Article no: 710908

Position39

Quantity in drawing1

JPY7,400

excl. VAT

Few in stock (2)

O-ring 319,3x5,7 - Quick hitch EC10/EC219/EC226

Article no: 710908

Part of quick hitch

JPY7,400

Few in stock (2)

Screw TX45 8x25 10.9 FZB

Article no: 1078840

Position23

Quantity in drawing18

JPY100

excl. VAT

In stock

Screw TX45 8x25 10.9 FZB

Article no: 1078840

Torque: 34Nm Tighten in cross pattern

JPY100

In stock

O-ring 9,25x1,78 FKM 90 shore Viton Green NG6

Article no: 710901

Position80

Quantity in drawing6

JPY100

excl. VAT

In stock

O-ring 9,25x1,78 FKM 90 shore Viton Green NG6

Article no: 710901

JPY100

In stock

Axial washer EC26/EC226/EC326

Article no: 1016104

Position7

Quantity in drawing2

JPY18,400

excl. VAT

Few in stock (4)

Axial washer EC26/EC226/EC326

Article no: 1016104

Face grooves toward worm screw

JPY18,400

Few in stock (4)

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Position45

Quantity in drawing2

JPY300

excl. VAT

In stock

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

QTY: 5 for ECHF

JPY300

In stock

Adapter bulkhead 1260-06-32

Article no: 710242

Position53

Quantity in drawing1

JPY1,700

excl. VAT

In stock

Adapter bulkhead 1260-06-32

Article no: 710242

JPY1,700

In stock

Screw MC6S 5x35 12.9 untreated ISO4762

Article no: 610404

Position32

Quantity in drawing1

JPY100

excl. VAT

In stock

Screw MC6S 5x35 12.9 untreated ISO4762

Article no: 610404

JPY100

In stock

Seal washer GBR06 3/8"

Article no: 710703

Position51

Quantity in drawing5

JPY100

excl. VAT

In stock

Seal washer GBR06 3/8"

Article no: 710703

JPY100

In stock

Screw MC6S 10x50 12.9 ZFSHL ISO4762

Article no: 611515

Position56

Quantity in drawing3

JPY600

excl. VAT

In stock

Screw MC6S 10x50 12.9 ZFSHL ISO4762

Article no: 611515

JPY600

In stock

Screw MC6S 5x30 12.9 untreated ISO4762

Article no: 610403

Position31

Quantity in drawing2

JPY100

excl. VAT

In stock

Screw MC6S 5x30 12.9 untreated ISO4762

Article no: 610403

JPY100

In stock

Screw MC6S 5x40 12.9 untreated ISO4762

Article no: 610405

Position75

Quantity in drawing1

JPY100

excl. VAT

In stock

Screw MC6S 5x40 12.9 untreated ISO4762

Article no: 610405

JPY100

In stock

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Position33

Quantity in drawing2

JPY300

excl. VAT

In stock

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

QTY: 7 for ECHF

JPY300

In stock

O-ring 15,6x1,78 NBR 70 shore

Article no: 710912

Position62

Quantity in drawing1

JPY200

excl. VAT

In stock

O-ring 15,6x1,78 NBR 70 shore

Article no: 710912

JPY200

In stock

O-ring 12,42x1,78 NBR 70 shore

Article no: 710973

Position61

Quantity in drawing4

JPY100

excl. VAT

In stock

O-ring 12,42x1,78 NBR 70 shore

Article no: 710973

JPY100

In stock

O-ring 6,07x1,78 NBR 70 shore

Article no: 712422

Position60

Quantity in drawing2

JPY100

excl. VAT

In stock

O-ring 6,07x1,78 NBR 70 shore

Article no: 712422

JPY100

In stock
