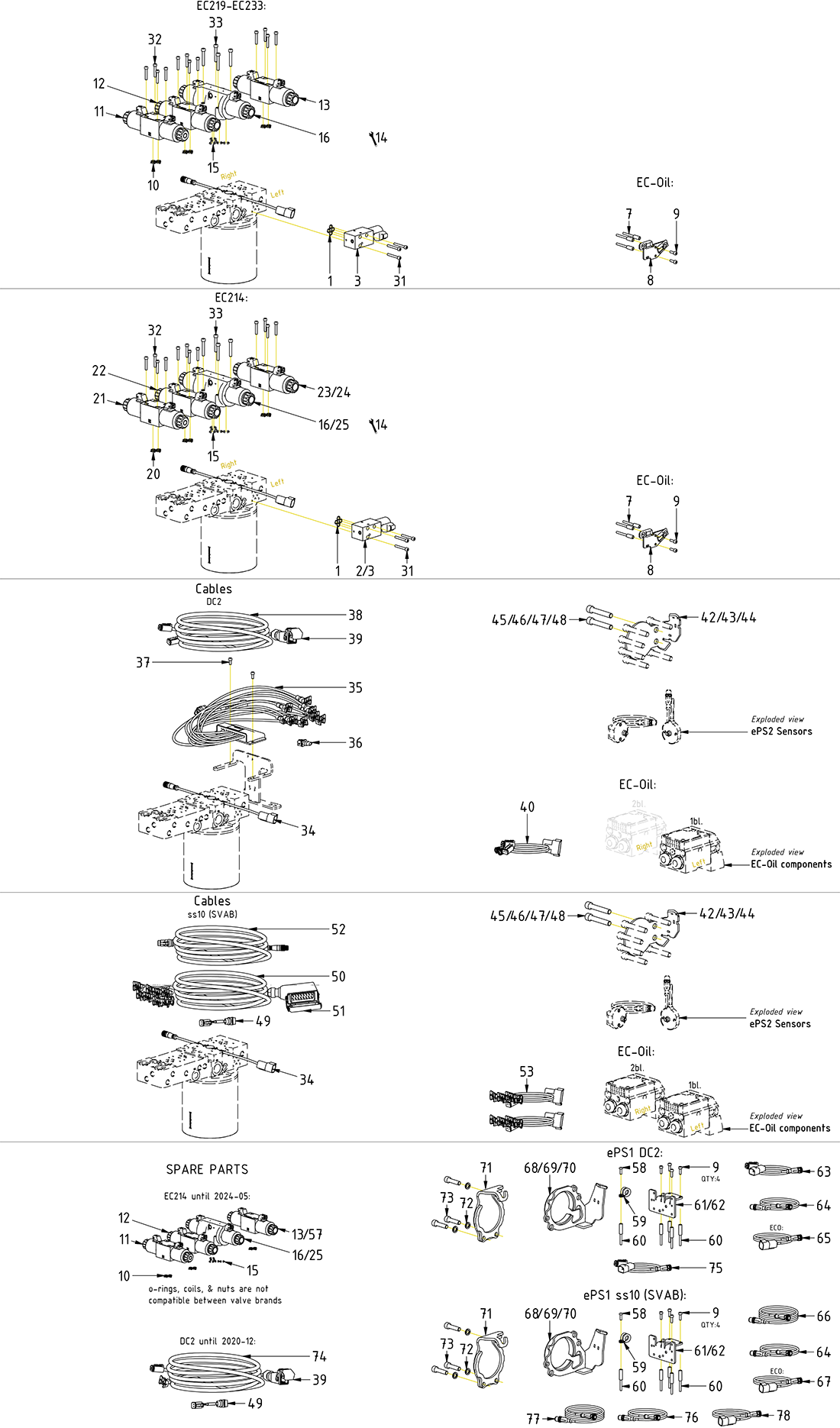

ss10 (DC2/SVAB) 'QSM'

Pos

Article

Extra Info

Quantity in drawing

Price (excl. VAT)

Adapter plate NG10-NG6

Article no: 7000147

Position54

Quantity in drawing1

JPY64,200

excl. VAT

Few in stock (2)

Adapter plate NG10-NG6

Article no: 7000147

JPY64,200

Few in stock (2)

Mounting plate-2x Deutsch NG4

Article no: 1059664

Position8

Quantity in drawing1

JPY10,300

excl. VAT

Few in stock (2)

Mounting plate-2x Deutsch NG4

Article no: 1059664

JPY10,300

Few in stock (2)

Mounting plate-ePS-Tilt sensor Trimble AS455-ECHF

Article no: 1038117

Position62

Quantity in drawing1

JPY12,500

excl. VAT

Out of stock

Mounting plate-ePS-Tilt sensor Trimble AS455-ECHF

Article no: 1038117

For Trimble

JPY12,500

Out of stock

Adapter cable DTM 6P-M12 5S

Article no: 8002459

Position65

Quantity in drawing1

JPY12,300

excl. VAT

Few in stock (2)

Adapter cable DTM 6P-M12 5S

Article no: 8002459

For EC-Oil w. ePS NB! Only compatible with 8002477

JPY12,300

Few in stock (2)

Directional valve NG10 12V

Article no: 730340

Position25

Quantity in drawing1

JPY108,000

excl. VAT

Few in stock (1)

Directional valve NG10 12V

Article no: 730340

EC214 (POS.15, 26, 19 incl.)

JPY108,000

Few in stock (1)

Rubber Steel Clamp Ø16

Article no: 6000009

Position59

Quantity in drawing1

JPY200

excl. VAT

In stock

Rubber Steel Clamp Ø16

Article no: 6000009

JPY200

In stock

Screw K6S 5x16H 10.9 FZB ISO7380

Article no: 611818

Position58

Quantity in drawing1

JPY100

excl. VAT

In stock

Screw K6S 5x16H 10.9 FZB ISO7380

Article no: 611818

Torque: 8,1Nm

JPY100

In stock

Protection sensor -ePS,SVAB MACS-EC233

Article no: 1040940

Position69

Quantity in drawing1

JPY85,500

excl. VAT

Out of stock

Protection sensor -ePS,SVAB MACS-EC233

Article no: 1040940

JPY85,500

Out of stock

Directional valve NG6 12V. 4D01-3203-0302-B1-GOR-JT ATOS

Article no: 7001617

Position24

Quantity in drawing1

JPY33,000

excl. VAT

Few in stock (2)

Directional valve NG6 12V. 4D01-3203-0302-B1-GOR-JT ATOS

Article no: 7001617

EC214 (POS.20, 29, 30 incl.)

JPY33,000

Few in stock (2)

Coil NG4 IQS lock 12V DT

Article no: 1042065

Position4

Quantity in drawing1

JPY22,100

excl. VAT

In stock

Coil NG4 IQS lock 12V DT

Article no: 1042065

JPY22,100

In stock

Coil 24V NG6 JT on/off

Article no: 730118

Position18

Quantity in drawing4

JPY20,700

excl. VAT

Few in stock (2)

Coil 24V NG6 JT on/off

Article no: 730118

QTY: 2 for EC214

JPY20,700

Few in stock (2)

O-ring 8,73x1,78 NBR 90 shore

Article no: 710959

Position20

Quantity in drawing12

JPY200

excl. VAT

In stock

O-ring 8,73x1,78 NBR 90 shore

Article no: 710959

JPY200

In stock

Coil NG4 IQS lock 24V DT

Article no: 1042066

Position5

Quantity in drawing1

JPY22,100

excl. VAT

Few in stock (1)

Coil NG4 IQS lock 24V DT

Article no: 1042066

JPY22,100

Few in stock (1)

Branch cable CAN DTM-DT/M12-ECO W ePS EC209B-EC233

Article no: 8001847

Position40

Quantity in drawing1

JPY33,000

excl. VAT

Few in stock (2)

Branch cable CAN DTM-DT/M12-ECO W ePS EC209B-EC233

Article no: 8001847

For EC-Oil. Instead of agg.cable

JPY33,000

Few in stock (2)

End lock protection plate EC233/EC333

Article no: 1064168

Position44

Quantity in drawing1

JPY8,000

excl. VAT

Out of stock

End lock protection plate EC233/EC333

Article no: 1064168

JPY8,000

Out of stock

Directional valve NG6 prop 12V engcon JT ATOS

Article no: 7001614

Position22

Quantity in drawing1

JPY97,100

excl. VAT

Few in stock (2)

Directional valve NG6 prop 12V engcon JT ATOS

Article no: 7001614

EC214 (POS.20, 27, 30 incl.)

JPY97,100

Few in stock (2)

Nut directional valve Argo Hytos

Article no: 730135

Position19

Quantity in drawing8

JPY3,000

excl. VAT

In stock

Nut directional valve Argo Hytos

Article no: 730135

QTY: 2 for EC214

JPY3,000

In stock

Coil 12V NG6 prop JT ATOS

Article no: 7001734

Position27

Quantity in drawing4

JPY10,800

excl. VAT

Few in stock (2)

Coil 12V NG6 prop JT ATOS

Article no: 7001734

JPY10,800

Few in stock (2)

Screw Valve Distance 5x39

Article no: 1047243

Position7

Quantity in drawing3

JPY1,400

excl. VAT

In stock

Screw Valve Distance 5x39

Article no: 1047243

Torque: 9,7Nm

JPY1,400

In stock

Coil 12V NG6 JT on/off ATOS

Article no: 7001735

Position29

Quantity in drawing2

JPY9,000

excl. VAT

In stock

Coil 12V NG6 JT on/off ATOS

Article no: 7001735

JPY9,000

In stock

Nut directional valve ATOS

Article no: 7001887

Position30

Quantity in drawing6

JPY500

excl. VAT

Out of stock

Nut directional valve ATOS

Article no: 7001887

JPY500

Out of stock

Mounting plate-ePS-Tilt sensor except Trimble-ECHF

Article no: 1038119

Position61

Quantity in drawing1

JPY15,100

excl. VAT

Few in stock (2)

Mounting plate-ePS-Tilt sensor except Trimble-ECHF

Article no: 1038119

For Topcon/LEICA/Novatron

JPY15,100

Few in stock (2)

Coil 24V NG6 JT on/off ATOS

Article no: 7001736

Position28

Quantity in drawing2

JPY23,900

excl. VAT

Few in stock (1)

Coil 24V NG6 JT on/off ATOS

Article no: 7001736

JPY23,900

Few in stock (1)

Screw MC6S 6x25 12.9 untreated ISO4762

Article no: 6000083

Position55

Quantity in drawing4

JPY100

excl. VAT

In stock

Screw MC6S 6x25 12.9 untreated ISO4762

Article no: 6000083

Torque: 17Nm

JPY100

In stock

Screw MC6S 6x40 12.9 untreated ISO4762

Article no: 610418

Position33

Quantity in drawing4

JPY100

excl. VAT

In stock

Screw MC6S 6x40 12.9 untreated ISO4762

Article no: 610418

Torque: 17Nm

JPY100

In stock

Coil 12V NG6 JT on/off

Article no: 730117

Position26

Quantity in drawing2

JPY20,700

excl. VAT

Few in stock (2)

Coil 12V NG6 JT on/off

Article no: 730117

JPY20,700

Few in stock (2)

Directional valve NG6 prop 12V engcon JT open to tank ATOS

Article no: 7001615

Position21

Quantity in drawing1

JPY97,100

excl. VAT

Out of stock

Directional valve NG6 prop 12V engcon JT open to tank ATOS

Article no: 7001615

EC214 (POS.20, 27, 30 incl.)

JPY97,100

Out of stock

Coil 12V NG6 prop JT

Article no: 730192

Position17

Quantity in drawing4

JPY27,900

excl. VAT

Few in stock (2)

Coil 12V NG6 prop JT

Article no: 730192

JPY27,900

Few in stock (2)

O-ring 12,42x1,68 square NBR 70 shore NG10

Article no: 750704

Position15

Quantity in drawing5

JPY1,000

excl. VAT

In stock

O-ring 12,42x1,68 square NBR 70 shore NG10

Article no: 750704

JPY1,000

In stock

Screw MC6S 12x90 12.9 ZFSHL ISO4762

Article no: 6000147

Position46

Quantity in drawing8

JPY400

excl. VAT

In stock

Screw MC6S 12x90 12.9 ZFSHL ISO4762

Article no: 6000147

For EC219. Torque: 136Nm

JPY400

In stock

Directional valve NG6 24V JT ATOS

Article no: 7001616

Position23

Quantity in drawing1

JPY33,000

excl. VAT

Out of stock

Directional valve NG6 24V JT ATOS

Article no: 7001616

EC214 (POS.20, 28, 30 incl.)

JPY33,000

Out of stock

Screw MC6S 12x70 12.9 ZFSHL ISO4762

Article no: 611517

Position45

Quantity in drawing8

JPY600

excl. VAT

In stock

Screw MC6S 12x70 12.9 ZFSHL ISO4762

Article no: 611517

For EC214. Torque: 136Nm

JPY600

In stock

End lock protection plate EC209S/EC214S/EC219S

Article no: 1063372

Position42

Quantity in drawing1

JPY7,400

excl. VAT

Few in stock (2)

End lock protection plate EC209S/EC214S/EC219S

Article no: 1063372

JPY7,400

Few in stock (2)

Screw MC6S 14x80 12.9 ZFSHL ISO4762

Article no: 6000354

Position47

Quantity in drawing8

JPY900

excl. VAT

Out of stock

Screw MC6S 14x80 12.9 ZFSHL ISO4762

Article no: 6000354

For EC226. Torque: 217Nm

JPY900

Out of stock

End lock protection plate EC226S/EC326

Article no: 1063521

Position43

Quantity in drawing1

JPY7,600

excl. VAT

Out of stock

End lock protection plate EC226S/EC326

Article no: 1063521

JPY7,600

Out of stock

Nut bulkhead adapter 1270-04

Article no: 710250

Position6

Quantity in drawing1

JPY400

excl. VAT

In stock

Nut bulkhead adapter 1270-04

Article no: 710250

JPY400

In stock

Directional valve NG10 24V

Article no: 730339

Position16

Quantity in drawing1

JPY109,900

excl. VAT

Few in stock (2)

Directional valve NG10 24V

Article no: 730339

(POS.15, 18, 19 incl.)

JPY109,900

Few in stock (2)

Unit cable DC2 DT EC206-EC233-3,9m

Article no: 8001201

Position38

Quantity in drawing1

JPY46,800

excl. VAT

Few in stock (1)

Unit cable DC2 DT EC206-EC233-3,9m

Article no: 8001201

JPY46,800

Few in stock (1)

Resistor cable 120ohm M12 5S-M12 5S-3m

Article no: 8000824

Position66

Quantity in drawing1

JPY29,900

excl. VAT

Few in stock (2)

Resistor cable 120ohm M12 5S-M12 5S-3m

Article no: 8000824

JPY29,900

Few in stock (2)

Screw MC6S 10x40 12.9 untreated ISO4762

Article no: 610453

Position73

Quantity in drawing3

JPY400

excl. VAT

Out of stock

Screw MC6S 10x40 12.9 untreated ISO4762

Article no: 610453

JPY400

Out of stock

Breakout cable CAN DT-DC2 EC 0,32/0,25m

Article no: 8000783

Position63

Quantity in drawing1

JPY22,100

excl. VAT

Few in stock (2)

Breakout cable CAN DT-DC2 EC 0,32/0,25m

Article no: 8000783

JPY22,100

Few in stock (2)

Extension cable 5-pole M12-FULL 3m Robo hose

Article no: 842187

Position77

Quantity in drawing1

JPY18,400

excl. VAT

Out of stock

Extension cable 5-pole M12-FULL 3m Robo hose

Article no: 842187

Replaced by POS.66 from 2019-10

JPY18,400

Out of stock

Unit cable ss10 JT EC214-EC233-4,5m

Article no: 1015196

Position50

Quantity in drawing1

JPY97,400

excl. VAT

Out of stock

Unit cable ss10 JT EC214-EC233-4,5m

Article no: 1015196

JPY97,400

Out of stock

Protection sensor -ePS, SVAB MACS - EC226

Article no: 1016554

Position71

Quantity in drawing1

JPY30,600

excl. VAT

Out of stock

Protection sensor -ePS, SVAB MACS - EC226

Article no: 1016554

Replaced by POS.70 from 2020-07

JPY30,600

Out of stock

Screw MC6S 5x16 12.9 untreated ISO4762

Article no: 610401

Position9

Quantity in drawing2

JPY100

excl. VAT

In stock

Screw MC6S 5x16 12.9 untreated ISO4762

Article no: 610401

Torque: 9,7Nm

JPY100

In stock

Adapter cable M12 8P-DTM 6S

Article no: 842148

Position52

Quantity in drawing1

JPY41,700

excl. VAT

Out of stock

Adapter cable M12 8P-DTM 6S

Article no: 842148

JPY41,700

Out of stock

ILME cover21.21 with lever CKAX 03 CXA

Article no: 810208

Position39

Quantity in drawing1

JPY5,600

excl. VAT

Out of stock

ILME cover21.21 with lever CKAX 03 CXA

Article no: 810208

(Incl. with agg.cable)

JPY5,600

Out of stock

Adapter cable DTM 12P-DT 2S/4xJT 2S

Article no: 1029599

Position53

Quantity in drawing2

JPY34,600

excl. VAT

Out of stock

Adapter cable DTM 12P-DT 2S/4xJT 2S

Article no: 1029599

For EC-Oil. Instead of POS.49-52

JPY34,600

Out of stock

Resistor cable 120ohm M12 5S-M12 5S-0,95m

Article no: 842188

Position76

Quantity in drawing1

JPY23,600

excl. VAT

Out of stock

Resistor cable 120ohm M12 5S-M12 5S-0,95m

Article no: 842188

Replaced by POS.64 from 2019-10

JPY23,600

Out of stock

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Position72

Quantity in drawing3

JPY300

excl. VAT

In stock

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

JPY300

In stock

O-ring 7,65x1,78 FKM 90 shore Viton NG4

Article no: 710960

Position1

Quantity in drawing4

JPY100

excl. VAT

In stock

O-ring 7,65x1,78 FKM 90 shore Viton NG4

Article no: 710960

JPY100

In stock

Directional valve NG4 IQS lock 24V DT ss10 Coil A

Article no: 1042190

Position3

Quantity in drawing1

JPY159,000

excl. VAT

In stock

Directional valve NG4 IQS lock 24V DT ss10 Coil A

Article no: 1042190

(POS.1, 5, 6 incl.)

JPY159,000

In stock

Screw MC6S 5x40 12.9 untreated ISO4762

Article no: 610405

Position31

Quantity in drawing3

JPY100

excl. VAT

In stock

Screw MC6S 5x40 12.9 untreated ISO4762

Article no: 610405

Torque: 9,7Nm

JPY100

In stock

Directional valve NG4 IQS lock 12V DT ss10 Coil A

Article no: 1042047

Position2

Quantity in drawing1

JPY159,000

excl. VAT

In stock

Directional valve NG4 IQS lock 12V DT ss10 Coil A

Article no: 1042047

(POS.1, 4, 6 incl.)

JPY159,000

In stock

Adapter cable JT 2P-DT 2S

Article no: 1017478

Position49

Quantity in drawing1

JPY9,900

excl. VAT

Few in stock (2)

Adapter cable JT 2P-DT 2S

Article no: 1017478

(Previously also for DC2)

JPY9,900

Few in stock (2)

Directional valve NG6 prop 12V engcon JT

Article no: 730190

Position12

Quantity in drawing1

JPY168,200

excl. VAT

Few in stock (2)

Directional valve NG6 prop 12V engcon JT

Article no: 730190

EC219-233 (POS.10, 17, 19 incl.)

JPY168,200

Few in stock (2)

Screw Valve Distance NG6 5x30.5

Article no: 1034402

Position60

Quantity in drawing5

JPY2,500

excl. VAT

In stock

Screw Valve Distance NG6 5x30.5

Article no: 1034402

JPY2,500

In stock

Directional valve NG6 24V

Article no: 730103

Position13

Quantity in drawing1

JPY82,600

excl. VAT

Few in stock (1)

Directional valve NG6 24V

Article no: 730103

EC219-233 (POS.10, 18, 19 incl.)

JPY82,600

Few in stock (1)

Directional valve NG6 12V. 4D01-3203-0302-B1-GOR-JT

Article no: 730101

Position57

Quantity in drawing1

JPY72,800

excl. VAT

Few in stock (2)

Directional valve NG6 12V. 4D01-3203-0302-B1-GOR-JT

Article no: 730101

(POS.10, 26, 19 incl.)

JPY72,800

Few in stock (2)

O-ring 9,25x1,78 FKM 90 shore Viton Green NG6

Article no: 710901

Position10

Quantity in drawing12

JPY100

excl. VAT

In stock

O-ring 9,25x1,78 FKM 90 shore Viton Green NG6

Article no: 710901

JPY100

In stock

Screw MC6S 5x12 12.9 untreated ISO4762

Article no: 6000077

Position37

Quantity in drawing2

JPY100

excl. VAT

In stock

Screw MC6S 5x12 12.9 untreated ISO4762

Article no: 6000077

JPY100

In stock

Extension cable 5-pole M12-FULL 0,75m Robo hose

Article no: 8000784

Position64

Quantity in drawing1

JPY18,800

excl. VAT

Few in stock (2)

Extension cable 5-pole M12-FULL 0,75m Robo hose

Article no: 8000784

JPY18,800

Few in stock (2)

Protection sensor -ePS, SVAB MACS-V2-EC209,EC214,EC219

Article no: 1033565

Position68

Quantity in drawing1

JPY43,200

excl. VAT

Out of stock

Protection sensor -ePS, SVAB MACS-V2-EC209,EC214,EC219

Article no: 1033565

JPY43,200

Out of stock

Screw MC6S 5x30 12.9 untreated ISO4762

Article no: 610403

Position32

Quantity in drawing12

JPY100

excl. VAT

In stock

Screw MC6S 5x30 12.9 untreated ISO4762

Article no: 610403

Torque: 9,7Nm

JPY100

In stock

Cable ePS ECO W tiltrotator ss5/ss9/SVAB

Article no: 1042245

Position78

Quantity in drawing1

JPY20,700

excl. VAT

Out of stock

Cable ePS ECO W tiltrotator ss5/ss9/SVAB

Article no: 1042245

Replaced by POS.67 from 2019-10

JPY20,700

Out of stock

Unit cable DC2 JT EC206-EC233-3,9m

Article no: 8000175

Position74

Quantity in drawing1

JPY50,000

excl. VAT

Few in stock (1)

Unit cable DC2 JT EC206-EC233-3,9m

Article no: 8000175

Replaced by POS.38 from 2020-12

JPY50,000

Few in stock (1)

Jumper JT 2P POS:1-2

Article no: 1018662

Position36

Quantity in drawing1

JPY2,900

excl. VAT

In stock

Jumper JT 2P POS:1-2

Article no: 1018662

Plug JT connector "1"

JPY2,900

In stock

ILME cover 66.16 with lever CZC 25 LG

Article no: 810235

Position51

Quantity in drawing1

JPY8,500

excl. VAT

Out of stock

ILME cover 66.16 with lever CZC 25 LG

Article no: 810235

(Incl. with agg.cable)

JPY8,500

Out of stock

Directional valve NG6 prop 12V engcon JT open to tank

Article no: 7000092

Position11

Quantity in drawing1

JPY165,100

excl. VAT

Few in stock (2)

Directional valve NG6 prop 12V engcon JT open to tank

Article no: 7000092

EC219-233 (POS.10, 17, 19 incl.)

JPY165,100

Few in stock (2)

Protection plug for DTM06-6S

Article no: 8000090

Position41

Quantity in drawing1

JPY4,500

excl. VAT

In stock

Protection plug for DTM06-6S

Article no: 8000090

JPY4,500

In stock

Breakout cable CAN DT-DC2 EC 0,15/0,98m

Article no: 842173

Position75

Quantity in drawing1

JPY28,400

excl. VAT

Few in stock (2)

Breakout cable CAN DT-DC2 EC 0,15/0,98m

Article no: 842173

Replaced by POS.63 from 2019-10

JPY28,400

Few in stock (2)

Protection sensor -ePS V2-EC226

Article no: 1055677

Position70

Quantity in drawing1

JPY19,800

excl. VAT

Out of stock

Protection sensor -ePS V2-EC226

Article no: 1055677

JPY19,800

Out of stock

Resistor cable 120ohm M12 5S-DTM 6P-0,4m

Article no: 8000825

Position67

Quantity in drawing1

JPY17,900

excl. VAT

Out of stock

Resistor cable 120ohm M12 5S-DTM 6P-0,4m

Article no: 8000825

For ECO w. ePS. Instead of POS.66

JPY17,900

Out of stock

Electronics Module TM2-EC206B-233/EC10-30 DC2 QS-DTM

Article no: 842137

Position35

Quantity in drawing1

JPY196,000

excl. VAT

Few in stock (5)

Electronics Module TM2-EC206B-233/EC10-30 DC2 QS-DTM

Article no: 842137

JPY196,000

Few in stock (5)

Screw MC6S 12x80 12.9 ZFSHL ISO4762

Article no: 6000148

Position48

Quantity in drawing12

JPY300

excl. VAT

In stock

Screw MC6S 12x80 12.9 ZFSHL ISO4762

Article no: 6000148

For EC233. Torque: 136Nm

JPY300

In stock
