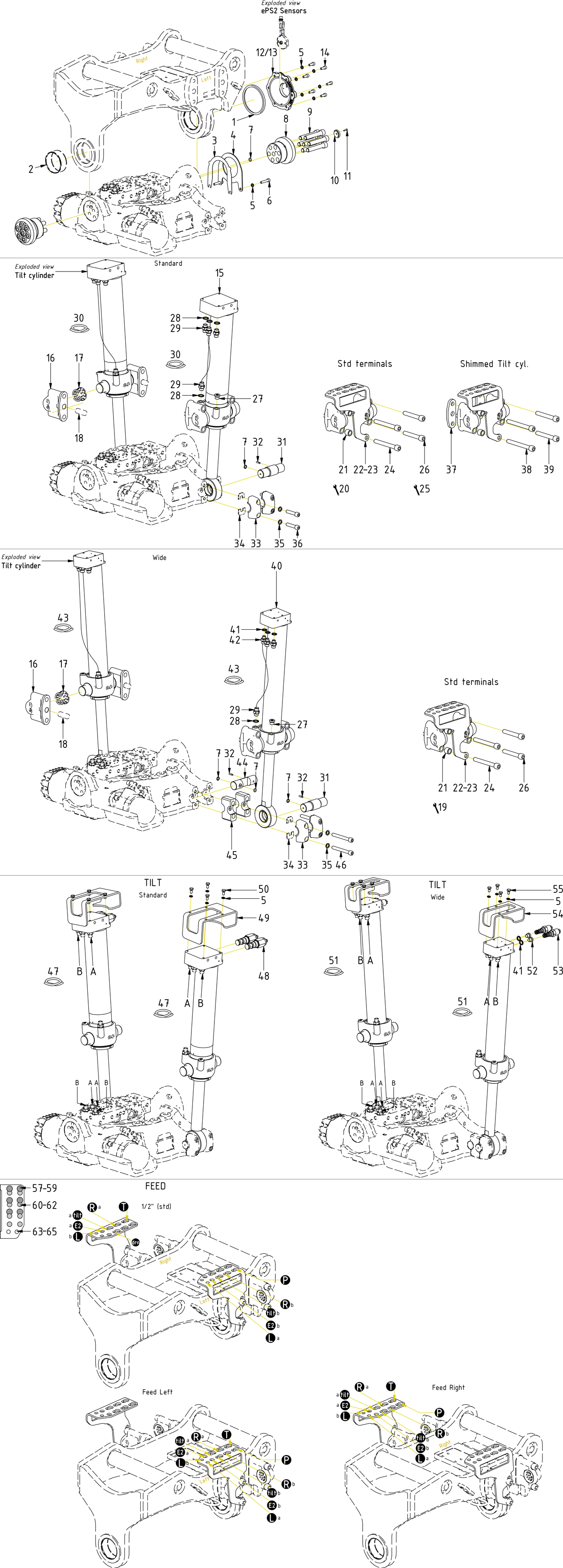

Std. Top components 'QSM'

Pos

Article

Extra Info

Quantity in drawing

Price (excl. VAT)

Shim yoke bracket - EC209-EC226 - 10mm (cast yoke)

Article no: 1007041

Position37

Quantity in drawing4

JPY11,000

excl. VAT

Out of stock

Shim yoke bracket - EC209-EC226 - 10mm (cast yoke)

Article no: 1007041

For option Shimmed Tilt cyl.

JPY11,000

Out of stock

Screw MC6S 16x130 12.9 ZFSHL ISO4762

Article no: 6000154

Position24

Quantity in drawing4

JPY2,000

excl. VAT

In stock

Screw MC6S 16x130 12.9 ZFSHL ISO4762

Article no: 6000154

Torque: 333Nm

JPY2,000

In stock

Nut bulkhead adapter 1270-12

Article no: 712211

Position70

Quantity in drawing2

JPY1,000

excl. VAT

In stock

Nut bulkhead adapter 1270-12

Article no: 712211

JPY1,000

In stock

Screw MC6S 8x20H 12.9 ZFSHL ISO4762

Article no: 6000157

Position14

Quantity in drawing6

JPY200

excl. VAT

In stock

Screw MC6S 8x20H 12.9 ZFSHL ISO4762

Article no: 6000157

JPY200

In stock

Yoke Bracket EC10-20, EC219-226, EC319-326 cast grease-free

Article no: 1017151

Position16

Quantity in drawing4

JPY26,700

excl. VAT

Few in stock (4)

Yoke Bracket EC10-20, EC219-226, EC319-326 cast grease-free

Article no: 1017151

(POS.17-18 incl.)

JPY26,700

Few in stock (4)

Washer NL12-DPE 13,0x19,5x2,7

Article no: 611042

Position35

Quantity in drawing8

JPY500

excl. VAT

Few in stock (3)

Washer NL12-DPE 13,0x19,5x2,7

Article no: 611042

JPY500

Few in stock (3)

O-ring 9,92x2,62 NBR 70 shore EC209/219/226 cylinder axle

Article no: 710968

Position7

Quantity in drawing4

JPY100

excl. VAT

In stock

O-ring 9,92x2,62 NBR 70 shore EC209/219/226 cylinder axle

Article no: 710968

QTY: 8 for option Wide

JPY100

In stock

Slotted pin RPE5x20

Article no: 640413

Position32

Quantity in drawing2

JPY200

excl. VAT

Few in stock (5)

Slotted pin RPE5x20

Article no: 640413

QTY: 4 for option Wide

JPY200

Few in stock (5)

Screw M6S 8x14 8.8 FZB ISO4017

Article no: 610188

Position55

Quantity in drawing8

JPY100

excl. VAT

In stock

Screw M6S 8x14 8.8 FZB ISO4017

Article no: 610188

JPY100

In stock

Screw MC6S 12x55 12.9 ZFSHL ISO4762

Article no: 6000155

Position36

Quantity in drawing8

JPY300

excl. VAT

In stock

Screw MC6S 12x55 12.9 ZFSHL ISO4762

Article no: 6000155

Torque: 136Nm

JPY300

In stock

Tilt cylinder EC219W/EC226W

Article no: 1023811

Position40

Quantity in drawing2

JPY327,200

excl. VAT

Out of stock

Tilt cylinder EC219W/EC226W

Article no: 1023811

JPY327,200

Out of stock

Hose protection Tiltcyl EC05B-15B, 206-214 overcenter

Article no: 1003774

Position54

Quantity in drawing2

JPY4,800

excl. VAT

Few in stock (4)

Hose protection Tiltcyl EC05B-15B, 206-214 overcenter

Article no: 1003774

JPY4,800

Few in stock (4)

Protection Plate tilt axle EC214/EC219

Article no: 1064717

Position13

Quantity in drawing1

JPY5,600

excl. VAT

Out of stock

Protection Plate tilt axle EC214/EC219

Article no: 1064717

For EC219/EC219PS Face the groove downwards

JPY5,600

Out of stock

Adapter 135-04-06

Article no: 710118

Position42

Quantity in drawing6

JPY400

excl. VAT

In stock

Adapter 135-04-06

Article no: 710118

JPY400

In stock

Hose Tilt Short - EC219

Article no: 742606

Position30

Quantity in drawing2

JPY10,300

excl. VAT

Few in stock (4)

Hose Tilt Short - EC219

Article no: 742606

JPY10,300

Few in stock (4)

Tilt cylinder EC219 (cast waist) for overcenter 730277

Article no: 1070275

Position15

Quantity in drawing2

JPY245,400

excl. VAT

Few in stock (2)

Tilt cylinder EC219 (cast waist) for overcenter 730277

Article no: 1070275

JPY245,400

Few in stock (2)

Hose Tilt Long - EC219 - ECHF/QSM

Article no: 7000027

Position47

Quantity in drawing4

JPY12,300

excl. VAT

Few in stock (4)

Hose Tilt Long - EC219 - ECHF/QSM

Article no: 7000027

JPY12,300

Few in stock (4)

Spacer tilt cylinder EC219W, EC226W

Article no: 1016533

Position45

Quantity in drawing4

JPY31,500

excl. VAT

Out of stock

Spacer tilt cylinder EC219W, EC226W

Article no: 1016533

JPY31,500

Out of stock

Shim tilt axle - EC214/EC219 0,5mm

Article no: 1016420

Position3

Quantity in drawing1

JPY2,500

excl. VAT

Few in stock (2)

Shim tilt axle - EC214/EC219 0,5mm

Article no: 1016420

Use as required

JPY2,500

Few in stock (2)

Nut bulkhead adapter 1270-08

Article no: 710254

Position59

Quantity in drawing2

JPY400

excl. VAT

In stock

Nut bulkhead adapter 1270-08

Article no: 710254

JPY400

In stock

Washer NL20-DPE 21,4x30,7x3,7

Article no: 611098

Position57

Quantity in drawing2

JPY1,200

excl. VAT

In stock

Washer NL20-DPE 21,4x30,7x3,7

Article no: 611098

JPY1,200

In stock

Screw M6S 8x16 8.8 FZB ISO4017

Article no: 610122

Position50

Quantity in drawing8

JPY100

excl. VAT

In stock

Screw M6S 8x16 8.8 FZB ISO4017

Article no: 610122

JPY100

In stock

Tilt axial washer EC214, EC219

Article no: 1016417

Position4

Quantity in drawing1

JPY16,500

excl. VAT

Few in stock (2)

Tilt axial washer EC214, EC219

Article no: 1016417

JPY16,500

Few in stock (2)

Seal PAK-110x125x7-L

Article no: 1064201

Position1

Quantity in drawing1

JPY1,300

excl. VAT

Few in stock (2)

Seal PAK-110x125x7-L

Article no: 1064201

Face groove toward top part

JPY1,300

Few in stock (2)

Cylindrical pin CPK Ø20x50 m6

Article no: 650211

Position18

Quantity in drawing4

JPY4,800

excl. VAT

Few in stock (4)

Cylindrical pin CPK Ø20x50 m6

Article no: 650211

JPY4,800

Few in stock (4)

Magnet spacer tilt axle EC214S/EC219S

Article no: 1064202

Position10

Quantity in drawing1

JPY2,200

excl. VAT

Few in stock (2)

Magnet spacer tilt axle EC214S/EC219S

Article no: 1064202

For EC219S

JPY2,200

Few in stock (2)

Overcenter adjustable-EC219/226/233/20/30

Article no: 730277

Position48

Quantity in drawing4

JPY54,800

excl. VAT

In stock

Overcenter adjustable-EC219/226/233/20/30

Article no: 730277

Torque: 60Nm

JPY54,800

In stock

Cover Tilt Axle EC214S/EC219S Cast

Article no: 1065799

Position12

Quantity in drawing1

JPY22,100

excl. VAT

Few in stock (2)

Cover Tilt Axle EC214S/EC219S Cast

Article no: 1065799

For EC219S

JPY22,100

Few in stock (2)

Clamping half EC219/226/326 EngconYellow complete

Article no: 1016393

Position33

Quantity in drawing4

JPY22,400

excl. VAT

Few in stock (1)

Clamping half EC219/226/326 EngconYellow complete

Article no: 1016393

(POS.34 incl.)

JPY22,400

Few in stock (1)

Hose Tilt Long - EC226 - ECHF/QSM EC219W/EC226W

Article no: 7000031

Position51

Quantity in drawing4

JPY13,400

excl. VAT

In stock

Hose Tilt Long - EC226 - ECHF/QSM EC219W/EC226W

Article no: 7000031

JPY13,400

In stock

Screw MC6S 4x14 8.8 FZB ISO4762

Article no: 610420

Position11

Quantity in drawing1

JPY100

excl. VAT

In stock

Screw MC6S 4x14 8.8 FZB ISO4762

Article no: 610420

For EC219S

JPY100

In stock

Axle for spacer EC219W, EC226W

Article no: 1016534

Position44

Quantity in drawing2

JPY10,500

excl. VAT

Out of stock

Axle for spacer EC219W, EC226W

Article no: 1016534

JPY10,500

Out of stock

Hose

Article no: 7000563

Position43

Quantity in drawing2

JPY10,500

excl. VAT

Out of stock

Hose

Article no: 7000563

JPY10,500

Out of stock

Cylinder axle EC219, EC319, EC226, EC326

Article no: 1016398

Position31

Quantity in drawing2

JPY19,900

excl. VAT

Few in stock (1)

Cylinder axle EC219, EC319, EC226, EC326

Article no: 1016398

JPY19,900

Few in stock (1)

Nut bulkhead adapter 1270-06

Article no: 710252

Position62

Quantity in drawing2

JPY400

excl. VAT

In stock

Nut bulkhead adapter 1270-06

Article no: 710252

JPY400

In stock

Screw MC6S 16x110 12.9 ZFSHL ISO4762

Article no: 6000253

Position39

Quantity in drawing4

JPY900

excl. VAT

In stock

Screw MC6S 16x110 12.9 ZFSHL ISO4762

Article no: 6000253

Torque: 333Nm

JPY900

In stock

Screw MC6S 16x100 12.9 ZFSHL ISO4762

Article no: 6000156

Position26

Quantity in drawing4

JPY1,600

excl. VAT

In stock

Screw MC6S 16x100 12.9 ZFSHL ISO4762

Article no: 6000156

Torque: 333Nm

JPY1,600

In stock

Hose bracket feed ECHF

Article no: 1027200

Position67

Quantity in drawing2

JPY17,900

excl. VAT

Out of stock

Hose bracket feed ECHF

Article no: 1027200

JPY17,900

Out of stock

Overcenter adjustable-EC206/209/214/219W/226W/05B-15B

Article no: 730269

Position53

Quantity in drawing4

JPY50,000

excl. VAT

Few in stock (4)

Overcenter adjustable-EC206/209/214/219W/226W/05B-15B

Article no: 730269

Torque: 60Nm

JPY50,000

Few in stock (4)

Adapter bulkhead 1260-04-04

Article no: 710240

Position64

Quantity in drawing2

JPY1,200

excl. VAT

In stock

Adapter bulkhead 1260-04-04

Article no: 710240

JPY1,200

In stock

Hose bracket EC214-EC333 10x Hoses right

Article no: 1047138

Position23

Quantity in drawing1

JPY11,000

excl. VAT

Out of stock

Hose bracket EC214-EC333 10x Hoses right

Article no: 1047138

JPY11,000

Out of stock

Washer NL16-DPE 17,0x25,4x3,7

Article no: 611044

Position60

Quantity in drawing2

JPY800

excl. VAT

In stock

Washer NL16-DPE 17,0x25,4x3,7

Article no: 611044

JPY800

In stock

Adapter bulkhead 1260-12-12

Article no: 712210

Position69

Quantity in drawing2

JPY2,800

excl. VAT

In stock

Adapter bulkhead 1260-12-12

Article no: 712210

JPY2,800

In stock

Screw MC6S 16x140 12.9 ZFSHL ISO4762

Article no: 6000152

Position38

Quantity in drawing4

JPY1,800

excl. VAT

In stock

Screw MC6S 16x140 12.9 ZFSHL ISO4762

Article no: 6000152

Torque: 333Nm

JPY1,800

In stock

Washer NL1"-DPE 27,9x39x3,4

Article no: 611095

Position68

Quantity in drawing2

JPY1,600

excl. VAT

In stock

Washer NL1"-DPE 27,9x39x3,4

Article no: 611095

JPY1,600

In stock

Hose bracket EC214-EC333 10x Hoses left

Article no: 1047137

Position22

Quantity in drawing1

JPY11,000

excl. VAT

Out of stock

Hose bracket EC214-EC333 10x Hoses left

Article no: 1047137

JPY11,000

Out of stock

Nut bulkhead adapter 1270-04

Article no: 710250

Position65

Quantity in drawing2

JPY400

excl. VAT

In stock

Nut bulkhead adapter 1270-04

Article no: 710250

JPY400

In stock

Spacer Hose Bracket 28mm

Article no: 1030616

Position66

Quantity in drawing4

JPY3,500

excl. VAT

Few in stock (4)

Spacer Hose Bracket 28mm

Article no: 1030616

JPY3,500

Few in stock (4)

Spacer Hose Bracket 20mm

Article no: 1023777

Position21

Quantity in drawing4

JPY4,300

excl. VAT

Few in stock (4)

Spacer Hose Bracket 20mm

Article no: 1023777

JPY4,300

Few in stock (4)

Spacer clamping half rubber EC219, EC226

Article no: 1016439

Position34

Quantity in drawing4

JPY600

excl. VAT

Few in stock (4)

Spacer clamping half rubber EC219, EC226

Article no: 1016439

JPY600

Few in stock (4)

Adapter 136-06-06

Article no: 710106

Position29

Quantity in drawing8

JPY400

excl. VAT

In stock

Adapter 136-06-06

Article no: 710106

JPY400

In stock

Screw MC6S 12x100 12.9 ZFSHL ISO4762

Article no: 611514

Position46

Quantity in drawing8

JPY800

excl. VAT

In stock

Screw MC6S 12x100 12.9 ZFSHL ISO4762

Article no: 611514

Torque: 136Nm

JPY800

In stock

Bushing tilt EC214/EC219 WB802/EB1 85/90x35

Article no: 630321

Position2

Quantity in drawing2

JPY13,300

excl. VAT

Few in stock (2)

Bushing tilt EC214/EC219 WB802/EB1 85/90x35

Article no: 630321

(Incl. in Top part)

JPY13,300

Few in stock (2)

Tilt axle EC214S/EC219S

Article no: 1064196

Position8

Quantity in drawing2

JPY63,700

excl. VAT

Few in stock (2)

Tilt axle EC214S/EC219S

Article no: 1064196

JPY63,700

Few in stock (2)

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Position5

Quantity in drawing16

JPY300

excl. VAT

In stock

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

JPY300

In stock

Plug VSTIR38ED 3/8"

Article no: 711504

Position27

Quantity in drawing2

JPY900

excl. VAT

In stock

Plug VSTIR38ED 3/8"

Article no: 711504

JPY900

In stock

Adapter bulkhead 1260-06-32

Article no: 710242

Position61

Quantity in drawing2

JPY1,700

excl. VAT

In stock

Adapter bulkhead 1260-06-32

Article no: 710242

JPY1,700

In stock

Seal washer GBR06 3/8"

Article no: 710703

Position28

Quantity in drawing8

JPY100

excl. VAT

In stock

Seal washer GBR06 3/8"

Article no: 710703

JPY100

In stock

Adapter bulkhead 1260-08-08

Article no: 710244

Position58

Quantity in drawing2

JPY2,000

excl. VAT

In stock

Adapter bulkhead 1260-08-08

Article no: 710244

JPY2,000

In stock

Bushing BWG-F 40/50/55/5x30

Article no: 631001

Position17

Quantity in drawing4

JPY5,600

excl. VAT

Few in stock (4)

Bushing BWG-F 40/50/55/5x30

Article no: 631001

JPY5,600

Few in stock (4)

Hose protection Tiltcyl EC20B/30/219/226/233/326/ Overcenter

Article no: 1014280

Position49

Quantity in drawing2

JPY5,600

excl. VAT

Few in stock (4)

Hose protection Tiltcyl EC20B/30/219/226/233/326/ Overcenter

Article no: 1014280

JPY5,600

Few in stock (4)

Seal washer GBR04 1/4"

Article no: 710702

Position41

Quantity in drawing8

JPY100

excl. VAT

In stock

Seal washer GBR04 1/4"

Article no: 710702

JPY100

In stock

Plug Din 908 1/4"

Article no: 711505

Position52

Quantity in drawing4

JPY400

excl. VAT

In stock

Plug Din 908 1/4"

Article no: 711505

JPY400

In stock

Screw MC6S 8x40 12.9 ZFSHL ISO4762

Article no: 6000145

Position6

Quantity in drawing2

JPY300

excl. VAT

In stock

Screw MC6S 8x40 12.9 ZFSHL ISO4762

Article no: 6000145

JPY300

In stock

Screw MC6S 16x90 12.9 ZFSHL ISO4762

Article no: 6000151

Position9

Quantity in drawing14

JPY1,400

excl. VAT

In stock

Screw MC6S 16x90 12.9 ZFSHL ISO4762

Article no: 6000151

Torque: 333Nm

JPY1,400

In stock
