QSM60

Pos

Article

Extra Info

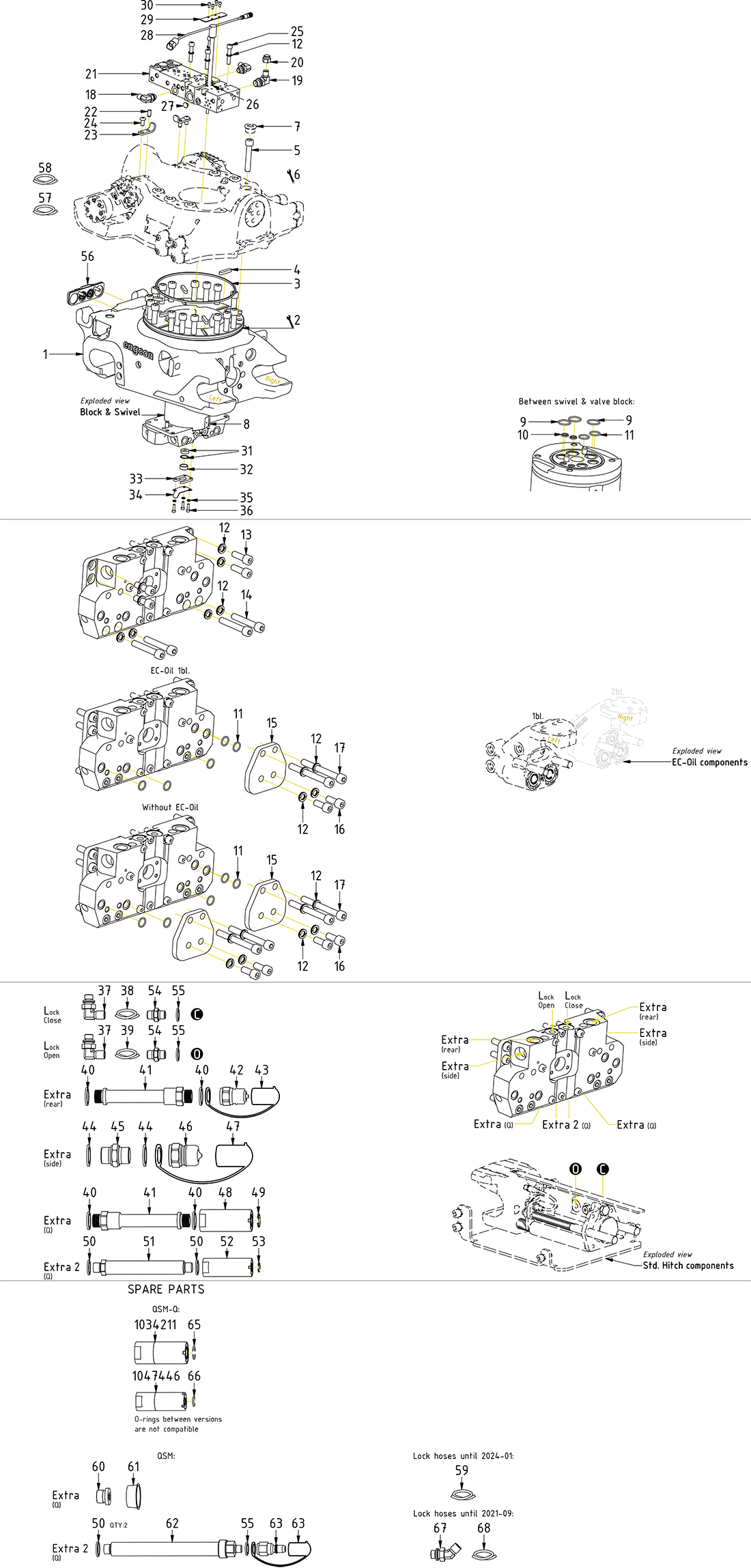

Quantity in drawing

Price (excl. VAT)

Hose lock

Article no: 7001613

Position59

Quantity in drawing2

JPY6,000

excl. VAT

Out of stock

Hose lock

Article no: 7001613

Replaced by POS.38-39 fr 2024-01

JPY6,000

Out of stock

Hose

Article no: 7001957

Position39

Quantity in drawing1

JPY5,600

excl. VAT

Few in stock (2)

Hose

Article no: 7001957

JPY5,600

Few in stock (2)

Plastic plug KS 15 G 1/4"

Article no: 7001983

Position27

Quantity in drawing1

JPY100

excl. VAT

In stock

Plastic plug KS 15 G 1/4"

Article no: 7001983

(Incl. with valve block)

JPY100

In stock

Adapter tube extra 3/8" QSM60-steel

Article no: 1045927

Position51

Quantity in drawing2

JPY13,300

excl. VAT

Few in stock (2)

Adapter tube extra 3/8" QSM60-steel

Article no: 1045927

JPY13,300

Few in stock (2)

Protective cover 0301550600

Article no: 711626

Position20

Quantity in drawing1

JPY500

excl. VAT

Out of stock

Protective cover 0301550600

Article no: 711626

JPY500

Out of stock

Protection Plug HECO60 hydraulic

Article no: 7000155

Position61

Quantity in drawing2

JPY300

excl. VAT

Out of stock

Protection Plug HECO60 hydraulic

Article no: 7000155

JPY300

Out of stock

Hose

Article no: 7000743

Position68

Quantity in drawing2

JPY7,400

excl. VAT

Out of stock

Hose

Article no: 7000743

Replaced by POS.59 from 2021-09

JPY7,400

Out of stock

Hose

Article no: 7001956

Position38

Quantity in drawing1

JPY6,800

excl. VAT

Few in stock (2)

Hose

Article no: 7001956

JPY6,800

Few in stock (2)

Cylindrical pin CPK Ø10x24 m6

Article no: 1020539

Position22

Quantity in drawing2

JPY300

excl. VAT

Few in stock (4)

Cylindrical pin CPK Ø10x24 m6

Article no: 1020539

Loxeal 53-11

JPY300

Few in stock (4)

Cover plate ECO under QSM60

Article no: 1044083

Position15

Quantity in drawing2

JPY9,900

excl. VAT

Few in stock (1)

Cover plate ECO under QSM60

Article no: 1044083

JPY9,900

Few in stock (1)

Cover plate GRD/SWD Coupling - QSM60 magnet

Article no: 1049327

Position56

Quantity in drawing1

JPY24,500

excl. VAT

Few in stock (4)

Cover plate GRD/SWD Coupling - QSM60 magnet

Article no: 1049327

JPY24,500

Few in stock (4)

Screw MC6S 10x60 12.9 ZFSHL ISO4762

Article no: 611503

Position14

Quantity in drawing4

JPY500

excl. VAT

In stock

Screw MC6S 10x60 12.9 ZFSHL ISO4762

Article no: 611503

JPY500

In stock

Screw MC6S 10x55 12.9 ZFSHL ISO4762

Article no: 612022

Position25

Quantity in drawing4

JPY400

excl. VAT

In stock

Screw MC6S 10x55 12.9 ZFSHL ISO4762

Article no: 612022

Torque: 79Nm Tighten in cross pattern

JPY400

In stock

Valve block QSM-steel

Article no: 1049297

Position21

Quantity in drawing1

JPY194,400

excl. VAT

Few in stock (1)

Valve block QSM-steel

Article no: 1049297

JPY194,400

Few in stock (1)

Coupling ECO QSM 3/8" female V3

Article no: 1055682

Position52

Quantity in drawing2

JPY48,800

excl. VAT

Few in stock (4)

Coupling ECO QSM 3/8" female V3

Article no: 1055682

Loxeal 83-52. (POS.53 included)

JPY48,800

Few in stock (4)

Adapter 401-04-04 90°

Article no: 710151

Position37

Quantity in drawing2

JPY2,800

excl. VAT

In stock

Adapter 401-04-04 90°

Article no: 710151

JPY2,800

In stock

Quick coupling 1/4" male 2520

Article no: 790111

Position63

Quantity in drawing2

JPY3,100

excl. VAT

In stock

Quick coupling 1/4" male 2520

Article no: 790111

JPY3,100

In stock

Screw MC6S 10x90 12.9 ZFSHL ISO4762

Article no: 6000153

Position17

Quantity in drawing4

JPY300

excl. VAT

In stock

Screw MC6S 10x90 12.9 ZFSHL ISO4762

Article no: 6000153

Torque: 79Nm

JPY300

In stock

Spacer ring-Slip ring QSM

Article no: 1046692

Position32

Quantity in drawing1

JPY10,300

excl. VAT

Few in stock (2)

Spacer ring-Slip ring QSM

Article no: 1046692

JPY10,300

Few in stock (2)

Dust protection 3/4" Coupling-male 7526

Article no: 790195

Position47

Quantity in drawing1

JPY1,500

excl. VAT

Few in stock (4)

Dust protection 3/4" Coupling-male 7526

Article no: 790195

JPY1,500

Few in stock (4)

Swivel stop QSM EC214

Article no: 1047831

Position23

Quantity in drawing2

JPY4,000

excl. VAT

Few in stock (1)

Swivel stop QSM EC214

Article no: 1047831

JPY4,000

Few in stock (1)

Pipe Plug RP M30x1,5 DIN908 FZB

Article no: 650410

Position7

Quantity in drawing6

JPY800

excl. VAT

Out of stock

Pipe Plug RP M30x1,5 DIN908 FZB

Article no: 650410

Part of rotator frame

JPY800

Out of stock

Screw MC6S 6x20 8.8 FZB ISO4762

Article no: 610310

Position36

Quantity in drawing3

JPY100

excl. VAT

In stock

Screw MC6S 6x20 8.8 FZB ISO4762

Article no: 610310

JPY100

In stock

Plate Slip ring QSM

Article no: 1046689

Position33

Quantity in drawing1

JPY4,800

excl. VAT

Few in stock (2)

Plate Slip ring QSM

Article no: 1046689

JPY4,800

Few in stock (2)

Quick coupling 3/4" male 7520

Article no: 790193

Position46

Quantity in drawing2

JPY19,900

excl. VAT

In stock

Quick coupling 3/4" male 7520

Article no: 790193

JPY19,900

In stock

Dust protection 1/4" male 2526

Article no: 790119

Position64

Quantity in drawing2

JPY900

excl. VAT

Few in stock (4)

Dust protection 1/4" male 2526

Article no: 790119

JPY900

Few in stock (4)

O-ring 249,3x5,7 NBR 70 shore Quick hitch EC214

Article no: 712424

Position3

Quantity in drawing1

JPY1,600

excl. VAT

Few in stock (4)

O-ring 249,3x5,7 NBR 70 shore Quick hitch EC214

Article no: 712424

JPY1,600

Few in stock (4)

Quick hitch QSM60 EC214 V3 cast

Article no: 1073715

Position1

Quantity in drawing1

JPY358,000

excl. VAT

Few in stock (1)

Quick hitch QSM60 EC214 V3 cast

Article no: 1073715

JPY358,000

Few in stock (1)

Rubber buffer Ø25,5/10 L7,5 Slip ring QSM

Article no: 1046691

Position31

Quantity in drawing1

JPY700

excl. VAT

Few in stock (2)

Rubber buffer Ø25,5/10 L7,5 Slip ring QSM

Article no: 1046691

Use the outer ring. Washer down

JPY700

Few in stock (2)

Hose

Article no: 7000789

Position57

Quantity in drawing1

JPY5,600

excl. VAT

Out of stock

Hose

Article no: 7000789

JPY5,600

Out of stock

Washer NL6-DPE 6,5x10,8x1,7

Article no: 611039

Position35

Quantity in drawing3

JPY200

excl. VAT

In stock

Washer NL6-DPE 6,5x10,8x1,7

Article no: 611039

JPY200

In stock

Adapter 136-12-12

Article no: 710126

Position45

Quantity in drawing2

JPY1,400

excl. VAT

In stock

Adapter 136-12-12

Article no: 710126

JPY1,400

In stock

Screw MC6S 5x10 12.9 untreated ISO4762

Article no: 610594

Position30

Quantity in drawing4

JPY100

excl. VAT

In stock

Screw MC6S 5x10 12.9 untreated ISO4762

Article no: 610594

JPY100

In stock

Plate Steering cable Slip ring QSM

Article no: 1046694

Position34

Quantity in drawing1

JPY5,400

excl. VAT

Few in stock (2)

Plate Steering cable Slip ring QSM

Article no: 1046694

JPY5,400

Few in stock (2)

Swivel 7-channel QSM with connection block QSM60 iron

Article no: 1050600

Position8

Quantity in drawing1

JPY538,600

excl. VAT

Out of stock

Swivel 7-channel QSM with connection block QSM60 iron

Article no: 1050600

JPY538,600

Out of stock

Cover plate Slip ring QSM

Article no: 1050384

Position29

Quantity in drawing1

JPY1,400

excl. VAT

Few in stock (2)

Cover plate Slip ring QSM

Article no: 1050384

JPY1,400

Few in stock (2)

Coupling ECO QSD/QSM 1/2" female V3

Article no: 1055420

Position48

Quantity in drawing2

JPY52,200

excl. VAT

Few in stock (2)

Coupling ECO QSD/QSM 1/2" female V3

Article no: 1055420

Loxeal 83-52. (POS.49 included)

JPY52,200

Few in stock (2)

Seal washer GBR12 3/4"

Article no: 710706

Position44

Quantity in drawing4

JPY200

excl. VAT

In stock

Seal washer GBR12 3/4"

Article no: 710706

JPY200

In stock

Adapter extra Bolted GRD 3/8"-1/4" 202mm QSM60-steel

Article no: 1050319

Position62

Quantity in drawing2

JPY15,300

excl. VAT

Few in stock (2)

Adapter extra Bolted GRD 3/8"-1/4" 202mm QSM60-steel

Article no: 1050319

JPY15,300

Few in stock (2)

Feather key 10x8x50 C45 EC05B,EC15,EC20,EC214,EC219,EC226

Article no: 650102

Position4

Quantity in drawing6

JPY400

excl. VAT

In stock

Feather key 10x8x50 C45 EC05B,EC15,EC20,EC214,EC219,EC226

Article no: 650102

JPY400

In stock

Screw MC6S 10x25 12.9 ZFSHL ISO4762

Article no: 6000195

Position16

Quantity in drawing4

JPY200

excl. VAT

In stock

Screw MC6S 10x25 12.9 ZFSHL ISO4762

Article no: 6000195

Torque: 79Nm

JPY200

In stock

Screw MC6S 10x30 12.9 ZFSHL ISO4762

Article no: 612018

Position13

Quantity in drawing4

JPY300

excl. VAT

In stock

Screw MC6S 10x30 12.9 ZFSHL ISO4762

Article no: 612018

JPY300

In stock

Adapter 401-06-08 90°

Article no: 710157

Position19

Quantity in drawing1

JPY4,300

excl. VAT

In stock

Adapter 401-06-08 90°

Article no: 710157

Assemble before valve block

JPY4,300

In stock

Hose

Article no: 7000790

Position58

Quantity in drawing1

JPY5,600

excl. VAT

Out of stock

Hose

Article no: 7000790

JPY5,600

Out of stock

Adapter 138-04-29 ( compact 136-04-04 )

Article no: 710135

Position54

Quantity in drawing2

JPY400

excl. VAT

In stock

Adapter 138-04-29 ( compact 136-04-04 )

Article no: 710135

JPY400

In stock

O-ring 17,17x1,78 PU/90 - ECO60 1/2"

Article no: 710913

Position65

Quantity in drawing2

JPY1,000

excl. VAT

In stock

O-ring 17,17x1,78 PU/90 - ECO60 1/2"

Article no: 710913

Used until 2020-01 Separate seal kit: 7000046

JPY1,000

In stock

Flat seal for ECO 1/2" V3

Article no: 1050018

Position49

Quantity in drawing2

JPY600

excl. VAT

In stock

Flat seal for ECO 1/2" V3

Article no: 1050018

JPY600

In stock

Flat seal for ECO 3/8" V3

Article no: 1052976

Position53

Quantity in drawing2

JPY500

excl. VAT

In stock

Flat seal for ECO 3/8" V3

Article no: 1052976

JPY500

In stock

Screw MC6S 16x90 12.9 ZFSHL ISO4762

Article no: 6000151

Position5

Quantity in drawing18

JPY1,400

excl. VAT

In stock

Screw MC6S 16x90 12.9 ZFSHL ISO4762

Article no: 6000151

Torque: 333Nm

JPY1,400

In stock

Screw K6S 10x20H 10.9 FZB ISO7380

Article no: 611812

Position24

Quantity in drawing2

JPY200

excl. VAT

In stock

Screw K6S 10x20H 10.9 FZB ISO7380

Article no: 611812

Loxeal 83-52

JPY200

In stock

O-ring 14x1,78 NBR 70 shore

Article no: 710975

Position11

Quantity in drawing7

JPY100

excl. VAT

In stock

O-ring 14x1,78 NBR 70 shore

Article no: 710975

JPY100

In stock

Quick coupling 1/2" male 5020

Article no: 790115

Position42

Quantity in drawing2

JPY4,300

excl. VAT

Few in stock (4)

Quick coupling 1/2" male 5020

Article no: 790115

JPY4,300

Few in stock (4)

Dust protection 1/2" male 5026

Article no: 790121

Position43

Quantity in drawing1

JPY900

excl. VAT

Few in stock (4)

Dust protection 1/2" male 5026

Article no: 790121

JPY900

Few in stock (4)

Adapter 402-04-04 45°

Article no: 7000104

Position67

Quantity in drawing4

JPY3,100

excl. VAT

In stock

Adapter 402-04-04 45°

Article no: 7000104

JPY3,100

In stock

Plug VSTIR12ED 1/2"

Article no: 711500

Position60

Quantity in drawing2

JPY1,200

excl. VAT

In stock

Plug VSTIR12ED 1/2"

Article no: 711500

JPY1,200

In stock

Adapter 401-06-06 90°

Article no: 710152

Position18

Quantity in drawing2

JPY3,200

excl. VAT

In stock

Adapter 401-06-06 90°

Article no: 710152

Assemble before valve block

JPY3,200

In stock

Seal washer GBR06 3/8"

Article no: 710703

Position50

Quantity in drawing4

JPY100

excl. VAT

In stock

Seal washer GBR06 3/8"

Article no: 710703

JPY100

In stock

Slip ring-QSM60/QS80 QSM M12

Article no: 1046763

Position28

Quantity in drawing1

JPY169,800

excl. VAT

Few in stock (2)

Slip ring-QSM60/QS80 QSM M12

Article no: 1046763

Mount with marine silicone

JPY169,800

Few in stock (2)

O-ring 7,66x1,68 square NBR 70 shore NG4

Article no: 7000579

Position10

Quantity in drawing2

JPY1,000

excl. VAT

In stock

O-ring 7,66x1,68 square NBR 70 shore NG4

Article no: 7000579

JPY1,000

In stock

Seal washer GBR08 1/2"

Article no: 710704

Position40

Quantity in drawing8

JPY200

excl. VAT

In stock

Seal washer GBR08 1/2"

Article no: 710704

JPY200

In stock

O-ring 12,42x1,78 PU - ECO45 3/8"

Article no: 712417

Position66

Quantity in drawing2

JPY600

excl. VAT

In stock

O-ring 12,42x1,78 PU - ECO45 3/8"

Article no: 712417

Used until 2020-01 Seperate seal kit: 7000045

JPY600

In stock

O-ring 17,17x1,78 NBR 70 shore

Article no: 710977

Position9

Quantity in drawing3

JPY100

excl. VAT

In stock

O-ring 17,17x1,78 NBR 70 shore

Article no: 710977

JPY100

In stock

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Position12

Quantity in drawing20

JPY300

excl. VAT

In stock

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

QTY: 8 without EC-Oil

JPY300

In stock

Seal washer GBR04 1/4"

Article no: 710702

Position55

Quantity in drawing4

JPY100

excl. VAT

In stock

Seal washer GBR04 1/4"

Article no: 710702

JPY100

In stock

O-ring 21,95x1,78 NBR 70 shore

Article no: 710983

Position26

Quantity in drawing2

JPY200

excl. VAT

In stock

O-ring 21,95x1,78 NBR 70 shore

Article no: 710983

(Incl. with valve block)

JPY200

In stock

Adapter tube extra 1/2" QSM60 steel

Article no: 1045926

Position41

Quantity in drawing4

JPY15,600

excl. VAT

Few in stock (4)

Adapter tube extra 1/2" QSM60 steel

Article no: 1045926

JPY15,600

Few in stock (4)
