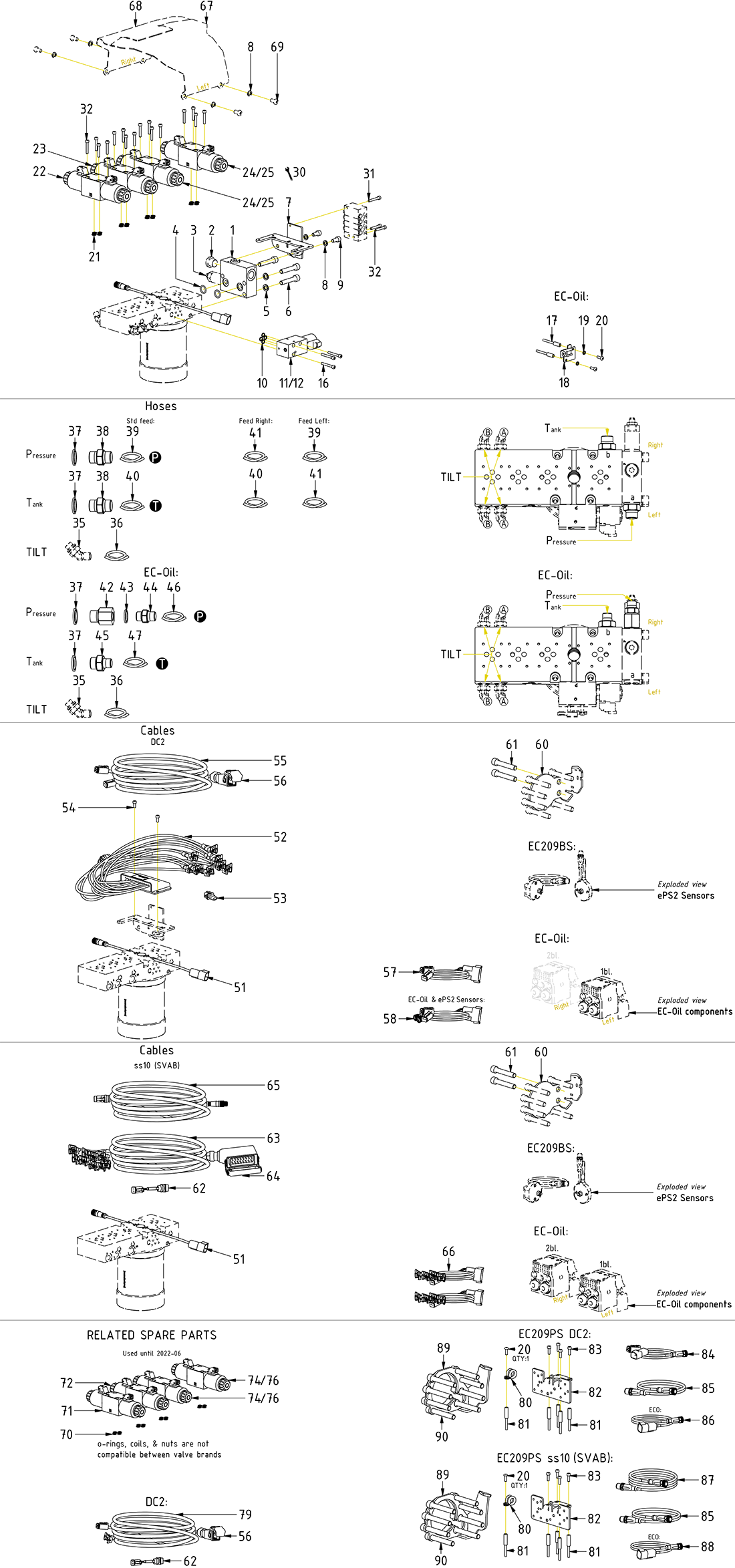

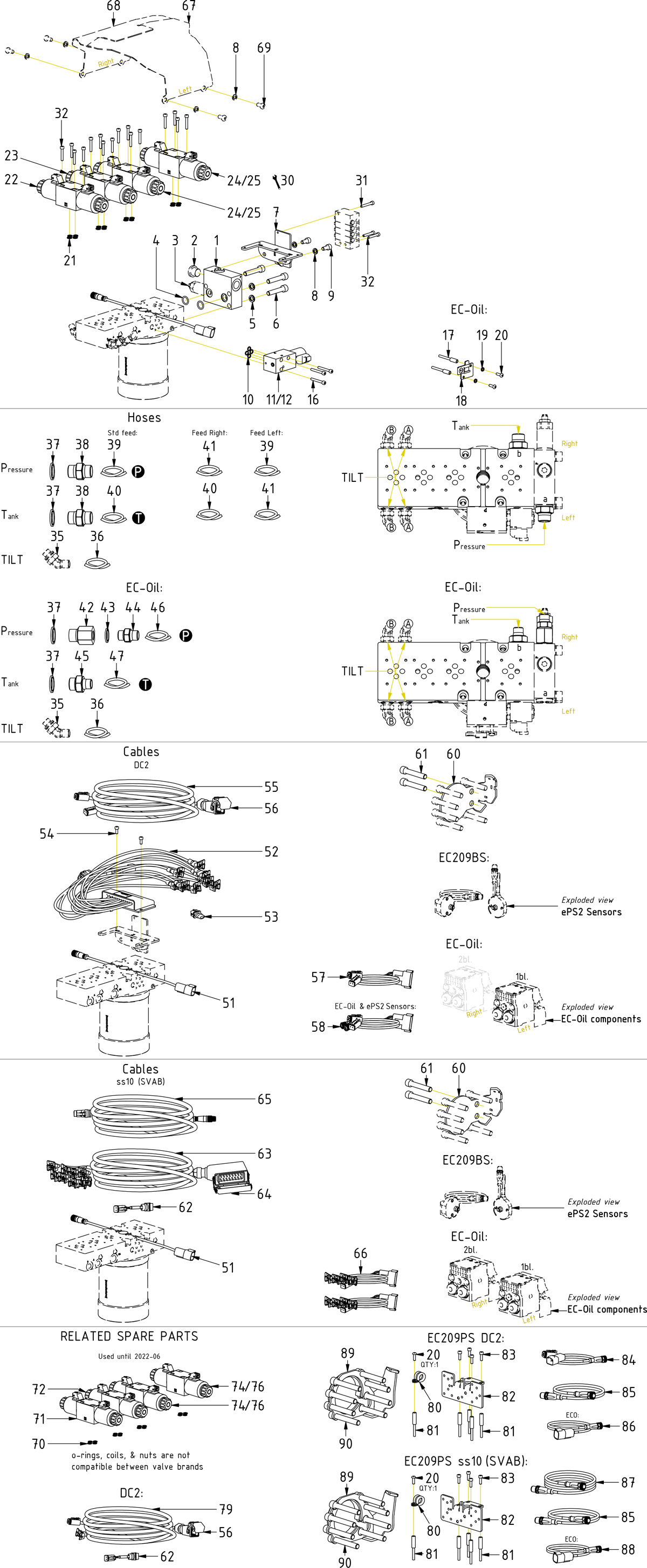

ss10 (DC2/SVAB)

Pos

Article

Extra Info

Quantity in drawing

Price (excl. VAT)

Hose

Article no: 7001267

Position46

Quantity in drawing1

JPY9,000

excl. VAT

Out of stock

Hose

Article no: 7001267

JPY9,000

Out of stock

Connection block P with pressure reducer QSM45/50

Article no: 1055945

Position1

Quantity in drawing1

JPY114,200

excl. VAT

Out of stock

Connection block P with pressure reducer QSM45/50

Article no: 1055945

(POS.2-3 incl.)

JPY114,200

Out of stock

Valve-Pressure reducer-SP4A-B3 EC209

Article no: 730288

Position3

Quantity in drawing1

JPY34,300

excl. VAT

Few in stock (1)

Valve-Pressure reducer-SP4A-B3 EC209

Article no: 730288

JPY34,300

Few in stock (1)

Adapter 235-08-06

Article no: 7000705

Position42

Quantity in drawing1

JPY1,200

excl. VAT

Few in stock (1)

Adapter 235-08-06

Article no: 7000705

JPY1,200

Few in stock (1)

Mounting plate-1x Deutsch NG4

Article no: 1058235

Position18

Quantity in drawing1

JPY6,000

excl. VAT

Out of stock

Mounting plate-1x Deutsch NG4

Article no: 1058235

JPY6,000

Out of stock

Screw MC6S 8x16H 12.9 untreated ISO4762

Article no: 610431

Position9

Quantity in drawing2

JPY100

excl. VAT

Out of stock

Screw MC6S 8x16H 12.9 untreated ISO4762

Article no: 610431

JPY100

Out of stock

Protective cover valve block EC209/209B QSM

Article no: 1056632

Position67

Quantity in drawing1

JPY11,000

excl. VAT

Few in stock (2)

Protective cover valve block EC209/209B QSM

Article no: 1056632

Part of make up

JPY11,000

Few in stock (2)

Hose

Article no: 7001265

Position39

Quantity in drawing1

JPY38,400

excl. VAT

Out of stock

Hose

Article no: 7001265

JPY38,400

Out of stock

Mounting plate-ePS-Tilt sensor-EC209 QSM45

Article no: 1057538

Position82

Quantity in drawing1

JPY16,700

excl. VAT

Few in stock (2)

Mounting plate-ePS-Tilt sensor-EC209 QSM45

Article no: 1057538

JPY16,700

Few in stock (2)

Attachment central lubrication & DC2-QSM45/50

Article no: 1055574

Position7

Quantity in drawing1

JPY12,800

excl. VAT

Out of stock

Attachment central lubrication & DC2-QSM45/50

Article no: 1055574

JPY12,800

Out of stock

Hose

Article no: 7001586

Position41

Quantity in drawing1

JPY16,800

excl. VAT

Out of stock

Hose

Article no: 7001586

Feed Right: Use this for "P" Feed Left: Use this for "T"

JPY16,800

Out of stock

Screw K6S 5x16H 10.9 FZB ISO7380

Article no: 611818

Position20

Quantity in drawing2

JPY100

excl. VAT

In stock

Screw K6S 5x16H 10.9 FZB ISO7380

Article no: 611818

Torque: 8,1Nm

JPY100

In stock

Hose

Article no: 7001266

Position40

Quantity in drawing1

JPY43,200

excl. VAT

Out of stock

Hose

Article no: 7001266

JPY43,200

Out of stock

Hose

Article no: 7001268

Position47

Quantity in drawing1

JPY8,600

excl. VAT

Out of stock

Hose

Article no: 7001268

JPY8,600

Out of stock

Protection plug for DTM06-6S

Article no: 8000090

Position59

Quantity in drawing1

JPY4,500

excl. VAT

In stock

Protection plug for DTM06-6S

Article no: 8000090

JPY4,500

In stock

Resistor cable 120ohm M12 5S-DTM 6P-0,4m

Article no: 8000825

Position88

Quantity in drawing1

JPY17,900

excl. VAT

Out of stock

Resistor cable 120ohm M12 5S-DTM 6P-0,4m

Article no: 8000825

For ECO w. ePS. Instead of POS.87

JPY17,900

Out of stock

Adapter cable DTM 6P-M12 5S

Article no: 8002459

Position86

Quantity in drawing1

JPY12,300

excl. VAT

Few in stock (2)

Adapter cable DTM 6P-M12 5S

Article no: 8002459

For EC-Oil w. ePS NB! Only compatible with 8002477

JPY12,300

Few in stock (2)

Rubber Steel Clamp Ø16

Article no: 6000009

Position80

Quantity in drawing1

JPY200

excl. VAT

In stock

Rubber Steel Clamp Ø16

Article no: 6000009

JPY200

In stock

Protection sensor -ePS, SVAB MACS-V2-EC209,EC214,EC219

Article no: 1033565

Position89

Quantity in drawing1

JPY43,200

excl. VAT

Out of stock

Protection sensor -ePS, SVAB MACS-V2-EC209,EC214,EC219

Article no: 1033565

JPY43,200

Out of stock

Adapter 135-06-08

Article no: 710122

Position45

Quantity in drawing1

JPY900

excl. VAT

In stock

Adapter 135-06-08

Article no: 710122

JPY900

In stock

Screw MC6S 12x80 12.9 ZFSHL ISO4762

Article no: 6000148

Position90

Quantity in drawing8

JPY300

excl. VAT

In stock

Screw MC6S 12x80 12.9 ZFSHL ISO4762

Article no: 6000148

Torque: 136Nm

JPY300

In stock

Screw MC6S 5x12 12.9 untreated ISO4762

Article no: 6000077

Position54

Quantity in drawing2

JPY100

excl. VAT

In stock

Screw MC6S 5x12 12.9 untreated ISO4762

Article no: 6000077

JPY100

In stock

Coil 12V NG6 JT on/off

Article no: 730117

Position75

Quantity in drawing4

JPY20,700

excl. VAT

Few in stock (2)

Coil 12V NG6 JT on/off

Article no: 730117

Used with POS.74

JPY20,700

Few in stock (2)

Washer NL5-DPE 5,4x9,0x1,7

Article no: 611038

Position19

Quantity in drawing2

JPY200

excl. VAT

In stock

Washer NL5-DPE 5,4x9,0x1,7

Article no: 611038

JPY200

In stock

O-ring 7,65x1,78 FKM 90 shore Viton NG4

Article no: 710960

Position10

Quantity in drawing4

JPY100

excl. VAT

In stock

O-ring 7,65x1,78 FKM 90 shore Viton NG4

Article no: 710960

JPY100

In stock

End lock protection plate EC209S/EC214S/EC219S

Article no: 1063372

Position60

Quantity in drawing1

JPY7,400

excl. VAT

Few in stock (2)

End lock protection plate EC209S/EC214S/EC219S

Article no: 1063372

JPY7,400

Few in stock (2)

Directional valve NG6 12V. 4D01-3203-0302-B1-GOR-JT ATOS

Article no: 7001617

Position24

Quantity in drawing2

JPY33,000

excl. VAT

Few in stock (2)

Directional valve NG6 12V. 4D01-3203-0302-B1-GOR-JT ATOS

Article no: 7001617

(POS.21, 27, 29 incl.)

JPY33,000

Few in stock (2)

Directional valve NG6 24V

Article no: 730103

Position76

Quantity in drawing2

JPY82,600

excl. VAT

Few in stock (1)

Directional valve NG6 24V

Article no: 730103

Replaced by POS.25 (ATOS)

JPY82,600

Few in stock (1)

Screw Valve Distance NG6 5x30.5

Article no: 1034402

Position81

Quantity in drawing5

JPY2,500

excl. VAT

In stock

Screw Valve Distance NG6 5x30.5

Article no: 1034402

JPY2,500

In stock

Unit cable ss10 JT EC206(B)-EC209(B)-3,4m

Article no: 303465

Position63

Quantity in drawing1

JPY85,000

excl. VAT

Out of stock

Unit cable ss10 JT EC206(B)-EC209(B)-3,4m

Article no: 303465

JPY85,000

Out of stock

Branch cable CAN DTM-DT/M12-ECO W ePS EC209B-EC233

Article no: 8001847

Position58

Quantity in drawing1

JPY33,000

excl. VAT

Few in stock (1)

Branch cable CAN DTM-DT/M12-ECO W ePS EC209B-EC233

Article no: 8001847

For EC-Oil & ePS2 Sensors Instead of agg.cable

JPY33,000

Few in stock (1)

Extension cable 5-pole M12-FULL 0,75m Robo hose

Article no: 8000784

Position85

Quantity in drawing1

JPY18,800

excl. VAT

Few in stock (2)

Extension cable 5-pole M12-FULL 0,75m Robo hose

Article no: 8000784

JPY18,800

Few in stock (2)

Screw MC6S 5x40 12.9 untreated ISO4762

Article no: 610405

Position16

Quantity in drawing3

JPY100

excl. VAT

In stock

Screw MC6S 5x40 12.9 untreated ISO4762

Article no: 610405

Torque: 9,7Nm. QTY: 1 when EC-Oil

JPY100

In stock

Nut directional valve Argo Hytos

Article no: 730135

Position78

Quantity in drawing8

JPY3,000

excl. VAT

In stock

Nut directional valve Argo Hytos

Article no: 730135

JPY3,000

In stock

Coil 12V NG6 prop JT ATOS

Article no: 7001734

Position26

Quantity in drawing4

JPY10,800

excl. VAT

Few in stock (2)

Coil 12V NG6 prop JT ATOS

Article no: 7001734

JPY10,800

Few in stock (2)

Hose Tilt Long

Article no: 7001308

Position36

Quantity in drawing4

JPY10,300

excl. VAT

Few in stock (4)

Hose Tilt Long

Article no: 7001308

JPY10,300

Few in stock (4)

O-ring 8,73x1,78 NBR 90 shore

Article no: 710959

Position21

Quantity in drawing16

JPY200

excl. VAT

In stock

O-ring 8,73x1,78 NBR 90 shore

Article no: 710959

JPY200

In stock

Coil 24V NG6 JT on/off

Article no: 730118

Position77

Quantity in drawing4

JPY20,700

excl. VAT

Few in stock (2)

Coil 24V NG6 JT on/off

Article no: 730118

Used with POS.76

JPY20,700

Few in stock (2)

ILME cover 66.16 with lever CZC 25 LG

Article no: 810235

Position64

Quantity in drawing1

JPY8,500

excl. VAT

Out of stock

ILME cover 66.16 with lever CZC 25 LG

Article no: 810235

(Incl. with agg.cable)

JPY8,500

Out of stock

Nut directional valve ATOS

Article no: 7001887

Position29

Quantity in drawing8

JPY500

excl. VAT

Out of stock

Nut directional valve ATOS

Article no: 7001887

JPY500

Out of stock

Coil 24V NG6 JT on/off ATOS

Article no: 7001736

Position28

Quantity in drawing4

JPY23,900

excl. VAT

Few in stock (1)

Coil 24V NG6 JT on/off ATOS

Article no: 7001736

JPY23,900

Few in stock (1)

Resistor cable 120ohm M12 5S-M12 5S-3m

Article no: 8000824

Position87

Quantity in drawing1

JPY29,900

excl. VAT

Few in stock (2)

Resistor cable 120ohm M12 5S-M12 5S-3m

Article no: 8000824

JPY29,900

Few in stock (2)

Directional valve NG6 prop 12V engcon JT open to tank

Article no: 7000092

Position71

Quantity in drawing1

JPY165,100

excl. VAT

Few in stock (2)

Directional valve NG6 prop 12V engcon JT open to tank

Article no: 7000092

Replaced by POS.22 (ATOS)

JPY165,100

Few in stock (2)

Coil 12V NG6 JT on/off ATOS

Article no: 7001735

Position27

Quantity in drawing4

JPY9,000

excl. VAT

In stock

Coil 12V NG6 JT on/off ATOS

Article no: 7001735

JPY9,000

In stock

Breakout cable CAN DT-DC2 EC 0,32/0,25m

Article no: 8000783

Position84

Quantity in drawing1

JPY22,100

excl. VAT

Few in stock (2)

Breakout cable CAN DT-DC2 EC 0,32/0,25m

Article no: 8000783

JPY22,100

Few in stock (2)

Directional valve NG6 12V. 4D01-3203-0302-B1-GOR-JT

Article no: 730101

Position74

Quantity in drawing2

JPY72,800

excl. VAT

Few in stock (2)

Directional valve NG6 12V. 4D01-3203-0302-B1-GOR-JT

Article no: 730101

Replaced by POS.24 (ATOS)

JPY72,800

Few in stock (2)

Coil NG4 IQS lock 12V DT

Article no: 1042065

Position13

Quantity in drawing1

JPY22,100

excl. VAT

In stock

Coil NG4 IQS lock 12V DT

Article no: 1042065

JPY22,100

In stock

Directional valve NG4 IQS lock 24V DT ss10 Coil A

Article no: 1042190

Position12

Quantity in drawing1

JPY159,000

excl. VAT

Few in stock (5)

Directional valve NG4 IQS lock 24V DT ss10 Coil A

Article no: 1042190

(POS.10, 14, 15 incl.)

JPY159,000

Few in stock (5)

Coil NG4 IQS lock 24V DT

Article no: 1042066

Position14

Quantity in drawing1

JPY22,100

excl. VAT

Out of stock

Coil NG4 IQS lock 24V DT

Article no: 1042066

JPY22,100

Out of stock

ILME cover21.21 with lever CKAX 03 CXA

Article no: 810208

Position56

Quantity in drawing1

JPY5,600

excl. VAT

Out of stock

ILME cover21.21 with lever CKAX 03 CXA

Article no: 810208

(Incl. with agg.cable)

JPY5,600

Out of stock

Protective cover valve block EC209/209B QSM - Lip

Article no: 1056633

Position68

Quantity in drawing1

JPY10,800

excl. VAT

Few in stock (2)

Protective cover valve block EC209/209B QSM - Lip

Article no: 1056633

Part of make up

JPY10,800

Few in stock (2)

Screw Valve Distance 5x39

Article no: 1047243

Position17

Quantity in drawing2

JPY1,400

excl. VAT

In stock

Screw Valve Distance 5x39

Article no: 1047243

Torque: 9,7Nm

JPY1,400

In stock

Adapter cable DTM 12P-DT 2S/4xJT 2S

Article no: 1029599

Position66

Quantity in drawing2

JPY34,600

excl. VAT

Out of stock

Adapter cable DTM 12P-DT 2S/4xJT 2S

Article no: 1029599

For ECO45. Instead of POS.62-65

JPY34,600

Out of stock

O-ring 15,54 x 2,62 NBR 70 shore

Article no: 712423

Position4

Quantity in drawing2

JPY100

excl. VAT

In stock

O-ring 15,54 x 2,62 NBR 70 shore

Article no: 712423

JPY100

In stock

Adapter cable DTM 12P-DT 4S/2S

Article no: 1048529

Position57

Quantity in drawing1

JPY28,400

excl. VAT

Few in stock (2)

Adapter cable DTM 12P-DT 4S/2S

Article no: 1048529

For EC-Oil. Instead of agg.cable

JPY28,400

Few in stock (2)

Electronics Module TM2-EC206B-233/EC10-30 DC2 QS-DTM

Article no: 842137

Position52

Quantity in drawing1

JPY196,000

excl. VAT

Few in stock (4)

Electronics Module TM2-EC206B-233/EC10-30 DC2 QS-DTM

Article no: 842137

JPY196,000

Few in stock (4)

Screw MC6S 5x35 12.9 untreated ISO4762

Article no: 610404

Position31

Quantity in drawing1

JPY100

excl. VAT

In stock

Screw MC6S 5x35 12.9 untreated ISO4762

Article no: 610404

JPY100

In stock

Jumper JT 2P POS:1-2

Article no: 1018662

Position53

Quantity in drawing1

JPY2,900

excl. VAT

In stock

Jumper JT 2P POS:1-2

Article no: 1018662

Plug JT connector "1"

JPY2,900

In stock

Unit cable DC2 DT EC206-EC233-3,9m

Article no: 8001201

Position55

Quantity in drawing1

JPY46,800

excl. VAT

Out of stock

Unit cable DC2 DT EC206-EC233-3,9m

Article no: 8001201

JPY46,800

Out of stock

Directional valve NG6 prop 12V engcon JT ATOS

Article no: 7001614

Position23

Quantity in drawing1

JPY97,100

excl. VAT

Few in stock (1)

Directional valve NG6 prop 12V engcon JT ATOS

Article no: 7001614

(POS.21, 26, 29 incl.)

JPY97,100

Few in stock (1)

Nut bulkhead adapter 1270-04

Article no: 710250

Position15

Quantity in drawing1

JPY400

excl. VAT

In stock

Nut bulkhead adapter 1270-04

Article no: 710250

JPY400

In stock

Screw MC6S 5x30 12.9 untreated ISO4762

Article no: 610403

Position32

Quantity in drawing18

JPY100

excl. VAT

In stock

Screw MC6S 5x30 12.9 untreated ISO4762

Article no: 610403

Torque: 9,7Nm

JPY100

In stock

Directional valve NG4 IQS lock 12V DT ss10 Coil A

Article no: 1042047

Position11

Quantity in drawing1

JPY159,000

excl. VAT

In stock

Directional valve NG4 IQS lock 12V DT ss10 Coil A

Article no: 1042047

(POS.10, 13, 15 incl.)

JPY159,000

In stock

O-ring 9,25x1,78 FKM 90 shore Viton Green NG6

Article no: 710901

Position70

Quantity in drawing16

JPY100

excl. VAT

In stock

O-ring 9,25x1,78 FKM 90 shore Viton Green NG6

Article no: 710901

Used until 2022-06

JPY100

In stock

Adapter cable JT 2P-DT 2S

Article no: 1017478

Position62

Quantity in drawing1

JPY9,900

excl. VAT

Few in stock (2)

Adapter cable JT 2P-DT 2S

Article no: 1017478

(Previously also for DC2)

JPY9,900

Few in stock (2)

Plug VSTIR12ED 1/2"

Article no: 711500

Position2

Quantity in drawing1

JPY1,200

excl. VAT

In stock

Plug VSTIR12ED 1/2"

Article no: 711500

Opposite side for EC-Oil

JPY1,200

In stock

Adapter cable M12 8P-DTM 6S

Article no: 842148

Position65

Quantity in drawing1

JPY41,700

excl. VAT

Out of stock

Adapter cable M12 8P-DTM 6S

Article no: 842148

JPY41,700

Out of stock

Directional valve NG6 prop 12V engcon JT open to tank ATOS

Article no: 7001615

Position22

Quantity in drawing1

JPY97,100

excl. VAT

Out of stock

Directional valve NG6 prop 12V engcon JT open to tank ATOS

Article no: 7001615

(POS.21, 26, 29 incl.)

JPY97,100

Out of stock

Directional valve NG6 prop 12V engcon JT

Article no: 730190

Position72

Quantity in drawing1

JPY168,200

excl. VAT

Few in stock (2)

Directional valve NG6 prop 12V engcon JT

Article no: 730190

Replaced by POS.23 (ATOS)

JPY168,200

Few in stock (2)

Unit cable DC2 JT EC206-EC233-3,9m

Article no: 8000175

Position79

Quantity in drawing1

JPY50,000

excl. VAT

Out of stock

Unit cable DC2 JT EC206-EC233-3,9m

Article no: 8000175

Replaced by POS.55 from 2020-12

JPY50,000

Out of stock

Screw MC6S 12x70 12.9 ZFSHL ISO4762

Article no: 611517

Position61

Quantity in drawing8

JPY600

excl. VAT

In stock

Screw MC6S 12x70 12.9 ZFSHL ISO4762

Article no: 611517

Torque: 136Nm

JPY600

In stock

Coil 12V NG6 prop JT

Article no: 730192

Position73

Quantity in drawing4

JPY27,900

excl. VAT

Few in stock (2)

Coil 12V NG6 prop JT

Article no: 730192

Used with POS.71-72

JPY27,900

Few in stock (2)

Directional valve NG6 24V JT ATOS

Article no: 7001616

Position25

Quantity in drawing2

JPY33,000

excl. VAT

Out of stock

Directional valve NG6 24V JT ATOS

Article no: 7001616

(POS.21, 28, 29 incl.)

JPY33,000

Out of stock

Screw K6S 8x16H 10.9 FZB ISO7380

Article no: 611810

Position69

Quantity in drawing4

JPY400

excl. VAT

In stock

Screw K6S 8x16H 10.9 FZB ISO7380

Article no: 611810

Part of make up

JPY400

In stock

Screw MC6S 10x50 12.9 ZFSHL ISO4762

Article no: 611515

Position6

Quantity in drawing3

JPY600

excl. VAT

In stock

Screw MC6S 10x50 12.9 ZFSHL ISO4762

Article no: 611515

Torque: 79Nm

JPY600

In stock

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Position8

Quantity in drawing6

JPY300

excl. VAT

In stock

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

QTY: 4 part of make up

JPY300

In stock

Seal washer GBR08 1/2"

Article no: 710704

Position37

Quantity in drawing3

JPY200

excl. VAT

In stock

Seal washer GBR08 1/2"

Article no: 710704

JPY200

In stock

Adapter 136-08-08

Article no: 710108

Position38

Quantity in drawing2

JPY900

excl. VAT

Few in stock (4)

Adapter 136-08-08

Article no: 710108

JPY900

Few in stock (4)

Seal washer GBR06 3/8"

Article no: 710703

Position43

Quantity in drawing1

JPY100

excl. VAT

In stock

Seal washer GBR06 3/8"

Article no: 710703

JPY100

In stock

Adapter 136-06-06

Article no: 710106

Position44

Quantity in drawing1

JPY400

excl. VAT

In stock

Adapter 136-06-06

Article no: 710106

JPY400

In stock

Adapter 402-04-04 45°

Article no: 7000104

Position35

Quantity in drawing4

JPY3,100

excl. VAT

In stock

Adapter 402-04-04 45°

Article no: 7000104

Part of quick hitch assy.

JPY3,100

In stock

Screw MC6S 5x16 12.9 untreated ISO4762

Article no: 610401

Position83

Quantity in drawing4

JPY100

excl. VAT

In stock

Screw MC6S 5x16 12.9 untreated ISO4762

Article no: 610401

JPY100

In stock

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Position5

Quantity in drawing3

JPY300

excl. VAT

In stock

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

JPY300

In stock
